Installation Guide
Removable Power Supply and Fan
AT-PWR01
AT-PWR02
AT-PWR05
AT-FAN01
AT-FAN03
Removable Power Supply and Fan
Installation Guide
AT-PWR01
AT-PWR02
AT-PWR05
AT-FAN01
AT-FAN03
Download the complete document set from
www.alliedtelesis.com/support/software
Removable Power Supply and Fan
2
Removable Power Supply and Fan Installation Guide
Document Number C613-04057-00 REV L
© 2008 Allied Telesis, Inc. All rights reserved. No part of this publication may be
reproduced without prior written permission from Allied Telesis, Inc.
Allied Telesis, Inc. reserves the right to change specifications and other
information in this document without prior written notice. The information
provided herein is subject to change without notice. In no event shall Allied
Telesis, Inc. be liable for any incidental, special, indirect, or consequential
damages whatsoever, including but not limited to lost profits, arising out of or
related to this manual or the information contained herein, even if Allied Telesis,
Inc. has been advised of, known, or should have known, the possibility of such
damages.
Allied Telesis, AlliedWare, AlliedWare Plus, and SwitchBlade are trademarks or
registered trademarks in the United States and elsewhere of Allied Telesis, Inc.
Adobe, Acrobat, and Reader are either registered trademarks or trademarks of
Adobe Systems Incorporated in the United States and/or other countries.
Microsoft and Visio are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries. Additional brands,
names and products mentioned herein may be trademarks of their respective
companies.
Installation Guide
3
Contents
About this Guide .............................................................................................................. 4
Compatible Switches ....................................................................................................... 4
Package Contents ............................................................................................................. 5
Installing a Power Supply Unit or Fan .......................................................................... 6
Connecting an AC power supply .................................................................................. 9
Connecting a DC power supply .................................................................................. 11
Checking LEDs ................................................................................................................ 13
Removing a Power Supply Unit or Fan ...................................................................... 15
Troubleshooting .............................................................................................................. 16
Obtaining Documentation and Resources ............................................................... 17
Standards .......................................................................................................................... 19
EC Declaration of Conformity .................................................................................... 20
Removable Power Supply and Fan
4
About this Guide
This Installation Guide describes how to install the following PSUs and fans:
■AT-PWR01 PSU, either AC or DC power supply unit
■AT-PWR02 PSU, AC o nly
■AT-PWR05 PSU, AC o nly
■AT-FAN01, fan-only module
■AT-FAN03, chassis fan module
Compatible Switches
The following table shows which models of PSUs and fans are appropriate for
individual switches.
You can download complete documentation for these switches from
www.alliedtelesis.com/support/software. For more information about the
documentation and other resources, see “Obtaining Documentation and
Resources” on page 17.
Switch PWR01 PWR02 PWR05 FAN01 FAN03
AT-8948 !!
x900-48FE !!
x900-48FS !!
AT-9924T !!
AT-9924SP !!
AT-9924Ts !!
x900-24XT !!
x900-24XT-N !!
x900-24XS !!
SwitchBlade®x908 !!
Installation Guide
5
Package Contents
Depending on the model, switches are shipped with a single supply unit (PSU),
either AC or DC. Some models also have fan-only modules (FOM), chassis fan
modules, or blanking plates.
■The AT-8948, AT-9924Ts, x900-24XT, x900-24XT-N, and x900-24XS
switches have a PSU and a FOM installed.
■The x900-48FE, x900-48FS, AT-9924T, and AT-9924SP switches have a PSU
and a blanking plate installed.
■The SwitchBlade®x908 is shipped with dual chassis fan modules and
blanking plates, but no PSUs.
The following items are included with each factory-installed PSU. Contact your
authorised Allied Telesis distributor or reseller if any are damaged or missing.
■one AC power cord (AC models)
■one power cord retaining clip (AC models)
■one warranty card
The following items are included with PSUs when purchased separately:
■one AC power cord (AC models)
■one power cord retaining clip (PWR01 and PWR02 AC models only)
■one clip-on ferrite core (PWR05 only)
■this Installation Guide
■one warranty card
The following items are included with fans when purchased separately:
■this Installation Guide
■one warranty card
Removable Power Supply and Fan
6
Installing a Power Supply Unit or Fan
Use these instructions to install PSUs, chassis fan modules and FOMs.
■Do not combine PWR01 and PWR02 PSUs in the same switch.
■Do not combine AC and DC PSUs in the same switch.
Before you begin
■Read the safety information for the switch.
Safety information is in the x900 Series Switch and SwitchBlade®x908
Installation and Safety Guide. You can download this document from
www.alliedtelesis.com/support/software.
■Gather necessary tools and equipment.
You will need an appropriate flat-bladed or Phillips (#1) screwdriver to tighten
or loosen the captive screws.
■Verify the package contents if you have not already done so.
See “Package Contents” on page 5. Contact your authorised Allied Telesis
distributor or reseller if items are damaged or missing.
■Remove the unit from its packing material in an anti-static environment.
Caution Follow correct anti-static procedures. Failure to do so could
damage the PSU, fan, or switch. If you are unsure about correct procedures,
contact your authorised Allied Telesis distributor or reseller.
Caution When adding or replacing power supplies, keep your hands and
fingers out of the power supply bays. After installing a PWR05 power supply,
use a screwdriver to tighten the captive screw such that a screwdriver will be
required to remove the PSU at a later date.
Installation Guide
7
Installing a PWR01, PWR02, or FAN01
1. If you are replacing a PSU, disconnect the power cord from the currently
installed PSU before removing it.
For AC PSUs, turn off the main power source to the PSU and disconnect
the power cord.
For DC PSUs, push the Run/Standby control and release it to the Off
position. When the Run/Standby control is not depressed, it is off.
Disconnect the supply cable wires from the circuit breaker.
2. Remove the current PSU, fan, or blanking plate from the switch.
Loosen the captive screws until fully loosened.
If a unit is already in the bay, slide it out slowly and carefully. Support the
unit from underneath as you remove it to prevent it from falling.
Cover empty bays with a blanking plate because dust and debris could
overheat or damage the unit and switch.
3. Insert the new PSU or fan unit, and carefully slide it into the bay.
Insert it slowly, being sure to keep it straight. Firmly press the unit until the
faceplate engages, or nearly engages, the chassis. Forcing a misaligned unit
into the bay is likely to damage both the unit and chassis.
Note that when you have only one PSU installed in the AT-9924T and
AT-9924SP switches, it must be installed in bay 2 to optimise cooling.
4. Secure the unit in the switch by tightening the captive screws on the
faceplate.
Captive screw
Captive screw
PSU
Switch
Removable Power Supply and Fan
8
Installing a PWR05 or FAN03
1. If you are replacing a PSU, turn off the main power source to the PSU and
disconnect the power cord before removing it.
The DC earthing connection is not necessary for the SwitchBlade x908 when
using AC PSUs because the chassis is grounded through the power cords.
2. Remove the current PSU, fan module, or blanking plate from the switch.
Using a screwdriver, loosen the captive screw(s) until fully loosened.
If a unit is already in the bay, slide it out slowly and carefully. Support the
unit from underneath as you remove it to prevent it from falling.
Avoid the spinning blades on chassis fan modules. Contact may cause
personal injury or damage the unit.
Cover empty bays because dust and debris could overheat or damage the
unit and switch. Do not operate the switch for extended periods without
functioning chassis fan modules. Doing so will cause the switch to overheat
and shut down, and may damage the switch.
3. Insert the new PSU or chassis fan module, and carefully slide it into the bay.
If you are installing a PSU, unlock the latch on the PSU first by loosening the
captive screw.
Insert the PSU or fan module slowly, being sure to keep it straight. Firmly
press the unit until the faceplate engages, or nearly engages, the chassis.
Forcing a misaligned unit into the bay may damage both the unit and chassis.
4. Secure the unit in the switch by tightening the captive screw(s) on the
faceplate. On the PWR05, use a screwdriver to tighten the captive screw
such that a screwdriver will be required to remove the PSU at a later date.
Captive screw
PSU bays
PSU
Captive screw
Chassis fan
Service
access
panels
Installation Guide
9
Connecting an AC power supply
Follow these instructions to connect an AT-PWR01, AT-PWR02, or AT-PWR05
AC PSU to an AC power supply:
Warning The AT-PWR01 AC PSU has a fuse rating of 250V, 5A for FH101 and
FH102.
Warning The AT-PWR01 AC PSU has double pole/neutral fusing. Electric
shock is possible since there are dual primary fuses, one on the phase circuit and
one on the neutral circuit. If the neutral opens, the phase may still be live.
Warning For SwitchBlade x908 AC models the grounding stud on the rear of
the unit is for supplemental grounding only. The system must be supplied by a
grounded 3 wire AC source through the power supply cord.
Connecting a PWR01 or PWR02
1. Plug the supplied AC power cord into the power inlet on the PSU and
attach the retaining clip.
2. Connect the power cord to the main power source.
3. The PSU LED on the front panel of the switch lights green. If the LED does
not light, refer to the Hardware Reference for troubleshooting information.
Connecting a PWR05

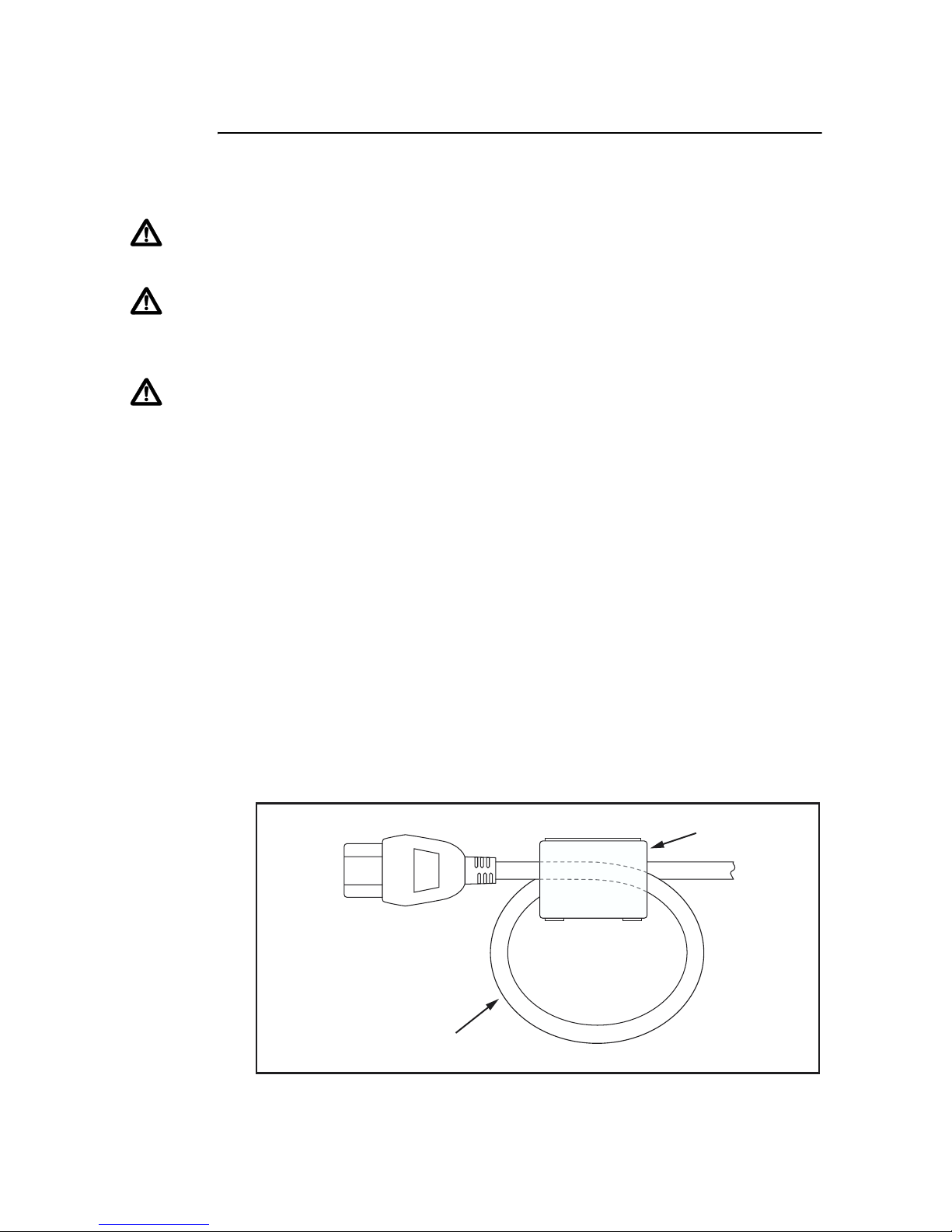

1. Form a loop in the supplied AC power cord at the PSU end and clip the
ferrite core over the looped cord, as shown in the following illustration.
This keeps the ferrite core in its correct position, close to the PSU.
2. Plug the AC power cord into the power inlet on the PSU.
Looped power cord
Ferrite core
Este manual sirve para los siguientes modelos
6
Tabla de contenidos
Otros manuales de Fuente de alimentación de Allied Telesis
Allied Telesis
Allied Telesis AT-MCF2000AC Manual de usuario
Allied Telesis
Allied Telesis AT-PBPWRDC Manual de usuario
Allied Telesis
Allied Telesis AT-WDRPS-80 Manual de usuario
Allied Telesis
Allied Telesis AT-PWR01 Manual de usuario
Allied Telesis
Allied Telesis IE048-480 Manual de usuario
Allied Telesis
Allied Telesis CONVERTEON AT-PWR14 Manual de usuario
Allied Telesis
Allied Telesis AT-8516F/SC Series Manual de usuario
Allied Telesis
Allied Telesis AT-WDRPS-10 Manual de usuario
Allied Telesis
Allied Telesis AT-PWR10 Manual de usuario
Allied Telesis
Allied Telesis AT-9408LC/SP Series Manual de usuario
Allied Telesis
Allied Telesis AT-PWR9 Manual de usuario
Allied Telesis
Allied Telesis AT-PWR11 Manual de usuario
Allied Telesis
Allied Telesis AT-PWR3202 Manual de usuario
Allied Telesis
Allied Telesis AT-RPS3000 Manual de usuario
Allied Telesis
Allied Telesis AT-RPS3204 Manual de usuario
Allied Telesis
Allied Telesis SWITCHBLADE 4000 Manual de usuario
Allied Telesis
Allied Telesis AT-PWR4 Manual de usuario
Allied Telesis
Allied Telesis AT-BRPS8000 Manual de usuario
Allied Telesis
Allied Telesis AT-8524POE Series Manual de usuario
Allied Telesis
Allied Telesis AT-RPS8000 Manual de usuario
