Alliance Laundry Systems UM202 Series Manual del propietario

Installation/Operation/Maintenance

Washer-Extractor

Top Loading

Refer to Page 3 for Model Identification

U140R

NOTA: El manual en

español aparece después

del manual en inglés.

Part No. F232113R0

October 2000

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

means without the expressed written consent of the publisher.

F232113 1

Table of

Contents

Introduction......................................................................................... 3

Model Identification ............................................................................. 3

Nameplate Location.............................................................................. 3

Replacement Parts ................................................................................ 3

Customer Service.................................................................................. 3

Safety Information.............................................................................. 5

Important Safety Instructions ............................................................... 5

Specifications and Dimensions........................................................... 7

Installation........................................................................................... 11

Dimensional Clearances ....................................................................... 11

Machine Foundation ............................................................................. 11

Machine Anchoring .............................................................................. 11

Electrical Installation............................................................................ 12

Drain Connection.................................................................................. 14

Water Connection ................................................................................. 15

Control Function Test........................................................................... 16

Operation............................................................................................. 17

Control Panel ........................................................................................ 17

Operating Instructions .......................................................................... 18

Maintenance ........................................................................................ 21

Daily ..................................................................................................... 21

Weekly.................................................................................................. 21

Monthly................................................................................................. 21

2F232113

Notes

F232113

Introduction

Model Identification

Information in this manual is applicable to these

models:

Nameplate Location

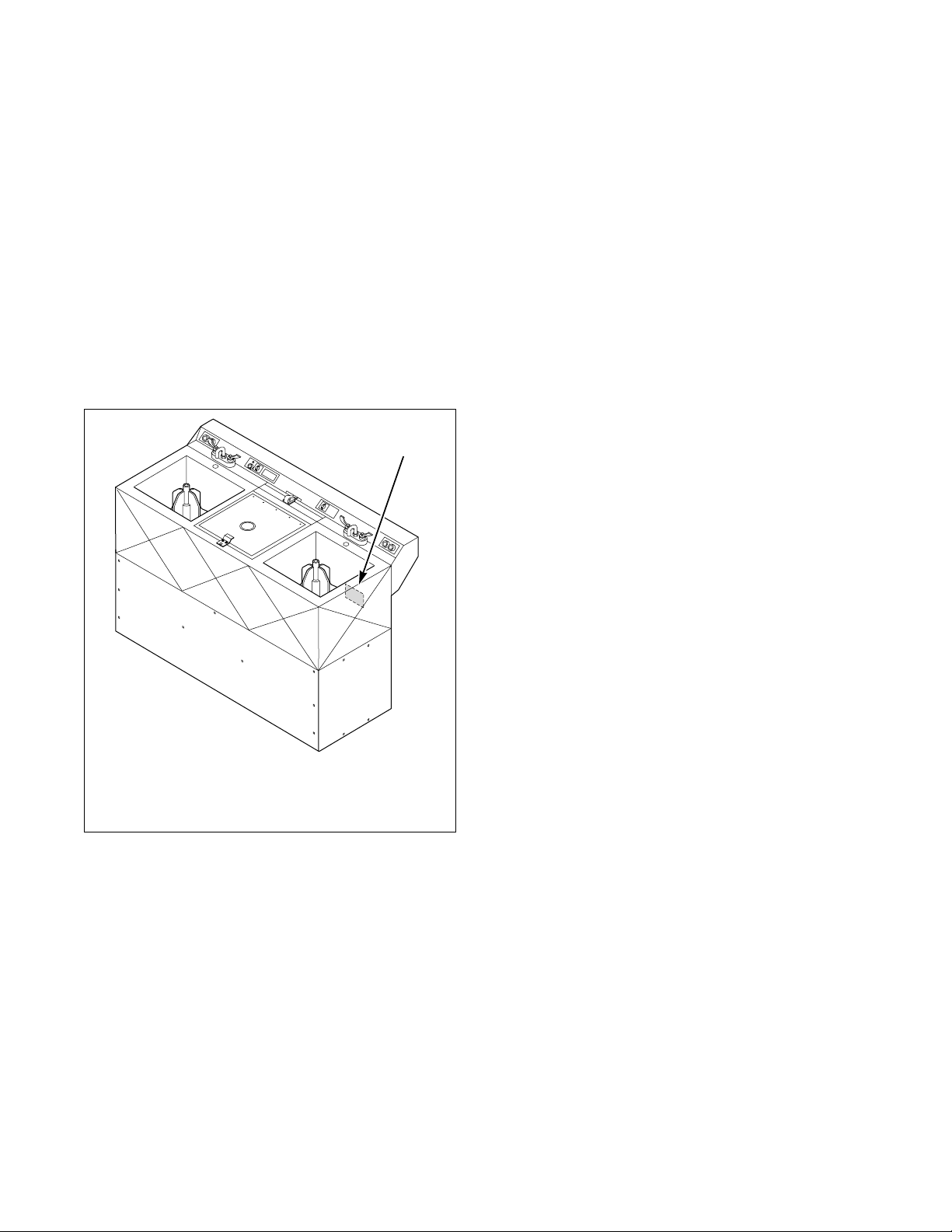

The nameplate decal is located at the rear of the

machine. Always provide the machine’s serial number

and model number when ordering parts or when

seeking technical assistance.

Replacement Parts

If literature or replacement parts are required, contact

the source from whom the machine was purchased or

contact Alliance Laundry Systems LLC at (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

Customer Service

For technical assistance, call any of the following

numbers:

(850) 718-1035

(850) 718-1026

Marianna, Florida

(920) 748-3121

Ripon, Wisconsin

UM100

UM202

U151I

1Nameplate

U151I

F232113

Notes

F232113

Safety Information

Precautionary statements (“CAUTION,”

“WARNING,”and “DANGER”), followed by specific

instructions, are found in this manual and on machine

decals. These precautions are intended for the personal

safety of the operator, user, servicer, and those

maintaining the machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT”is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE”is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

Important Safety Instructions

1. Read all instructions before using the washer.

2. Refer to the GROUNDING INSTRUCTIONS in

the INSTALLATION manual for the proper

grounding of the washer.

3. Do not wash textiles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, dry-cleaning solvents, or other

flammable or explosive substances as they give

off vapors that could ignite or explode.

4. Do not add gasoline, dry-cleaning solvents, or

other flammable or explosive substances to the

wash water. These substances give off vapors that

could ignite or explode.

5. Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system has not

been used for such a period, before using a

washing machine or combination washer-dryer,

turn on all hot water faucets and let the water

flow from each for several minutes. This will

release any accumulated hydrogen gas. The gas is

flammable, do not smoke or use an open flame

during this time.

6. Do not allow children to play on or in the washer.

Close supervision of children is necessary when

the washer is used near children. This is a safety

rule for all appliances.

7. Before the washer is removed from service or

discarded, remove the door to the washing

compartment.

8. Do not reach into the washer if the wash drum is

moving.

DANGER indicates the presence of a

hazard that will cause severe personal

injury, death, or substantial property

damage if the danger is ignored.

DANGER

WARNING indicates the presence of a

hazard that can cause severe personal

injury, death, or substantial property

damage if the warning is ignored.

WARNING

CAUTION indicates the presence of a

hazard that will or can cause minor

personal injury or property damage if the

caution is ignored.

CAUTION

To reduce the risk of fire, electric shock,

serious injury or death to persons when

using your washer, follow these basic

precautions:

W023E

WARNING

Safety Information

F232113

9. Do not install or store the washer where it will be

exposed to water and/or weather.

10. Do not tamper with the controls.

11. Do not repair or replace any part of the washer, or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that the user understands and has the

skills to carry out.

12. To reduce the risk of an electric shock or fire, DO

NOT use an extension cord or an adapter to

connect the washer to the electrical power source.

13. Use washer only for its intended purpose,

washing textiles.

14. ALWAYS disconnect the washer from electrical

supply before attempting any service. Disconnect

the power cord by grasping the plug, not the cord.

15. Install the washer according to the

INSTALLATION INSTRUCTIONS. All

connections for water, drain, electrical power and

grounding must comply with local codes and be

made by licensed personnel when required.

16. To reduce the risk of fire, textiles which have

traces of any flammable substances such as

vegetable oil, cooking oil, machine oil,

flammable chemicals, thinner, etc. or anything

containing wax or chemicals such as in mops and

cleaning cloths, must not be put into the washer.

These flammable substances may cause the

fabric to catch on fire by itself.

17. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

18. Keep washer in good condition. Bumping or

dropping the washer can damage safety features.

If this occurs, have washer checked by a qualified

service person.

19. Replace worn power cords and/or loose plugs.

20. Be sure water connections have a shut-off valve

and that fill hose connections are tight. CLOSE

the shut-off valves at the end of each wash day.

21. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of the reach of children at all times

(preferably in a locked cabinet).

22. Always follow the fabric care instructions

supplied by the textile manufacturer.

23. Never operate the washer with any guards

and/or panels removed.

24. DO NOT operate the washer with missing or

broken parts.

25. DO NOT by-pass any safety devices.

26. Failure to install, maintain, and/or operate this

washer according to the manufacturer's

instructions may result in conditions which can

produce bodily injury and/or property damage.

NOTE: The WARNING and IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining, or operating the washer.

Any problems or conditions not understood should be

reported to the dealer, distributor, service agent or the

manufacturer.

F232113

Specifications and Dimensions

Specification UM100 UM202

Overall Dimensions

Overall width, in. (mm)

Overall depth, in. (mm)

Overall height, in. (mm)

40 (1016)

29-1/2 (749)

40 (1016)

60 (1524)

29-1/2 (749)

40 (1016)

Weight & Shipping Information

Net weight, lb. (kg) 400 (181) 510 (232)

Wash Compartment Information

Width, in. (mm)

Length, in. (mm)

Depth, in. (mm)

Volume, cu. ft. (liter)

Dry weight capacity, lb. (kg)

20-1/4 (514)

22-1/4 (565)

11-3/4 (298)

2.74 (77.6)

12 (5.45)

20-1/4 (514)

22-1/4 (565)

11-3/4 (298)

2.74 (77.6)

12 (5.45)

Extractor Basket Information

Basket volume, cu. ft. (liter)

Basket diameter, in. (mm)

Basket depth, in. (mm)

Basket dry weight capacity, lb. (kg)

Perforation open area, %

1.09 (30.9)

16-1/16 (409)

9-1/4 (235)

12 (5.45)

1.5

1.09 (30.9)

16-1/16 (409)

9-1/4 (235)

12 (5.45)

1.5

Drive Train Information

Number of motors in drive train

Wash motor power, hp (kw)

Extract motor power, hp (kw)

1 x 0.33 (0.25)

1 x 1.0 (0.75)

2 x 0.33 (0.25)

1 x 1.0 (0.75)

Operating Speeds

Wash speed, reversals per minute

Extract speed, rpm

1725

Drain Information

Drain connection size, in. (mm)

Number of drain outlets

Drain flow capacity, gallons (liters) per min.

Recommended drain pit size, cu. ft. (liter)

2 (50)

27 (101)

5.1 (145)

2 (50)

27 (101)

7.7 (219)

Water Supply Information

Water inlet connection size, in. (mm)

Number of water inlets (1 hot, 2 cold)

Inlet flow capacity, gallons (liters) per min.

3/4NH (G3/4)

26 (98)

3/4NH (G3/4)

26 (98)

Water Consumption

Average water consumption Hot

per cycle, gallons (liters) Cold

Average hot water consumption

per hour of operation, gallons (liters)

10 (38)

32 (121)

50 (189)

20 (76)

85 (322)

80 (303)

Power Consumption

Average power consumption per cycle, kW-hr

Average HVAC load, BTU/hr (kcal/hr)

0.15

140 (36)

0.25

200 (51)

Centrifugal Force Data

Extract centrifugal force, G’s678678

Specifications and Dimensions

F232113

Machine Capacity Dimensions, in. (mm)

Refer to Figure 1

UM100 UM202

A40 (1016) 60 (1524)

B24 (609.6) 24 (609.6)

C18-3/8 (466.7) 18-3/8 (466.7)

D17 (431.8) 17 (431.8)

E16-1/2 (419.1) 16-1/2 (419.1)

F29-1/2 (749.3) 29-1/2 (749.3)

G20-1/2 (520.7) 20-1/2 (520.7)

H40-1/2 (1028.7) 40 (1016)

Otros manuales para UM202 Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Arandela de Alliance Laundry Systems

Alliance Laundry Systems

Alliance Laundry Systems LWS02N Series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems HF150 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems HX SERIES Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems HCL020HDF Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems CHF455 Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems H370I Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen AFNE9RSP Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 801529 Manual de servicio

Alliance Laundry Systems

Alliance Laundry Systems PMC360T Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 9001014R7 Guía de instalación

Alliance Laundry Systems

Alliance Laundry Systems BWT820*N1102 Manual de programación

Alliance Laundry Systems

Alliance Laundry Systems Frontload Washer Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems IYC350V Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems Commercial Automatic Washer Manual de uso y mantenimiento

Alliance Laundry Systems

Alliance Laundry Systems SCA020VC Instrucciones de operación

Alliance Laundry Systems

Alliance Laundry Systems LTZ87A*H2802 Series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems W001C Guía

Alliance Laundry Systems

Alliance Laundry Systems NetMaster HWTB21 Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems CFD14C Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TR5000WN Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 801455R2 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LTS87A*H Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems DCG020ND Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems HC125BYV Guía de solución de problemas

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
