Alliance Laundry Systems CHM160C Guía de solución de problemas

Operation/Maintenance

www.comlaundry.com

Washer-Extractors

Cabinet Hardmount

B-Series Microcomputer

2 Speed and Variable-Speed

Refer to Page 6 for Model Identification

CHM166C

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

Part No. F232172R4

January 2008

Para bajar una copia de estas instrucciones

en español, visite www.comlaundry.com.

F232172

means without the expressed written consent of the publisher.

Table of

Contents

Safety Information.............................................................................. 2

Explanation of Safety Messages........................................................... 2

Important Safety Instructions ............................................................... 2

Safety Decals ........................................................................................ 4

Operator Safety..................................................................................... 5

Introduction......................................................................................... 6

Model Identification ............................................................................. 6

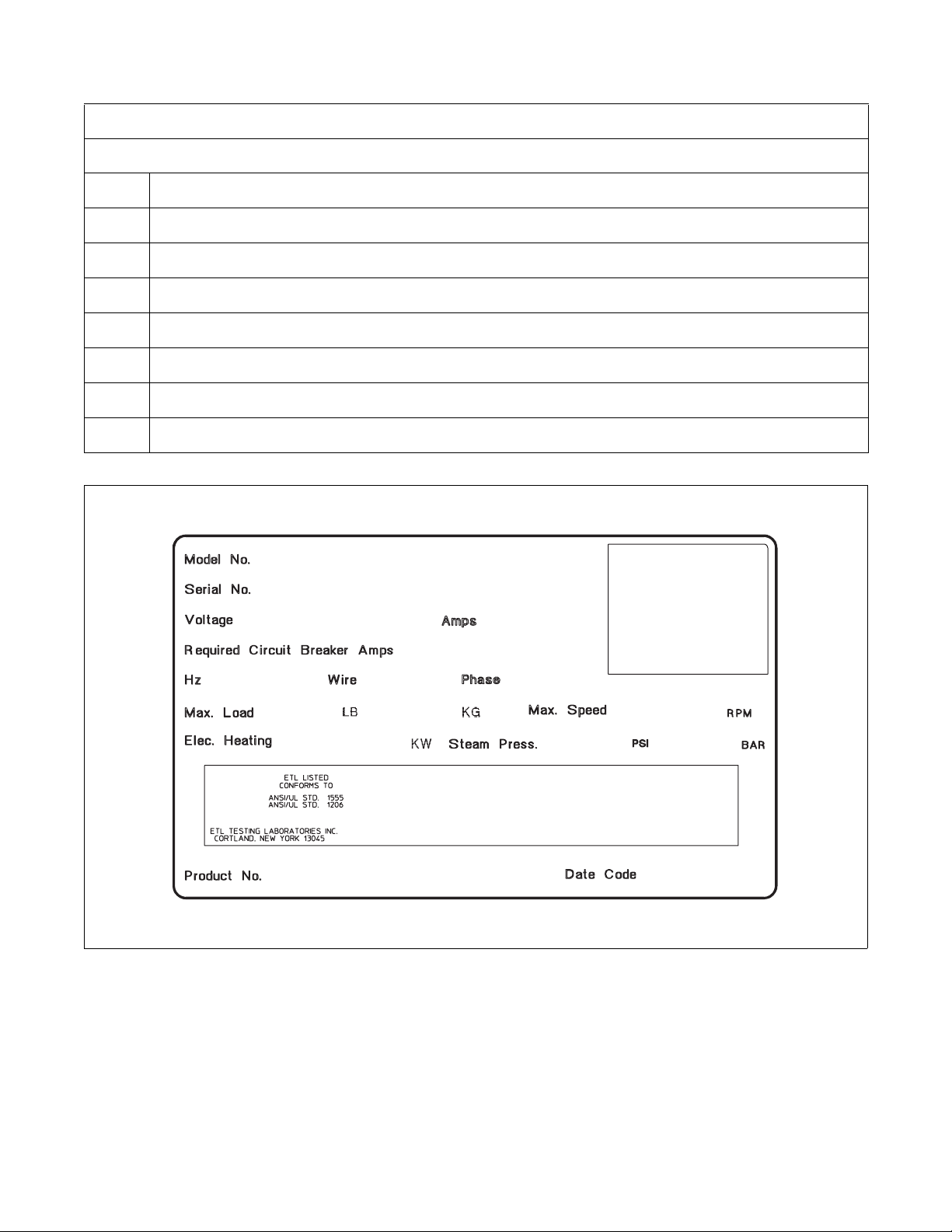

Nameplate Location.............................................................................. 7

Replacement Parts ................................................................................ 7

Customer Service.................................................................................. 7

Operation............................................................................................. 9

Control Panel, Vend Models Only........................................................ 9

Control Panel, OPL Models Only......................................................... 10

Display Indicators................................................................................. 11

Operating Instructions, Vend Models Only.......................................... 14

Operating Instructions, OPL Models Only........................................... 16

Maintenance ........................................................................................ 18

Daily ..................................................................................................... 18

Beginning of Day............................................................................. 18

End of Day ....................................................................................... 18

Weekly.................................................................................................. 19

Monthly................................................................................................. 19

Quarterly ............................................................................................... 22

Care of Stainless Steel .......................................................................... 23

F232172

2© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Safety Information

Explanation of Safety Messages

Precautionary statements (“DANGER,” “WARNING”

and “CAUTION”), followed by specific instructions,

are found in this manual and on machine decals. These

precautions are intended for the personal safety of the

operator, user, servicer and those maintaining the

machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

Important Safety Instructions

1. Read all instructions before using the washer.

2. Refer to the GROUNDING INSTRUCTIONS in

the INSTALLATION manual for the proper

grounding of the washer.

3. Do not wash textiles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, kerosene, waxes, cooking oils, dry-

cleaning solvents, or other flammable or

explosive substances as they give off vapors that

could ignite or explode.

4. Do not add gasoline, dry-cleaning solvents, or

other flammable or explosive substances to the

wash water. These substances give off vapors that

could ignite or explode.

5. Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system has not

been used for such a period, before using a

washing machine or combination washer-dryer,

turn on all hot water faucets and let the water

flow from each for several minutes. This will

release any accumulated hydrogen gas. The gas is

flammable; do not smoke or use an open flame

during this time.

6. Do not allow children to play on or in the washer.

Close supervision of children is necessary when

the washer is used near children. This is a safety

rule for all appliances.

7. Before the washer is removed from service or

discarded, remove the door to the washing

compartment.

8. Do not reach into the washer if the wash drum is

moving.

DANGER indicates the presence of a

hazard that will cause severe personal

injury, death, or substantial property

damage if the danger is ignored.

DANGER

WARNING indicates the presence of a

hazard that can cause severe personal

injury, death, or substantial property

damage if the warning is ignored.

WARNING

CAUTION indicates the presence of a

hazard that will or can cause minor

personal injury or property damage if the

caution is ignored.

CAUTION

To reduce the risk of fire, electric shock,

serious injury or death to persons when

using your washer, follow these basic

precautions:

W023

WARNING

Safety Information

F232172 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

9. Do not install or store the washer where it will be

exposed to water and/or weather.

10. Do not tamper with the controls.

11. Do not repair or replace any part of the washer, or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that the user understands and has the

skills to carry out.

12. To reduce the risk of an electric shock or fire, DO

NOT use an extension cord or an adapter to

connect the washer to the electrical power source.

13. Use washer only for its intended purpose,

washing textiles.

14. Never wash machine parts or automotive parts in

the machine. This could result in serious damage

to the basket.

15. ALWAYS disconnect the washer from electrical

supply before attempting any service. Disconnect

the power cord by grasping the plug, not the cord.

16. Install the washer according to the

INSTALLATION INSTRUCTIONS. All

connections for water, drain, electrical power and

grounding must comply with local codes and be

made by licensed personnel when required.

17. To reduce the risk of fire, textiles which have

traces of any flammable substances such as

vegetable oil, cooking oil, machine oil,

flammable chemicals, thinner, etc. or anything

containing wax or chemicals such as in mops and

cleaning cloths, must not be put into the washer.

These flammable substances may cause the

fabric to catch on fire by itself.

18. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

19. Keep washer in good condition. Bumping or

dropping the washer can damage safety features.

If this occurs, have washer checked by a qualified

service person.

20. If the supply cord is damaged, it must be replaced

by a special cord or assembly, available from the

manufacturer or its service agent.

21. Be sure water connections have a shut-off valve

and that fill hose connections are tight. CLOSE

the shut-off valves at the end of each wash day.

22. Loading door MUST BE CLOSED any time the

washer is to fill, tumble or spin. DO NOT

bypass the loading door switch by permitting the

washer to operate with the loading door open.

23. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of the reach of children at all times

(preferably in a locked cabinet).

24. Always follow the fabric care instructions

supplied by the textile manufacturer.

25. Never operate the washer with any guards

and/or panels removed.

26. DO NOT operate the washer with missing or

broken parts.

27. DO NOT bypass any safety devices.

28. Failure to install, maintain, and/or operate this

washer according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

NOTE: The WARNINGS and IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining, or operating the washer.

Any problems or conditions not understood should be

reported to the dealer, distributor, service agent or the

manufacturer.

Safety Information

F232172

4© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

IMPORTANT: Ensure that the recommended

clearances for inspection and maintenance

are provided. Never allow the inspection and

maintenance space to be blocked.

Safety Decals

Safety decals appear at crucial locations on the

machine. Failure to maintain legible safety decals

could result in injury to the operator or service

technician.

To provide personal safety and keep the machine in

proper working order, follow all maintenance and

safety procedures presented in this manual. If

questions regarding safety arise, contact the

manufacturer immediately.

Use manufacturer-authorized spare parts to avoid

safety hazards.

This machine must be installed, adjusted,

and serviced by qualified electrical

maintenance personnel familiar with the

construction and operation of this type of

machinery. They must also be familiar

with the potential hazards involved.

Failure to observe this warning may result

in personal injury and/or equipment

damage, and may void the warranty.

SW004

WARNING

Install the machine on a level floor of

sufficient strength. Failure to do so may

result in conditions which can produce

serious injury, death and/or property

damage.

W703

WARNING

Be careful around the open door,

particularly when loading from a level

below the door. Impact with door edges

can cause personal injury.

SW025

CAUTION

Never touch internal or external steam

pipes, connections, or components.

These surfaces can be extremely hot and

will cause severe burns. The steam must

be turned off and the pipe, connections,

and components allowed to cool before

the pipe can be touched.

SW014

WARNING

Safety Information

F232172 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Operator Safety

To ensure the safety of machine operators, the

following maintenance checks must be performed

daily:

1. Prior to operating the machine, verify that all

warning signs are present and legible. Missing or

illegible signs must be replaced immediately.

Make certain that spares are available.

2. Check door interlock before starting operation of

the machine:

a. Attempt to start the machine with the door

open. The machine should not start with the

door open.

b. Close the door without locking it and attempt

to start the machine. The machine should not

start with the door unlocked.

c. Close and lock the door and start a cycle.

Attempt to open the door while the cycle is in

progress. The door should not open.

If the door lock and interlock are not functioning

properly, call a service technician.

3. Do not attempt to operate the machine if any of

the following conditions are present:

a. The door does not remain securely locked

during the entire cycle.

b. Excessively high water level is evident.

c. Machine is not connected to a properly

grounded circuit.

Do not bypass any safety devices in the machine.

NEVER insert hands or objects into

basket until it has completely stopped.

Doing so could result in serious injury.

SW012

WARNING

Never operate the machine with a

bypassed or disconnected balance

system. Operating the machine with

severe out-of-balance loads could result

in personal injury and serious equipment

damage.

SW039

WARNING

F232172

6© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Introduction

Model Identification

Information in this manual is applicable to these models:

HC20BC2 HC40BC2 HC60BX2 SC25BC2 SC50BC2 SC60BY2

HC20BL2 HC40BL2 HC60BXF SC25BL2 SC50BL2 SC80BCV

HC20BN2 HC40BN2 HC60BYF SC25BX2 SC50BN2 SC80BLV

HC20BX2 HC40BX2 HC60BY2 SC25BY2 SC50BX2 SC80BNV

HC20BY2 HC40BY2 HC80BCV SC30BC2 SC50BY2 SC80BXV

HC25BC2 HC50BC2 HC80BLV SC30BL2 SC60BC2 SC80BYV

HC25BL2 HC50BN2 HC80BNV SC30BN2 SC60BCF UC20BN2

HC25BX2 HC50BX2 HC80BXV SC30BX2 SC60BL2 UC30BN2

HC25BY2 HC50BY2 HC80BYV SC30BY2 SC60BLF UC40BN2

HC30BC2 HC60BC2 SC20BC2 SC40BC2 SC60BN2 UC50BN2

HC30BL2 HC60BCF SC20BL2 SC40BL2 SC60BNF UC60BN2

HC30BN2 HC60BLF SC20BN2 SC40BN2 SC60BX2 UC60BNF

HC30BX2 HC60BN2 SC20BX2 SC40BX2 SC60BXF UC80BNV

HC30BY2 HC60BNF SC20BY2 SC40BY2 SC60BYF

Introduction

F232172 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Nameplate Location

The nameplate is located at the rear of the machine and

inside door. Always provide the machine’s serial

number and model number when ordering parts or

when seeking technical assistance.

Figure 1

Replacement Parts

If literature or replacement parts are required, contact

the source from whom the machine was purchased or

contact Alliance Laundry Systems at (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

Customer Service

For technical assistance, call: (920) 748-3121 Ripon,

Wisconsin.

CHM2060N

1Nameplate

CHM2060N

Introduction

F232172

8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

* Denotes Brand

Figure 2

Model Number Familiarization Guide

Sample Model Number: *C40BC2OU60001

*C Model Number Prefix

40 Washer-Extractor Capacity (pounds dry weight of laundry)

BType of Electrical Control (B = B – control)

CActuation (C = Coin drop)

2Washer-Extractor Speed Capability (2 = 2 speed)

OElectrical Characteristics

U6 Design Series

0001 Option Identification (varies from machine to machine)

CHM483R

*C40BC2OU60001

00000000000

500000

208 – 240

60 3 3

N/A N/A

470

EXAMPLE OF NAMEPLATE

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arandela de Alliance Laundry Systems

Alliance Laundry Systems

Alliance Laundry Systems HC18 Guía de mantenimiento y servicio

Alliance Laundry Systems

Alliance Laundry Systems PHM1397C Guía de solución de problemas

Alliance Laundry Systems

Alliance Laundry Systems HC18 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TLW12CTLW12C Guía

Alliance Laundry Systems

Alliance Laundry Systems EC001F Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems HFNKCASG113TN01 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LWS49N Series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TR5000WN Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen LWN311SP101NW22 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems FLW1526C Instrucciones de funcionamiento originales

Alliance Laundry Systems

Alliance Laundry Systems 802749r1 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems HWNLX2SP111CW01 Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems ATE50FWP431AW01 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems F232136R5 Guía de solución de problemas

Alliance Laundry Systems

Alliance Laundry Systems AFNE9BSP113TN01 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Home Laundry Automatic Washers Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems HWFB61WN1102 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems HF150 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems CCN020HNF Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems FLW1525C Guía

Alliance Laundry Systems

Alliance Laundry Systems 800797 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Cygnus Ultra Pro Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems FLW63H Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems SCA020VC Instrucciones de operación

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
