Alinco DJ-S40 Manual de usuario
UHF FM TRANSCEIVER
DJ-S40
Instruction Manual
Thank you for purchasing this ALINCO FM
transceiver.
This instruction manual contains important safety and
operating instructions.
Please read it carefully before using the transceiver
and be sure to keep it for future reference.
ALINCO, INC.
i
Contents
Contents
■Points to Note when Using an External Power Supply
1. Accessories .......................................................2
1-1 Standard Accessories .......................................................... 2
1-2 Attaching and Detaching Accessories ................................ 2
1-2-1 Hand Strap .................................................................... 2
1-2-2 Belt Clip ....................................................................... 2
1-2-3 Battery Pack ................................................................. 3
1-3 Battery Level Indicator ....................................................... 4
1-4 Loading Batteries ................................................................ 4
2. Control Functions ............................................. 5
2-1 Names and Operations of Transceiver Controls ................. 5
2-2 Key Operations ................................................................... 7
2-3 Display ................................................................................ 9
3. Basic Operations ............................................ 10
3-1 Turning the Power ON...................................................... 10
3-2 Adjusting the Audio Volume ............................................ 10
3-3 VFO Mode ........................................................................ 10
3-3-1 Frequency Setting ....................................................... 10
3-4 Memory Mode .................................................................. 11
3-4-1 Selecting a Memory Channel ..................................... 11
3-4-2 Memory Channel Programming ................................. 12
3-4-3 Clearing a Memory Channel ......................................13
3-4-4 Contents of Memory Programming............................ 13
3-5 CALL Mode...................................................................... 14
3-5-1 Selecting the CALL Channel ..................................... 14
3-5-2 Programming a CALL Channel ................................. 14
3-6 Receiving .......................................................................... 15
3-6-1 Monitor Function ........................................................ 15
3-7 Transmitting ...................................................................... 16
ii
4. Parameter Setting Mode..................................17
4-1 Mode Setting Items ........................................................... 17
4-2 Selecting the Setting Mode ............................................... 18
5. Advanced Operations ..................................... 22
5-1 Scanning ........................................................................... 22
5-1-1 VFO Scan ................................................................... 23
5-1-2 Memory Scan ............................................................. 23
5-1-3 Skip Channel Setting .................................................. 24
5-1-4 Tone Scan ................................................................... 24
5-2 Key Lock .......................................................................... 25
5-3 Tone Call ........................................................................... 25
5-4 Lamp ................................................................................. 25
6. Selective Communicating ...............................26
6-1 Tone Squelch .................................................................... 27
7. Special Functions ........................................... 28
7-1 Theft Alarm ....................................................................... 28
7-1-1 Connecting and Setting .............................................. 29
7-1-2 Alarm .......................................................................... 30
7-1-3 Alarm Delay ............................................................... 31
8. Cloning .............................................................32
8-1 Cloning ............................................................................. 32
9.Maintenance and Reference ........................... 35
9-1 Resetting ........................................................................... 35
9-2 Options.............................................................................. 36
10.Specifications.................................................37
Contents
iii
1
Before Operating the Transceiver
Caution
The use of a transceiver in the following places may be prohibited.
• Aboard aircraft • In airports • In ports • Within or near the operating area of
business wireless stations or their relay stations.
Before using the transceiver in any of the above places, obtain any necessary
permission from the proper authorities, and be mindful of local laws that govern
amateur radio operation.
■Points to Note when Using an External Power Supply
• Use a 4.5V-16.0 DC external power source.
• When connecting the power supply to the transceiver, use the optional DC
cable for base stations (EDC-37). Connect the cable to the DC jack on the side
of the transceiver.
• When power is supplied from the cigarette lighter socket of a car, use the
cigarette lighter cable (EDC-43) or the cigarette lighter cable with filter (EDC-
36).
Use the cigarette lighter cable with filter (EDC-36) during mobile operation
to help prevent noise.
• Turn the transceiver's power off when connecting or disconnecting the DC
cable.
2
1. Accessories
1-2
Attaching and Detaching
Accessories

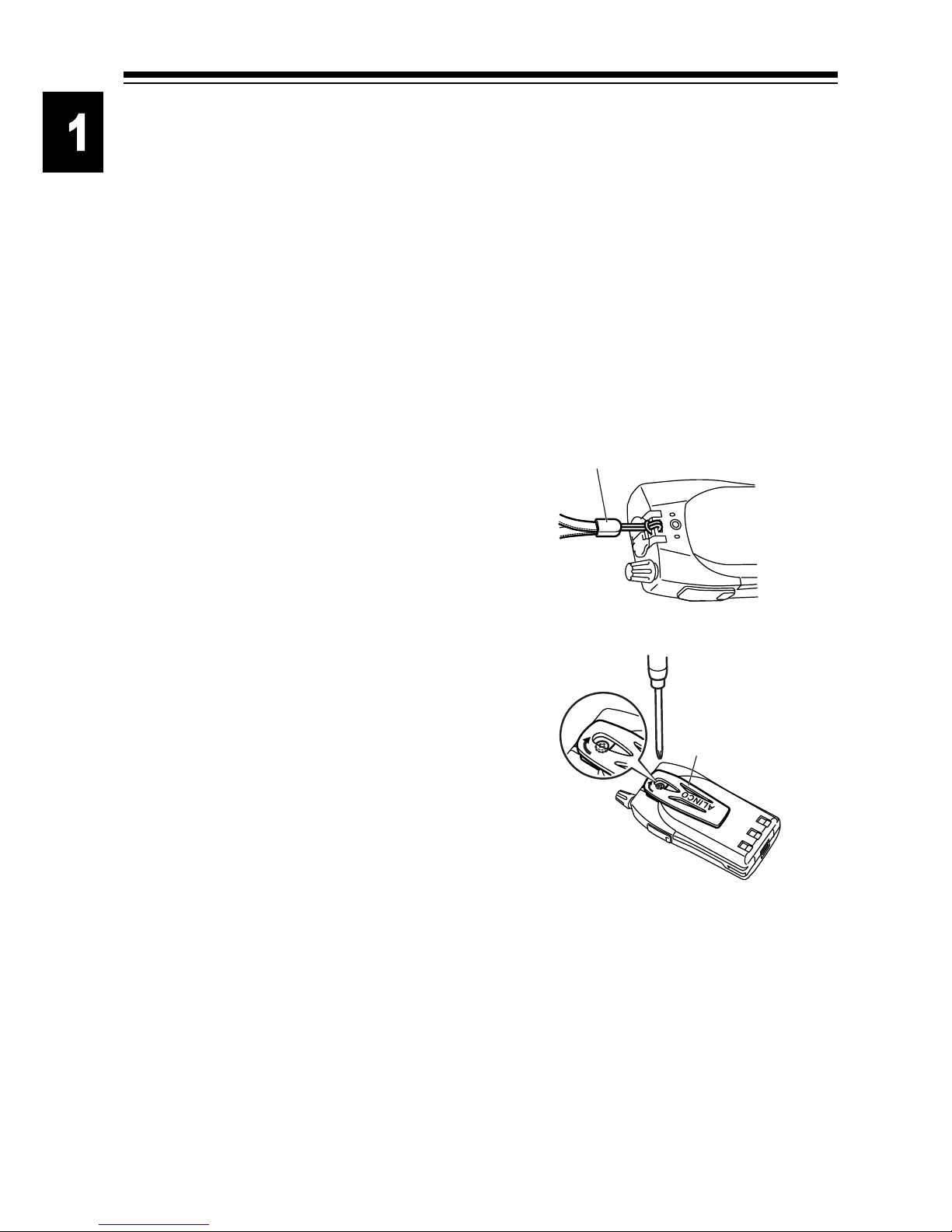

1-2-1 Hand Strap
1. Attach the hand strap in the upper slot
(at the rear of the transceiver) as
shown in the illustration.
1-2-2 Belt Clip
1. Put the Belt Clip on the back of the
transceiver as shown in the illustra-
tion.
2. Turn the screw clockwise until it
stops.
Check to be sure the clip is securely
connected.
3. Turn the screw counter-clockwise to
detach the Belt Clip.
1.Accessories
1-1 Standard Accessories
• Battery Case EDH-31
• Belt Clip
• Hand Strap
• Instruction Manual
(Note : Standard accessories may vary depending on versions.)
Hand Strap
Belt Clip
3
1. Accessories
Caution
•The battery pack is not charged when shipped. It must be charged before using.
•It takes a maximum of 10 hours to charge the battery pack with the EDC-93
(120V) / EDC-94 (230V)(EBP-52N / EBP-53N) and about 30 hours with the
EBP-54.
•Charging should be conducted within a temperature range of 0 to 40˚C.
(32-104˚F)
•Do not convert or dismantle the battery pack and do not place it in fire or water.
Such practices are dangerous. Never short-circuit the battery pack terminals, as
this can cause damage to the equipment or lead to overheating the battery, which
could cause burns. Unnecessary prolonged charging (overcharging) can
deteriorate battery performance.
•The battery pack should be stored in a dry place where the temperature range is
-20˚C to -45˚C (-4˚F –+113˚F).
Temperatures outside this range can cause battery liquid leakage. Exposure
to prolonged high humidity can cause corrosion of metal components.
•Normally, the battery pack can be charged up to 500 times. However, the battery
pack can be considered dead if usable time drops off markedly in spite of charging
the pack for the recommended time. When this happens, a new pack should be
used.
•To protect the environment, do not dispose of the used battery pack improperly.
Check with your local solid waste officials for details on recycling the battery
pack for proper disposal in your area.
•To charge the battery pack, mount it on the transceiver, connect 13.8VDC to the
DC power supply jack and set the unit's battery charging function ON in the
Setting mode.
1-2-3 Battery Pack (Option)
1. Attaching the battery pack:
Align the grooves on the battery pack
with the rib on the transceiver, and
push in the direction of the arrow
until it clicks.
2. Detaching the battery pack:
Push down the catches at the bottom
of the transceiver, and slide the
battery pack off in the direction of
the arrow.
Battery Pack
Rib Groove
Battery Pack
1
2
Catches
4
1. Accessories
1-3
Battery Level Indicator
•Battery charge level may change in
relation to ambient air temperature or
the amount of use.
•Even if the charge indicator appears
to show the need for charging or
replacing batteries, the transceiver
may still be used for reception or low
output transmission.
•Modify the battery type setting in the
Setting mode when the battery pack
type is changed.
1-4 Loading Batteries
1.Load three (3) commercially
available AA alkaline batteries in the
battery case (EDH-31).
Set the batteries in the battery case in
the +/- orientation marked at the
bottom of the case.
2. Attach the battery case in the same
method of the battery pack (page3).
Caution
•Manganese batteries are not recommended as they may decrease the
transmission output level.
•Be sure to observe proper orientation of the batteries polarity (+-).
•Switch off the battery transceiver's charge function when dry cell batteries are
used.
Charge Level
When the charge level becomes low,
an empty battery mark appears.
Charge (or replace) the battery.
Battery Case
5
2. Control Functions
2. Control Functions
2-1 Names and Operations of Transceiver Controls
■Top and Front Views
No. Name Functions
Speak into microphone from a distance of
approx. 5 cm.
1
3
4
5
Power Switch
Volume
Switches power ON/OFF. Also used to adjust
the audio volume.
Display (LCD) Refer to "Display" in this manual (Page9).
FUNC key Use this key in combination with other keys to
access various functions of the transceiver.
Holding this key for 3 seconds activates the
Setting mode where various settings are possible.
6Key pad Refer to "Key Operations" (Page7).
7Microphone
MIC Connector
SP Connector
For connection of the optional external
microphone (2kΩ) with 2.5Østereo plug.
For connection of the optional external speaker
(8Ω) with 3.5Ømonophonic plug.
2
6
2. Control Functions
■ Side View
No. Name Functions
8
9
10
11
Antenna Pivot the antenna up when using the transceiver.
PTT (press to talk) key When this key is held down, the transceiver
transmits. When the key is released, the
transceiver receives.
MONI key When this key is pressed, the squelch is unmuted
and you can hear received signals. The squelch
is also unmuted when the tone squelch is set. If
this key is pressed while FUNC appears, the Key
Lock function is activated. Pressing this key
while the PTT key is pressed and held transmits
the tone call signal.
DC-IN Terminal for connecting an external power
supply. Connect the optional cigarette lighter
cable with filter (EDC-36), and you can use it
in the car. The center of the pin is the + (positive)
pole and the outside is the - (negative) pole.
Use a stable power supply with DC4.5-
DC16.0V, with a capacity of 1A or more.
Antenna Side Volume Side
Otros manuales para DJ-S40
1
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Transceptor de Alinco
Alinco
Alinco DJ-MX1 Manual de usuario
Alinco
Alinco DJ-596T MK II Manual de usuario
Alinco
Alinco DJ-A40 Manual de usuario
Alinco
Alinco DJ-G5 Manual de usuario
Alinco
Alinco DJ-500T Manual de usuario
Alinco
Alinco DJ-C5 Manual de usuario
Alinco
Alinco DR-605T Manual de usuario
Alinco
Alinco DX-701 Manual de usuario
Alinco
Alinco DJ-162TD Manual de usuario
Alinco
Alinco PH3DJ-500 Manual de usuario
Alinco
Alinco DJ-S446 Manual de usuario
Alinco
Alinco DJ-500T Manual de usuario
Alinco
Alinco DR-138 Manual del propietario
Alinco
Alinco DR-510T Manual de usuario
Alinco
Alinco DR-620T/E Manual de usuario
Alinco
Alinco DJ-FX446 Manual de usuario
Alinco
Alinco DJ-180 Manual de usuario
Alinco
Alinco DR-135TMkIII Manual de usuario
Alinco
Alinco DR-MD500 Manual de usuario
Alinco
Alinco DJ-MD5 Manual de usuario
