ALFAautomation T-2300 Manual

Double mitre saw Model T2300-T2350-T2400

PRELIMINARY

DOUBLE MITRE SAW

T - 2300

T - 2350

T - 2400

INSTRUCTION HANDBOOK

ALFAautomation

Via dell’Artigiano, 12 - 47121 Forlì - Italy

Tel. +39-0543-481142 - Fax +39-0543-480770

[email protected] - www.alfaautom.com

Double mitre saw Model T2300-T2350-T2400

Index

1.GENERALINFORMATION 3

1.1 PRODUCER 3

1.2 WARRANTY 3

1.3 PRE-ARRANGEMENTS CHARGED TO THE CUS-

TOMER 3

2.MACHINEDESCRIPTION 4

2.1 WORKING PRINCIPLE 4

2.2 MAIN COMPONENTS 4

2.3 MACHINE STRUCTURE 4

2.4 DIMENSIONS 5

2.5 TECHNICAL DATA 5

2.6 TOOLS 5

2.7 EQUIPMENT 5

2.7.1

Standard 5

2.7.2 Optionals on request 5

3.SAFETY 6

3.1 SCHEDULED USE 6

3.2 INADVISABLE USE 6

3.3 PROTECTION DEVICES 6

3.4 STOP FUNCTIONS 6

3.5 SAFE WORKING PROCEDURES 6

4.INSTALLATION 7

4.1 SHIPPING AND HANDLING 7

4.2 STORAGE 7

4.3 PRELIMINARY ARRANGEMENTS 8

4.4 ASSEMBLY 9

4.5 POSITIONING 9

4.6 CONNECTIONS 10

4.6.1 Pneumatic connection 10

4.6.2 Electric connection 11

4.7 PRELIMINARY CONTROLS 12

4.8 ADJUSTMENTS 12

4.8.1 Vertical pressors adjustment 13

4.8.2 Rear support adjustment (available on

request only for T300/A version) 13

4.8.3 Rab-

bets adjustment 13

4.8.4.1 Cutting angle adjustment 13

4.8.4.2 Blades positioning 14

4.8.4.3 Adjustment of blades vertical angle

(see the figure 4.8.4 B) 14

4.8.4.4 Blades replacement 16

4.9 IDLE TESTING 16

5.WORKING 17

5.1 CONTROL PANEL 17

5.2 MACHINE’S COMMISSIONING 18

5.3 WAYS OF WORKING 19

5.4 NORMAL STOP 19

5.5 EMERGENCY STOP 19

5.6 RESTORATION 19

5.7 PUTTING OUT OF COMMISSIONING 19

6MAINTENANCE 20

6.1 STATE OF MAINTENANCE 20

6.2 MACHINE’S ISOLATION 20

6.3 PARTICULAR CAUTIONS 20

6.4 CLEANING 20

6.5 LUBRICATION 20

6.6 ORDINARY MAINTENANCE 20

6.7 EXTRAORDINARY MAINTENANCE 21

7.DIAGNOSTICS 22

7.1 SAFETY ADVICE 22

7.2 FAILURE’S SEARCH 22

7.3 REQUEST FOR ASSISTANCE 23

8.SPARE PARTS 23

8.1 SPARE PARTS LIST 23

8.2 SPARE PARTS ORDERING 23

9.ATTACHMENTS 24

9.1 DECLARATIONS 24

9.2 SCHEMES 24

Double mitre saw Model T2300-T2350-T2400

PRELIMINARY

1.1 PRODUCER

The firmAlfaautomation can boast more than 20 years of experience in the construction of Double Mitre Saws. It is the acquired

technological know-how, developed during years of researches in strict touch with manufacturing department and international

commercialization the best warranty thatAlfaautomation can grant to its customers.

TEL +39-0543/481142 FAX +39-0543/480770

1. GENERAL INFORMATION

1.2 WARRANTY

The warranty on machine components, counting from the date written on the delivery bill, is so subdivided:

24 months for mechanic parts

12 months for electric and electronic parts and motors

The Warranty includes exclusively the replaced spare parts, excepted the workmanship.

Are excluded from the warranty, damages to the machine caused from:

•Shipping and/or Handling

•Operator’s errors

•Missing of maintenance described on this handbook

•Failures and/or breakages not imputable to machine bad working

•Interventions or variations on the plants effected by unauthorized personnel

1.3 PRE-ARRANGEMENTS CHARGED TO THE CUSTOMER

It is a customer duty, on times agreed with the producer, to execute what is indicated in our documentation

Are normally charged to the customer:

•Premises predisposition, included building works and/or canalization eventually requested

•Machine power supply, observing the current norms of the Country where the machine is installed

•Pneumatic supply of compressed air

Double mitre saw Model T2300-T2350-T2400

2. MACHINE DESCRIPTION

2.1 WORKING PRINCIPLE

The Double Mitre Saw, model T300/350, is a cropper at vertical descent with blades at 45 degrees. It has been designed to cut

frames for pictures , furniture, windows or looms.

The blades descent is controlled by a pneumatic system that clamps the mouldings on the working bench through a couple of

pressors.

The machine is equipped with a pneumatic device that allows a quick blades backstroke at low air consumption.

The directions of blades movement and rotation are represented on the figure 2.1A

2.2 MAIN COMPONENTS

The main components, constituting the machine, are:

•Floor stand and working bench set

•Blades set at vertical descent on Z axis

•Padlockable air filter lubricator set

•Pneumatic system

•Electricalequipment

2.3 MACHINE STRUCTURE

Zaxis

Vertical movement of blades set from upside down

Figure 2.3A Movement directions

Double mitre saw Model T2300-T2350-T2400

PRELIMINARY

2.7 EQUIPMENT

The following equipment refers to standard machines.

Eventualspecial equipment, of course, could request different

details in front of listed ones.

2.7.2 Optionals on request

The machine can be supplied with following optionals:

1. Single Phase Motors (*)

2. Timer and Remote Control Switch for delayed starting of

2nd motor (only for single phase machines)(*)

3. Mist-Spray Cooling System to cut aluminium profiles

4.3rdworkingbenchextension1200mm(right)

5. retractile pneumatic stop

6.pneumatichorizontal moulding’s clamp

7. adjustment of blades stroke

8. blades for wood

9. pneumatic pedal for pressors activation

The options marked with * can be supplied only during 1st

equipment.

Any modification and/or addition of accessories,

must be expressive approved and executed from

the Producer.

2.7.1 Standard

The machine is supplied complete of:

N.1Allenwrenches set (3/4/5/6 mm)

N.1Wrenches 22

N 1 Flanges set 80 mm

N.1 fixed slide stop

N.1 flip slide stop

N.1PadlockableAirfilterlubricator

N.1 Instructions Handbook

N.1 Motors Thermal Protection

2.5 TECHNICAL DATA

Here below are indicated Machine technical data and

characteristics to which make reference for any eventual

contact with Producer Technical Assistance.

Table 2.5A- DATAANDCHARACTERISTICS

Length of right working bench extension 1200mm

Length of left working bench extension 1200mm

Working bench length 800mm

Working bench height (from the floor) 950mm

Motors power n.2 1,5 kW

Max revolutions per minute. 2800 n/’

Pneumatic feed 5 / 7 bar

Power Consumption 3 kW

Profileswidth (Min/Max) 15/60mm

Profilesheight (Min/Max) 10/80mm

Electric power supplying 400V/230V

Suction holes 100Mm

Total weight 380 Kg

2.6 TOOLS

Blades, have following dimensions:

A = 30mm

B = 300mm

Thickness = 2,50mm

2.4 DIMENSIONS

The overall dimensions are reported on complete drawing of

the attachment 9.2-A

Note:

The customers can request different types of

blades suitable with materials he has to cut (light

alloy, wood or plastic).

To cut light alloy, the machine must be equipped

with blades cooling system.

Make reference to the chapter 3.2 page 8 for

machine proper use.

Double mitre saw Model T2300-T2350-T2400

3.SAFETY

3.2 INADVISABLE USE

The machine has not to be used:

•For uses different from those listed in 3.1 paragraph

•In explosive or aggressive atmosphere, at high density of dust or oily substances suspended in the air

•Inflammableatmosphere

•Outside in all weather’s severity

•With disconnected electromagnetic interblocks

•With electric bridges and/or mechanical instruments leaving out machine parts or functions

•For working materials not suitable with machine characteristics

Note: it is absolutely forbidden to cut different materials (glass, ceramic. etc..) in particular irony (or

similar) materials.

3.1 SCHEDULED USE

The Machine is designed and built for 45° cuts of wooden mouldings and relative derived and similar ones like hard plastic or

light alloys ( for these it is necessary to equip the machine with Mist Spray Cooling System and blades conformed to this object).

The machine is projected for manual use only (under operator control).

3.3 PROTECTION DEVICES

The machine is equipped with adequate protections for persons exposed to the risks due to transmission mobile members

(blades, pulleys, belts, etc....), or movable organs taking part in working (blades) or ejection of wooden pieces, swarfs or dust.

3.5 SAFE WORKING PROCEDURES

The machine is projected and realized to eliminate any risk connected with its use.

Due to the necessity of steering the piece around blades working area, it is impossible to eliminate the risks related with eventual

accidental contacts of operator hands with a.m. area.

The other risks related with manual working way, are:

•Cut (due to hands contact with blades)

•Entanglement (due to clothes not properly tight)

•Ejection of worked material splinters

To reduce down to the minimum the consequences of above mentioned dangers, it is necessary to follow scrupulously the

following instructions:

1 when the hands are working in proximity of blades, you have to steer the piece using any tool

2 avoid the cutting of moulding’s pieces smaller than 50 mm

3 never use hands to take out the short pieces and/or cuttings close to the blades, but instead use a tool, i.e. a wooden piece

4 adjust the frontal protection according with the height of cutting pieces and clamp in position

3.4 STOP FUNCTIONS

The machine stop functions are the following:

•Main Switch (category 0)

•Normal Stop Button (category 1)

•Emergency Button (category 1)

STOPCATEGORY0

Is obtained taking out power from Machine actuators (uncontrolled stop)

STOPCATEGORY1

Controlled stop by opening of supply of machine actuators after a period allowing the stop of them.

Double mitre saw Model T2300-T2350-T2400

PRELIMINARY

4. INSTALLATION

Any damaging of the machine caused during its shipment or handling is not covered from

warranty.

Repairs or replacements of damaged parts are charged to the customer.

4.1 SHIPPING AND HANDLING

The shipment must be effected by high qualified technical staff. The machine has to be shipped in a safe way to avoid any

damage to its parts.

All the protections, guard devices and wicket-gates must be properly closed and clamped.

The machine has to be shipped like positioned for installation.

Before shipment, it is necessary to lubricate the not painted parts to avoid their detriment.

According to the type of shipment, it is necessary to protect the machine from any jarring impact or stress

Figure 4.1B - handling indications about protection devices or

sheet metals

Figure 4.1A - handling indications

Machine total weight: about 380 Kilos

4.2 STORAGE

In case of long inactivity, the machine must be stored with cautions concerning storage place and times.

•Store the machine indoor

•Protect the machine from jarring impacts and stresses

•Protect the machine from humidity and high thermic excursion

•Avoid the machine could touch corrosive materials

Double mitre saw Model T2300-T2350-T2400

4.3 PRELIMINARY ARRANGEMENTS

To install the machine it is necessary to prepare a working area adequate to machine dimensions, lifting devices chosen and

length of mouldings to be worked.

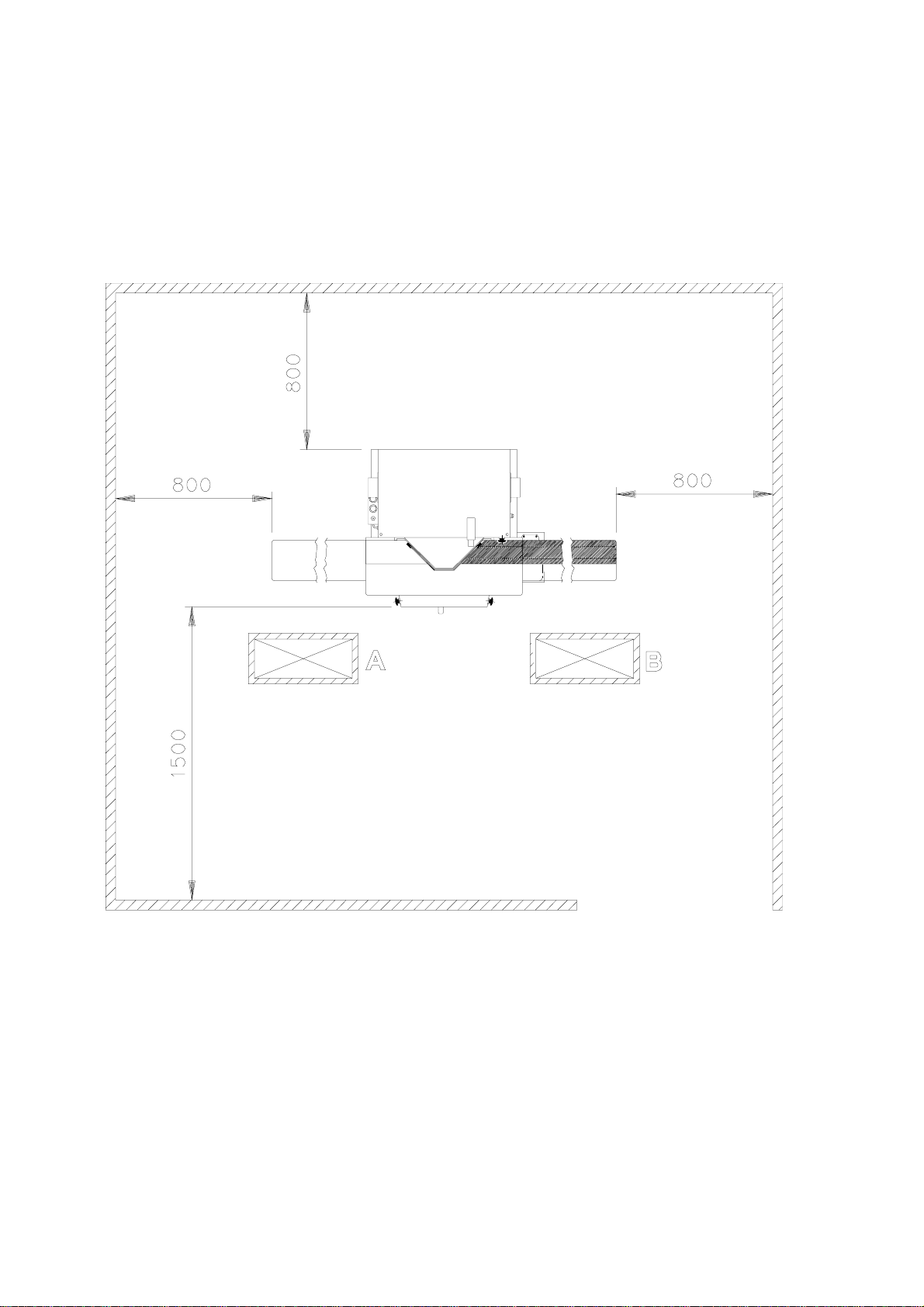

Fig.4.3A-minimum distances (expressed in mm)for installation

A= Container of pieces to be worked

B= Container of worked pieces

Double mitre saw Model T2300-T2350-T2400

PRELIMINARY

4.4 ASSEMBLY

The machine assembly is executed by the customer following the instructions listed here below:

•Remove by using a lever (i.e. a big screwdriver) the nails fastening the crate to the pallet: at this point the crate can be

unthreaded off from upper side.

•Unthread the transparent wrapping from upper side.

•Keep the external packing for an eventual future re-utilization

•Use the 2 holes M12 of upper side (operator side) to screw the eyebolts provided to lift the machine until its own location

using a lift truck.

4.5 POSITIONING

•The machine must be positioned on the ground.

•Perforate the floor in correspondence of machine bedframe.

•Clamp the machine on the ground using n. 4 screws M8x50.

•Level the machine.

•Recover from the back wicket-gate the suction holes and fasten them to the machine using the screws provided.

The suction holes must be fastened on machine right and left sides.

Connect the holes with the suction system.

Assembly the working bench extensions using the screws and the taper pins supplied together with working bench extensions

in a transparent plastic container.

Double mitre saw Model T2300-T2350-T2400

4.6.1 Pneumatic connection

On machine left side, are located the padlockable reducer-lubricator filter (B), the pressure regulator of pressor cylinders (C) and

flux adjuster to increase or reduce the speed of blades descent or ascent.

From transparent wrapping closely located, draw out the supplied manometers.

Screw them in this order:

the manometer 0/10 Bar in the reducer-lubricator filter (B), the manometer 0/4 Bar in the pressor cylinders reducer (C).

Connect the compressed-air pipe with the reducer-lubricator filter B using the fast clutch in equipment or another one adequate

to the system.

Draw out from machine back wicket-gate the pneumatic pedal (if provided) and connect it inserting the pipes in the connectors

located low on machine right side following the order here below: the red pipe into the red fitting and the white pipe into the

external connector(not marked) in the operator side.

The pneumatic power must have the following characteristics:

- Working pressure 7Kg/cm2

-Maximum pressure 8Kg/cm2

- Minimum pressure 5 bar

- Nominal consumption 15NL/cycle

Figure 4.6.1A-Pneumatic system location

A=Fluxregulator

B=Padlockablereducer-lubricator filter

C= Pressure regulator

Note: the feeding pipe must have an internal section at least of 10 mm. if the compressor is placed closer

than 5 meters, and higher than 10 mm if the compressor is located at an higher distance.

4.6 CONNECTIONS

To avoid any problem during machine starting, it is suggested to follow what is described here below.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Manuales populares de Sierra de otras marcas

RIDGID

RIDGID BS1400 Manual de usuario

ATIKA

ATIKA BWS 400-2 Manual de usuario

RGC

RGC FS20 Manual de usuario

Makita

Makita M2300 Manual de usuario

IMET Spa

IMET Spa BASIC 300 PLUS SHI Manual de usuario

IMET Spa

IMET Spa SIRIO 370 AF-E Manual de usuario

Optimum

Optimum OPTisaw CS 275 Manual de usuario

Makita

Makita BPB180 Manual de usuario

Stihl

Stihl MS 462 C-M Manual de usuario

AEG

AEG TS 250 K Manual de usuario

Meec tools

Meec tools 004665 Manual de usuario

Makita

Makita LS1018L Manual de usuario

Ryobi

Ryobi RCS1400 Manual de usuario

DeWalt

DeWalt DCS391 Manual de usuario

Sealey

Sealey SA72 Manual de usuario

skilsaw

skilsaw SPT88 Instrucciones de montaje

Urrea

Urrea SI810 Dimensiones y guía de instalación

EINHELL

EINHELL BKG 210/1 Manual de usuario
