Alesis ProLinear Manual de instrucciones

Professional 2-Way 120-Watt Powered Monitor

QUICK START MANUAL

Front and Rear Panel Features

1. Power/Clip LED: This LED will be GREEN under normal operating conditions. The

LED will flash RED if your ProLinear is CLIPPING. Clipping can be resolved by

decreasing the INPUT LEVEL control knob on the rear of the unit.

2. Precision Tuned Bass Port: Enhances the bass response of the ProLinear.

3. Silk Dome Tweeter

4. Kevlar Woofer

5. Input Level Control Knob: Used to adjust the strength of the signal coming into the

speaker. This allows all types of audio sources to be used, from stand-alone CD players to

professional mixers.

6. XLR/TRS Audio Input: Female XLR and 1/4" TRS balanced combination input

connector.

7. Power Switch: Turns the ProLinear ON or OFF.

8. IEC Power Connector: Provides power from a 100-230V, 50-60 Hz A/C power source.

Connecting and Starting the ProLinear

1. Turn the rear panel Input Level control to the Minimum position.

2. Connect the power cable to the speaker.

3. Connect the audio source’s output to the speaker with a TRS or XLR connector.

4. Turn on the audio source.

5. Turn on the ProLinear.

6. With the audio source material playing, gradually turn up the Input Level control

until the speaker is playing the audio material at a comfortable level.

SPECIFICATIONS

Inputs

Nominal input level:+4dBu (1.23 Vrms)

Maximum input level: +20dBu (7.75 Vrms)

Input impedance: 10kΩ

Output

Low Frequency (LF) power: 80 Watts RMS (130 Watts Peak)

High Frequency (HF) power: 40 Watts RMS (130 Watts Peak)

ProLinear 720

Max Peak SPL per pair: ~109 dBSPL (1m / Max

input below clipping)

Frequency response: 50Hz –20kHz ±1.5dB

Bass level -3dB @ 43hz typical

ProLinear 820

Max Peak SPL per pair: ~111 dBSPL (1m / Max

input below clipping)

Frequency response: 45Hz –20kHz ±1.5dB

Bass level -3dB @ 40hz typical

Power Requirements

Input voltage: 100VAC –230VAC

Input frequency: 47 –63 Hz

Power consumption: 20 Watts Idle (150 Watts Peak)

Environmental Requirements

Temperature range: 0-40 degrees C

Relative humidity (non-condensing): 30-85%

Cabling Requirements

Source to Speaker: Balanced or unbalanced, shielded;

XLR or 1/4"TRS connector

Mechanical

ProLinear 720

Size (HxWxD):15" x 9" x 12"

(380mm x 230mm x 305mm)

Weight: 25 lbs (11.4 kg)

ProLinear 820

Size(HxWxD): 17.5" x 11" x 13.5"

(445mm x 280mm x 345mm)

Weight: 33 lbs (15 kg)

7-51-0143-A

Tabla de contenidos

Otros manuales de Oradores de Alesis

Alesis

Alesis Elevate 6 Manual de usuario

Alesis

Alesis PA80 Manual de usuario

Alesis

Alesis TransActive Manual de usuario

Alesis

Alesis M1 Active Mk2 Manual de usuario

Alesis

Alesis ELEVATE 3 MKII Manual de usuario

Alesis

Alesis ProLinear DSP Manual de usuario

Alesis

Alesis TransActive Documento técnico

Alesis

Alesis TransActive Live Manual de usuario

Alesis

Alesis ACTIVE M1 Manual de usuario

Alesis

Alesis Point Seven Manual de usuario

Alesis

Alesis Monitor Two Manual de usuario

Alesis

Alesis M1 Active Mk2 Manual de usuario

Alesis

Alesis ELEVATE 4 Manual de usuario

Alesis

Alesis ACTIVE M1 Documento técnico

Alesis

Alesis M1ACTIVE 520 Manual de usuario

Alesis

Alesis M1ACTIVE 520 Guía de configuración

Alesis

Alesis Alpha 115 Manual de usuario

Alesis

Alesis RPM8 Manual de usuario

Alesis

Alesis M1 Active 330 USB Manual de usuario

Alesis

Alesis ELEVATE 5 MKII Manual de usuario

Alesis

Alesis M1ACTIVE 520 Manual de usuario

Alesis

Alesis M1 Active MKII Manual de usuario

Alesis

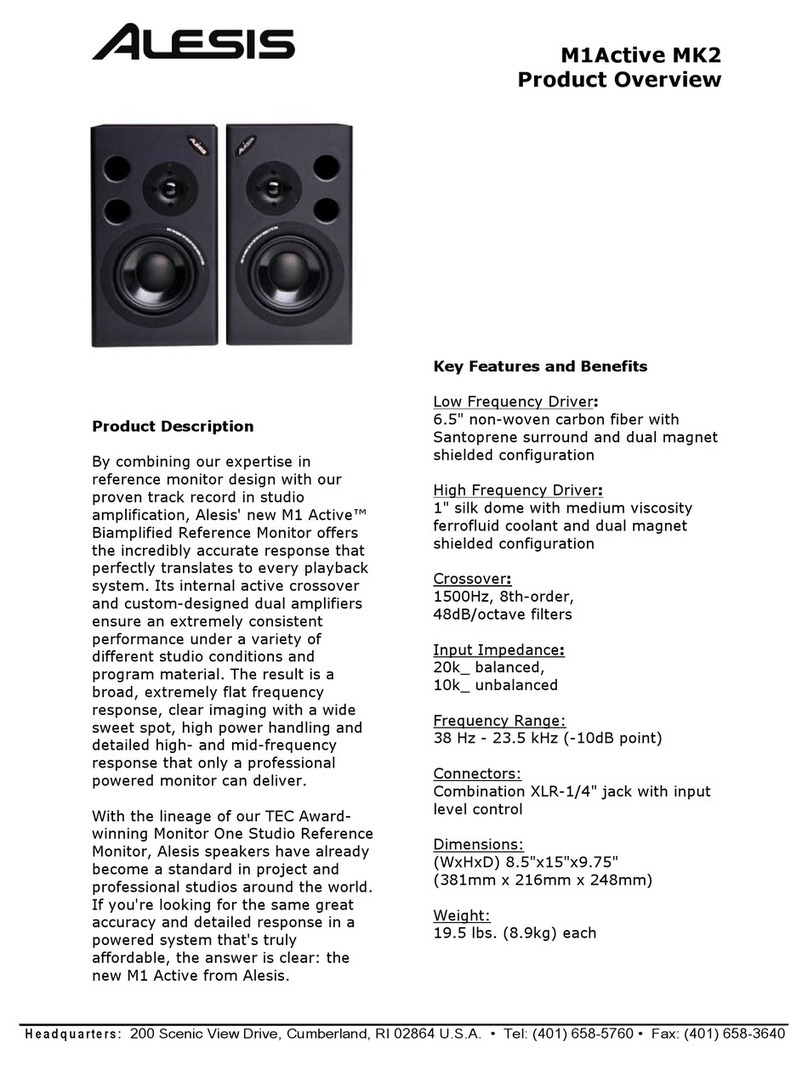

Alesis M1ACTIVE MK2 Instrucciones de funcionamiento y seguridad
