User Guide (English)

Introduction

Box Contents

Turbo Drum Module

Power Adapter

Cable Snake

User Guide

Safety & Warranty Manual

Support

For the latest information about this product (system requirements, compatibility information,

etc.) and product registration, visit alesis.com.

For additional product support, visit alesis.com/support.

Setup

Items not listed in Introduction >Box Contents are sold separately.

Connecting the Drum Module

Selecting a Kit

To select one of the module's 10 preset kits, do one of the following:

• Press the Variation button so it is lit red,

and then press the 1, 2, 3, 4, or 5button to

select Kit 1, 2, 3, 4, or 5respectively.

• Press the Variation button so it is lit green, and then press the 1, 2, 3, 4, or 5

button to select Kit 6, 7, 8, 9, or 10 respectively.

The Kit Number will appear in the Display. Once you have selected a kit, you can select others

by repeating one of the steps above or by using the – / + buttons.

Playing the Pads

If your electronic drum kit has velocity-sensitive pads, Turbo Drum Module will play sounds of

varying timbres depending on how hard you hit the pads. Try hitting the pads with different

amounts of force to experiment with the different sounds produced by the module!

The hi-hat sound will vary based on the position of the hi-hat controller pedal:

• Open hi-hat: With your foot off the pedal, hit the hi-hat pad.

• Closed hi-hat: With your foot pressing the pedal all the way down, hit the hi-hat

pad.

• Pedal close: Press the hi-hat pedal all the way down without hitting the hi-hat pad.

• Splash: Quickly press the hi-hat pedal all the way down, and then release it

immediately.

Learn more about using the drum module in the Operation section of this manual.

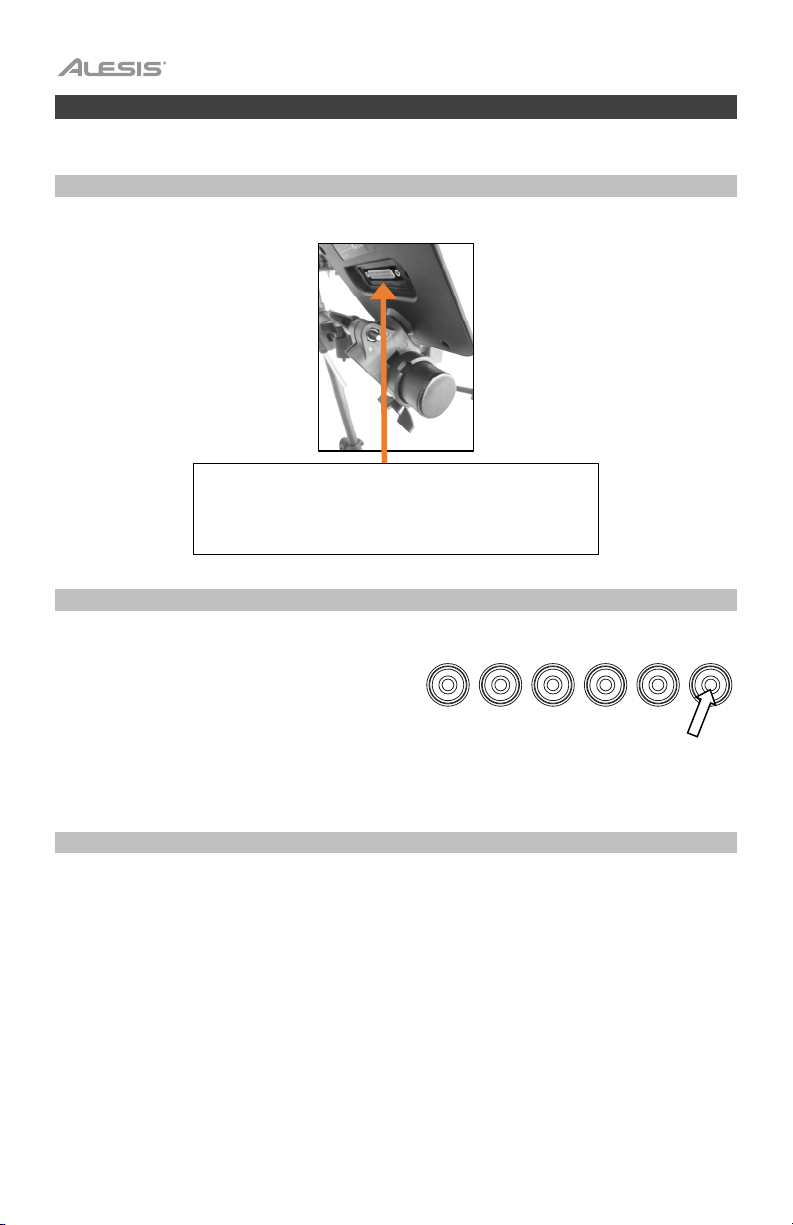

Connect the head of the included cable snake here

(multipin with two screws). Then connect the 1/4"

cables at the tail end of the cable snake to each pad

in your drum kit.

12345

VARIATION

Drum Module Rear Panel

Features

Top Panel

1. Power Button: Press this button to turn the drum module on. Press and hold it for 2

seconds to turn the drum module off.

2. Display: This screen shows information relevant to the drum module's current function

and operation.

3. Volume Knob: Turn this knob to adjust the volume of the Main Outputs and Phones

Output.

4. – / + : Press either of these buttons to decrease or increase the value shown in the

display.

5. Click Button: Press this button to turn the metronome ("click") on or off. See Using the

Metronome (Click) for more information.

6. Start/Stop Button: Press this button to start or stop playback of a pattern. See Playing

Along with Patterns for more information.

7. Pattern Button: Press this button to enter Pattern Mode. Press both this button and the

Tempo Button simultaneously to use the Built-In Drum Coach. See Playing Along with

Patterns and Using the Built-In Drum Coach for more information.

8. Tempo: Press this button to enter Tempo Mode and use the – / + buttons to adjust the

tempo. Press both this button and the Pattern Button simultaneously to use the Built-In

Drum Coach. See Using the Metronome (Click) and Using the Built-In Drum Coach

for more information.

9. 1-5/Variation Buttons: Press any one of these buttons to enter Kit Mode and select a

Kit. When using the Built-In Drum Coach, you can use these buttons to select an

exercise. See Using Kits and Using the Built-In Drum Coach for more information.

Rear Panel

1. Power Jack: Use the included power adapter (9 V, 500 mA, center pin-positive) to

connect this jack to your power outlet.

2. Cable Snake Input: Connect the head of the included cable snake here. Connect the

cables at the tail end of the cable snake to your kit's triggers (drum pads, cymbal pads,

and pedals).

3. Main Outputs: Use standard 1/4" mono cables (not included) to connect these outputs

to your monitor, amplifier, or PA system. Adjust the volume of these outputs with the

Volume Knob on the top panel.

4. Phones Output: Connect standard 1/8" stereo headphones (not included) to this output.

Adjust the volume of this output with the Volume Knob on the top panel.

5. Aux In: Use a 1/8" stereo cable (not included) to connect an external audio device

(smartphone, CD player, etc.) to this input.

6. USB Port: Use a standard USB cable (not included) to connect your computer to this

port, which allows you to send and receive MIDI messages to and from your computer.

See MIDI for more information.

Operation

Using Kits

Selecting a Kit

To select one of the module's 10 preset kits, do one of the following:

• With the Variation button lit red, press the 1,

2, 3, 4, or 5button to select Kit 1, 2, 3, 4, or 5

respectively.

• With the Variation button lit green, press the

1, 2, 3, 4, or 5button to select Kit 6, 7, 8, 9, or

10 respectively.

The Kit Number will appear on the Display. Once you have selected a kit, you can select others by

repeating one of the steps above or by using the – / + buttons.

Adjusting Kit Volumes

To adjust the volume of each separate kit:

1. Do one of the following:

• With the Variation button lit red, double-

press the 1, 2, 3, 4, or 5button to select

Kit 1, 2, 3, 4, or 5 respectively.

• With the Variation button lit green,

double-press the 1, 2, 3, 4, or 5button to

select Kit 6, 7, 8, 9, or 10 respectively.

2. The Display will show the volume level (L00 – L32). Use the – / + buttons to

set the kit's volume level (the default volume level is L28).

3. Wait 4 seconds. The kit’s new volume setting will be saved automatically.

Playing Along with Patterns

Selecting and Playing a Pattern

To select one of the 30 preset patterns:

1. Press the Pattern button to enter Pattern Mode. The button's LED will light

up, and the Display will show the current Pattern Number.

2. Use the – / + buttons to select a pattern. (You can hold down the –or +

button to scan quickly through the list).

3. Press the Start/Stop button to start the pattern's playback.

4. Play along to the pattern!

5. Press the Start/Stop button to stop the pattern's playback.

Adjusting the Pattern Volume

To adjust the volume of each separate pattern:

1. Double-press the Pattern button.

2. The Display will show the volume level (00 – 32). Use the – / + buttons to set

the pattern's volume level (the default volume level is 25).

12345

VARIATION

12345

VARIATION

PATTERN

START

/STOP

PATTERN

Using the Metronome (Click)

You can use the built-in metronome ("click") to help you keep time while practicing with the built-in

Drum Coach or with patterns. You can change the metronome's tempo (speed), volume, sound, and

time signature.

Turning the Metronome On or Off

To turn the metronome on or off, press the Click button.

Adjusting the Metronome Tempo

To adjust the metronome's tempo (speed):

1. Press the Tempo button.

2. The Display will show the current tempo (30 – 280) in BPM ("beats per

minute"). Use the – / + buttons to set the new tempo.

3. Wait 4 seconds. The drum module will automatically save the new setting.

Adjusting the Metronome Volume

To adjust the metronome's volume:

1. Double-press the Click button.

2. The Display will show the volume level (L00 – L32). Use the – / + buttons to

set the metronome's volume level (the default volume level is L25).

3. Wait 4 seconds. The drum module will automatically save the new setting.

Changing the Metronome Sound

To change the metronome's "click" sound:

1. Press the Click button and 1button simultaneously.

2. The Display will show CL ("click") and the number of the sound (CL1 –

CL5). Use the – / + buttons to set the metronome sound:

• CL1: Chime and click (default)

• CL2: Clave

• CL3: Side-stick

• CL4: Cowbell

• CL5: Vocal

3. Wait 4 seconds. The drum module will automatically save the new setting.

CLICK

TEMPO

CLICK

Changing the Metronome Time Signature

To change the metronome's time signature:

1. Press the Click button and 2button simultaneously.

2. The Display will show the current time signature. Use the – / + buttons to

select a time signature: 1/2, 2/2, 3/4, 4/4, or 6/8.

3. Wait 4 seconds. The drum module will automatically save the new setting.

Changing the Metronome Interval

To change the metronome's note division (the note value it measures with each click):

1. Press the Click button and 3button simultaneously.

2. The Display will show the current interval. Use the – / + buttons to select a

new interval: 2 (half note), 3 (triplet),4 (quarter note), 6 (sextuplet),8 (eighth

note), or 16 (sixteenth note). The default is 4.

3. Wait 4 seconds. The drum module will automatically save the new setting.

Using the Built-In Drum Coach

The Built-In Drum Coach contains five different exercises to help you develop and improve your

accuracy, stamina, and sense of tempo: Beat Check, Gradual Up/Down, Rhythm Change Up,

Follow Me, and Drum Mute.

To use the Built-In Drum Coach, press the Pattern button and Tempo button at the same time.

Then, press the 1, 2, 3, 4, or 5button that corresponds to the exercise you want to do. The Display

will show which exercise you have selected:

1. Beat Check (bCH)

2. Gradual Up/Down (GUd)

3. Rhythm Change Up (C-U)

4. Follow Me (FLo)

5. Drum Mute (d-U)

CLICK

Beat Check

This exercise evaluates your sense of timing and how accurately you play along with the metronome.

To use Beat Check:

1. Press the Pattern button and Tempo button at the

same time. Then press the 1button.

2. Set the metronome's time signature and interval (as

described in Using the Metronome (Click)).

3. Press the Start/Stop button to begin.

4. Hit the pads in time with the metronome. The six

LEDs of the 1-5/Variation buttons indicate how

accurate or "in time" you are.

• When you are right on the beat, the 3

and 4buttons light up.

• When you are slightly off the beat, the 2

or 5button will light up.

• When you are off the beat, the 1or

Variation button will light up.

• When you are completely off the beat, no

buttons will light up.

5. Press the Start/Stop button to stop.

Gradual Up/Down

This exercise evaluates how quickly you can play while still maintaining accurate time.

To use Gradual Up/Down:

1. Press the Pattern button and Tempo button at the

same time. Then press the 2button.

2. Set the metronome's time signature and interval (as

described in the Using the Metronome (Click) section).

3. Press the Start/Stop button.

4. Do one of the following:

• Press the 1button to select G-1 Mode. In this mode, the

tempo automatically decreases or increases by 5 BPM every

4 measures, depending on your accuracy.

• Press the 2button to select G-2 Mode. In this mode, the

tempo automatically decreases or increases by 1 BPM each

measure (The starting tempo is your metronome's current

setting).

5. Hit the pads in time with the metronome. The six LEDs of the 1-5/Variation buttons indicate

how accurate or “in time” you are.

• When you are right on the beat, the 3

and 4buttons light up.

• When you are slightly off the beat, the 2

or 5buttons will light up.

• When you are off the beat, the 1or

Variation button will light up.

• When you are completely off the beat,

no buttons will light up.

6. Press the Start/Stop button to stop.

START

/STOP

SLOW GOOD FAST

12345VARIATION

PATTERN

COACH

TEMPO

PATTERN

COACH

TEMPO

START

/STOP

SLOW GOOD FAST

12345

VARIATION

Rhythm Change Up

This exercise helps you practice changing rhythms while still maintaining accurate time.

To use Rhythm Change Up:

1. Press the Pattern button and Tempo button at the

same time. Then press the 3button.

2. Press the Start/Stop button.

3. Press the 1, 2, or 3button or use the – / + buttons to select a rhythmic

progression, shown below:

P-1:

P-2:

P-3:

4. Press the Start/Stop button to begin.

5. Hit the pads in the rhythm you selected (above) and in time with the metronome (the starting

tempo is your metronome's current setting). The six LEDs of the 1-5/Variation buttons indicate

how accurate or “in time" you are:

• When you are right on the beat, the 3

and 4buttons will light up.

• When you are slightly off the beat, the 2

or 5button will light up.

• When you are off the beat, the 1or

Variation button will light up.

• When you are completely off the beat, no buttons will light up.

The Display will show your score:

• 0 – 29: OK

• 30 – 59: Good

• 60 – 79: Very Good

• 80 – 100: Excellent

START

/STOP

123

PATTERN

COACH

TEMPO

SLOW GOOD FAST

12345

VARIATION

Tabla de contenidos

Otros manuales de Tambor de Alesis

Alesis

Alesis E-DRUM TOTAL Manual de usuario

Alesis

Alesis DM6 SESSION KIT Guía de instalación

Alesis

Alesis compactkit 4 Manual de usuario

Alesis

Alesis COMPACTKIT 7 Manual de usuario

Alesis

Alesis STRIKE Manual de usuario

Alesis

Alesis Performance Pad Pro Manual de usuario

Alesis

Alesis HR-16 Manual de usuario

Alesis

Alesis HR-16 Manual de usuario

Alesis

Alesis DM Pro Kit Manual de usuario

Alesis

Alesis DM10 MKII Pro Manual de usuario

Alesis

Alesis Surge Cymbal Pack 1 Manual de usuario

Alesis

Alesis DM8 PRO KIT Manual de usuario

Alesis

Alesis E-DRUM TOTAL Manual de usuario

Alesis

Alesis DM6 SESSION KIT Manual de usuario

Alesis

Alesis E-DRUM TOTAL Manual de usuario

Alesis

Alesis D4 Manual de usuario

Alesis

Alesis SR-16 Documento técnico

Alesis

Alesis Performance Pad Documento técnico

Alesis

Alesis DM10 PRO KIT Manual de usuario

Alesis

Alesis DM10 MKII Pro Manual de usuario

Alesis

Alesis IO|2 Manual de usuario

Alesis

Alesis PercPad Manual de usuario

Alesis

Alesis DM10 MKII Pro Manual de usuario

Alesis

Alesis DM10 MKII Pro Manual de usuario

Manuales populares de Tambor de otras marcas

Yamaha

Yamaha RX-21 Manual de usuario

Roland

Roland TD-9K Manual de usuario

Sudoku

Sudoku LEXUS Manual de usuario

Roland

Roland CR-80 Manual de usuario

V-Drums

V-Drums V-Tour TD-9KX2 Manual de usuario

Yamaha

Yamaha DTXPLORER Manual de usuario

Cherub

Cherub WRW-206 Manual de usuario

Opti-Med

Opti-Med JM-D1 Series Manual de usuario

Roland

Roland CR-80 Manual de usuario

Yamaha

Yamaha DTS70 Manual de usuario

Yamaha

Yamaha DTXPRESS Manual de usuario

Roland

Roland RM-2 Manual de usuario

ATV

ATV aD5 Manual de usuario

Roland

Roland TR-808 Manual de usuario

Roland

Roland SPD-20 Manual de operación y mantenimiento

Koma Elektronik

Koma Elektronik RH 301 Manual de usuario

Roland

Roland TR-8 Manual de usuario

Casio

Casio RZ-1 Manual de usuario
