AKM AKD4127-A Manual de usuario

ASAHI KASEI [AKD4127-A]

<KM085601> 2006/11

- 1 -

GENERAL DESCRIPTION

The AKD4127-A is an evaluation board for AK4127, the digital sample rate converter. The AKD4127-A

has the digital audio interface and can achieve the interface with digital audio system via opt-connector.

Ordering guide

AKD4127-A --- AK4127 Evaluation Board

FUNCTION

•DIR/DIT with optical input/output

•10pin Header for AKM AD/DA evaluation board

Opt In AK4114

10pin

Header

DSP

Data

5V GND

Opt OutAK4114

10pin

Header

DSP

Data

AK4127

COAX

Regulator

COAX

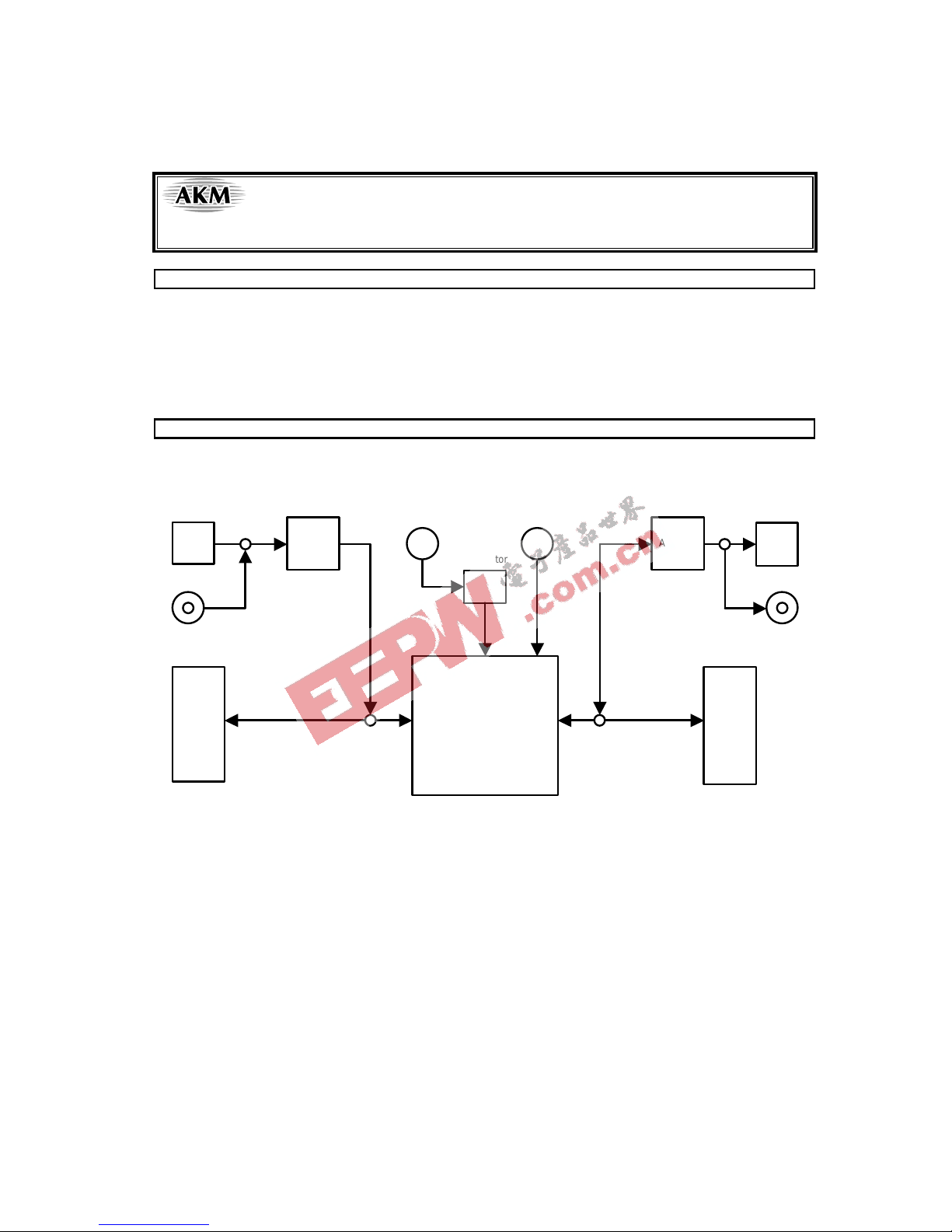

Figure 1. AKD4127-A Block Diagram

* Circuit diagram and PCB layout are attached at the end of this manual.

AK4127 Evaluation Board Rev.0

D4127-

ASAHI KASEI [AKD4127-A]

<KM085601> 2006/11

- 2 -

Operation sequence

1) Set up the power supply lines.

[VCC] (Red) = +5V (for regulator)

[DGND] (Black) = 0V

Each supply line should be distributed from the power supply unit.

The regulator can be supplied 3.3V to all circuits.

2) Set up the evaluation mode, jumper pins. (See the followings.)

3) Power on.

The AK4127 should be reset once bringing SW1 (PDN) “L” upon power-up.

Evaluation mode

(1) Setting for Input port

(1) When using DIR function of AK4114 (U3)

When using PORT1 (DIR) or J1 (COAX), nothing should be connected to PORT2 (INPUT).

JP2

IBICK JP3

SDTI JP4

ILRCK

•SW3 setting (See Table 1)

Upper-side is “H” and lower-side is “L”.

The audio interface format of the AK4114 is fixed to 24bit, MSB justified. IDIF2-0 and PLL2-0 of SW3

should be used by default setting.

SW3 No. Name ON (“H”) OFF (“L”) Default

1 DITH Dither ON Dither OFF L

2 PLL2 H

3 PLL1 L

4 PLL0

PLL Mode Setting

Fixed to default H

5 IDIF0 L

6 IDIF1 H

7 IDIF2

AK4127 Audio I/F Format Setting

Fixed to default L

Table 1. SW3 Setting

ASAHI KASEI [AKD4127-A]

<KM085601> 2006/11

- 3 -

(2) All clocks are fed through the 10pin port

When using PORT2 (INPUT), nothing should be connected to J1 (COAX) and PORT1 (DIR).

JP2

IBICK JP3

SDTI JP4

ILRCK

•SW3 setting (See Table 2)

Upper-side is “H” and lower-side is “L”.

SW3 No. Name ON (“H”) OFF (“L”) Default

1 DITH Dither ON Dither OFF L

2 PLL2 H

3 PLL1 L

4 PLL0

PLL Mode Setting

Refer to Table 3 H

5 IDIF0 L

6 IDIF1 H

7 IDIF2

AK4127 Audio I/F Format Setting

Refer to Table 4 L

Table 2. SW3 Setting

Mode Master / Slave PLL2 PLL1 PLL0 ILRCK Freq IBICK Freq IMCLK SMUTE

(Note 4)

0 L L L

8k ∼96kHz

1 L L H Manual

2 L H L

8k ∼216kHz

16k ∼216kHz

(Note 1)

Depending on

IDIF2-0 Not

needed. Semi-Auto

3 L H H Reserved

4 H L L 32fsi (Note 3)

5 H L H 64fsi

6 H H L 128fsi

Manual

Slave

IMCLK = DVSS

IBICK = Input

ILRCK = Input

H H H

8k ∼216kHz

(Note 2) 64fsi

Not

needed. Semi-Auto

8 L L L

8k ∼216kHz 128fs

9 L L H

8k ∼108kHz 256fs

10 L H L

8k ∼54kHz 512fs Manual

11 L H H

8k ∼216kHz 128fs Semi-Auto

12 H L L

8k ∼216kHz 192fs

13 H L H

8k ∼108kHz 384fs

14 H H L

8k ∼54kHz 768fs Manual

Master

IMCLK = Input

IBICK = Output

ILRCK = Output

H H H

8k ∼216kHz

64fs

192fs Semi-Auto

Table 3. PLL Setting (Input PORT)

Note 1. PLL lock rage is changed by the value of R and C connected FILT pin. Refer to “PLL Loop Filter” in the

datasheet. 470Ω, 0.22µF and 1nF are implemented on the evaluation board.

Note 2. The IBCIK must be continuous except when the clocks are changed.

Note 3. IBCIK = 32fsi is supported only 16bit LSB justified and I2S Compatible.

Note 4. Refer to “Soft Mute Operation” for Manual mode and Semi-Auto mode in the datasheet.

ASAHI KASEI [AKD4127-A]

<KM085601> 2006/11

- 4 -

Mode IDIF2 IDIF1 IDIF0 SDTI Format ILRCK IBICK IBICK Freq Master / Slave

0 L L L 16bit, LSB justified ≥32fsi

1 L L H 20bit, LSB justified ≥40fsi

2 L H L 24/20bit, MSB justified ≥48fsi

3 L H H 24/16bit, I2S Compatible ≥48fsi or

32fsi

4 H L L 24bit, LSB justified

Input Input

≥48fsi

Slave

5 H L H 24bit, MSB justified 64fs

6 H H L 24bit, I2S Compatible Output Output 64fs Master

7 H H H Reserved

Table 4. Input Audio Interface Format (Input PORT)

(2) Setting for Output port

(1) When using DIT function of AK4114 (U4)

When using PORT4 (DIT) or J2 (TX), nothing should be connected to PORT3 (OUTPUT). When BICK and

LRCK frequencies are changed, the value of X’tal (X1) frequency should be changed.

JP6

OBICK JP7

OLRCK

•SW4 setting (See Table 5)

Upper-side is “H” and lower-side is “L”.

The audio interface format of the AK4114 is fixed to 24bit, MSB justified. ODIF2-0, CMODE2-0 and

OBIT1-0 of SW3 should be used by default setting.

SW4 No. Name ON (“H”) OFF (“L”) Default

1 ODIF1 H

2 ODIF0

AK4127 Output Audio I/F Format Setting

Fixed to default L

3 CMODE2 H

4 CMODE1 L

5 CMODE0

AK4127 Mode Setting

Fixed to default L

6 OBIT1 H

7 OBIT0 AK4127 Output bit Length Setting

Fixed to default H

Table 5. SW4 Setting

ASAHI KASEI [AKD4127-A]

<KM085601> 2006/11

- 5 -

(2) All clocks are fed through the 10pin port

When using PORT3 (OUTPUT), nothing should be connected to J2 (TX) and PORT4 (DIT).

JP6

OBICK JP7

OLRCK

•SW4 setting (See Table 6)

Upper-side is “H” and lower-side is “L”.

SW4 No. Name ON (“H”) OFF (“L”) Default

1 ODIF1 H

2 ODIF0

AK4127 Output Audio I/F Format Setting

Refer to Table 7 L

3 CMODE2 H

4 CMODE1 L

5 CMODE0

AK4127 Mode Setting

Refer to Table 8 L

6 OBIT1 H

7 OBIT0 AK4127 Output bit Length Setting

Refer to Table 9 H

Table 6. SW4 Setting

Mode ODIF1 ODIF0 SDTO Format

0 L L LSB justified

1 L H (Reserved)

2 H L MSB justified

3 H H I2S Compatible

Table 7. Output Audio Interface Format 1 (Output PORT)

Mode CMODE2 CMODE1 CMODE0 Master / Slave OMCLK fso

0 L L L Master 256fso 8k ∼108kHz

1 L L H Master 384fso 8k ∼108kHz

2 L H L Master 512fso 8k ∼54kHz

3 L H H Master 768fso 8k ∼54kHz

4 H L L Slave Not used. Set to DVSS. 8k ∼216kHz

5 H L H Master 128fso 8k ∼216kHz

6 H H L Master 192fso 8k ∼216kHz

7 H H H Master (Bypass) Not used. Set to DVSS. 8k ∼216kHz

Table 8. Master/Slave Control (Output PORT)

Mode OBIT1 OBIT0 SDTO Output

0 L L 16bit

1 L H 18bit

2 H L 20bit

3 H H 24bit

Table 9. Output Audio Interface Format 2 (Output PORT)

ASAHI KASEI [AKD4127-A]

<KM085601> 2006/11

- 6 -

Other jumper pins set up

1. JP1 (RX) : Select of RX input

COAX: COAX input.

RX: Optical input. <Default>

2. JP5 (CKSO) : AK4114 BICK and LRCK setting

H: BICK: 2.048MHz ∼12.288MHz, LRCK: 32kHz ∼192kHz

L: BICK: 2.048MHz ∼6.144MHz, LRCK: 32kHz ∼96kHz <Default>

When BICK and LRCK frequencies are changed, the value of X’tal (X1) frequency should be changed.

3. JP8 (TX) : Select of TX output

BNC: BNC connector (J2) output.

OPT: Optical (PORT4) output. <Default>

The function of the toggle SW

Upper-side is “H” and lower-side is “L”.

[SW1] (PDN): Resets the AK4127 and the AK4114. Keep “H” during normal operation.

The AK4127 and the AK4114 should be resets once bringing “L” upon power-up.

[SW2] (SMUTE): Soft mute of AK4127

Indication for LED

[LED1] (UNLOCK): Monitor UNLOCK pin of the AK4127. LED turns on when unlock occurs.

[LED2] (ERF): Monitor INT0 pin of the AK4114 (U3). LED turns on when unlock or parity error occurs.

ASAHI KASEI [AKD4127-A]

<KM085601> 2006/11

- 7 -

MEASUREMENT RESULTS

[Measurement condition]

•Measurement unit : Audio Precision, System Two Cascade

•Power Supply : AVDD = DVDD = 3.3V

•Band width : 20Hz ∼FSO/2

•Temperature : Room

[Measurement Result]

SRC Characteristics SDTO Lcht SDTO Rch Unit

THD+N (Input = 1kHz, 0dBFS)

FSO/FSI=44.1kHz/48kHz

FSO/FSI=48kHz/44.1kHz

FSO/FSI = 48kHz/192kHz

FSO/FSI=192kHz/48kHz

Worst Case (FSO/FSI = 32kHz/176.4kHz)

130.4

125.0

136.9

124.7

96.1

130.4

125.0

136.9

124.7

96.1

Dynamic Range (Input = 1kHz, −60dBFS)

FSO/FSI=44.1kHz/48kHz

FSO/FSI=48kHz/44.1kHz

FSO/FSI = 48kHz/192kHz

FSO/FSI=192kHz/48kHz

WorstCase(FSO/FSI=48kHz/32kHz)

Dynamic Range (Input = 1kHz, −60dBFS, A-weighted)

FSO/FSI=44.1kHz/48kHz

137.3

135.6

135.7

139.7

137.3

135.6

135.7

139.7

ASAHI KASEI [AKD4127-A]

<KM085601> 2006/11

- 8 -

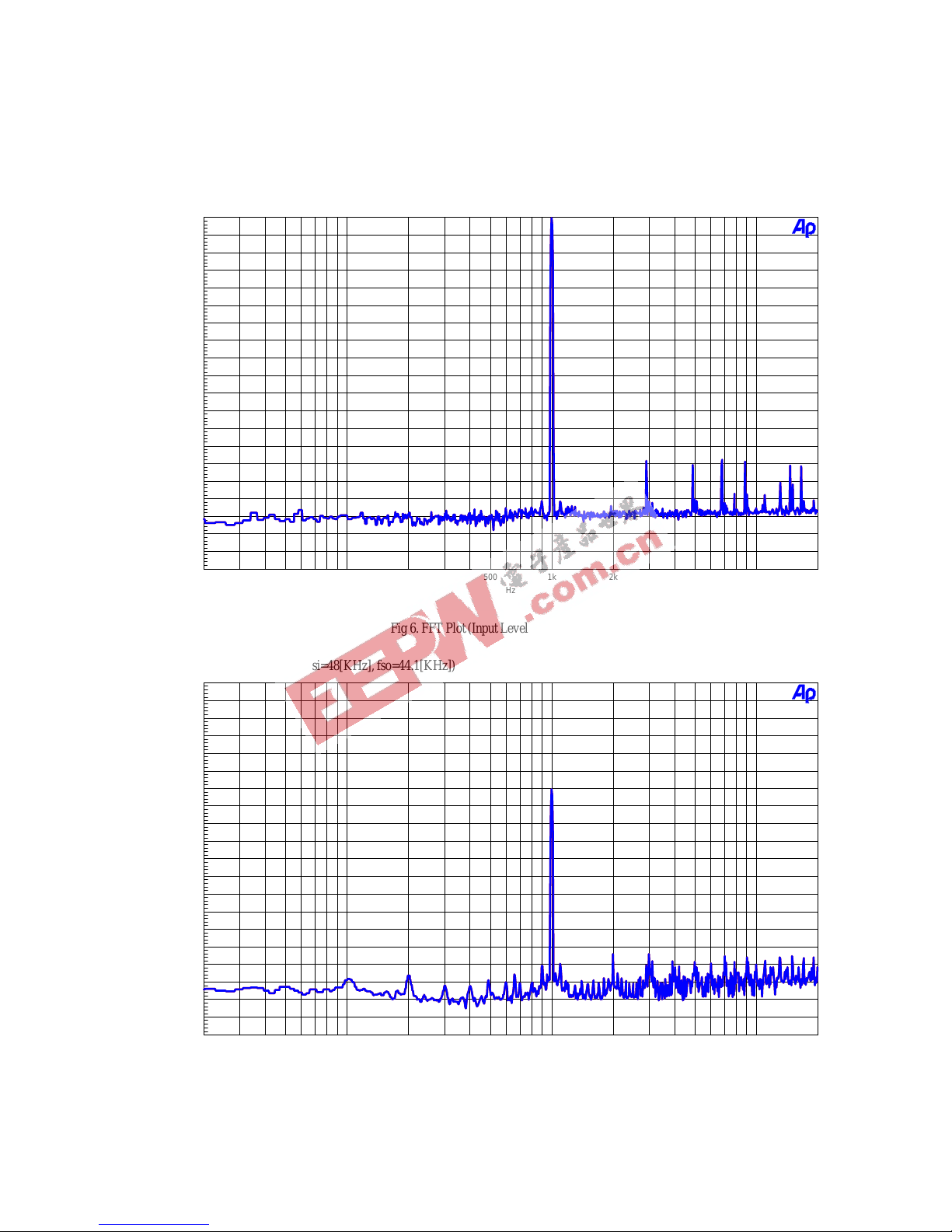

[Plot] AK4127 FFT Plot (fsi=48[KHz], fso=44.1[KHz]) AVDD=DVDD=3.3[V], Input Level=0[dBFS], fin=1[KHz]

-200

-190

-180

-170

-160

-150

-140

-130

-120

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

20 20k50 100 200 500 1k 2k 5k 10k

Fig 6. FFT Plot (Input Level= 0[dBFS])

AK4127 FFT Plot (fsi=48[KHz], fso=44.1[KHz]) AVDD=DVDD=3.3[V], Input Level=-60[dBFS], fin=1[KHz]

-200

-190

-180

-170

-160

-150

-140

-130

-120

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

20 20k50 100 200 500 1k 2k 5k 10k

Fig 7. FFT Plot (Input Level= −60[dBFS])

ASAHI KASEI [AKD4127-A]

<KM085601> 2006/11

- 9 -

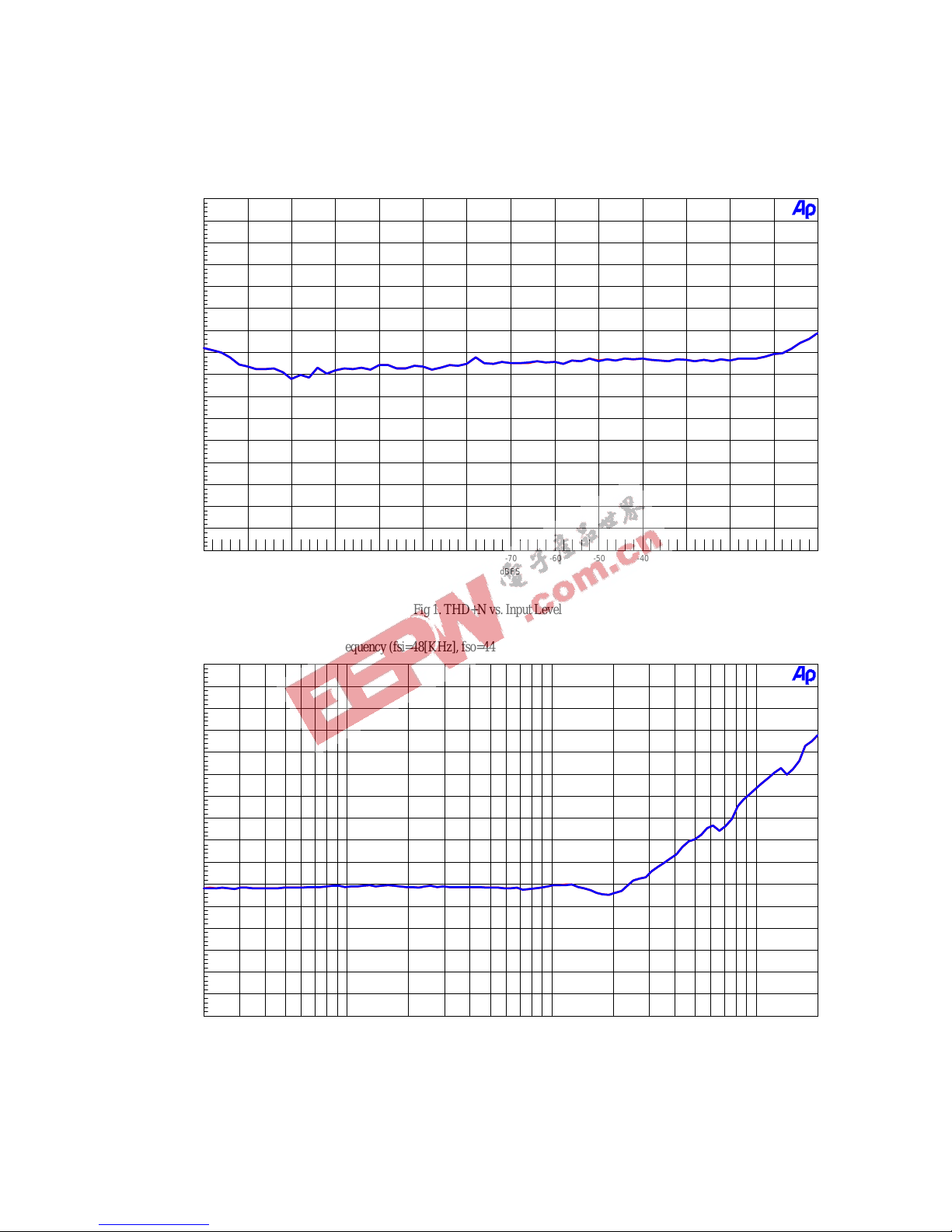

AK4127 THD+N vs Input Level (fsi=48[KHz], fso=44.1[KHz]) AVDD=DVDD=3.3[V],fin=1[KHz]

-140 +0-130 -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10

dBFS

-180

-100

-175

-170

-165

-160

-155

-150

-145

-140

-135

-130

-125

-120

-115

-110

-105

Fig 1. THD+N vs. Input Level

AK4127 THD+N vs Input Frequency (fsi=48[KHz], fso=44.1[KHz]) AVDD=DVDD=3.3[V], Input Level=0[dBFS]

20 20k50 100 200 500 1k 2k 5k 10k

-160

-80

-155

-150

-145

-140

-135

-130

-125

-120

-115

-110

-105

-100

-95

-90

-85

Fig 2. THD+N vs. Input Frequency (Input Level= 0[dBFS])

ASAHI KASEI [AKD4127-A]

<KM085601> 2006/11

- 10 -

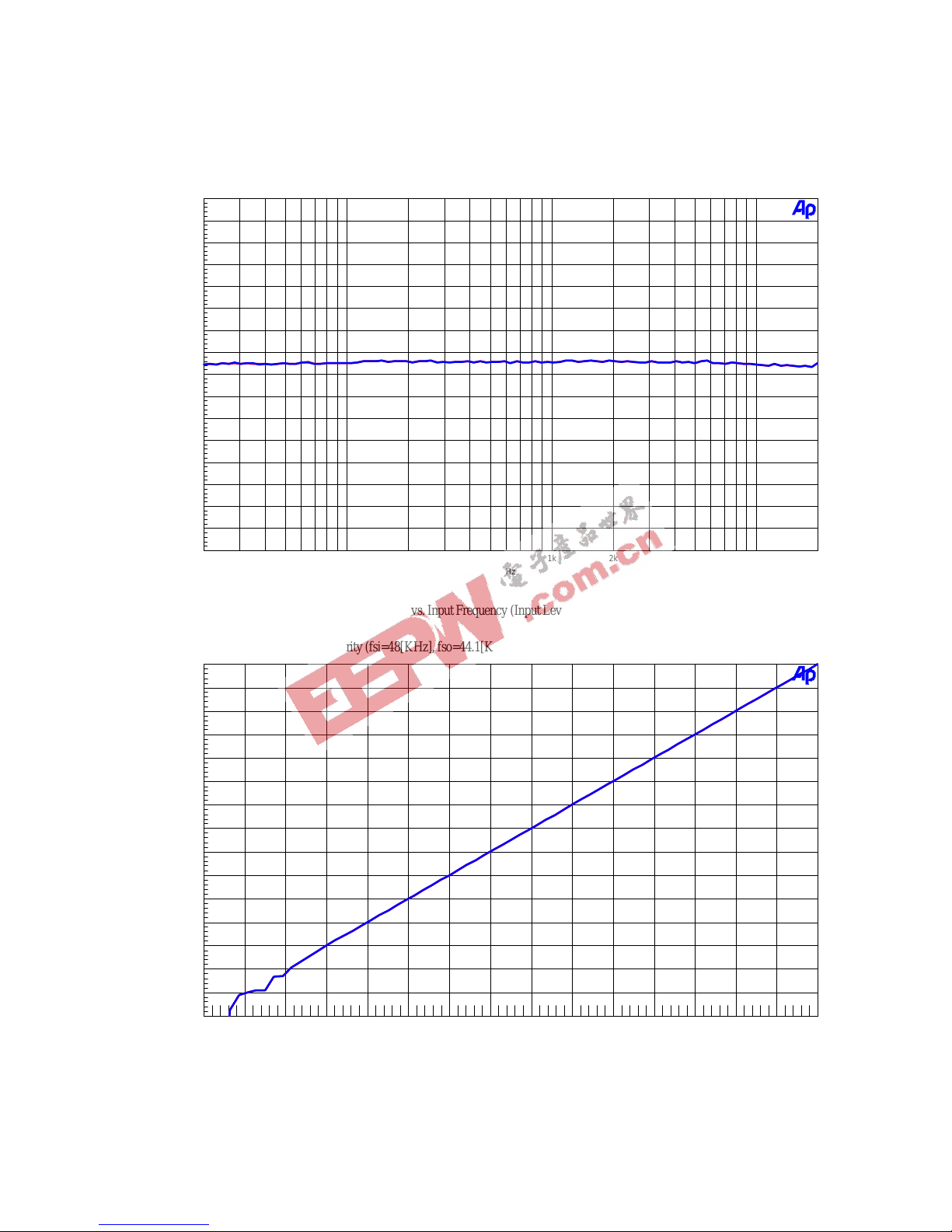

AK4127 THD+N vs Input Frequency(fsi=48[KHz], fso=44.1[KHz])AVDD=DVDD=3.3[V], Input Level=-60[dBFS]

20 20k50 100 200 500 1k 2k 5k 10k

-180

-100

-175

-170

-165

-160

-155

-150

-145

-140

-135

-130

-125

-120

-115

-110

-105

Fig 3. THD+N vs. Input Frequency (Input Level= −60[dBFS])

AK4127 Linearity(fsi=48[KHz], fso=44.1[KHz]) AVDD=DVDD=3.3[V], fin=1[KHz]

-150 +0-140 -130 -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10

dBFS

-150

-140

-130

-120

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

Fig 4. Linearity
