INSTRUCTION MANUAL
KS808
CD+G/MP3+G Karaoke System
With Speaker Pedestal
Thank you for purchasing this Karaoke System. Please read this instruction manual carefully before
using this product to ensure proper use. Keep this manual in a safe place for future reference.
1
WHAT’S IN THE BOX
Contents
1. KS808 Karaoke System
Main Unit
3. Pedestal Base
5. Screws
Butterfly head screw for assembling
main unit and speaker pedestal
Round head screw for assembling
pedestal base and speaker pedestal
7. Pre-recorded Karaoke CD+G Disc
9. AC-DC Power Adaptor
11. Audio Connection
Cable (connection
between main unit
and speaker pedestal
13. Warranty Card 14. Screw Driver
If you are missing any parts above, please contact ADT Digital LLC.
Tel: 561 922 6886
Fax: 561 922 6159
2. Speaker Pedestal
4. Screw Covers
(for Pedestal Base)
6. AV Cable
8. Dynamic Microphone
( x 2 pcs)
10. DC Power Connection
Cable (connection between
main unit and speaker
pedestal
12. Instruction Manual
x 4 pcs
x 4 pcs
Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
2
NOTE: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as
set out in the radio interference regulations of Industry Canada.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils
numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television (which can be determined by turning the equipment off),
the user is encouraged to try to correct the interference by one or more of the following measures:
FCC AND CANADIAN ICES
3
WARNINGS:
• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Avertissement: pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie
et l’humidité.
• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases,
shall be placed on apparatus.
L'appareil ne doit pas être exposé aux écoulements ou aux éclaboussures et aucun objet ne contenant de liquide,
tel qu'un vase, ne doit être placé sur l'objet.
• Mains plug /Power adaptor is used as disconnect device and it should remain readily operable during intended use.
In order to disconnect the apparatus from the mains completely, the main plug/ power adaptor should be
disconnected from the mains socket outlet completely.
La prise du secteur ne doit pas être obstruée ou doit être facilement accessible pendant son utilisation. Pour être
complètement déconnecté de l'alimentation d'entrée, la prise doit être débranchée du secteur.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
4

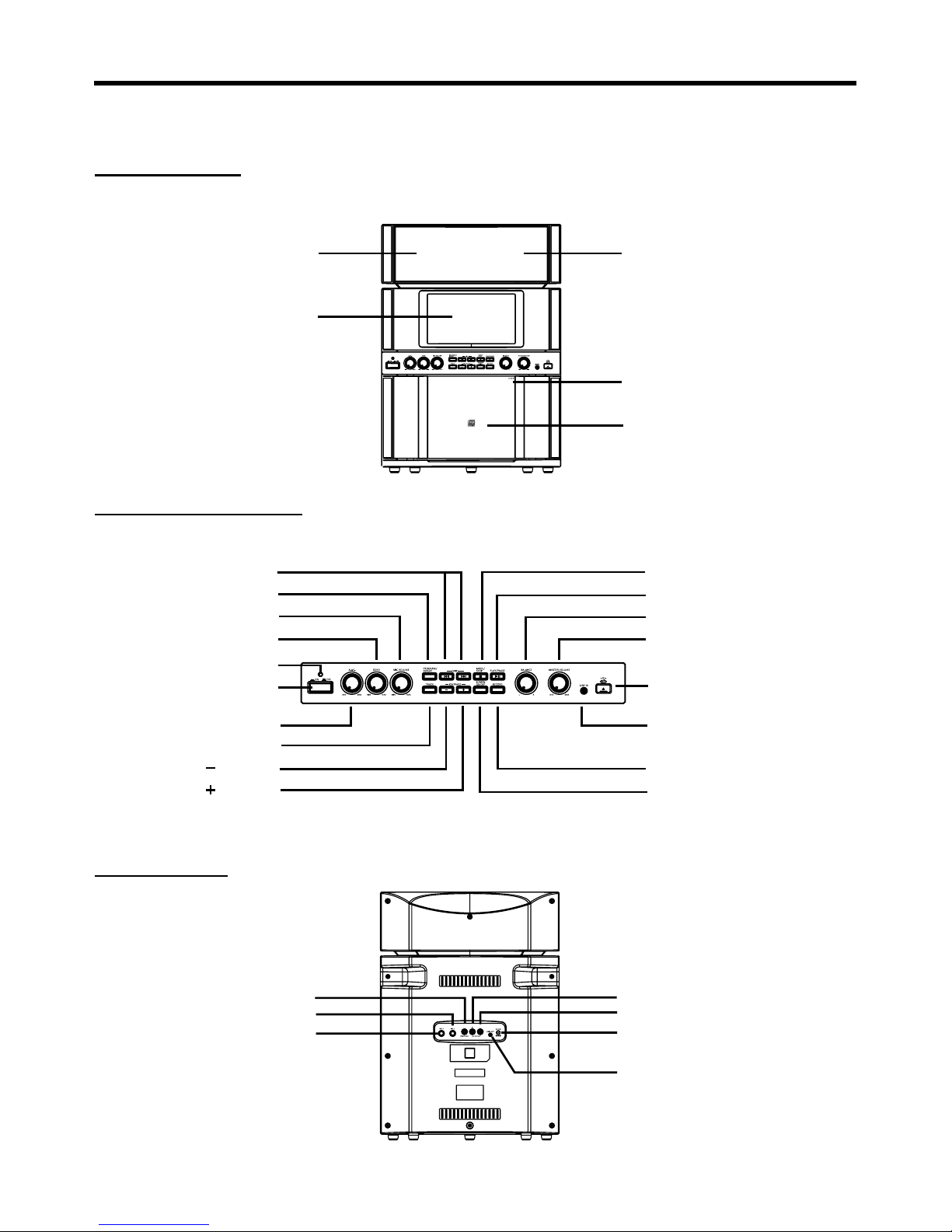

CONTROL LOCATION
FRONT SIDE
MAIN UNIT
LEFT SIDE SPEAKER RIGHT SIDE SPEAKER
CD DOOR OPEN AREA
CD DOOR
TFT SCREEN
CONTROL PANEL
BACK SIDE
NOTTUBPOTS/EDOMSNOTTUBPIKS
PLAY / PAUSE BUTTON
BALANCE CONTROL
MASTER VOLUME CONTROL
USB SOCKET
LINE IN JACK
RECORD BUTTON
TFT SCREEN
ON / OFF BUTTON
MIC VOLUME
ECHO CONTROL
POWER ON INDICATOR
ON / OFF BUTTON
A.V.C CONTROL
TRACK BUTTON
BUTTON
BUTTON
KEY / PAGE
PROGRAM/REPEAT BUTTON
VIDEO JACK AUDIO OUT (R) JACK
AUDIO OUT (L) JACK
DC IN JACK (TO CONNECT
TO SPEAKER PEDESTAL)
LINE OUT JACK (TO CONNECT
TO SPEAKER PEDESTAL)
MIC 2 JACK
MIC 1 JACK
5
CONTROL LOCATION
FRONT SIDE
SPEAKER PEDESTAL
MASTER VOLUME CONTROL
W/ POWER ON/OFF CONTROL
DC OUT JACK
(TO CONNECT TO
MAIN UNIT)
BACK SIDE
SPEAKER PEDESTAL
LINE IN JACK
(TO CONNECT TO
MAIN UNIT)
SPEAKERS
DC IN JACK
(TO AC/DC POWER
ADAPTER)
SCREW COVERS
PEDESTAL BASE
POWER ON INDICATOR RING
SPEAKERS
SPEAKER CLOTH
COVERS
6
TFT DISPLAY ICON
CDG TRK 8/8 C 00:16:04
1
A
D
P=
CD=
PLAYING TIME
REPEAT MODE
REPEAT ONE
REPEAT ALL
REPEAT FOLDER
NO REPEAT
PROGRAM MODE
C=
PROGRAM MODE PLAYING
NO PROGRAM MODE PLAY
PLAY / PAUSE / STOP INDICATOR
PLAYING MODE
PAUSE MODE
STOP MODE
PLAYING TRACK NUMBER AND TOTAL TRACK NUMBER
PLAYING DISC MODE
CDG=
CD DISC PLAYING
CD+G DISC PLAYING
CDrom= CD ROM /
MP3+G DISC PLAYING
USB= USB PLAYING
7
SETTING UP THE UNIT
8
CAUTION:
1. Take extra care and safety precautions when fastening screws by screw driver during
assembling the unit.
2. Do not hold / press the speaker cloth covers on both sides of the
speaker pedestal during assembling to avoid damages to the
speakers underneath.
3. Make sure to hold the main unit and speaker pedestal by both hands
during the assembly.
Assembling the Pedestal Unit
1. Insert the speaker pedestal (upper part) onto the recess on the top of the pedestal stand.
2. Fasten the round head screws (supplied) on the both sides of the pedestal stand by the
supplied screw driver.
RECESS
PEDESTAL
STAND
PEDESTAL STAND
SPEAKER PEDESTAL
SPEAKER
PEDESTAL
ROUND HEAD SCREW X 4
(SUPPLIED)
SETTING UP THE UNIT (Cont’d)
9

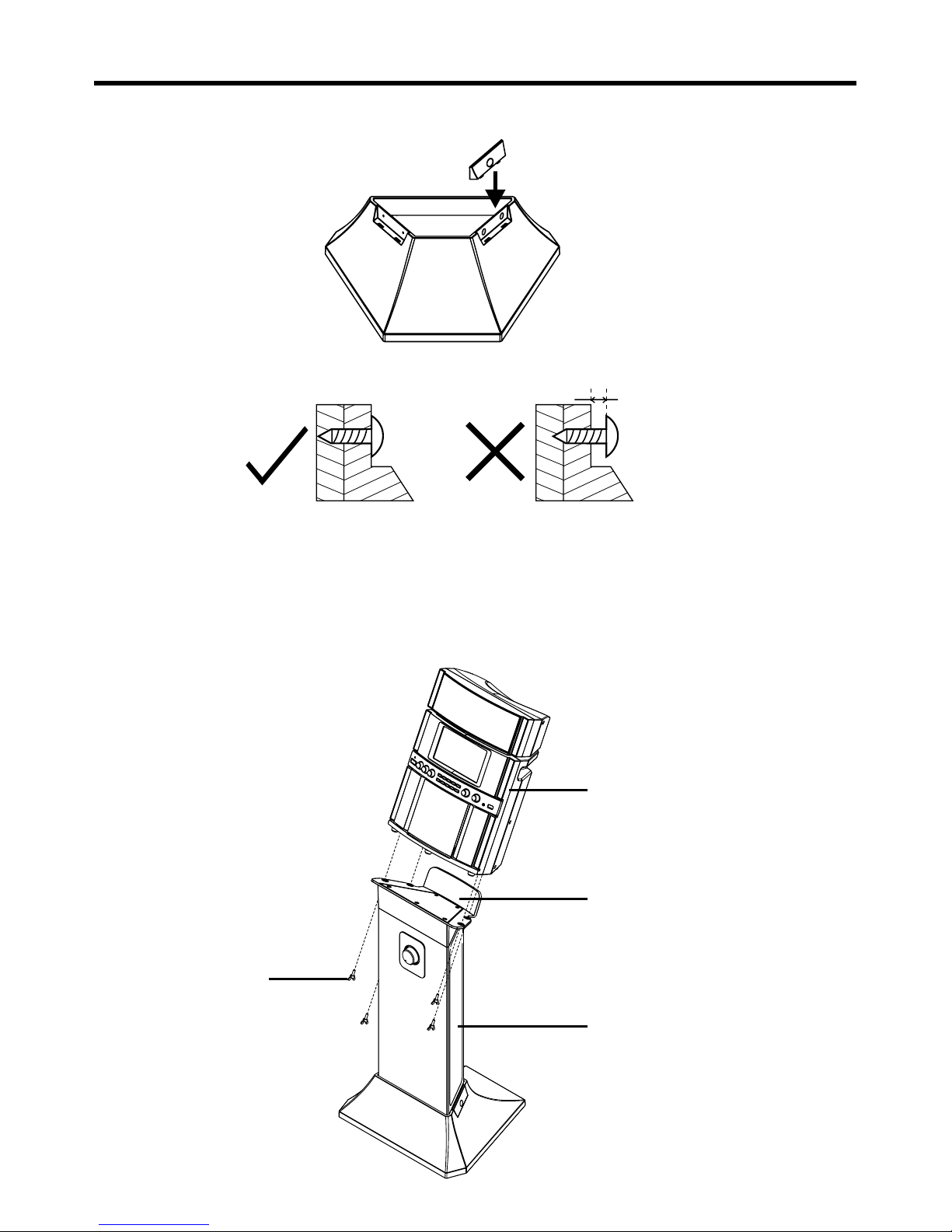

Assembling the Pedestal Unit and Main Unit
1. Hold the main unit by both hands and place onto the top holder on the top of the speaker
pedestal.
2. After the unit is placed stably on the top holder, fasten the main unit and the top holder
by FOUR butterfly head screws (supplied) by hand underneath the top holder.
NOTE: Please hold the main unit by one hand during fastening the screw.
3. After the screws are fastened, please snap the screw covers onto the slot on both sides
to cover the screws.
MAIN UNIT
SCREW COVER
SPEAKER PEDESTAL
TOP HOLDER
BUTTERFLY
SCREWS
(SUPPLIED)
Note: Make sure all screws are fully driven into the unit before snapping the screw
covers.
