Aiwa CR-LA30W Manual de usuario

STEREO RADIO RECEIVER

CR-LA30W

S/M Code No. 09-993-327-1O1

SERVICE MANUAL

DATA

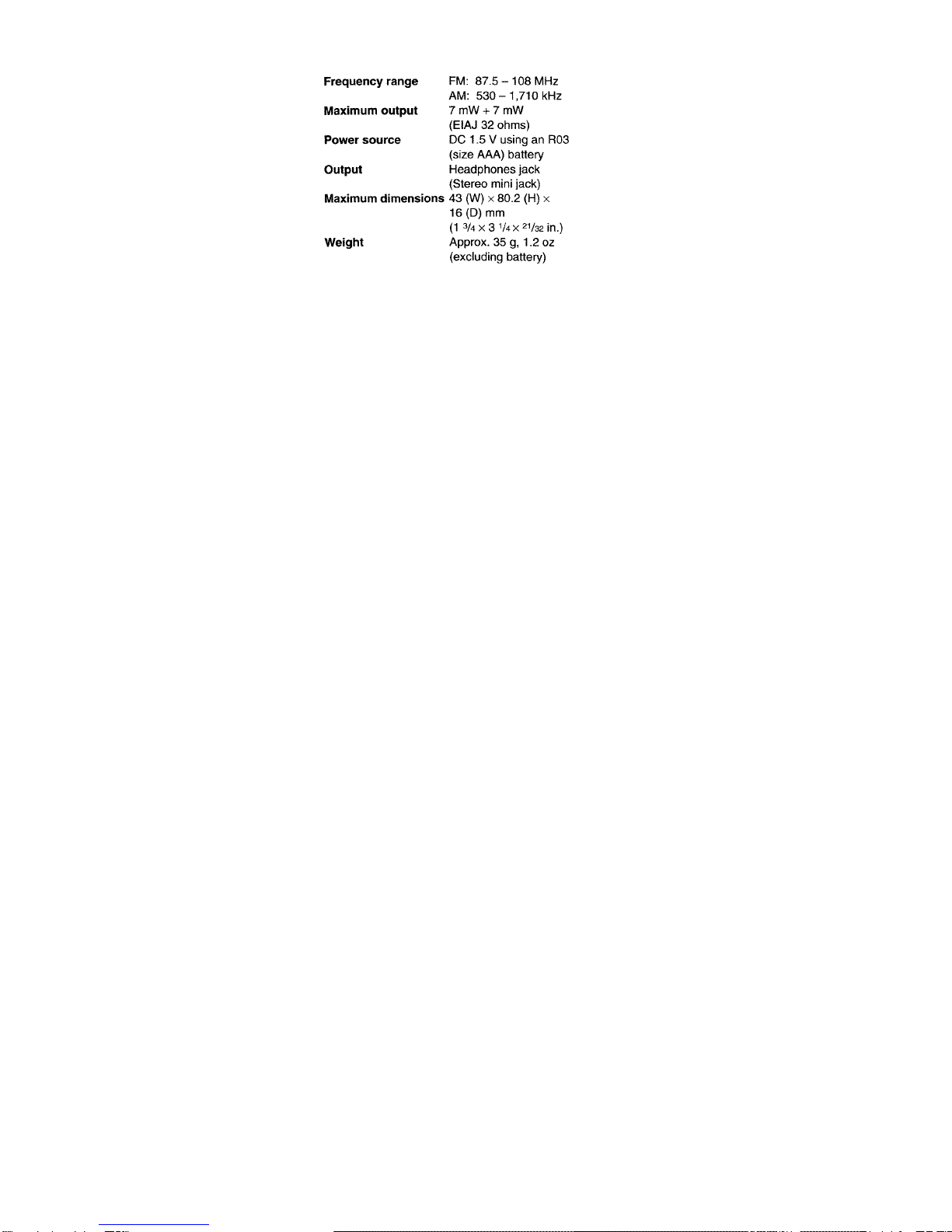

SPECIFICATIONS

•

Design and specifications are subject

to change without notice.

REF. NO PART NO. KANRI DESCRIPTION

NO.

REF. NO PART NO. KANRI DESCRIPTION

NO.

ELECTRICAL MAIN PARTS LIST

Resistor Code

Chip Resistor Part Coding

Figure

Value of resistor

Chip resistor

Wattage Type Tolerance

1/16W

1/10W

1/8W

1608

2125

3216

Form LW t

1.6 0.8 0.45

2 1.25 0.45

3.2 1.6

108

118

128

: A

CHIP RESISTOR PART CODE

0.55

Resistor Code

Dimensions (mm)

Symbol

1/16W 1005 5% CJ 1.0 0.5 0.35 104

• Regarding connectors, they are not stocked as they are not the initial order items.

The connectors are available after they are supplied from connector manufacturers upon the order is received.

87-001-815-080 IC,TA7371AF

87-A20-076-040 IC,TA2022AFN

87-A21-126-040 IC,NJM2096M

TRANSISTOR

89-503-025-080 C-FET,2SK302GR

S0-084-700-030 C-TR,BC847C

S0-085-700-020 C-TR BC857B

MAIN C.B

BPF1 S4-110-010-401 BAND PASS FILTER GFMB3 88-108MHz

C12 87-015-994-810 CAP,E 220UF-4V

C110 87-010-073-080 CAP,E 3.3UF-50V

C213 87-010-587-070 CAP,E 100UF-2V

C214 87-010-587-070 CAP,E 100UF-2V

C215 87-010-502-010 CAP,E 100UF-4V

C219 87-010-587-070 CAP,E 100UF-2V

C220 87-010-587-070 CAP,E 100UF-2V

CF1 S2-310-012-600 CER FILTER SFT10.7MS23H-A

CF2 S2-110-011-100 CER FILTER 450KHz PFB450JR

CF3 S2-310-011-800 DISCRMINATOR FILTER 10.7MG16-M

JK1 S1-210-012-900 JACK,HP ST 3.5MM

L3 S7-810-030-000 BAR,ANT AM 114:50T

L4 S1-110-013-600 COIL,OSC AM 5-5-6

L9 87-005-286-080 C-COIL,1UH

L10 87-005-286-080 C-COIL,1UH

L11 87-005-286-080 C-COIL,1UH

L12 87-A50-009-080 C-COIL,22UH

PVC1 S2-010-013-200 PVC,AM/FM 16-16-6

SW1 S3-110-020-200 SW,SHDE SSSS82

SW2 S3-110-019-800 SW,SLIDE SKY23001-G2-0A

T1 S3-010-012-602 FM 5-5-6 MT243-1135(ORN)

T2 S1-010-012-701 IFT,AM 5-5-6(YEL)

VR1 S1-010-010-100 VR,VTN15A50K-9322(CRSP20)

VR2 S6-910-010-000 SFR,TM4K5-2 B10K

TRANSISTOR ILLUSTRATION

2SK302

BC847C

BC857B

SCHEMATIC DIAGRAM

MAIN C.B

NOTE

L3, TC3

AM TRACKING ADJ.

L1, TC1

FM TRACKING ADJ. L2, TC2

FM FREQ. RANGE ADJ. L4, TC4

AM FREQ. RANGE ADJ. T2

AM IF ADJ.

88-108MHz

IC1

FRONT END

TUNING

FM IF

ADJ.

AMP

PVC1

TC1-4

VC1-4

( )

AM/FM IF

AMP+DET

50V

POWER

S-BASS

OFF

POWER

AMP

PROTECT

POWER

/S-BASS

S-BASS

OFF

2V 2V

VOLUME

MUTE

SW1

BAND

JK1

SWITCH FM

PROTECT

WIRING

7654321123

4567

PVC1

TUNING

SW1

BAND

FM ST

MAIN C.B (COMPONENT SIDE) MAIN C.B (CONDUCTOR SIDE)

S-BASS ON OFF

SW2

JK1

VR1

VOLUME

BATTERY

DC 1.5V

IC1

IC3

NOTE

QXX

RXX

CXX

IC2

POWER/S-BASS

109

MECHANICAL EXPLODED VIEW 1/1

P.C.B

REF. NO PART NO. KANRI DESCRIPTION

NO.

MECHANICAL PARTS LIST 1/1

1 S0-801-170-200 LENS,WINDOWS WYU

2 S0-700-410-000 POINTER,TUN

3 S0-101-420-200 CAB,FRONT

4 S0-503-290-000 KNOB,RTRY TUN

5 87-067-868-010 SCREW,V+1.7-4

6 S0-503-300-000 KNOB,SL BAND

8 S0-201-420-200 CAB,REAR WYU

9 S0-301-410-000 DOOR,BATT

10 S0-401-750-000 BATT,CONTACT(+)

11 87-067-769-010 SCREW,S1.7-8

12 S1-700-760-000 PVC GEAR POM J-001N

13 87-267-525-310 SCREW,M1.7-2.5 SPECIAL HEAD

14 S0-503-310-000 KNOB,SL POWER

15 S0-401-760-000 PLATE,CONTACT

16 S1-009-011-100 BAR HOLDER

17 S0-200-830-000 SPR,CONTACT SP ‘-’ -

Basic color symbol Color Basic color symbol Color Basic color symbol Color

B Black C Cream D Orange

G Green H Gray L Blue

LT Transparent Blue N Gold P Pink

R Red S Silver ST Titan Silver

T Brown V Violet W White

WT Transparent White Y Yellow YT Transparent Yellow

LM Metallic Blue LL Light Blue GT Transparent Green

LD Dark Blue DT Transparent Orange

COLOR NAME TABLE

ELECTRICAL ADJUSTMENT 1/2

ELECTRICAL ADJUSTMENT 2/2

REF. NO PART NO. KANRI DESCRIPTION

NO.

ACCESSORIES/PACKAGE LIST

1 S1-210-013-800 INNERPHONE 3.5MM ST

2 S0-302-850-000 INSTRUCTION BOOK

920074 Printed in Singapore

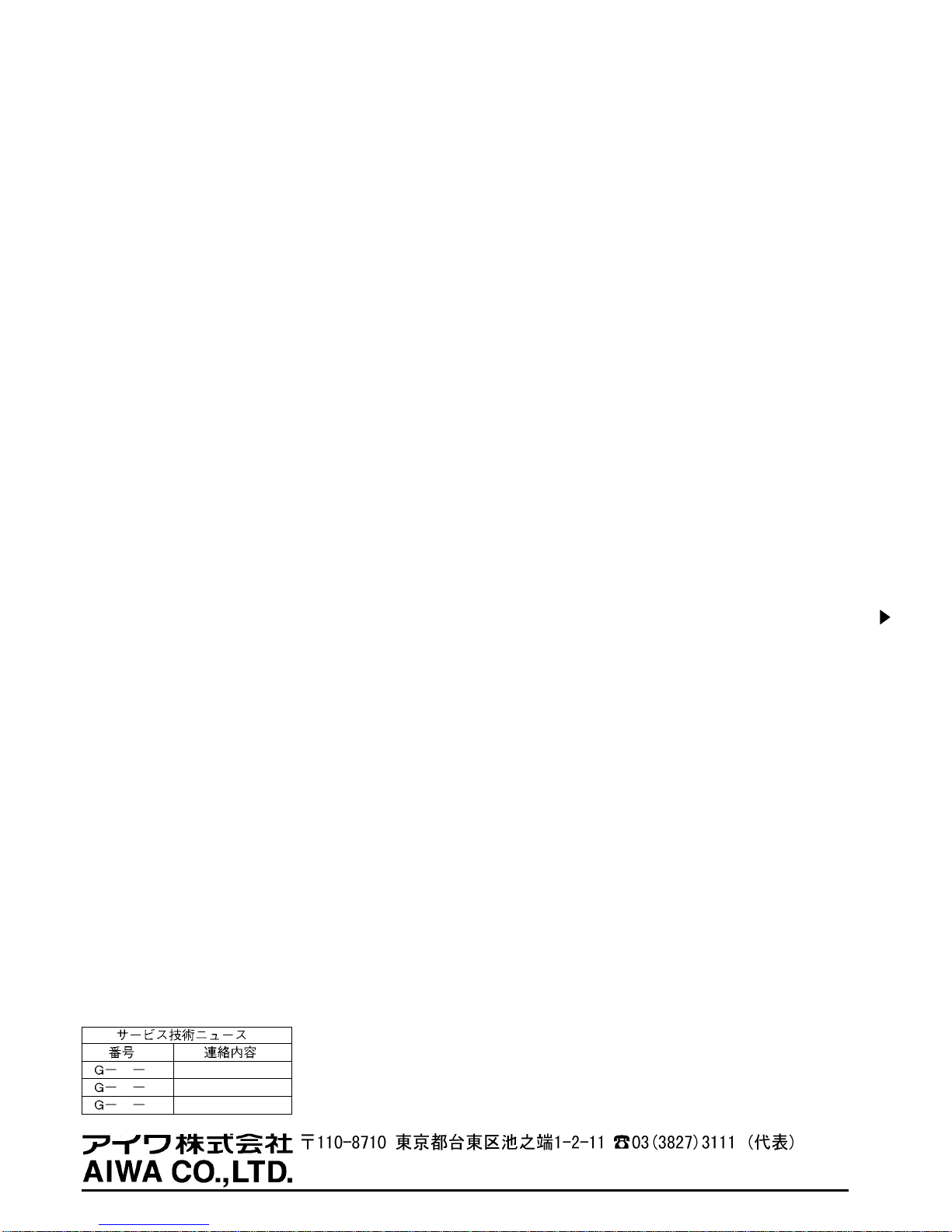

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:03 (3827) 3111
