SAF Fixed RPM Series

Indoor Units Outdoor Units

SAF024 OU7-24Z

SAF045 OU10-47T

GC 45

AUGUST 2009

REFRIGERANT

R22 HEAT PUMP

COOLING ONLY

R410A

SM SAFRPM 1-A.0GB

LIST OF EFFECTIVE PAGES

A SM SAFRPM 1-A.0 GB

LIST OF EFFECTIVE PAGES

Note: Changes in the pages are indicated by a “Revision#” in the footer of each effected page

(when none indicates no changes in the relevant page). All pages in the following list represent

effected/ non effected pages divided by chapters.

Dates of issue for original and changed pages are:

Original ....... 0 ........ March 2009

Total number of pages in this publication is 53 consisting of the following:

Page

No.

Revision

No. #

Page

No.

Revision

No. #

Page

No.

Revision

No. #

Title ........................... 0

A................................ 0

i ................................. 0

1-1 - 1-2 .................... 0

2-1 - 2-3 .................... 0

3-1............................. 0

4-1 - 4-2 .................... 0

5-1 - 5-12 .................. 0

6-1 - 6-2 .................... 0

7-1 - 7-5 .................... 0

8-1............................. 0

9-1............................. 0

10-1 .......................... 0

11-8........................... 0

12-1........................... 0

13-10......................... 0

14-1........................... 0

•Zero in this column indicates an original page.

*Due to constant improvements please note that the data on this service manual can be modified with out notice.

**Photos are not contractual.

TABLE OF CONTENTS

SM SAFRPM 1-A.0 GB

Table of Contents

1. INTRODUCTION ...................................................................................................1-1

2. PRODUCT DATA SHEET......................................................................................2-1

3. RATING CONDITIONS..........................................................................................3-1

4. OUTLINE DIMENSIONS .......................................................................................4-1

5. PERFORMANCE DATA & PRESSURE CURVES ................................................5-1

6. SOUND LEVEL CHARACTERISTICS ..................................................................6-1

7. WIRING DIAGRAMS .............................................................................................7-1

8. ELECTRICAL DATA..............................................................................................8-1

9. REFRIGERATION DIAGRAMS.............................................................................9-1

10. TUBING CONNECTIONS......................................................................................10-1

11. CONTROL SYSTEM .............................................................................................11-1

12. TROUBLESHOOTING ..........................................................................................12-1

13. EXPLODED VIEWS AND SPARE PARTS LISTS.................................................13-1

14. APPENDIX A .........................................................................................................14-1

1-1

INTRODUCTION

SM SAFRPM 1-A.0 GB

1. INTRODUCTION

1.1 General

The floor-standing air conditioner of SAF fixed RPM series has some strongpoint, such as modern

outlook, excellent quality, amazing price. It comprise RC, RH, models, as follows:

SAF024 R410A•

SAF045 R410A•

SAF045 R22•

1.2 Main Features

The SAF Fixed RPM series benefits from the most advanced technological innovations, namely:

LCD display•

Ionizer as an option•

Auxiliary PTC heater as an option.•

Automatic vertical louver•

Pre-charged system up to 10m for model 24 R410A•

Pre-charged system up to 15m for model 45 R410A•

Up to 50 Meter tubing length (in model 45) R22•

Scroll compressor (in model 45)•

Compact size of outdoor units.•

Easy installation and service.•

1.3 Indoor Unit

The indoor unit is floor-standing type indoor unit, and can be easily fitted to many types of residential

and commercials applications as restaurant, shops, reception room etc.

It includes:

Coil with hydrophilic aluminum fins.•

Motorized air flap.•

Low sound level of the indoor fan•

1.4 Control

The microprocessor indoor controller, and an infrared remote control, supplied as standard, provide

complete operating function and programming. For further details please refer to the Owner’s

Manual, Appendix A.

1.5 Outdoor Unit

The outdoor units can be installed as floor or wall mounted units by using a wall supporting bracket.

The metal sheets are protected by anti- corrosion paint work allowing long life resistance. All outdoor

units are pre-charged. For further information please refer to the Product Data Sheet.

It includes :

Compressor mounted in a soundproofed compartment .•

Axial fan.•

Outdoor coil with hydrophilic louver fins for RC units.•

Outlet air fan grill.•

Service valves” flare” type connection.•

Interconnecting wiring terminal block.•

1-2

INTRODUCTION

SM SAFRPM 1-A.0 GB

Indoor Unit

Outdoor Unit

1.6 Tubing Connections

Flare type interconnecting tubing to be produced on site.

For further details please refer to the Owner’s Manual.

1.7 Accessories

Remote Control

1.8 Inbox Documentation

Each unit is supplied with its Owner’s Manual.

1.9 Matching Table

SAF024 SAF045

OU7-24Z 

OU10-47T 

GC 45 R22 

PRODUCT DATA SHEET

2-1

SM SAFRPM 1-A.0 GB

2. PRODUCT DATA SHEET

2.1 SAF024 / OU7-24Z R410A

Model Indoor Unit SAF024

Model Outdoor Unit OU7-24Z

Installation Method of Pipe Flared

Characteristics Units Cooling Only Cooling Heating

Capacity (4) Btu/hr 22690 22690 25080

kW 6.65 6.65 7.35

Power input (4) kW 2.37 2.37 2.29

EER (Cooling) or COP(Heating) (4) W/W 2.81 2.81 3.21

Energy efficiency class C C C

Power supply

V 220-240

Ph 1

Hz 50

Rated current A 10.8 10.8 10.5

Power factor 0.95 0.95 0.95

Prated (IDU) W 150

Prated (IDU+ODU) W 3500

Starting current A 66

Circuit breaker rating A 20

INDOOR

Fan type & quantity Centrifugal x 1

Fan speeds H/M/L RPM 470/430/380

Air flow (1) H/M/L m3/hr 1000/915/809

External static pressure Min Pa 0

Sound power level (2)H/M/L dB(A) 58/54/52

Sound pressure level (3) H/M/L dB(A) 48/44/42

Moisture removal l/hr 2.4

Condenstate drain tube I.D mm 25

Dimensions WxHxD mm 480x1730x300

Net Weight kg 36

Package dimensions WxHxD mm 572x1848x410

Packaged weight kg 45

Units per pallet units 4

Stacking height units 4 levels

OUTDOOR

Refrigerant control Capillary tube

Compressor type,model Rotary

Fan type & quantity Axial x 1

Fan speeds H RPM 850

Air flow H m3/hr 3100

Sound power level H dB(A) 67

Sound pressure level (3) H dB(A) 58

Dimensions WxHxD mm 900x680x340

Net Weight kg 78

Package dimensions WxHxD mm 985x730x435

Packaged weight kg 82

Units per pallet Units 6

Stacking height units 2

Refrigerant type R410A

Standard charge kg(7.5m) 2.02kg

Additional charge 4m < Length < 10m: +0g; 10m < Length < 15m: +0g

Connections between

units

Liquid line In.(mm) 3/8"(9.53)

Suction line In.(mm) 5/8"(15.88)

Max.tubing length m. Max.15

Max.height

difference m. Max.7

Operation control type Remote control

Heating elements (Option) kW 2.1

Others

(1) Airflow in ducted units;at nominal external static pressure.

(2) Sound power in ducted units is measured at air discharge.

(3) Sound pressure level measured at 1-meter distance from unit.

(4) Rating conditions in accordance to ISO 5151 and ISO 13253 (for ducted units).

(5) The declared value’s tolerance is in accordance with Eurovent.

PRODUCT DATA SHEET

2-2 SM SAFRPM 1-A.0 GB

2.2 SAF045 / OU10-47T R410A

Model Indoor Unit SAF045(FS)

Model Outdoor Unit OU10-47T R410A

Installation method FLARED

Characteristics Units Cooling Heating

Capacity (1) Btu/hr 41970 47090

kW 12.30 13.8

Power input (1) kW 4.38 4.37

COP (1) W/W 2.81 3.16

Energy efficiency class C D

Power supply V/ Ph /Hz 400/3/50

Rated current A 3x8.6 3x8.6

Starting current A 49

Circuit breaker rating A 3x20A

INDOOR

Fan type & quantity Centrifugal&1

Fan speeds H/ M/ L RPM 550 480 380

Air flow (2) H/ M/ L m³/hr 1700 1500 1188

External static pressure Min-Max Pa N/A

Sound power level (3) H/ M/ L dB(A) 64 62 60

Sound pressure level (4) H/ M/ L dB(A) 54 52 50

Moisture removal L/hr 4.5

Condensate drain tube I.D mm 25

Dimensions W/ H / D mm 540 1776 415

Weight kg 52

Package dimensions W/ H / D mm 632 1893 535

Packaged weight kg 60

Units per pallet Units 6

Stacking height Units 2

OUTDOOR

Refrigerant control Capillary

Compressor type, model Scroll

Fan type & quantity Axial & 2

Fan speeds H / L RPM 1220

Air flow H / L m³/hr 4500

Sound power level H / L dB(A) 71

Sound pressure level (4) H / L dB(A) 64

Dimensions W/ H / D mm 900 970 340

Weight kg 91

Package dimensions W/ H / D mm 985 1020 435

Packaged weight kg 95

Units per pallet Units 6

Stacking height Units 2

Refrigerant type R 410A

Refrigerant charges distance kg/m 2,3/15

Additional charge per 1 meter g/m 25

Connections

between units

Liquid line In.(mm) 3/8”(9.53)

Suction line In.(mm) 3/4”(19.05)

Max. tubing length m. 50

Max. height difference m. 25

Operation control type LCD Remote Control

Heating elements kW

Others Crankcase heater (50W),3 Phase Protector

(1) Rating conditions in accordance to ISO 5151 and ISO 13253 (for ducted units).

(2) Airflow in ducted units; at nominal external static pressure.

(3) Sound power in ducted units is measured at air discharge.

(4) Sound pressure level measured at 1-meter distance from unit.

PRODUCT DATA SHEET

2-3

SM SAFRPM 1-A.0 GB

2.3 SAF045 / GC 45 R22

Model Indoor Unit SAF045

Model Outdoor Unit GC 45

Installation Method of Pipe Flared

Characteristics Units Cooling Only Cooling Heating

Capacity (4) Btu/hr 43670 43670 52540

kW 12.80 12.80 15.40

Power input (4) kW 4.56 4.56 5.12

EER (Cooling) or COP(Heating) (4) W/W 2.81 2.81 3.01

Energy efficiency class C C D

Power supply

V 400

Ph 3

Hz 50

Rated current A 8.1 8.1 9.1

Power factor 0.85 0.85 0.85

Prated (IDU) W 160

Prated (IDU+ODU) W 6500

Starting current A 65.8

Circuit breaker rating A 3X20

INDOOR

Fan type & quantity Centrifugal x 1

Fan speeds H/M/L RPM 550/480/380

Air flow (1) H/M/L m3/hr 1700/1500/1188

External static pressure Min Pa 0

Sound power level (2) H/M/L dB(A) 64/62/60

Sound pressure level (3) H/M/L dB(A) 54/52/50

Moisture removal l/hr 4.5

Condenstate drain tube I.D mm 25

Dimensions WxHxD mm 540x1776x415

Net Weight kg 52

Package dimensions WxHxD mm 632x1893x535

Packaged weight kg 60

Units per pallet units 6

Stacking height units 2 levels

OUTDOOR

Refrigerant control Capillary tube

Compressor type,model Scroll,Dakin JT160BCBY1L

Fan type & quantity Propeller(direct)x 2

Fan speeds H RPM 780

Air flow H m3/hr 4680

Sound power level H dB(A) 64

Sound pressure level (3) H dB(A) 56

Dimensions WxHxD mm 950x1260x412

Net Weight kg 120

Package dimensions WxHxD mm 1100x1300x470

Packaged weight kg 150

Units per pallet Units 1

Stacking height units 1

Refrigerant type R22

Standard charge kg(7.5m) 3.1kg

Additional charge

4m < Length < 7.5m: +0g; 7.5m < Length <

25m: +500g; 25m < Length < 38m: +980g;

38m<Length<50m: +1580g;

Connections between

units

Liquid line In.(mm) 3/8"(9.53)

Suction line In.(mm) 3/4"(19.05)

Max.tubing length m. Max.50

Max.height

difference m. Max.20

Operation control type Remote control

Heating elements (Option) kW 2.1

Others

(1) Airflow in ducted units;at nominal external static pressure.

(2) Sound power in ducted units is measured at air discharge.

(3) Sound pressure level measured at 1-meter distance from unit.

(4) Rating conditions in accordance to ISO 5151 and ISO 13253 (for ducted units).

(5) The declared value’s tolerance is in accordance with Eurovent.

3-1

RATING CONDITIONS

SM SAFRPM 1-A.0 GB

3. RATING CONDITIONS

Standard conditions in accordance with ISO 5151, ISO 13253 (for ducted units)

and EN 14511.

Cooling:

Indoor: 27oC DB 19oC WB

Outdoor: 35 oC DB

Heating:

Indoor: 20oC DB

Outdoor: 7oC DB 6oC WB

3.1 Operating Limits

R410A

Indoor Outdoor

Cooling Upper limit 32oC DB 23oC WB 46oC DB

Lower limit 21oC DB 15oC WB 21oC DB

Heating Upper limit 27oC DB 24oC DB 18oC WB

Lower limit 10oC DB -9oC DB -10oC WB

Voltage 1PH 198 – 264 V

R22

Indoor Outdoor

Cooling Upper limit 32oC DB 23oC WB 46oC DB

Lower limit 21oC DB 15oC WB 21oC DB

Heating Upper limit 27oC DB 24oC DB 18oC WB

Lower limit 10oC DB -5oC DB -6oC WB

Voltage 1PH 198 – 264 V

OUTLINE DIMENSIONS

4-1

SM SAFRPM 1-A.0 GB

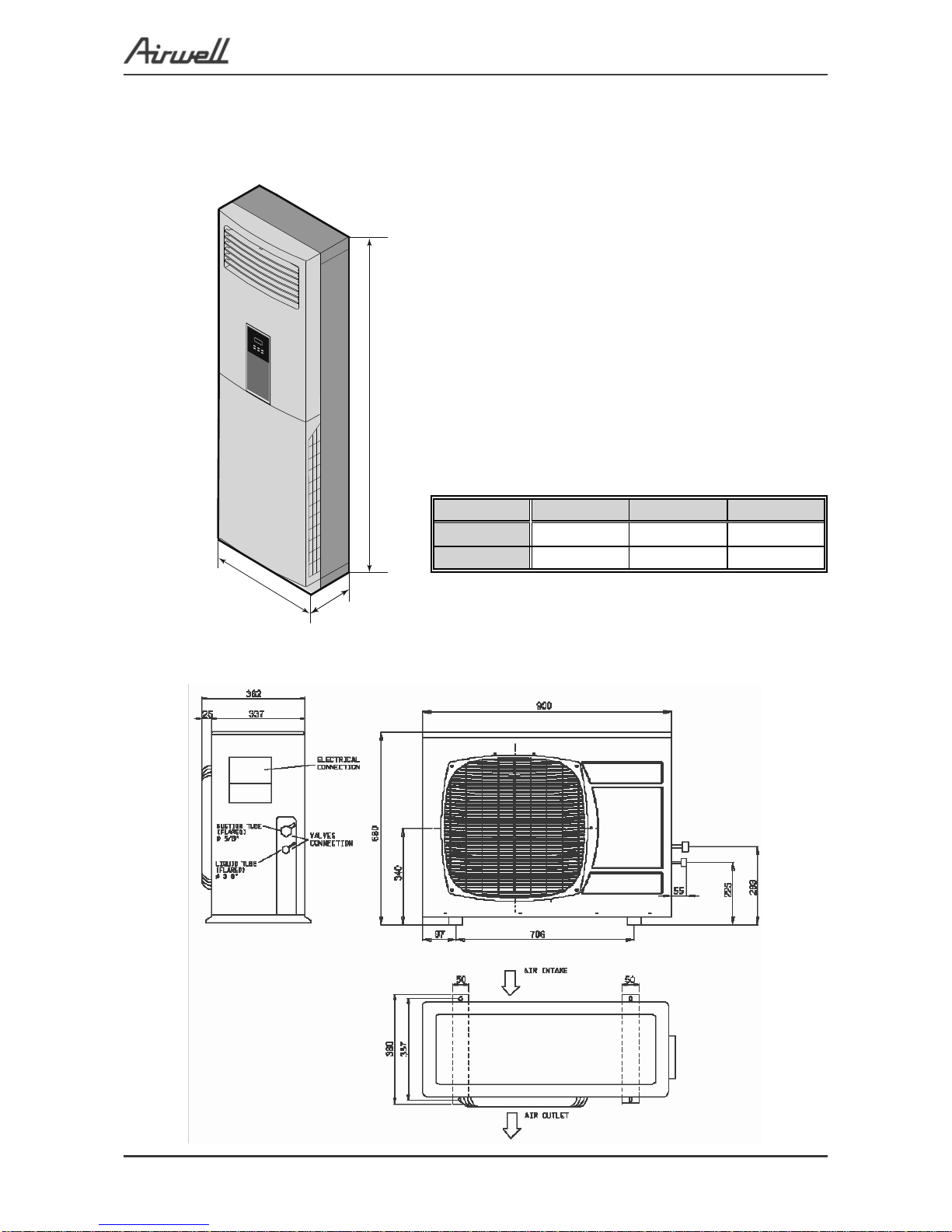

4. OUTLINE DIMENSIONS

4.1 Indoor Unit: SAF024, SAF045

4.2 Outdoor Unit: OU7-24Z R410A

Model A B C

SAF024 485 mm 300 mm 1730 mm

SAF045 545 mm 420 mm 1780 mm

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Airwell

Airwell

Airwell HDLS-025N-01M25 Guía

Airwell

Airwell XLM36IRCB Hoja de especificaciones

Airwell

Airwell GCD 036 DCR Manual de usuario

Airwell

Airwell DDMX-035N-09M25 Guía

Airwell

Airwell HKD Manual de usuario

Airwell

Airwell AW-WHPMA04-H91 Manual de usuario

Airwell

Airwell EDS25 Manual de usuario

Airwell

Airwell DLS series Manual de usuario

Airwell

Airwell HVVA-025/022N-01M22 Guía

Airwell

Airwell YCV450HR Manual de usuario

Airwell

Airwell Multi Split DUO 50 DCI Manual de usuario

Airwell

Airwell AWSI-HJD009-N11 Manual de usuario

Airwell

Airwell PNX009 Manual de usuario

Airwell

Airwell AWSI-HKD009-N11 Manual de usuario

Airwell

Airwell BS 15 Manual de usuario

Airwell

Airwell AWSI-HBV007-N11 Manual de usuario

Airwell

Airwell K XLN24 RC 3PH Manual de usuario

Airwell

Airwell AW-YHDM024-H91 Manual de usuario

Airwell

Airwell Comfort Series Manual de usuario

Airwell

Airwell Trio Dakota 5.2 DCI Manual de usuario

Airwell

Airwell XLM9RCA Manual de usuario

Airwell

Airwell AWSI-HMF009-N61 Manual de usuario

Airwell

Airwell CAD024 Manual de usuario

Airwell

Airwell K 30 RCF Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario
