Ceiling Fan Installation Manual

PROGRESS LIGHTING 15-Year Limited Warranty

PROGRESS LIGHTING FAN MOTORS ARE WARRANTED TO THE END USER TO BE

FREE OF ELECTRICAL AND/OR MECHANICAL DEFECTS FOR A PERIOD OF 15

YEARS FROM DATE OF SALE. PULL CHAIN SWITCHES, REVERSE SWITCHES,

CAPACITORS AND METAL FINISHES ARE WARRANTED FOR A PERIOD OF 1 YEAR.

WARPING OF WOODEN OR PLASTIC BLADES IS NOT COVERED BY THIS

WARRANTY.

THE END USER HAS THE OPTION OF RETURNING THE DEFECTIVE FAN TO THE

PLACE OF PURCHASE DURING THE FIRST 30 DAYS FOR AREPLACEMENT. AFTER

30 DAYS, THE PURCHASER MUST CONTACT PROGRESS LIGHTING FOR REPAIR

OR REPLACEMENT. THE END USER ALSO BEARS THE RESPONSIBILITY FOR ALL

COSTS IN THE REMOVAL, SHIPPING AND REINSTALLATION OF FANS OR PARTS

FOR REPAIR OR REPLACEMENT.

PROGRESS LIGHTING WILL NOT ASSUME LIABILITY OR RESPONSIBILITY FOR

DAMAGES (INCLUDING INCIDENTAL OR CONSEQUENTIAL) CAUSED BY THE

IMPROPER INSTALLATION OR OPERATION OF THE UNIT OR ITS COMPONENT

PARTS, OR BY THE FAILURE OF SUPPORTING HARDWARE NOT SUPPLIED BY

PROGRESS LIGHTING. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER

GUARANTEES, WHETHER EXPRESSED OR IMPLIED, AND ISVOIDED IN CASES OF

ABUSE, MISUSE OR IMPROPER HANDLING, NEGLIGENCE, SHIPPING DAMAGE,

UNAUTHORIZED REPAIRS (MADE ORATTEMPTED) OR UNUSUALAPPLICATION.

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED

WARRANTY LASTS OR THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS

MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC RIGHTS AND

YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

15-Year Limited Warranty

Date Purchased

Store Purchased

Model No.

Serial No.

Vendor No.

UPC

11221

785247114474 (BN)

785247250110 (WH)

785247250127 (CS)

Safety Rules.....................................................................................................................................

Unpacking Your Fan ........................................................................................................................

Installing Your Fan ...........................................................................................................................

........................................................................................................................

Care of Your Fan ............................................................................................................................

Troubleshooting ............................................................................................................................

Specifications ...............................................................................................................................

Operating Your Fan

10.

11.

12.

Table of Contents

1. To reduce the risk of electric shock, insure electricity has been turned

off at the circuit breaker or fuse boxbefore beginning.

2. All wiring must be in accordance with the National Electrical Code and

local electrical codes. Electrical installation should be performed by a

qualified licensed electrician.

3. WARNING: To reduce the risk of electrical shock and fire, do not use

this fan withany solid-state fan speed control device.

4. WARNING: To reduce the riskof personal injury, use onlythe two steel

screws (and lock washers) provided with the outlet box for mounting to

the outlet box. Most outlet boxes commonly used for the support of

lighting fixtures are not acceptable for fan support and may need to be

replaced, consult aqualified electrician if in doubt.

7. Do not operate reversing switch while fan blades are in motion. Fan

must be turned off and blades stopped before reversing blade

direction.

8. Avoid placing objectsin the path of the blades.

9. To avoid personal injury or damage to the fan and other items, be

cautious when workingaround or cleaning the fan.

10. Do notuse water or detergents when cleaning the fan or fan blades. A

dry dust cloth or lightly dampened cloth will be suitable for most

cleaning.

11. After marking electrical connections, spliced conductors should be

turned upward and pushed carefully up into outlet box. The wires

should be spread apart with the grounded conductor and the

equipment-grounding conductor onone side of the outlet box.

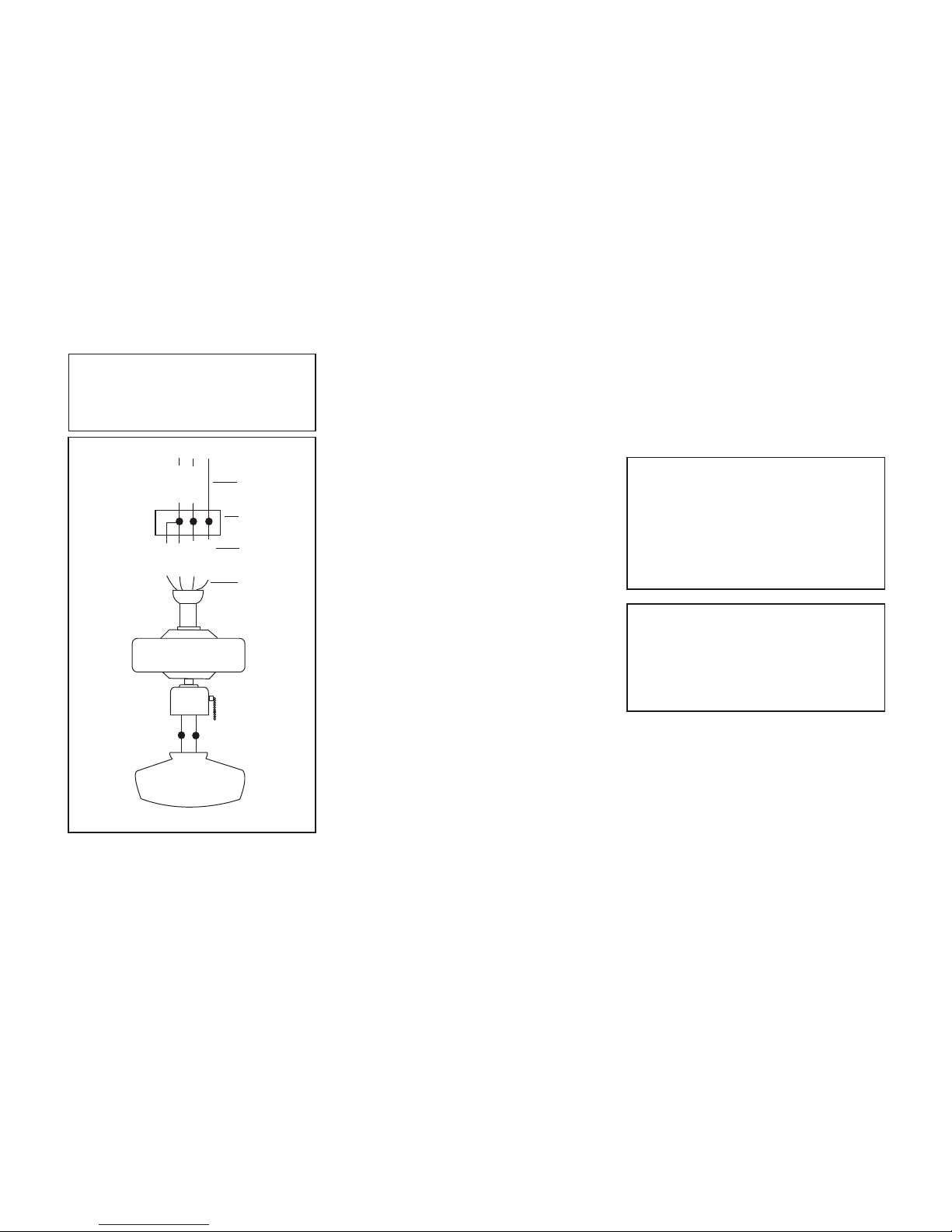

12. Electrical diagrams are reference only. Light kit that are not packed

with the fan must be UL Listed and marked suitable for use with the

model fan you are installing. Switches must be UL General Use

Switches. Refer to the Instructions packaged with the light kits and

switches for properassembly.

WARNING

TO REDUCETHE RISK OF FIRE, ELECTRIC SHOCKOR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKEDACCEPTABLE FOR

FAN SUPPORT.

5. The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds. Use only UL

Listed outlet boxesmarked FOR FAN SUPPORT.

6. The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge ofthe blades to the floor.

WARNING

TO REDUCETHE RISK OF PERSONAL INJURY, DO NOTBEND THE

BLADE BRACKETS (ALSOREFERRED TO AS FLANGES)DURING

ASSEMBLYOR AFTERINSTALLATION. DO NOTINSERT OBJECTS IN

THE PATHOF THE BLADES.

NOTE

READ AND SAVE ALLINSTRUCTIONS!

1. Safety Rules

Unpacking Your Fan 2.

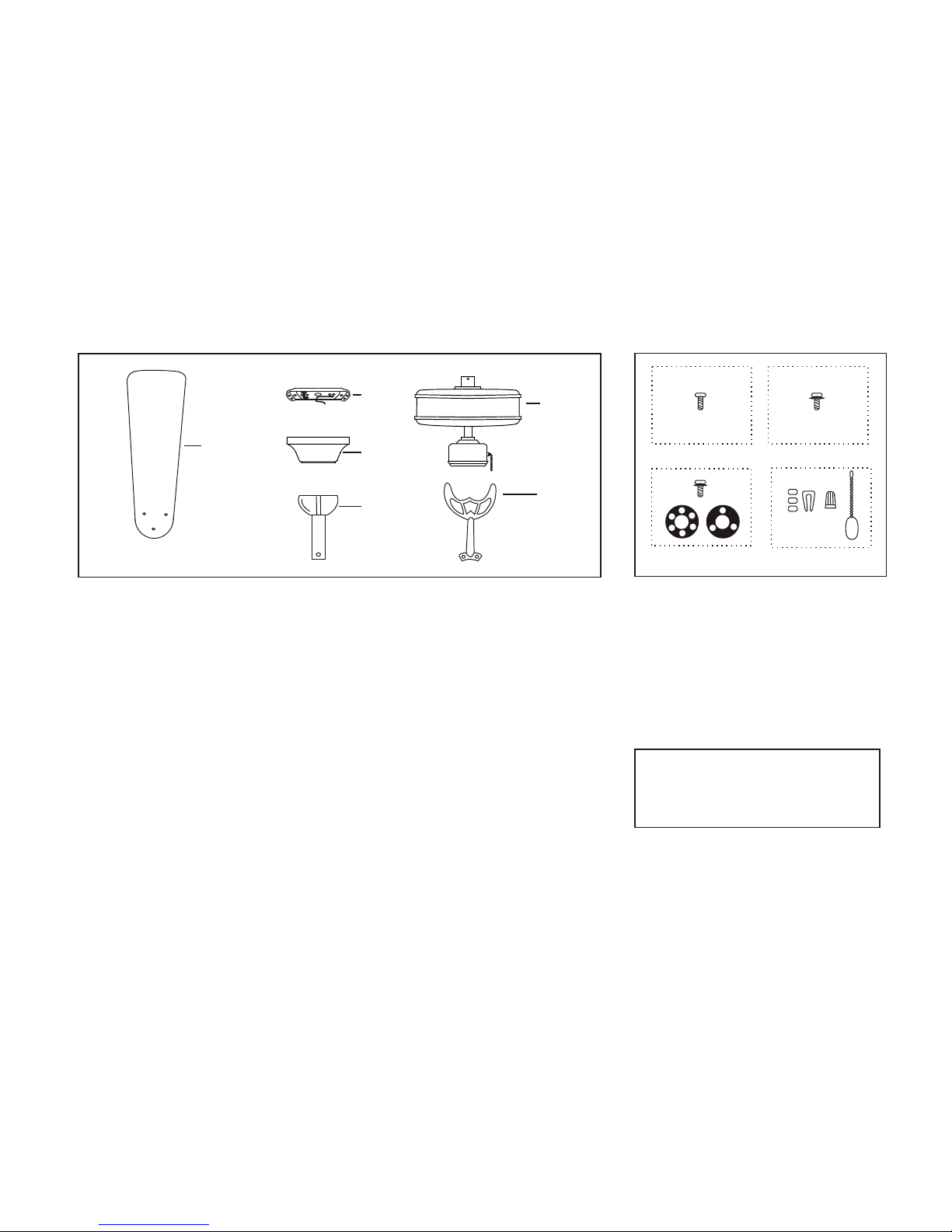

Unpack your fanand check the contents. You should have the following items: a. Blade attachmenthardware

(16 screws)

c. Mounting hardware

(3 screws, 1rubber gasket,

1 metal gasket)

d. Electrical hardware & Balancing kit

b. Blade bracket attachment hardware

(11 screwswith lock washers)

(3 plastic wireconnectors, 1 Pull chain,

)Blade balancing kit

2. Mounting plate(located inside canopy)

3. Canopy assembly

Set of blades(5)

Ball/downrod assembly

5. Fan motorassembly

6. Set ofblades bracket (5)

IMPORTANT

PLEASE REMOVE RUBBERMOTOR

STOPS ONTHE BOTTOM OFTHE FAN

BEFORE INSTALLING BLADES OR

TESTING MOTOR

3. Installing Your Fan

Tools Required

Phillips screw driver, straight slot screw

driver, adjustable wrench, step ladder, and

wire cutters.

Mounting Options

If there isn't an existing ULlisted mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the

building structure. Use appropriate

fasteners and buildingmaterials. The outlet

box and its support must be able to fully

support the moving weight of the fan (at

least 50 lbs). Do not use plastic outlet

boxes.

Note: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling. The

maximum angle allowable is 45 If the

canopy touches downrod, remove the

decorative canopy bottom cover and turn

the canopy 180 before attaching the

canopy to themounting plate.

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4

(available at yourProgress Lighting Retailer).

Outlet box

Provide strong

support

Recessed

outlet box

Ceiling

Mounting

Plate

Outlet box

Figure 1

Figure 3

Figure 2

Figure 4

Figures 1,2 and 3 are examples of different

ways to mountthe outlet box.

WARNING

TO REDUCETHE RISK OF FIRE, ELECTRIC

SHOCK, OR OTHERPERSONAL INJURY,

MOUNT FAN ONLY TOAN OUTLETBOX

MARKED ACCEPTABLE FOR FAN SUPPORT

AND USE THEMOUNTING SCREWS

PROVIDED WITHTHE OUTLET BOX. OUTLET

BOXES COMMONLY USED FOR THE SUPPORT

OF LIGHTING FIXTURESMAYNOT BE

ACCEPTABLE FORFAN SUPPORT ANDMAY

NEED TOBE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IFIN DOUBT.

Hanging the Fan

REMEMBER to turn off the power, Follow

the steps belowto hang your fan properly.

NOTE: This ceiling fan is supplied with two

types of hanging assemblies: the standard

ceiling installation using the downrod with

ball and socket mounting, and the "close-to-

ceiling" mounting. The "close-to-ceiling"

mounting is recommended in rooms with less

than 8-feet ceilings or in areas where

additional space is desired from the floor to

the fan blades. When using the standard

downrod installation, the distance from the

ceiling to the bottom of the fan blades will be

approximately 12 inches. The "close-to-

ceiling" installation reduces the distance

from the ceiling to the bottom of the fan

blades to approximately8 inch.

Once you have decided which ceiling

installation you will use, proceed with the

following instructions. Where necessary,

each section of the instructions will note the

different procedures to follow for the two

types of installation.

OPTION 1: STANDARD CEILING

MOUNTING

3. Route the wires exiting the top of the fan motor

through the canopy, and then through the

ball/downrod assembly (Figure 6)

4. Align the holes at the bottom of the downrod

with holes in the collar on top of the motor

housing (Figure 6). Carefully insert the bolt

through the holes in the collar and downrod.

Be careful not to jam the bolt against the

wiring inside the downrod. Insert clevis pin

and bend to ensure security, as noted in the

circle inset ofFigure 6

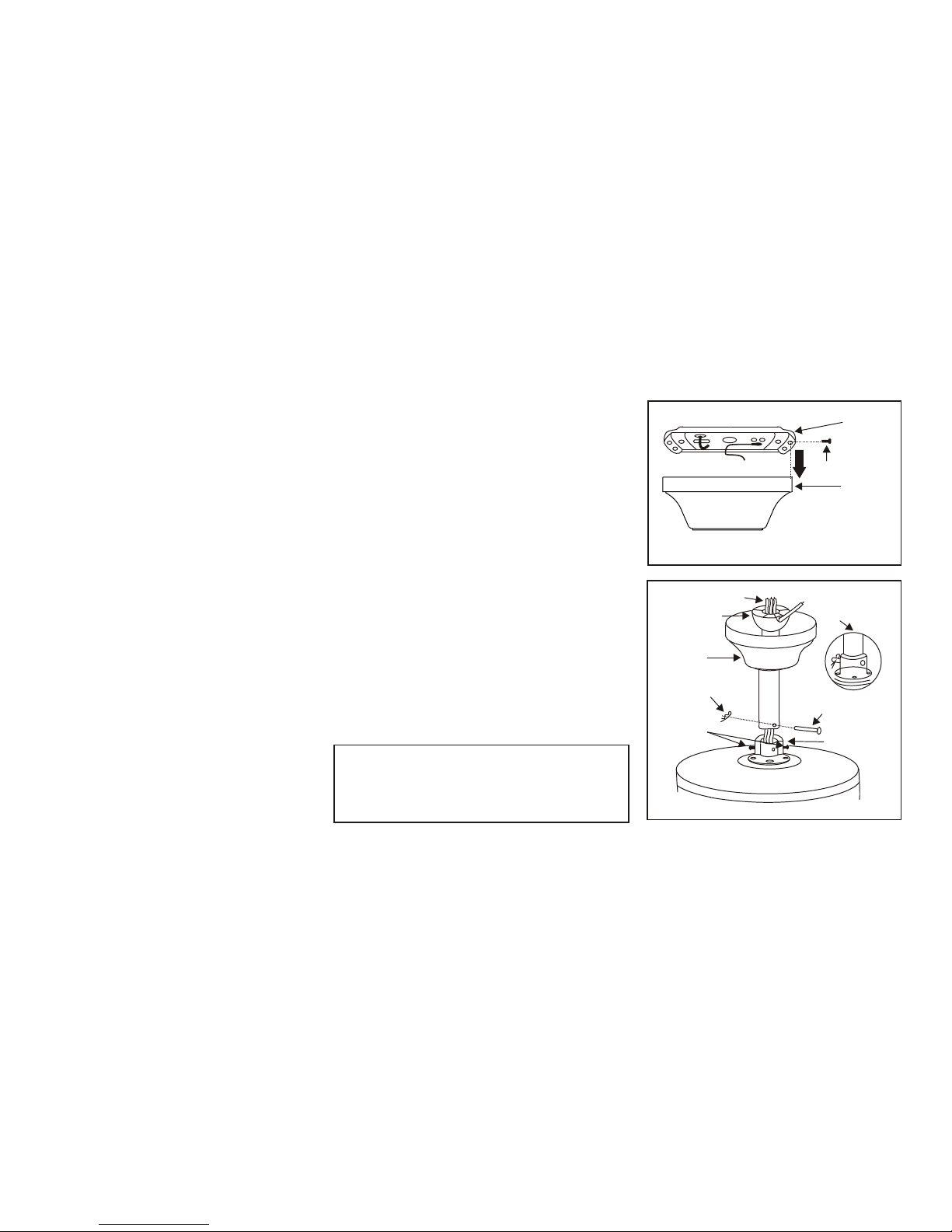

1. Remove the mounting plate from the canopy

by loosening the four screws on the top of the

canopy. Remove the two non-slotted screws

and loosen the slotted screws. This will

enable you to remove the mounting plate.

(Figure 5)

WARNING

FAILURE TO PROPERLY INSTALL CLEVIS

PIN AS NOTED IN STEP 4 COULD RESULT IN

FAN LOOSENING AND POSSIBLY FALLING.

2. Remove the bolt, lock pin and set screws from

the top of the motor assembly.

Figure 5

Figure 6

Ceiling

mounting

plate

Screws

Ceiling

canopy

Pin in

locked

position

Motor collar

Motor wires

Ball/downrod

assembly

Ceiling

canopy

Tighten

screws

firmly

Bolt

Clevis pin

5. Tighten two set screws on top of the fan

motor firmly. (Figure 6)

Screw with

lock washer

(3 of 6places)

Figure 7

Figure 8

Motor collar

OPTION 2: CLOSE-TO-CEILING

MOUNTING

2. Remove three of six screws and lock washers

(every other one) securing themotor collar to

the top of the fanmotor housing. (Figure 7)

(Figure 8)

1. Remove the mounting plate from the canopy

by loosening the four screwson the top of the

canopy. Remove the two non-slotted screws

and loosen the slotted screws. This will

enable you to remove the mounting plate.

(Figure 5)

3. Place the rubber gasket over the remaining

three screws, route the wires exiting the

top of the fan motor through the canopy

then proceed to place the ceiling canopy

over the collar at the top of the motor.

4. Align the mounting holes with the holes in

the motor and fasten using the screws and

lock washers provided together with

rubber gasket andmetal gasket. (Fig.8).

5. Tighten the mounting screws securely.

Installing Fan to the

Electrical Box

1. Pass the 120-volt supply wires through the

center hole in the ceiling mounting plate as

shown in Fig.9.

3. Tighten the two screws on the outlet box

securely.

4. Carefully life the fan assembly up to the

ceiling mounting plate and hang the fan on the

hook provided by utilizing one of the holes at

the outer rim of the ceiling canopy (Fig. 10).

If using standard mounting , seat the hanger

ball in the mounting plate socket. Make sure

the tab on the mounting plate socket is

properly seated in the groove in the hanger

ball. (Fig. 10)

2. Install the ceiling mounting plate on the

electric box by mounting screws provided

with the outlet box. When using close-to-

ceiling mounting, it is important that the

mounting plate be level. If necessary, use

leveling washers (not supplied) between the

mounting plate and electrical box. Note that

the flat side of the mounting plate is toward

the electrical box. (Fig. 9)

WARNING

FAILURE TO COMPLETELY TIGHTEN

THE THREE SCREWS IN STEP 4 COULD

RESULT IN FAN LOOSENINGAND

POSSIBLYFALLING.

CAUTION

WHEN MOUNTING THE FAN ON A SLOPED

CEILING, THE STANDARD BALL /

DOWNROD MOUNTING METHOD MUST BE

USED. MAKE SURE THE MOUNTINGPLATE

SLOTS ARE ONTHE LOWER SIDE BY

SLIDING THE MOUNTING PLATE FROM THE

TOP DOWN.

Ceiling

Canopy

Rubber

gasket

Metal

gasket

Screw with

lock washer

Making the Electrical

Connections

Follow the steps below to connect the fan to your

household wiring. Use the wire connecting nuts

supplied with your fan. Secure the connectors with

electrical tape. Make sure there are no loose strands

or connections.

Step 1 Connect the fan supply (black) wire and light

supply (blue) wire to the black household supply wire

as shown in Figure 11.

Step 2. Connect the neutral fan (white) wire to the

white neutral household wire.

REMEMBER to disconnect the power. If you feel

that you do not have enough electrical wiring

knowledge or experience, have your fan installed by a

licensed electrician.

Step 3 Connect the two green fan ground wires,

located on the hanging ball and mounting plate, to the

household ground wire. When using Close-to-Ceiling

mounting, there is only one green ground lead from

the ceiling mounting plate since the ball/downrod

assembly is not used.

Figure 9

Figure 10

Mounting

screws

(supplied with

electrical box)

Ceiling

mounting

plate

UL Listed

electrical

box

120V Wires

Washers

WARNING

WHEN USING THESTANDARD BALL/HANGERPIPE

MOUNTING, THE TAB IN THE RINGAT THE BOTTOMOF

THE MOUNTING PLATE MUST RESTIN THE GROOVE

OF THE HANGERBALL. FAILURETO PROPERLY SEAT

THE TAB IN THEGROOVE COULD CAUSEDAMAGE TO

WIRING.

WARNING

THE HOOKAS SHOWN INFIG. 10 IS ONLY

TO BALANCE FAN WHILEATTACHING

WIRING. FAILURETO HANG AS SHOWN

IN FIG. 10MAYRESULT IN HOOK

BREAKING CAUSING THEFAN TO FALL.

HOOK MUST PASS FROM INSIDE TO

OUTSIDE OF CANOPY.

Close- to-Ceiling

Mounting

Standard Mounting

WARNING

TO REDUCE THE RISKOF FIRE OR

ELECTRIC SHOCK, DO NOT USEAWALL

MOUNTED SOLID STATESPEED CONTROL

WITH THIS FAN. IT WILL PERMANENTLY

DAMAGE THE ELECTRONIC CIRCUITRY.

Step 4 After connecting the wires, spread

them apart so that the green and white wires

are on one side ofthe outlet box and theblack

wire is on the otherside.

Step 5 Turn the connecting nuts upward and

push the wiring into theoutlet box.

Finishing the

Installation

OPTION 1: STANDARD CEILING

MOUNTING

1. Align the locking slots of the ceiling

canopy with the two screws in the

mounting plate. Push up to engage the

slots and turn clockwise to lock in place.

Immediately tighten the two mounting

screws firmly.

2. Install the remaining two mounting

screws into the holes in the canopy and

tighten firmly.

3. You may now proceed to attach the fan

blades.

OPTION 2: CLOSE-TO-CEILING

MOUNTING

1. Carefully unhook the fan from the

mounting plate and align the locking

slots of the ceiling canopy with the two

screws in the mounting plate. Push up to

engage the slots and turn clockwise to

lock in place.Immediately tighten the

two mounting screwsfirmly.

SUPPLYCIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITEWHITE

BLACK

BLUE

GREEN

WHITE

BLUE

BLACK WHITE

Figure 11

Diagram indicates optionallight kit wiring.

WARNING

ELECTRICAL DIAGRAMSARE FOR

REFERENCE ONLY.OPTIONAL USE OF

ANY LIGHTKIT SHALLBE ULLISTED

AND MARKED SUITABLE FOR USE WITH

THIS FAN.

2. Install the remaining two mounting

screws into the holes in the canopy and

tighten firmly.

3. You may now proceed to attach the fan

blades.

WARNING

WHEN USING THESTANDARD

BALL/DOWNROD MOUNTING, THE

TAB IN THE RINGAT THE BOTTOM OF

THE MOUNTING PLATE MUST RESTIN

THE GROOVE OFTHE HANGER BALL.

FAILURETO PROPERLY SEAT THE TAB

IN THE GROOVECOULD CAUSE

DAMAGE TO WIRING.

WARNING

LOCKING SLOTS OFCEILING CNAOPY

ARE PROVIDED ONLYAS AN AIDTO

MOUNTING. DO NOTLEAVE FAN

ASSEMBLYUNATTENEDUNTIL ALL

FOUR CNAOPYSCREWS ARE

ENGAGED AND FIRMLY TIGHTENED.

Tabla de contenidos

Otros manuales de Admirador de AirPro

AirPro

AirPro Progress Lighting P250062 Manual de usuario

AirPro

AirPro PROGRESS LIGHTING P250096 Manual de usuario

AirPro

AirPro PROGRESS LIGHTING P2560 Manual de usuario

AirPro

AirPro P2546 Manual de usuario

AirPro

AirPro PROGRESS LIGHTING P250077 Manual de usuario

AirPro

AirPro P250071 Manual de usuario

AirPro

AirPro PROGRESS LIGHTING P250061 Manual de usuario

AirPro

AirPro P2590 Manual de usuario

AirPro

AirPro PROGRESS LIGHTING P250081 Manual de usuario

AirPro

AirPro PROGRESS LIGHTING P250103 Manual de usuario

AirPro

AirPro PROGRESS LIGHTING P250078 Manual de usuario

AirPro

AirPro PROGRESS LIGHTING P250095 Manual de usuario

AirPro

AirPro PROGRESS LIGHTING P2592 Manual de usuario

AirPro

AirPro Progress Lighting P2568 Manual de usuario

AirPro

AirPro PROGRESS LIGHTING P2594 Manual de usuario

AirPro

AirPro PROGRESS LIGHTING P250074 Manual de usuario

AirPro

AirPro Progress Lighting P250016 Manual de usuario

AirPro

AirPro Progress Lighting P2572 Manual de usuario

AirPro

AirPro Progress Lighting Kaysville P250003 Manual de usuario

AirPro

AirPro PROGRESS LIGHTING P250104 Manual de usuario

AirPro

AirPro Progress Lighting P250111 Manual de usuario

AirPro

AirPro Progress Lighting P2582 Manual de usuario

AirPro

AirPro Progress Lighting PINEHILL P250031 Manual de usuario

AirPro

AirPro PROGRESS LIGHTING P250098 Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
