AirLive SmartCube 300W Manual de usuario

SmartCube 300W

Intelligent 3MP Wireless Cube IPCAM

with Temperature and Humidity Sensor

Quick Installation Guide

Support

You can download the

complete guides and

supporting programs from

<http://www.airlive.com/pro

duct/smartcube-300w/downl

oad>, or scan the QR code

here.

Please consult with the FAQs

<http://www.airlive.com/pro

duct/smartcube-300w/faq>

before writing to OvisLink

Tech Support Team for further

assistance

For any other question, please read the user

manual in the CD or mail to [email protected]

for technical support.

SmartCube 300W Package Contents

Please check the package contents and contact

your distributor if any part is missing.

1

2

3

SmartCube 300W

5V AC Power Adapter

4 Quick Installation Guide

5 User Manual CD

6Label

Mounting Accessories

(Screws / Plastic Anchors)

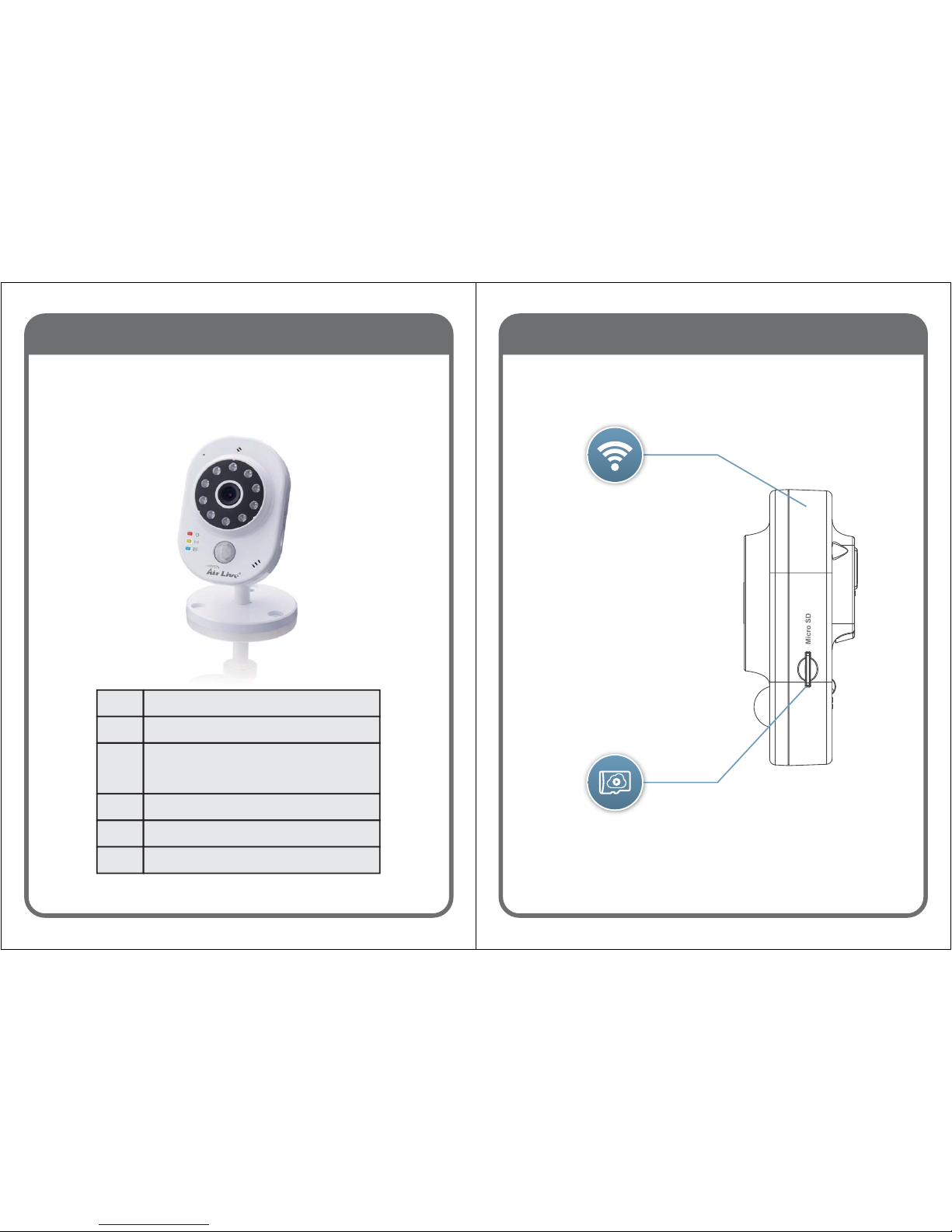

I/O Interface

802.11n Wi-Fi

Micro SD Slot

I/O Interface

Power Input

Ethernet Port

WPS and Reset Button

DC

Remove Cover box

01 Remove Cover box

Remove Cover box01 Assemble the bracket and the stand

02

Assemble the bracket and the stand

Assemble the bracket and the stand02 Assemble the bracket and the stand

02

Assemble the bracket and the stand

02 Assemble the bracket and the stand

02

Assemble the bracket and the stand

02

Plug the power cable into the camera.

Plug the adapter

03

When SmartCube 300W is powered on, the

green led will be on first. After SmartCube

300W is ready, the red len will be on and the

green led will be off.

Power on SmartCube 300W

04

Please use three screws to fix the camera.

Mount the camera05

Adjust the View of the Camera

06

There are two ways to connect to WiFi

1. WPS connection.(WPS function only

supports that the router is in WPA2 AES

security protocols or no protected password.)

2. Connect wire to setup wireless connection.

WiFi Connection

07

Click WPS button on the router first.

WPS Wireless connection

08

Ant. Ant.Reset/WPSLAN4 LAN3 LAN2 LAN1

12V DC

WAN

Internet

on

Click Reset/WPS button on SmartCube 300W

then the green led will be on for 2 minutes.

When SmartCube 300W connects to the router

sucessfully, the green led will be flashing.

WPS Wireless connection08
