Service Manual

PUMA SX 2000

Language: English

Date creation: Apr 2008

Rev.: 00

PUMA SX 2000

Pag. 3

PROFESSIONAL INVERTERS MMA 140-180A

1206

1.0 REPAIR INSTRUCTIONS

1.1 GENERAL CLEANING

Remove the machine shell and clean carefully

with compressed air.

1.2 MACHINE: VISUAL INSPECTION

1. Check the general conditions of the electronic

circuit ref. 1, particularly the varistor (fig. 1) if

it presents bursting marks.

• the state of the levelling condensers (fig.

2): check if there are swellings or breaks

on the container

• la presenza di crepe o rotture sulle salda-

ture dei trasformatori T1 e T4

• the presence of cracks or breaks on the

welds of the transformers T1 and T4

• check for the presence of burned tracks or

electric discharge marks on the printed cir-

cuit. In case of faults replace always the

electronic circuit ref. 1

2. Check, on all the harnesses, the insulation of

the cables and the state at the connection

points.

1.3 CHECK OF THE MAIN COMPONENTS

WITH TESTER (OHMMETER) ON THE

CIRCUIT REF. 1

1. Check for the presence of short circuits on the

rectifier bridge and the correct value of the

power resistance (fig. 3)

2. Mosfet of the primary circuit and diodes of

recycle: test points 1-2, 1-2, 2-3 of compo-

nents A and B; points 1-2 of components C

and D (fig. 4).

3. Diodes of the secondary circuit: check points

1-K of components E-F (fig. 5)

FIG. 1 - C.E. RIF. 3 MOD. HF348

FIG. 2 - C.E. RIF. 1 MOD. CE22542

FIG. 3 - C.E. RIF. 3 MOD. HF348

FIG. 4 - C.E. RIF. 1 MOD. CE22541

FIG. 5 - C.E. RIF. 1 MOD. CE22541

FV1

C26

C27

Pag. 5

PROFESSIONAL INVERTERS MMA 140-180A

1206

• If there are short circuits or faults during

these tests, replace the electronic circuit.

1.4 CHECK OF GENERATOR OPERATION

WITH OSCILLOSCOPE AND VOLTMETER

1. Connect a regulated power supply between

TP1 ( + 15 Vdc) and TP2 (GND), short-circuit

between TP1 and point A (fig. 6); set the

oscilloscope on a time base of 5 uS and a

range of 0.5 V/Div with probe x10 and verify:

• the presence between points: 3 (GND) - 1

(probe) (fig. 4) of the waveform shown in fig.

7: if the waveform differs from the one in the

figure or there is no wave form, the electro-

nic circuit is broken.

2. Disconnect the feeder and remove the short

circuit, set the oscilloscope with a range of

1V/Div and connect the probe X100 between

points M (GND) and P (Probe) (fig. 8); con-

nect the machine to the power supply, switch

it on:

• the motor fan starts up, and after approx. 2

seconds a wave will appear as in fig. 9.

• check with a voltmeter that the output vol-

tage is approx. 60Vdc (see test specifica-

tion point 2).

• If the wave form does not appear or the

output voltage is not correct, replace the

electronic circuit ref. 1

3. If there is not a correct current regulation

replace the circuit ref. 36; if the fault appears

again, replace the circuit ref. 1

Carry out the final test after the repair.

2.0 FINAL TEST

1. Carry out the safety test according to our ope-

rative instruction N. SLL12, before proceeding

act as follows:

• insert a insulating thickness to avoid dischar-

ges or short circuits between the electronic

boards (ref. 3) and their supporting turrets.

FIG. 6 - RIF. 1 MOD. CE22541

FIG. 7

FIG. 8 - RIF. 01 MOD. CE22541

FIG. 9

GROUND

15Vdc

SPARE PARTS LIST - PIÈCES DÉTACHÉES - LISTA DE LAS PIEZAS DE RECAMBIO - LISTA PEZZI DI RICAMBIO

ERSATZTEILLISTE - PEÇAS SOBRESSELENTES - RESERVDELAR - WISSELSTUKKEN - LISTA PIESE COMPONENTE -

LISTA CZĘŚCI ZAMIENNYCH -

∫∞∆∞§√°√™ ∞¡∆∞§§∞∫∆π∫ø¡ -

ПЕРЕЧЕНЬ ЗАПАСНЫХ ЧАСТЕЙ

13.1

09.1

SPARE PARTS LIST - PIÈCES DÉTACHÉES - LISTA DE LAS PIEZAS DE RECAMBIO - LISTA PEZZI DI RICAMBIO

ERSATZTEILLISTE - PEÇAS SOBRESSELENTES - RESERVDELAR - WISSELSTUKKEN - LISTA PIESE COMPONENTE -

LISTA CZĘŚCI ZAMIENNYCH -

∫∞∆∞§√°√™ ∞¡∆∞§§∞∫∆π∫ø¡ -

ПЕРЕЧЕНЬ ЗАПАСНЫХ ЧАСТЕЙ

CODE

DESCRIPTION DESCRIPTION DESCRIPCIÓN

01 W000232542 CIRCUIT BOARD CE 22541 CIRCUIT ÉLECTRONUQUE CE 22541 CIRCUITO ELECTRÓNICO CE 22541

03 W000232538 CIRCUIT BOARD HF 348 CIRCUIT ÉLECTRONUQUE HF 348 CIRCUITO ELECTRÓNICO HF 348

08 W000050196 POWER CABLE CÂBLE ALIMENTATION CABLE DE ALIMENTACIÓN

09 W000227612 CABLE CLAMP SERRE-FIL PRENSACABLE

09.1 W000227620 NYLON NUT ÉCROU NYLON TUERCA DE NYLON

10 W000233525 SECURING BLOCK BLOC DE FIXATION BLOQUEO DE FIJACIÓN

11 W000050197 SWITCH INTERRTUPTEUR INTERRUPTOR

12 W000231161 OUTLET CONNECTOR RACCORD SORTIE RACOR DE SALIDA

13 W000227980 KNOB POIGNÉE PERILLA

13.1 W000262748 HOOD CAPUCHON CAPUCHÓN

14 W000227820 FAN UNIT MOTOVENTILATEUR MOTOR DEL VENTILADOR

36 W000232515 CIRCUIT BOARD TV 330 CIRCUIT ÉLECTRONUQUE TV 330 CIRCUITO ELECTRÓNICO TV 330

38 W000262752 PLASTIC TRIM PROFIL ARÊTE PROFIL ÂRETE

48 W000050179 PIN FOR TRIMMER ARBRE POUR TRIMMER EJE DEL TRIMMER

69 W000050201 CHOKE ASSEMBLY IMPEDANZ IMPEDANCIA

72 W000233767 SUPPORT SUPPORT SUPORTE

CODE

DESCRIZIONE BESCHREIBUNG DESCRIÇAO

01 W000232542 CIRCUITO ELETTRONICO CE 22541 ELEKTRONISCHE SCHALTUNG CE 22541 CIRCUITO ELECTRÓNICO CE 22541

03 W000232538 CIRCUITO ELETTRONICO HF 348 ELEKTRONISCHE SCHALTUNG HF 348 CIRCUITO ELECTRÓNICO HF 348

08 W000050196 CAVO ALIMENTAZIONE SPEISEKABEL CABO DE ALIMENTAÇAO

09 W000227612 PRESSACAVO KABLEKLEMME GRAMPO DO CABO

09.1 W000227620 DADO NYLON NYLON-MUTTER PORCA EM NYLON

10 W000233525 BLOCCHETTO FISSAGGIO BEFESTIGUNGSBLOCK BLOCO DE FIXAÇAO

11 W000050197 INTERRUTTORE SCHALTER INTERRUPTOR

12 W000231161 RACCORDO USCITA AUSGANGSANSCHLUß UNIÃO DE SAÍDA

13 W000227980 MANOPOLA DREHKNOPF BOTÃO

13.1 W000262748 CAPPUCCIO KAPPE TAMPA

14 W000227820 MOTOVENTILATORE MOTORVENTILATOR VENTILADOR

36 W000232515 CIRCUITO ELETTRONICO TV 330 ELEKTRONISCHE SCHALTUNG TV 330 CIRCUITO ELECTRÓNICO TV 330

38 W000262752 PROFILO CORNICE RAHMENPROFIL MOLDURA

48 W000050179 ALBERINO PER TRIMMER WELLE FÜR TRIMMER EIXO PARA TEMPORIZADOR

69 W000050201 GRUPPO IMPEDENZA IMPEDANZ GRUPO IMPEDÂNCIA

72 W000233767 SUPPORTO SCHEDA AUFHANGUNG SUPORTE

WIRING DIAGRAM - SCHÉMA ÉLECTRIQUE - ESQUEMA ELÉCTRICO - SCHEMA ELETTRICO

STROMLAUFPLAN - ESQUEMAS ELÈCTRICOS - ELSCHEMOR - ELEKTRISCHE SCHEMA'S - SCHEMA ELECTRICA

SCHEMAT ELEKTRYCZNY -

∏§∂∫∆ƒπ∫√ ¢π∞°ƒ∞ªª∞ -

ЭЛЕКТРИЧЕСКАЯ СХЕМА

III

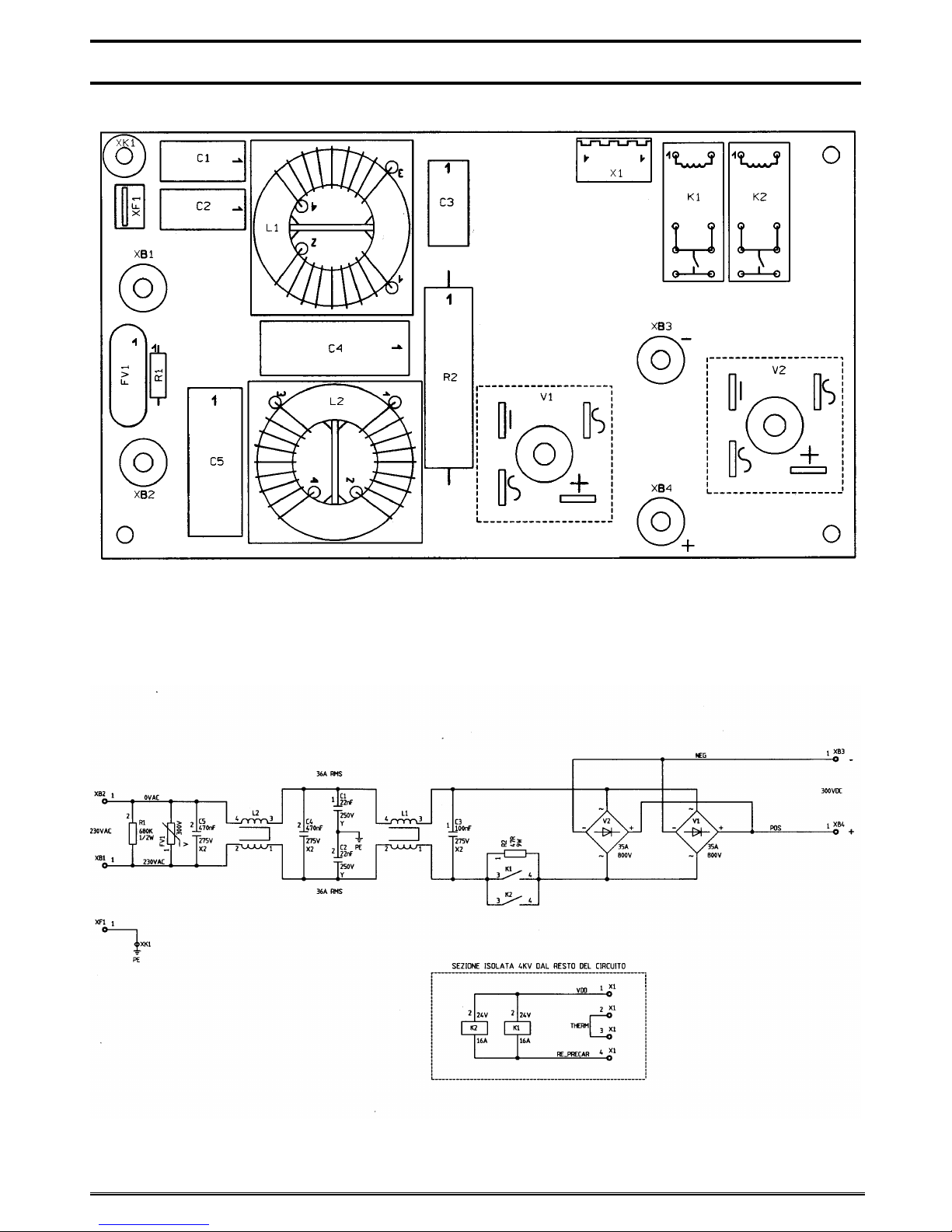

CIRCUIT BOARD CE 22541

ELECTRONIC CIRCUIT BOARD CE 22541 page 1of2

ELECTRONIC CIRCUIT BOARD CE 22541 page 2of2

CIRCUIT BOARD CE 22533
