WP100A

Wireless Roamer Telephone Interface for the MC and TD-H

Aiphone Communication Systems • 1700 130th Ave. N.E. • Bellevue, WA 98005

(425) 455-0510 • FAX: (425) 455-0071 • (800) 692-0200 • www.aiphone.com

DESCRIPTION:

The WP100A Wireless Roamer integrates a

cordless telephone with the MarketCom intercom

and paging system. From the cordless phone, a

person can answer a page and talk to someone

ontheintercom,aswellasanswerincomingphone

callsandmakeoutgoing calls. A call canbeplaced

from any MC-60/4 to the cordless phone directly

without having to make an overhead page.

The Wireless Roamer also works with the TD-H/B

telephone-typepaging and intercomsystem. Four

channels are available for selective calling from

the phone to the intercom system, as well as

access to the paging and phone systems.

FEATURES:

• Cordless phone interface with MC-60/4 and TD-H/B

• Call and talk between intercom and cordless phone

• Four channels of communication between phone and

intercom system

• Access to paging system from the cordless phone

• 900MHz phone (ANA9500) available from Aiphone

• Any cordless phone can be used

• Connect cordless phone to a dedicated line or analog

port on a phone system

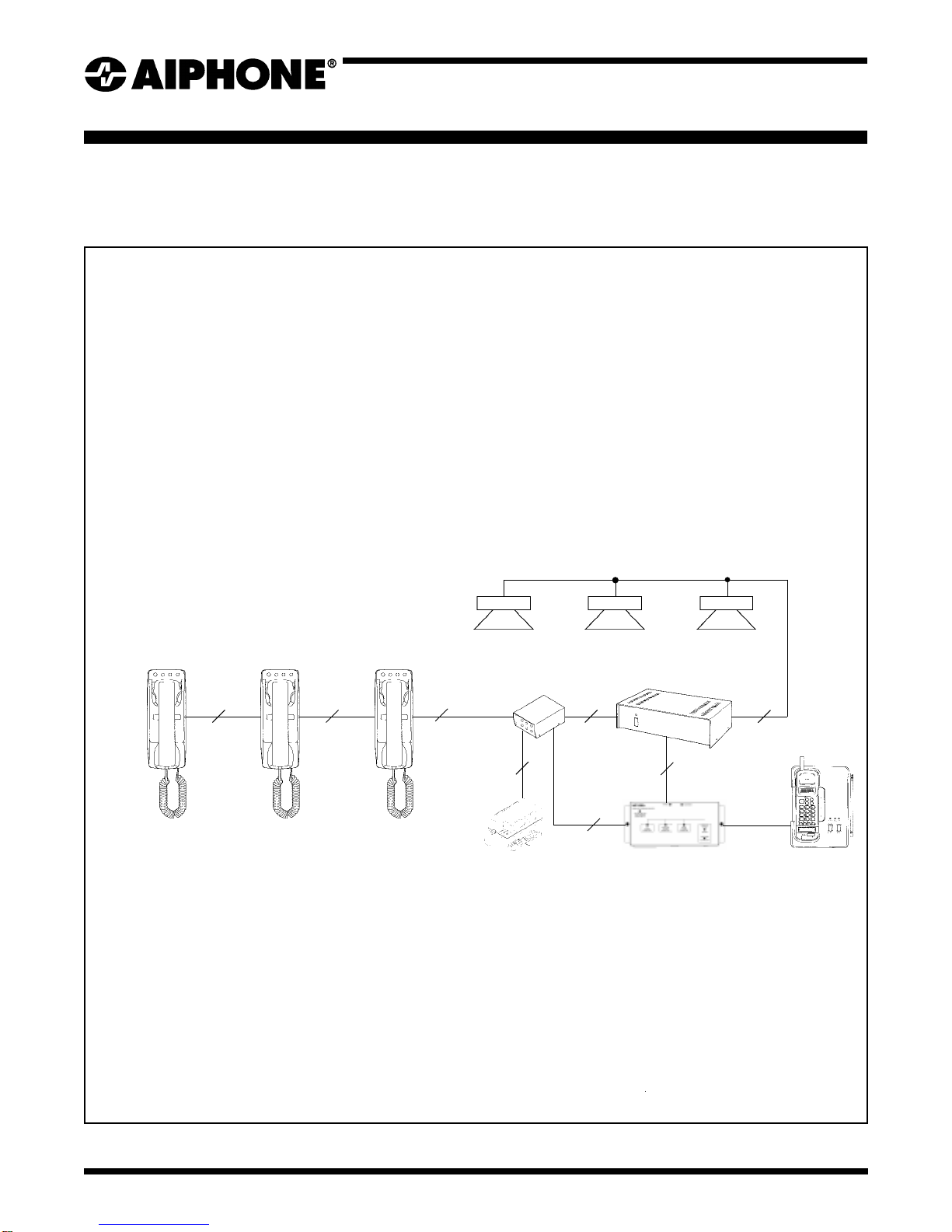

SYSTEM LAYOUT EXAMPLE:

SPECIFICATIONS:

Power Source: 24V AC. Use AC adaptor provided.

Phone Output: Analog port

PA Output: 600 ohm balanced

Wiring Requirements: 7 conductors from intercom to WP100A. Use Aiphone #852207.

(7 conductors is maximum, utilizing all four talk channels available.)

2 conductors shielded from WP100A to paging amplifier. Use Aiphone #822202.

8 conductor phone cable from WP100A to RJ31X phone jack.

2 conductors from RJ31X to analog port on phone system.

2 conductors from RJ31X to RJ11 phone jack, where cordless phone is connected.

Mounting: Wall or shelf mount

Dimensions: 5-9/16"H x 10-3/16"W x 1-3/8"D

Accessories

- 74 -

PS-24E WP100A

MC-A/A

MC-60/4AMC-60/4AMC-60/4A Amplifier

Speakers

ANA9500

77 7

7

22

22
