Aiphone MK Door Sentry Manual de usuario

IER-2

- INSTRUCTIONS -

The MK Door Sentry system can have up to two video monitors, each having one audio-only handset

wired to it. Each monitor and/or handset can have a chime extension speaker wired to it as well. This is

the maximum configuration. Aiphone does not guarantee the operation of any system beyond this

capacity.

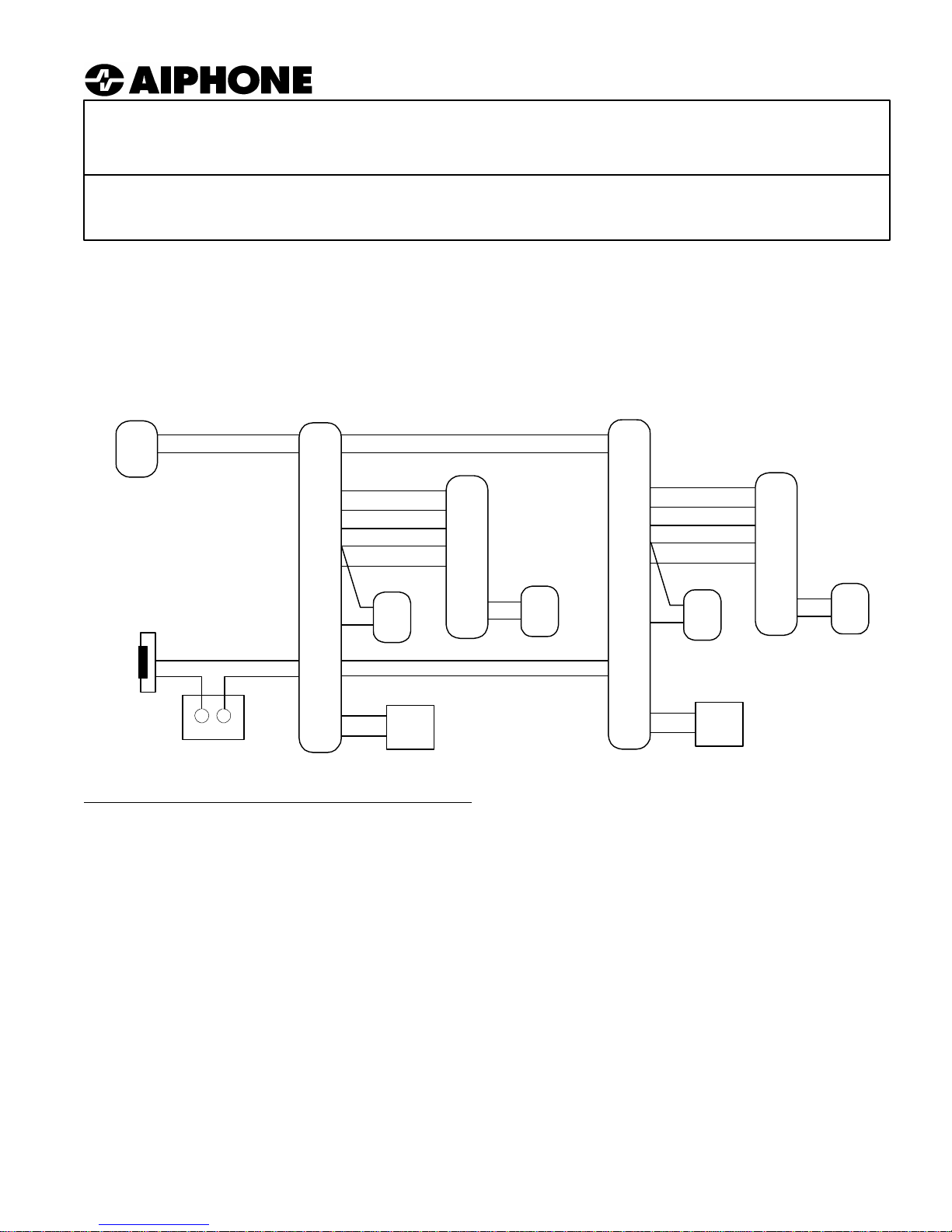

WIRING DIAGRAM:

MK Door Sentry

Audio Video Door Answering System

Maximum System Configuration

2 MK-1MD/A, 2 MK-1SD/A, 4 IER-2

Individual Components for MK Door Sentry System:

MK-DS Video door station, fixed wide angle

MK-1MD/A Monitor/handset room station

MK-1SD/A Audio-only handset room station

IER-2 Chime extension speaker

PS-18YC/A 18V DC Power supply for MK monitor (1 ea.)

EL-9S Electric door strike

PT-1210N AC Transformer for door strike

STATION MOUNTING:

MK-1MD/A & MK-1SD/A:

Surface mount to wall or 1-gang box

MK-DS:

Surface mount to wall or 1-gang box

Aiphone Communication Systems

1700 130th Ave. N.E.

Bellevue, WA 98005

(425) 455-0510

FAX (425) 455-0071

4/S

MK-1MD/A

MK-DS

max-mk.vsd

0398JD

Red

Blk

PS-18YC/A

Toll Free Technical Support:

1-800-692-0200

FAX: 1-800-832-3765

MK-1SD/A

4/S

MK-1MD/A

Red

Blk

PS-18YC/A

MK-1SD/A

Power for Strike

IER-2

MK-1MD/A TERMINAL DEFINITIONS:

+Positive 18V DC

-Negative

A1 Audio/Video

A2 Audio/Video

1Communication to MK-1SD/A

2Chime to MK-1SD/A

3Power to MK-1SD/A

4/S Ground

5Door release control

SChime output

LDoor release control

LDoor release control (N/O dry closure)

polarized polarized

Door Strike
