Aiphone GT Video-intercom System Guide

Aiphone GT Video Intercom System Guide

This guide may make it easier to understand the capabilities of the Aiphone GT

video intercom system, by providing

●More detail than is presented in the Aiphone GT brochures.

●A broader overview than provided in the Aiphone GT module data-sheets.

●More accessible presentation of some of the information that is provided in

the Aiphone GT installation manuals.

This guide is brought to you by Clever Home, and is intended to supplement (and

not replace) the above Aiphone documents, to which links are provided on the last

page below.

Suitable Applications for the Aiphone GT video-intercom

Multi-tenant dwelling apartments, units, or offices, where outside visitors need to

be able to selectively call two or more dwellings from the site or building entrance.

For single residences or offices, consider using the beautiful Aiphone JK video

intercom instead.

Aiphone GT System Capacity

●1-16 entrances, each with their

own video intercom, or audio

intercom, and access control

entrance station.

●-500 tenants, each

individually callable from

entrance stations.

●0-500 access codes, with each

tenant having a unique code.

●5-6 digit access codes.

●1-4 video intercom stations

per apartment, with audio

broadcast communications

between internal stations.

●0-1 video intercom door

stations per tenant, if the GT-2C

master monitor station is used,

where each door station is located immediately outside each tenant's door.

(No more peep holes.)

●0-1 door bell buttons per tenant, located immediately outside each

tenant's door, when any GT master monitor station is used.

●0-4 Concierge stations that may individually call other Concierge stations,

individual tenants, receive manual calls from tenants, receive automatically

diverted calls from entrance station to individual tenants (after hours for

example), and receive Aiphone Security Suite alarms.

www.cleverhome.com.au

Aiphone GT Video-intercom System Guide

GT Entrance Stations

Two types of entrance stations are available for the Aiphone

GT video intercom system, Integrated and Combined

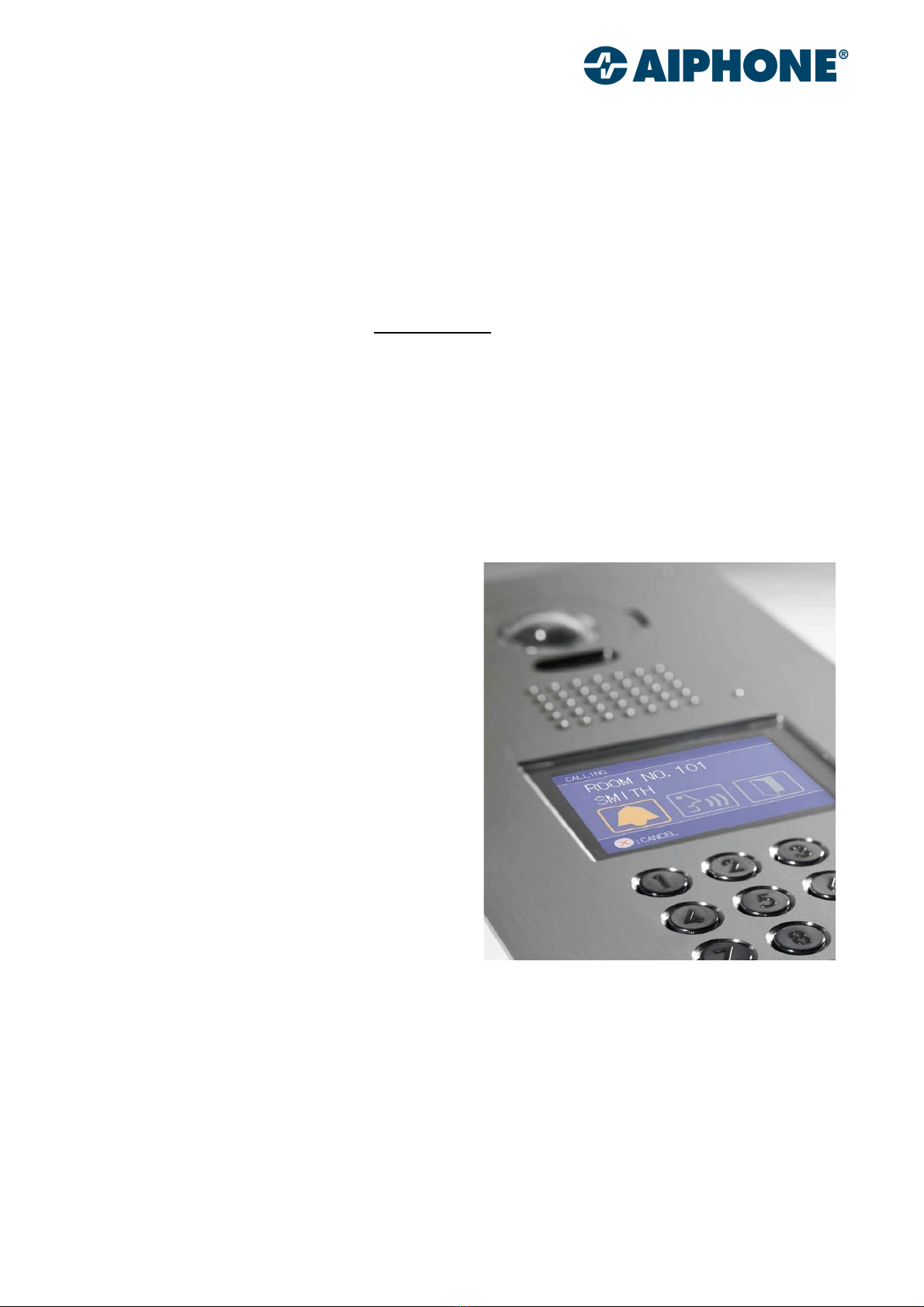

Integrated Entrance Stations on a single flush-mount

stainless steel plate (i.e. the GT-DM), which includes a 170°

wide (and 100° high) angle digital PTZ video inter-intercom

camera, 10 key keypad, 3.5” colour LCD display (for a

greeting message, tenant names and numbers, and system

status), motion sensor, and voice annunciation.

Combined Entrance Stations with semi-flush mount

interchangeable steel faceplate modules, that mount within

different size and shape steel frames. The modules available

for Combined type entrance stations include the

●Camera module (GT-VA) with 170° wide (and 100°

high) angle digital PTZ .

●Audio Speech module (GT-DA) that supports voice

annunciation, and which can be used with or without

the GT-VA camera module,

●10 key module (GT-10K),

●Switch module (GT-SW) with 4 directory cards and 4

direct call buttons, and call button panels with 1, 2, 3

or 4 buttons as an alternative to the GT-10K when

there are less than 4-8 tenants, and

●Name Scrolling module (GT-NS) with VFD display for a

greeting message, tenant names and numbers, and

system status.

●Prox card reader modules that

may be used with the Combined

Type GT entrance stations

(GF-HID, GF-HID-I, GH-XP).

Aiphone GT-DM

Aiphone

GTV-DES104

Aiphone GTA-DES

Aiphone GTV-DES202

www.cleverhome.com.au

Aiphone GT Video-intercom System Guide

GT Door Stations

Are GT Door Stations different to GT Entrance Stations?

Yes. While GT entrance stations are located at the entrance to a building, set of

units, or office complex, and allow a visitor to contact any one of the many tenants,

GT door stations

●Are located immediately outside the tenant's door.

●Allow a visitor standing outside a tenant's door to contact that tenant only.

●Use different video intercom modules than entrance stations.

●Can replace old-style tenant door peep holes.

●Only work with Aiphone GT-2C master monitor stations.

A GT door station may only be used outside an apartment, unit, or office, if the GT

master monitor station used by that tenant is an Aiphone GT-2C. Other GT master

monitor stations do still however support a door bell button located immediately

outside the tenant's door (as does the GT-2C as well).

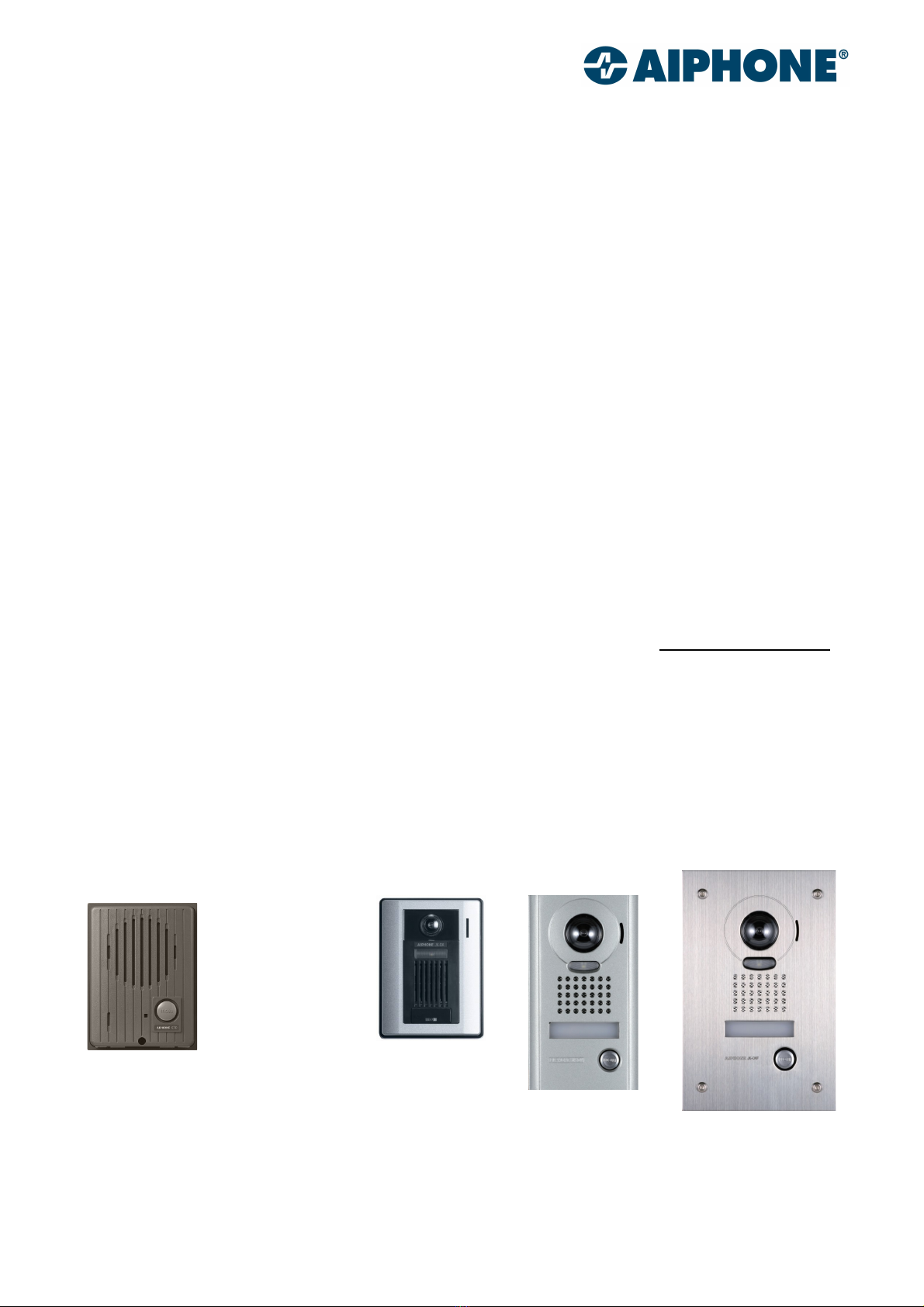

There are four different door stations that may be used with the GT video

intercom system.

Video intercom camera door stations from the single residence Aiphone JK Series

may be used with the GT-2C master monitor station, when placed immediately

outside the tenant's door. Choose from the flush mount stainless steel plate JK-DVF

door station, the JK-DV surface mount zinc die-cast (left) door station, or the plastic

surface mount JK-DA. All of these JK door stations feature a 170° wide angle digital

PTZ camera, similar to that used in the GT video intercom entrance stations.

If the tenant requires an audio-only door station, then the Aiphone GT-D door

station may be used.

Aiphone JK-DVF

Door Station

Aiphone

JK-DV Door

Station

Aiphone GT-D

Audio-only

Door Station

Aiphone

JK-DA Door

Station

www.cleverhome.com.au

Aiphone GT Video-intercom System Guide

Internal Tenant Stations

Master monitor stations have the capability to support up to three additional

sub-master monitor stations, or monitor stations, within the same tenant's

apartment, unit, or office.

Sub-master monitor stations must work in conjunction with a master monitor

station.

Monitor stations may be used on their own if the tenant only requires only one

station inside, or as more economical (but less capable) master and sub-master

monitor stations if the tenant requires more than one station.

There are two Aiphone GT master monitor stations, the GT-2C and the GT-1C.

The GT- C master monitor station would be most

tenant's first choice. The GT-2C features include

(blue-highlighted features are unique to this

monitor)

●Up to 4 video-intercom monitor stations

per tenant; one GT-2C plus up to three GT-

H sub-master monitor stations.

●All four monitor stations are powered by a

local power supply in the apartment. (One

24VDC 2A power supply may power 4 adjacent tenants with GT-2Cs and no

sub-master stations, or two adjacent tenants with sub-master monitors.)

●Support for a tenant door station for better security and elimination of the

old-style peep hole.

●Support for a tenant door bell button.

●Digital PTZ (Pan-Tilt-Zoom) viewing of 170°

wide angle camera views from entrance

stations or a local door station.

●Audio communication between internal

tenant stations, entrance stations, door

station, or concierge/guard stations.

●Optional GT-HS handset may be added for

private conversations.

●Video identification of visitors at door or

entrance stations.

●Recording visitor images automatically, so you may see who stopped by

upon return, or also at any time you like manually.

●Supports Aiphone Suite Security.

●Unlock doors.

●Local NTSC video output for CCTV integration.

Aiphone GT-2H

Sub-Master

Aiphone GT-2C Master

www.cleverhome.com.au

Aiphone GT Video-intercom System Guide

The GT-1C master monitor station features include

●Up to video-intercom monitor stations

plus audio-intercom stations per tenant;

one GT-1C plus up to one video-intercom

monitor station, and up to two audio-

intercom monitors.

●Powered from GT-VBC and GT-BC.

●Support for a tenant door bell button.

●Digital PTZ (Pan-Tilt-Zoom) viewing of 170°

wide angle camera views from entrance

stations.

●Audio communication to entrance stations, or concierge/guard stations.

●Optional GT-HS handset may be added for private conversations.

●Video identification of visitors at entrance stations.

●Unlock doors.

The GT-1M-L monitor station may serve as a master monitor, or as a sub-master

monitor, and its features include

●Up to video-intercom monitor stations plus

audio-intercom stations per tenant; one GT-

1M-L plus up to one video-intercom monitor

station, plus up to two audio-intercom monitors.

●Powered from GT-VBC and GT-BC.

●Support for a tenant door bell button.

●Audio communication between entrance

stations, or concierge/guard stations.

●Video identification from entrance stations.

●Unlock doors.

The GT-1A hands-free and GT-1D handset audio

monitor stations may serve as master monitor, or

as sub-master monitors, and their features include

●Up to 4 audio-intercom stations per

tenant.

●Powered from GT-BC.

●Support for a tenant door bell button.

●Audio communication between

entrance stations, or concierge/guard

stations.

●Unlock doors.

Aiphone GT-1C Master

Aiphone

GT-1M-L

Monitor

Aiphone

GT-1A

Audio

Monitor

Aiphone GT-1D

Audio Monitor

www.cleverhome.com.au

Aiphone GT Video-intercom System Guide

The GT-MK concierge or security guard monitor station features include

●Up to 4 concierge/guard stations per GT video

intercom system in expanded configuration, or

up to 2 stations in standard configuration.

●Powered from local 4VDC power supply.

●Support for optional local door bell button.

●Audio communication with entrance stations,

tenant stations, or other concierge/guard

stations – call and answer calls.

●Handset for conversation privacy.

●Visitor screening from entrance stations.

●Unlock doors.

●Caller ID with call-back.

●Supports and uses call tone and display to

clearly distinguish between incoming standard calls, and emergency calls

made via the GFK-PS water-proof emergency help module.

●Able to be manually programmed using the GT-MK itself, or by Windows

PC using Free Aiphone GT setup software (see below) connected via a USB

socket on the GT-MK.

Aiphone GT Setup Software

Free setup software for Windows PCs is available to make creating and modifying

tenant names, locations, and access codes for your Aiphone GT multi-tenant video

intercom system easier. This free software may be downloaded from

http //www.cleverhome.com.au/software/Aiphone-GT-video-intercom-setup-

software.zip

Your Windows PC connects to your Aiphone GT multi-tenant video intercom by

USB cable to the GT-NS-V/GT-NS Name Scrolling entrance display module, the GT-

DMV/GT-DM integrated entrance station, or the GT-MK concierge/guard station.

Alternatively, all of the above stations may be programmed manually directly at the

stations – the PC software simply provides a more productive way of managing

tenant information for your GF video intercom system.

Aiphone

GT-MK

Monitor

www.cleverhome.com.au

Aiphone GT Video-intercom System Guide

GT Monitor Station Option Connectors

GT monitor stations have one or two Options connectors on their back, which have

the pin-outs and functions identified below.

Door Bell input allows a door bell button located immediately outside the tenant's

door to be connected to the tenant's master monitor station. The door bell should

have contacts that are normally open, and be non-latching (momentary action).

Emergency Alarm Input allows connection of a switch to generate a security

alarm. Switch contacts should be normally closed, and be latching.

Security/Utility inputs 1 to 3 allow connection of security sensors or switches for

Aiphone Security Suite support, or other utility functions.

Doctor Call Input allows connection to a switch to automatically allow entry of a

doctor or other emergency service. generate a security alarm. Switch contacts

should be normally closed, and be latching.

Option Contact output may be used to activate lights or an external call buzzer,

using the GT-RY relay to buffer the Option Contact output.

Video Out output provides an NTSC direct video signal for displays <3m away.

Only live video is sent to the Video Output, there is no video output when viewing

previously recorded pictures, or menu pages. CCTV integration support is

provided by via this NTSC video output, and Display Transfer output relay

contacts that may be used to activate external monitors via an optional GT-RY

external signalling relay. Both of these outputs are accessed using the 4 pin option

connector on the back of the GT-2C master stations. This connector is not provided

with the GT-2C, even though the 12 pin option connector is.

www.cleverhome.com.au

Aiphone GT Video-intercom System Guide

GT Video-intercom System Configurations

There are two different system configurations, the Standard Configuration for

smaller systems, and the Expanded Configuration for larger systems. The

maximum capacities for each type of GT video intercom system configuration are

compared in the table below.

Maximum Supported Standard

Configuration

Expanded

Configuration

Entrance Stations 5 (3 per trunk)

3 if a door release button

is connected to a direct

select type entrance

station.

16 (8 per trunk)

Tenant Stations per

Sub Trunk Line

N/A 125 (25 per trunk)

Concierge/Security Guard

Stations

2 4

Tenant Stations 48 (25 per trunk)

100 if only the GT-1D and

GT-1M-L monitor stations

are used.

(50 per trunk for GT-1D)

(25 per trunk for GT-1M-L)

500

Stations per Tenant

(other than GT-2C)

4 (2 monitor stations) 4 (2 monitor stations)

4-way Video Junction

Units

6 per trunk N/A

Bus Control Units 1 1 per common trunk line

1 per sub trunk line

GT-2C Master Stations per

Tenant

1 1

Sub-master Stations 3 3

Maximum Supported Modules Table.

PolyEthylene core cable

Two core PolyEthylene (PE) cable that is unshielded, untwisted, and has a PVC

outer protective jacket, a must be used for audio and video distribution wiring for

any GT installation. The most readily obtainable PE cable is 0.9mm. There is a

table in the GT video-intercom installation manual indicating the maximum cable

distances between all GT modules – you should refer to the 0.8mm column in this

table if 0.9mm PE cable is being used in the installation.

www.cleverhome.com.au

Aiphone GT Video-intercom System Guide

GT Standard Configuration

The Standard Configuration for a GT video-intercom system is illustrated below.

The configuration from the residence (or tenant) trunk lines to the tenant monitor

stations is the same for the Standard and the Expanded Configurations, and is

illustrated is a subsequent section.

The video output from the video entrance station is connected to the GT-VBC Video

Bus Control Unit, which has 6 trunk line outputs.

The audio and control output from the entrance station is connected to the GT-RC

Bus Control Unit, and then out to 6 trunk lines from a Distribution Point (that must

be provided by the installer).

The separation of the video and audio/control distribution allows an audio

intercom-only system to be implemented by omitting the video component of the

modular entrance station, the GT-VBC, and all of the video distribution cabling.

There is a table in the GT video-intercom installation manual indicating the

maximum cable distances between all GT modules, depending upon the gauge of

PE cable used. The 0.8mm column should be used from this table if 0.9mm PE

cable is being used in the installation.

While only one modular entrance station is shown above, any of the modular

entrance stations, or the integrated entrance station may be used. Also, multiple

entrance and concierge stations are supported, as indicated in the “Maximum

Supported Modules” table above.

www.cleverhome.com.au

Aiphone GT Video-intercom System Guide

GT Expanded Configuration

The Expanded Configuration GT system uses the GT-VBX Expanded Video Bus

Control Unit and the GT-BCX Expanded Bus Control Unit to provide 4 additional

sub trunk lines, allowing up to 4 sets of GT-VBC and GT-BC control units (the same

units used in a Standard Configuration GT system) to be used instead of just one

set. The GT-VBX and GT-BCX must be mounted adjacent to each other, as their

interconnecting cable is only 40cm long.

Two additional GT-BC Bus Control Units are also able to be used to provide two

sets of trunk lines for entrance stations and concierge/security guard stations.

Otros manuales para GT SYSTEM

Tabla de contenidos

Otros manuales de Sistema de intercomunicación de Aiphone

Aiphone

Aiphone JP-DVF-PR Manual de usuario

Aiphone

Aiphone IS-IPDVF-RP10 Manual de usuario

Aiphone

Aiphone IS SERIES Local System Manual

Aiphone

Aiphone IC-1AD(U Manual de usuario

Aiphone

Aiphone TA-T Manual de usuario

Aiphone

Aiphone KC-1GRD Manual de usuario

Aiphone

Aiphone MK-DH Manual de usuario

Aiphone

Aiphone IS SERIES Manual del propietario

Aiphone

Aiphone MC-U Manual de usuario

Aiphone

Aiphone KC-1GRD Manual de instrucciones

Aiphone

Aiphone YAZ-90-3W Manual de usuario

Aiphone

Aiphone AT-406 Manual de usuario

Aiphone

Aiphone IE-SS/A Manual de usuario

Aiphone

Aiphone KC-1MRD Manual del propietario

Aiphone

Aiphone LEF-5 Manual de usuario

Aiphone

Aiphone JF-2MED Manual de usuario

Aiphone

Aiphone GF-1DK Manual del propietario

Aiphone

Aiphone LEF-10 Manual de usuario

Aiphone

Aiphone RY-PA-10/A Manual de usuario

Aiphone

Aiphone GFA-DES Manual de usuario

Aiphone

Aiphone LAA-1 Manual de usuario

Aiphone

Aiphone LEF-3C Manual de usuario

Aiphone

Aiphone LAF-20C Manual de usuario

Aiphone

Aiphone IS-DVF-2RA Manual de usuario

Manuales populares de Sistema de intercomunicación de otras marcas

Bticino

Bticino LINEA 3000 Manual de usuario

MSI

MSI MSI-140 Manual de usuario

golmar

golmar Stadio Plus Manual de usuario

CyberData

CyberData 011211 series Manual

Vidos

Vidos duo M1021 Manual de usuario

Vimar

Vimar ELVOX 7539/E Manual de usuario

SSS Siedle

SSS Siedle BTSV 850-03 Manual de usuario

Dahua

Dahua VTO Series Manual de usuario

Elvox

Elvox 5651 Manual de usuario

Videx

Videx VIDEOKIT Series Manual de usuario

Rocom

Rocom Doortello Business FW T2.05W2.04 Manual de usuario

Viking

Viking E-35-EWP Manual de usuario

Safeguard Supply

Safeguard Supply LRA-EX1000 Manual de usuario

SSS Siedle

SSS Siedle BFCV 850 Series Manual de usuario

GRD

GRD MAX V2 Manual de usuario

Alecto

Alecto ADI-250 Manual de usuario

Perel

Perel EDB4 Manual de usuario

Bticino

Bticino Classe 300 Manual de usuario
