Aiphone GT-MK Manual de usuario

DESCRIPTION: FEATURES:

Aiphone Corporation

1700 130th AVE NE * Bellevue, WA 98005

Ph: (800) 692-0200 * Fax: (425) 455-0071

[email protected]

GT-MK Spec Sheet

0611 Pg.1

GT-MK

Concierge Station for the GT Series

The GT-MK is a concierge station for the GT Series

multi-tenant system. The unit surface mounts to a single

gang electrical box or may be desk mounted using an

optional desk stand (GFW-S). The GT-MK features a

10-key keypad for calls to both tenant stations and entry

panels and a handset for private communication. The unit

also has up/down buttons for name scrolling and a door

release button to selectively open the entrance where

communication is established.

The GT-MK has two calling modes, standard (via tenant

station) and emergency (via GFK-PS). When a standard

call is placed, a normal call tone is heard and the calling

unit’s name and number are steady on the LCD screen.

When the emergency call is placed, an urgent call tone

is heard and the calling unit’s name and number ash on

the LCD screen intermittently with “EMERCENCY”. A

standard call is reset by hanging up the GT-MK handset

and emergency call must be reset at the tenant location.

The GT-MK can be manually programmed or programmed

via PC using the supplied USB cable. A standard GT

system will support 2 GT-MK while an expanded system

will support 4 GT-MK.

The system has one talk path. When the system is

occupied, a busy tone will be heard if another call is

attempted.

• Handset for private communication

• Standard and emergency calls

• Communicate to entry panels and tenants

• Visitor Screening

• Caller ID with Call Back

• Full System Connectivity

• Input for an optional doorbell button

• Service button (requires #238400 connector)

• External Signaling Device (requires GT-RY

and #238400 connector)

• Wall mount to a 1-gang box or desktop mount

using the GFW-S stand

SPECIFICATIONS:

GT-MK

Concierge Station for GT Series

FEATURE CALL-OUT DEFINITIONS:

FEATURE CALL-OUT:

GT-MK Spec Sheet

0611 Pg.2

Aiphone Corporation

1700 130th AVE NE * Bellevue, WA 98005

Ph: (800) 692-0200 * Fax: (425) 455-0071

[email protected]

[1] Handset

[2] Display

[3] Hearing aid T-mode compatibility symbol

[4] Cancel button (or set and return)

[5] Back search button (or move cursor to the left)

[6] Forward search button (or move cursor to the right)

[7] Call button (or set and move forward)

[8] Speaker (under handset)

[9] Service button

(Option, additional parts and modication required)

[10] Light button

[11] Door release button

[12] Off hook LED (orange)

[13] 10-key (0 ~ 9, *, #)

[14] Call tone volume control

[15] USB terminal (B type)

Power Source: 24V DC, PS-2420UL per 2 units

Call: Varying ring tones from entrance

panel, tenant station, or doorbell

Communication: Handset for privacy

Capacity: Max 2 GT-MK in a standard system

Max 4 GT-MK in an expanded system

Wiring: 2-conductor, PE insulation, common

bus

Aiphone #872002, 2 cond. PE

insulated, non-shielded, 11.05 pf/ft

Wiring Distance: GT-BC to farthest GT-MK (Audio line):

980’ with 20AWG

Talk Path: Single channel with privacy

Operating Temp: 32~104°F (0~40°C)

Dimensions (HxWxD): 8-¼” x 8-½” x 2-¾”

(210 x 215 x 69 mm)

Weight: 1.98 lbs (900g)

[1]

[2] [3]

[4]

[5]

[6]

[7]

[8]

[9]

[10]

[11]

[12]

[13]

[14]

[15]

GT-MK with GFW-S desk stand

Tabla de contenidos

Otros manuales de Sistema de intercomunicación de Aiphone

Aiphone

Aiphone JM-4HD Manual de usuario

Aiphone

Aiphone INTERCOM AN-8000 Manual de usuario

Aiphone

Aiphone KB-3HRD Manual de usuario

Aiphone

Aiphone LAF-3B Manual de usuario

Aiphone

Aiphone IX-DVF-P Manual de usuario

Aiphone

Aiphone GT-1M3 Manual de usuario

Aiphone

Aiphone AP-1M Manual de usuario

Aiphone

Aiphone TB-10T Manual de usuario

Aiphone

Aiphone AN-8000EX Manual de usuario

Aiphone

Aiphone MK-2DG Manual de usuario

Aiphone

Aiphone MY-2CD Manual de usuario

Aiphone

Aiphone IS SERIES Manual de usuario

Aiphone

Aiphone GT SERIES Manual de instrucciones

Aiphone

Aiphone TC-ME Manual de usuario

Aiphone

Aiphone IS-DVF-2RA-FR Manual de usuario

Aiphone

Aiphone GT SERIES Manual de instrucciones

Aiphone

Aiphone LEF-10S Manual de usuario

Aiphone

Aiphone JM-4MED Manual de usuario

Aiphone

Aiphone YKX Manual de usuario

Aiphone

Aiphone GT-2C Manual de usuario

Aiphone

Aiphone AT-406 Manual de usuario

Aiphone

Aiphone NDR-LD Manual de usuario

Aiphone

Aiphone INTERCOM AN-8000 Manual de usuario

Aiphone

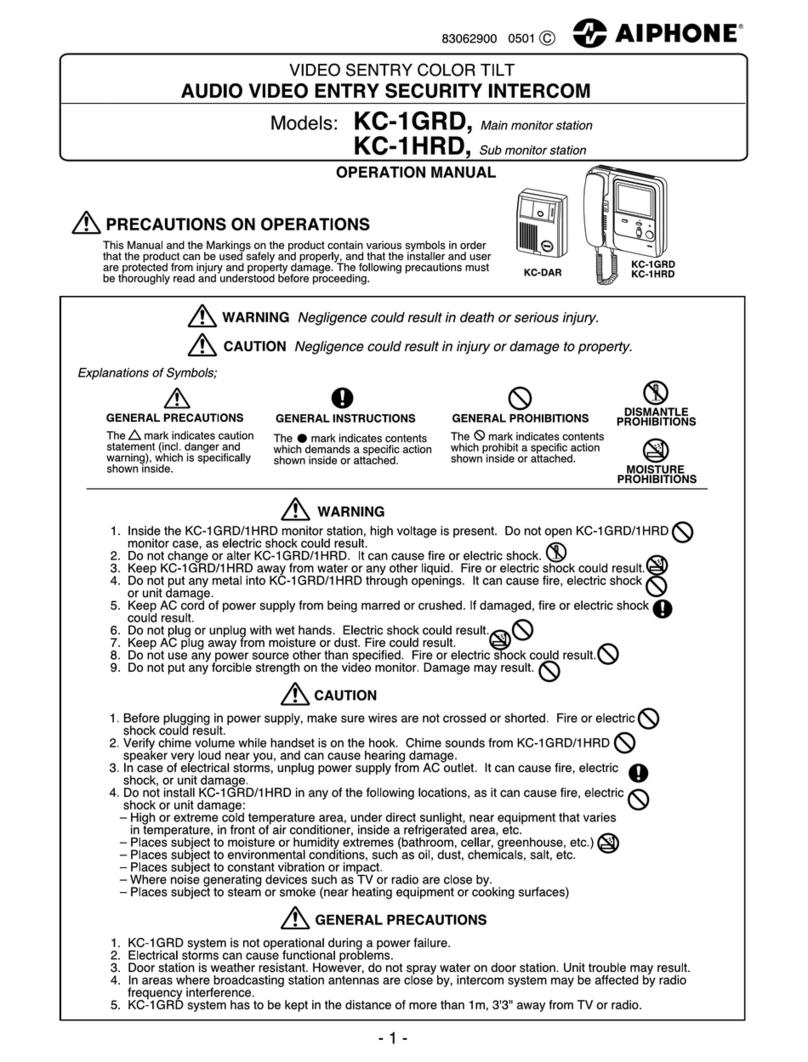

Aiphone KC-1GRD Manual de usuario
