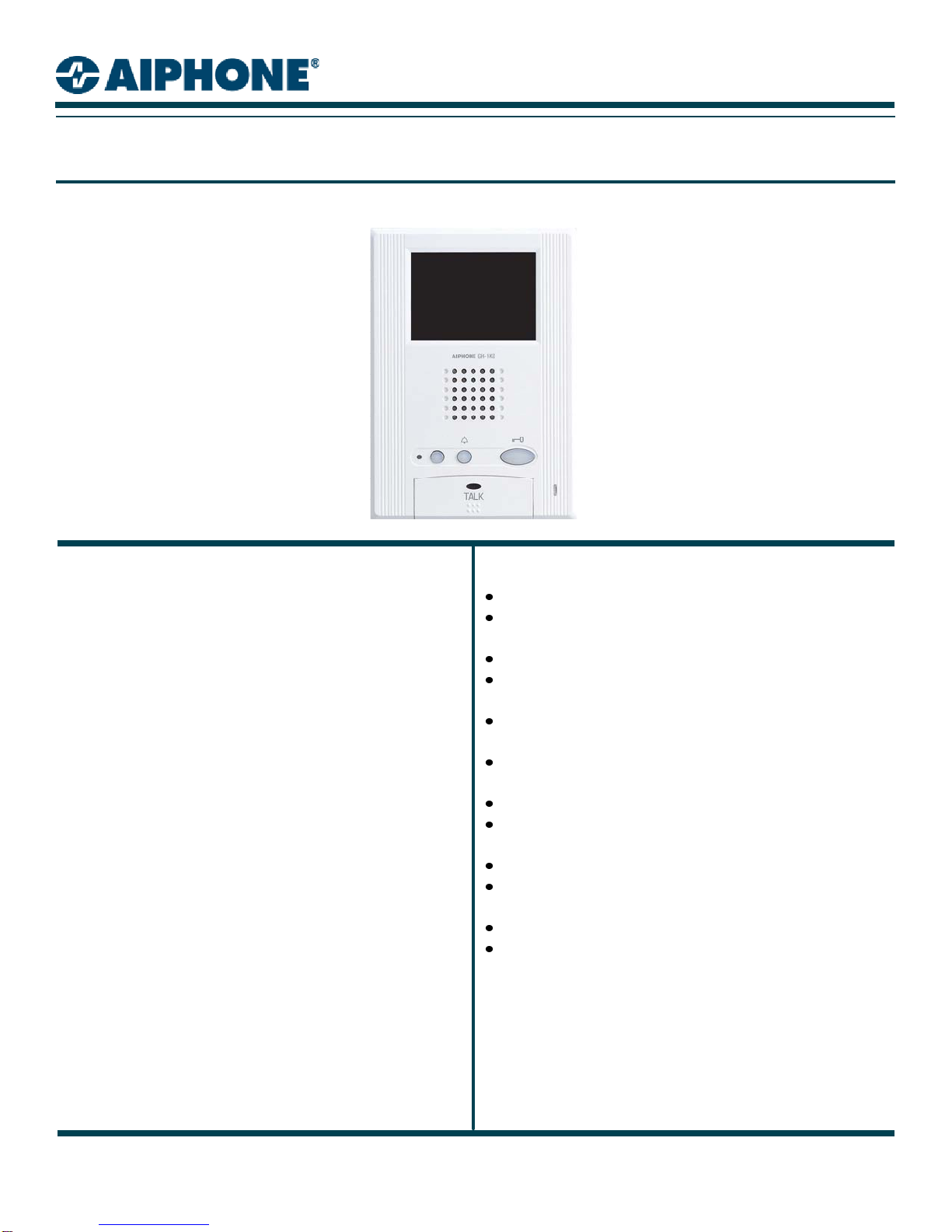

GH-1KD

Audio/Video Tenant Station for the GH Series

DESCRIPTION:

The GH-1KD is an audio/video tenant station

for the GH series Multi-Unit entry system. It is

equipped with a Talk, Door Release, and

optional service button. When a visitor calls,

the tenant stations rings and video is present.

The call is answered by one touch of the Talk

button.

The GH-1KD also has the capability of calling

the Concierge/Security Guard stations(s),

turning on a light while speaking with a visitor at

the entrance, receiving an emergency tone from

a panic call station, and releasing a door.

The GH-1KD is designed to be surface

mounted and has a slim, streamlined design.

Up to four units can be used in the same tenant

location (2 audio/video and 2 audio only).

Communication is hands-free at the entrance

station when a tenant answers the call, and is

either VOX hands-free or push-to-talk at the

tenant station when speaking with the visitor.

FEATURES:

Hands-free audio communication

Door release to the door where communication is

established

Call to Security Guard / Concierge station

Optional individual doorbell rings unique tone,

notifying resident that someone is at their door.

Optional activation of outside light while talking to

entrance station

Optional connection of panic call station (GFK-

PS), alerting with tone and call to Concierge

Entrance monitoring

Separate volume controls for call tone and

communication

Optional handset for privacy (GH-HS)

Simple 2 separate pair common bus wiring

(2 conductor for audio, 2 conductor for video)

Surface mounts to wall on 1-gang box or ring

ABS plastic construction

Aiphone Corporation

1700 130th Ave NE * Bellevue, WA 98005

Ph: (800) 692-0200 * Fax: (425) 455-0071

tech@aiphone.com

GH-1KD Spec Sheet

0910 Pg. 1

GH-1KD

Audio/Video Tenant Station for GH Series

Aiphone Corporation

1700 130th Ave NE * Bellevue, WA 98005

Ph: (800) 692-0200 * Fax: (425) 455-0071

tech@aiphone.com

SPECIFICATIONS:

Power Source: Supplied by system

Call: Varying ring tones from entrance

panel, concierge, or doorbell

Communication: Hands-free (VOX) after TALK button

is pressed once, or push-to-talk

Capacity: Max. 4 tenant stations per resident

location (2 Audio/Video, 2 audio only)

Wire Two 2-conductor cables, PE

insulation, common bus

Audio Wire: Aiphone #872002

Video Wire: Aiphone #871802

Wiring Distance: GH-VBC to farthest Tenant (Video

line): 500' with 18AWG

Talk Path: Single channel with privacy

Color: White

Operating Temp: 32 – 104°F (0 ~ 40°C)

Dimensions (HxWxD):

6-7/8" x 4-15/16" x 1-1/4"

(175 x 125 x 32 mm)

Weight: 0.9 lbs (400g)

FEATURE CALL-OUT DEFINITIONS:

[1] Speaker

[2] Microphone

[3] Door release button

[4] Talk button

[5] Light button / Security guard station call button

[6] Service button (option)

The service button is standard equipment with the

GH-1KD-SW.

[7] Talk LED

[8] Call tone off LED

[9] Receive volume control

[10] Call tone volume control

[11] Video monitor 3.5 inch color LCD

[12] Monitor brightness control

FEATURE CALL-OUTS:

GH-1KD Spec Sheet

0910 Pg. 2

GH-1KD with optional desk stand:

Model MCW-S/A (adjustable to 45° or 60° angle)

[1]

[3]

[2]

[4][5][6] [7][8]

[11]

[12][10] [9]
