Agrimate AM LS 518 Manual de usuario
User Manual
BEFORE OPERATING THIS MACHINE,
PLEASE READ THESE INSTRUCTIONS CAREFULLY
DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE
SUBJECT TO CHANGE WITHOUT NOTICE
AM LS 518 with AM 152PE
Gasoline Engine
2
INTRODUCTION
Please peruse the contents in the instruction manual prior to use this machine, correctly carried
out installation and debugging, as well as used it strictly cording to the working specifica-
tion in the instruction manual. The user should be familiar with the safety notices, machine
performance, and maintenance, etc. The instruction manual will be used in the later use, repair,
accessories replacement, and accessories procurement, so please keep it carefully
OPERATING INSTRUCTION
1 Securely mount the machine on the frame, ensured the two belt pulleys be parallel and
on the same plane, and the tension of belt be moderate;
2 Add 30~40# machine oil up to 1/2 of oil gauge plug;
3 The connectors of each rubber pipe and high pressure pipe must be locked tightly ;
4 Before start the motor, open the jet gun and ball cock, and loosen the adjusting screw;
5 Start the motor, keeping it at appropriate velocity; Waiting there is water ejecting from
the jet gun , close the jet gun or ball cock, and adjust the adjusting screw to let the pres-
sure reach the working pressure;
6 Turn on the ball cock and jet gun, beginning spraying. During the process may properly
adjust the adjusting screw to maintain the required pressure, and lock tightly the fly nut
at any moment;
7 After spraying , operate the sprayer with clean water for 2~3 minutes to clean the residu-
al interior chemicals;
8 Firstly dismantle the suction hose, waiting there is no water flowing out from the jet gun
or the overflow hose, stop the machine and dismantle over flow hose, high pressure pipe,
and loosen the adjusting screw.
3
TECHNICAL PARAMETERS
We reserve the right for revision without further notice !
TROUBLE ANALYSIS
Trouble Cause Solution
Can’t
supply
water
Unstable
pressure
Strainer Assy blocked Clean Strainer Assy
Suction Hose leaked Lock tightly Wing Net or replace Packing
Redundant air inside pump Exhaust redundant air inside pump
Valve damaged or blocked Eliminate impurities or replace Valve Seal
Cylinder
leaked
Grand too loose Lock tightly Grand (After machine stopped)
V-packing damaged Replace V-packing
Pressure
shortage
Improper pressure adjustment Adjust adjusting screw to proper pressure
Belt too loose Adjust belt to moderate tension
High pressure pipe leaked Check, repair, or replace high pressure pipe
Valve or valve seat damaged Replace valve or valve seat
Leaked oil Oil seal damaged, unlocked
tightly Lock tightly or replace relevant oil seal
Temperature
too high
No lubricating oil or too dirty Add grease on time, replace clean
lubricating oil
Pressure or velocity too high Adjust to proper pressure or velocity
AM LS 518 - POWER SPRAYER
RPM 500-900
Flow (L/Min) 6-10
Working Pressure (Kgf/cm2) 20-35
Power (HP) 1-2
Piston Dia (mm) 18
Stroke (mm) 16
A Quality Product - Taiwan Joint Venture
4
MAINTENANCE AND SERVICE
SAFETY NOTICES

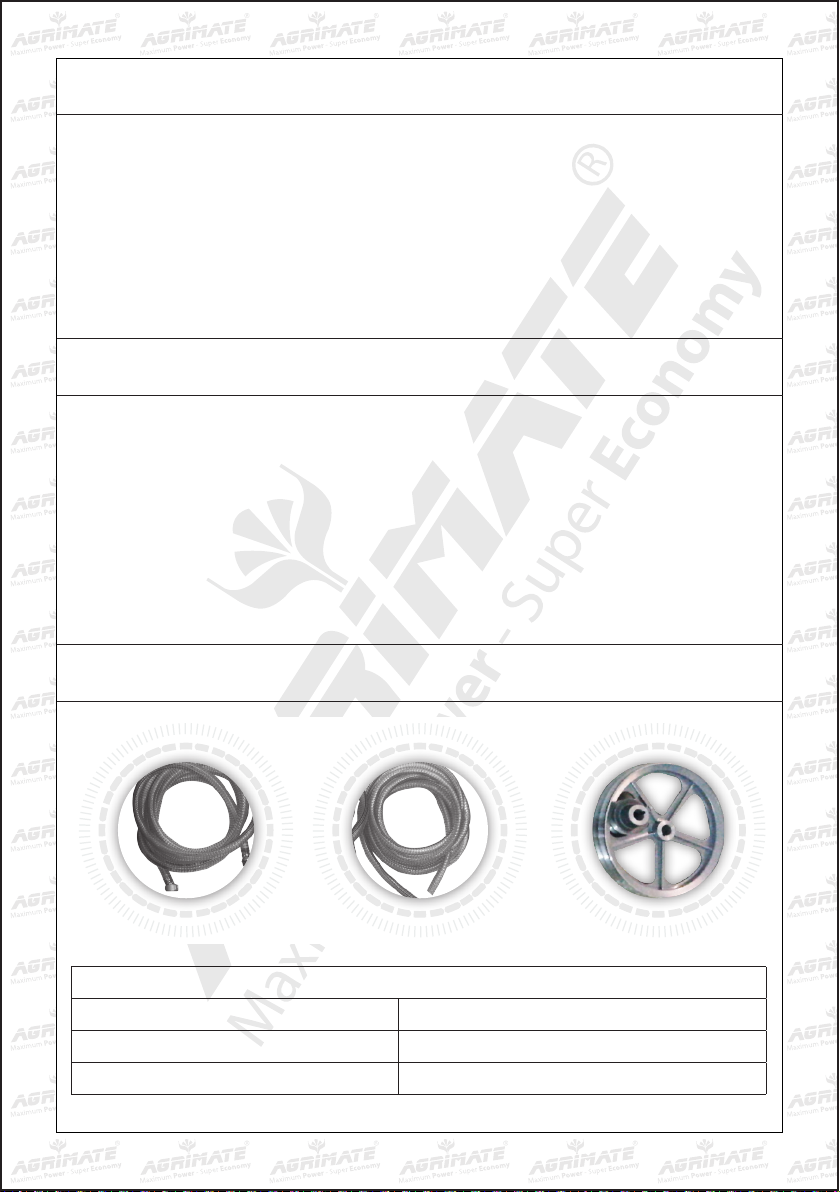

ACCESSORIES
1. Replace the oil after begin use for 40 hours, and thence replace it one time using each 70
hours;
2. Add grease one time each two hours during using;
3. After each work finished, operate it with clean water for 2 ~ 3 minutes to eliminate the
residual chemical and keep each parts clean;
4. For long term placement, wipe clean the spraying machine and place it at the cool and
dry place.
1. Using this machine with extra high pressure is prohibited (Should ≤35kgf/cm2);
2. The belt pulley should have safety protective device;
3. Should wear such protective tools as breathing mask in spraying, and spraying toward
personnel and working at the downwind position are prohibited;
4. Running without water or lubricating oil is prohibited;
5. Using such special working solutions as strong acid, strong alkali, etc. is prohibited, and
should operate strictly according to the safety prompts of manufacturing plant in spraying.
Content
Suction Hose 5m Strainer
Over Flow Hose 5m User Manual with warranty card
V Pulley Standard Tools & Accessories
5
SPARE PARTS DIAGRAM OF AM LS 518 POWER SPRAYER
6
SPARE PARTS OF AM LS 518 POWER SPRAYER
SL.NO. PARTS NAME
AM LS 518 01 Crank Case
AM LS 518 02 Ring CrankCase
AM LS 518 03 Cover CrankCase
AM LS 518 04 Oil Gauge Plug
AM LS 518 05 O-Ring28x2.4
AM LS 518 06 Screw
AM LS 518 07 Ring 18x2.4
AM LS 518 08 Oil Plug
AM LS 518 09 Bed CrankCase
AM LS 518 10 Plunger Cover
AM LS 518 11 Crank Shaft
AM LS 518 12 Connecting Rod
AM LS 518 13 Plunger Pin
AM LS 518 14 Plunger
AM LS 518 15 Bearing
AM LS 518 16 Oil Seal,Crank Shaft
AM LS 518 17 Cover,Oil Seal
AM LS 518 18 Cover,Shaft
AM LS 518 19 Pully
AM LS 518 20 Oil Seal,Plunger
7
SPARE PARTS OF AM LS 518 POWER SPRAYER
SL.NO. PARTS NAME
AM LS 518 21 O-Ring21x2.5
AM LS 518 22 Grand
AM LS 518 23 O-Ring22x2
AM LS 518 24 Grease Ring
AM LS 518 25 V-Packing
AM LS 518 26 V-Packing Seat
AM LS 518 27 Cylinder
AM LS 518 28 Packing Stable Plate
AM LS 518 29 Grease Cup(seat)
AM LS 518 30 Grease Cup(head)
AM LS 518 31 Valve Assy
AM LS 518 32 Suction Metal
AM LS 518 33 Ball Cock
AM LS 518 34 Discharge Metal
AM LS 518 35 Pressure Gauge
AM LS 518 36 O-Ring21x2.5
AM LS 518 37 Air Chamber
AM LS 518 38 O-Ring17x2
AM LS 518 39 Valve Seat
AM LS 518 40 Body Overflow
8
SPARE PARTS OF AM LS 518 POWER SPRAYER
SL.NO. PARTS NAME
AM LS 518 41 Valve
AM LS 518 42 Valve Bar
AM LS 518 43 Box WaterSeal
AM LS 518 44 Under Metal
AM LS 518 45 Spring
AM LS 518 46 Upper Metal
AM LS 518 47 Spring Box
AM LS 518 48 Pin
AM LS 518 49 Fastener
AM LS 518 50 Lever
AM LS 518 51 Fly Nut
AM LS 518 52 Adjusting Screw
AM LS 518 53 O-Ring13.5x2
AM LS 518 54 Core Coupling
AM LS 518 55 Wing Net
AM LS 518 56 Brass Cup
AM LS 518 57 Overflow Hose
AM LS 518 58 Packing 17x13
AM LS 518 59 Core Coupling
AM LS 518 60 Wing Net
9
SPARE PARTS OF AM LS 518 POWER SPRAYER
SL.NO. PARTS NAME
AM LS 518 61 Brass Cup
AM LS 518 62 Overflow Hose
AM LS 518 63 Core Strainer
AM LS 518 64 Strainer Assy
AM LS 518 65 Valve Seal
AM LS 518 66 Valve Seat
AM LS 518 67 Stopper
AM LS 518 68 Valve Spring
AM LS 518 69 Spring Box
AM LS 518 70 O-Ring18x2.4
AM LS 518 71 Adjusting Belt
AM LS 518 72 Key
AM LS 518 73 Cylinder Assy
AM LS 518 74 Discharge Metal Assy
AM LS 518 75 Overflow Hose Assy
AM LS 518 76 Suction Hose Assy
AM LS 518 77 Spring Box Assy
AM LS 518 78 Body Overflow Assy
AM LS 518 79 Adjusting Assy
10
