Agria 3600 Manual de usuario

Before commissioning the machine, read operating

instructions and observe warnings and safety instructions.

Operating Instructions No.

998 724-B10.10

Engine EH 17

Two-Wheel TractorTwo-Wheel Tractor

Two-Wheel Tractor

36003600

3600

4522

OriginalOriginal

Original

OperatingOperating

Operating

InstructionsInstructions

Instructions

2agria Two-wheel tractor 3600

Symbols, Name Plate

Please complete:

MachineTypeNo.:.........................

Identification No.:

..........................................................

EngineType:.................................

EngineNo.:...................................

Date of Purchase:.......................

For name plate, refer to p3/fig. A/16.

For engine type and number, refer to

pages 54/fig. E/8.

Please state these data when order-

ing spare parts to avoid wrong deliv-

eries.

Only use original agria spare parts!

Specifications, figures and dimen-

sions stated in these instructions are

notbinding.Noclaimscanbederived

from them. We reserve the right for

improvementswithoutchangingthese

instructions.

This delivery comprises:

Operating instructions

Two-wheel tractor

– Basic machine

– Steering handle

Tool kit

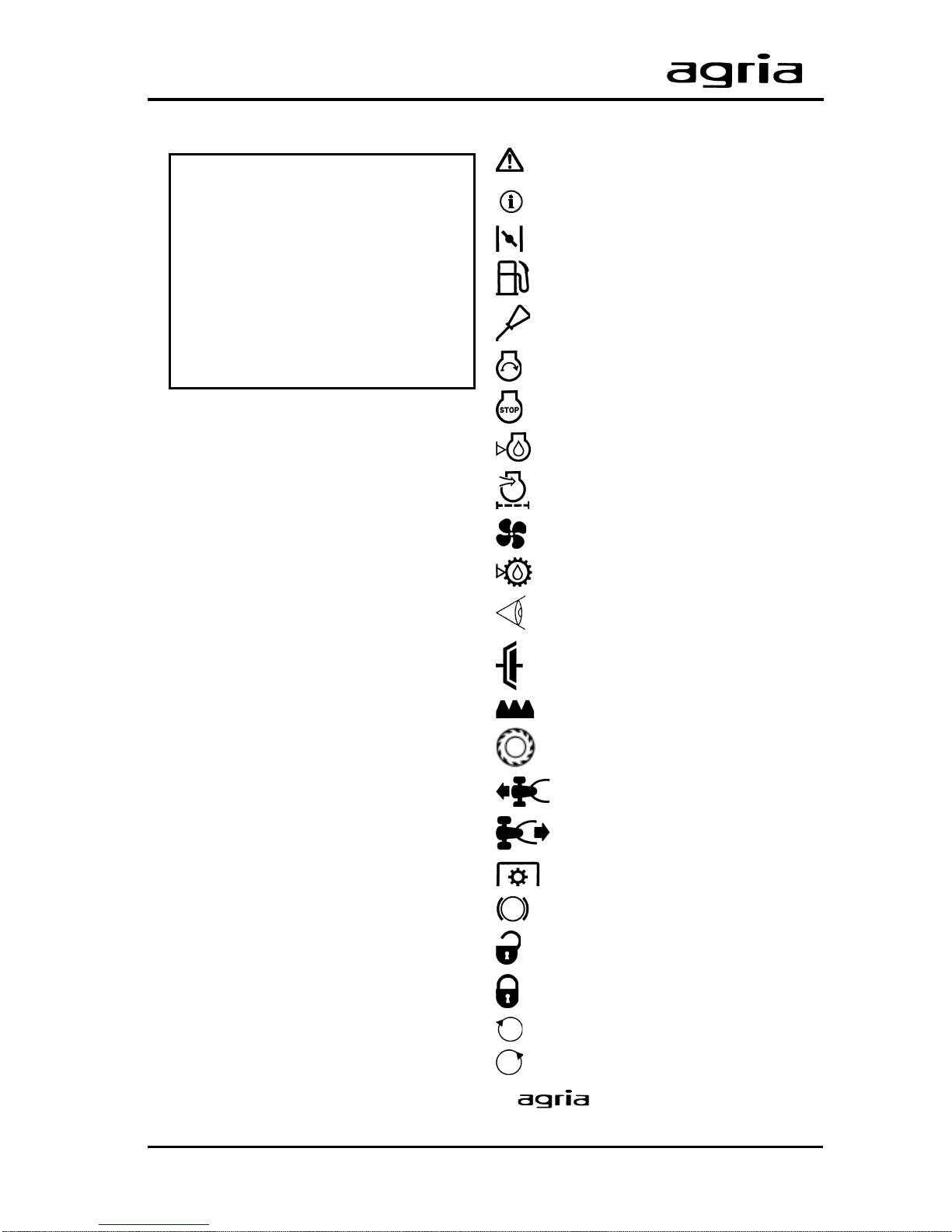

Symbols

Warning – Danger

Important information

Choke

Fuel

Oil

Engine Start

Engine Stop

Engine oil level

Air filter

Air cooling

Transmission oil level

Visual check

Clutch

Mowing drive

Wheel drive

Forward

Reverse

PTO

Brake

Open (unlocked)

Closed (locked)

Clockwise

Anti clockwise

è- Serviceç= contact

Your agria workshop

agria Two-wheel tractor 3600 3

Version 2F2R:

rigid hexagonal wheel

shaft

Version 3F2R,

differential, steering brake

Designation of Parts

4agria Two-wheel tractor 3600

Designation of Parts

Fig. A:

1Fuel tank

2Fuel tank cap

3 Tool kit

4Steering bar

5Handlebar

6Locking lever for steering handle side adjustment and swivel

7Coupler pin

8Hitch

9W-clip

10 Locking lever for coupling attachment

11 Reversing lock bolt (safety bolt)

12 Coupling flange with integrated PTO

13 Weight mounting device and engine guard

14 Engine

15 Transmission oil filling opening and dipstick of basic machine

16 Name plate (Identification No.)

(right, in travel direction)

17 Single-wheel brake drum

18 Wheel flange

19 Transmission oil drain plug

Figure B and C

1Safety lever

2Hand lever for differential lock

3Locking lever for steering handle height adjustment

4Speed control lever

5Hand lever for engine clutch

6 Pawl for engine clutch

7PTO speed shifter = for rear attachment

(gear shifter) = for front attachment

8 Fast speed shifter

9Gear shifter = for rear attachment

(PTO speed shifter) = for front attachment

10 Pawl for single-wheel brake (for driving with mounted trailer)

11 Hand lever for single-wheel brake left = for rear attachment

(Hand lever for single-wheel brake right) = for front attachment

12 Hand lever for single-wheel brake right = for rear attachment

(Hand lever for single-wheel brake left) = for front attachment

13 Locking lever for steering handle side adjustment and swivel

agria Two-wheel tractor 3600 5

Index

Amount of Delivery........................... 2

Designation

of Parts.....................................3, 54

Assembly Instructions ..........6–8

1. Safety Instructions........ 9 - 15

2. Specifications

Dimensions ..................................... 16

Machine .......................................... 17

Vibration Acceleration Value........... 17

Engine............................................. 18

Noise Levels ................................... 18

Operation on Slopes....................... 18

3. Devices and

Operating Elements

Engine............................................. 19

Safety Circuit .................................. 20

Clutch.............................................. 20

Gearbox.......................................... 21

Single-Wheel Brake........................ 22

Differential Gear.............................. 23

PTO................................................. 23

Reversing Lock............................... 23

Steering Handle ........................ 24, 25

Drive-Wheels ............................ 26, 27

Snow Chains................................... 27

Wheel Fastening Screws ................ 27

Front Weights and

Wheel Weights................................ 28

Coupling and

Decoupling Implements .................. 29

4. Commissioning and

Operation

Commissioning the Machine .......... 33

Starting the Engine ......................... 35

Switching off the Engine................. 36

Operations ...................................... 37

Danger Zone................................... 37

Driving with Mounted Trailer ........... 38

5. Maintenance

Engine...................................... 39 - 42

Air Filter .......................................... 40

Spark Plug ...................................... 41

Machine .......................................... 43

Adjustments on Hand Levers ......... 45

General Maintenance ..................... 45

Storage ........................................... 46

Recommendations

Lubricants ....................................... 47

Maintenance and Repair ................ 47

Fuel ................................................. 47

6.Troubleshooting ............48 - 49

Varnishes,Wear Parts.............. 50

Diagram: Electric Circuit......... 51

Lubrication Chart................... 51

Inspection and

Maintenance Chart................... 52

Conformity Declaration ........... 55

Note fold-out pages!

Fig. A; B; C .................................... 3

Fig. D + E ..................................... 54

6agria Two-wheel tractor 3600

Unpackthetwo-wheeltractor,

fit the steering handle into the

steering column:

Screw out set screw and hex-

agonal nut (lock nut) until steer-

ing handle can fit into steering

column.

Fit steering handle into steer-

ingcolumn – lever (A/6) mustlock

into toothed ring of steering han-

dle.

Screw in set screw until you

feel slight resistance – then

loosen set screw a quarter turn

and lock with hexagonal nut.

PlaceBowdencables(hoeing/

tilling attachment) on the left side

(in travel direction) of steering

handle and as depicted on pages

7 and 8.

Steering handle must swivel

easily.

Assembleshifters.Forthispur-

pose, insert shifters for PTO and

gear shifters into joints of shift le-

vers on gearbox and secure with

W-clips .

Assembly Instructions

Set screw and hexagonal nut

Assembly of shifters

Steering

handle

Steering

column

Tighten with

lock nut







1/4







Toothed ring

A/6

agria Two-wheel tractor 3600 7

Assembly Instructions

Version 2F2R: rigid hexagonal wheel shaft

Drive-wheel 4.00-

8 with wheel

flange

Wheel weights

Drive-wheel 4.00-10 with

wheel adapter flange

Set screw and

hexagonal nut

ArrangementofBowdencables

Mounting drive-wheels:

–4.00-8: Mount drive-wheels onto wheel

flangesusingwheelscrewsandwashers.Slide

wheels onto hexagonal wheel shaft in such a

way that the arrow tread profile points in travel

direction.Insert linch pin in holes of wheel hub

and shaft. Then turn spring band around the

axle.

–4.00-10: Screw wheel adapter flanges onto

drive-wheels.Mount drive-wheels onto wheel

flangesusing wheel screwsandwashers.Slide

wheels onto hexagonal wheel shaft in such a

way that the arrow tread profile points in travel

direction.Insert linch pin in holes of wheel hub

and shaft. Then turn spring band around the

axle.

Steering handle

Linch pin

8agria Two-wheel tractor 3600

Assembly Instructions

Version 3F2R,

differential, steering brake

Set screw and

hexagonal nut

Mounting drive-wheels:

–4.00-8: Mount drive-wheels on wheel flanges us-

ing wheel screws and washers.Mount in such a way

that the arrow tread profile points in travel direction.

Drive-wheel 4.00-8

Wheel weights

–4.00-10: Screwwheeladapterflanges ontodrive-wheels.Thenmountdrive-

wheels onto wheel flanges using wheel screws and washers in such a way

that the arrow tread profile points in travel direction.

Assembly of fast speed shifter:

Push shifter upwards through shifter guide ring (I), screw on ball handle (II),

stick shifter onto gearbox shift lever (III) and secure with spring band (IV).

Steering handle

Drive-wheels 4.00-10 with

wheel adapter flange Arrangement of

Bowden cables

III III IV

agria Two-wheel tractor 3600 9

Before starting the engine, read the op-

erating instructions and note:

Warning

This symbol marks all paragraphs in

theseoperatinginstructions whichaffect

your safety.Pass all safety instructions

to other users and operators.

Due Use

Thetwo-wheeltractoris a hand-control-

ledautomaticsingle-axlemachinewhich

can power and/or pull various imple-

ments approved by the manufacturer.

Areasof applicationareforsuchas turn-

ing over the ground, mowing grass and

meadowland, snow clearance and

sweeping (due use).

Any other type of operation is consid-

ered undue.The manufacturer is not li-

able for any damages resulting from

undue use, for which the risk lies with

the user alone.

Whenthesingle-axletractor/theall-pur-

pose machine is used on public roads,

the local national road traffic rules must

be observed, e.g. reflectors, lights.

The single-axle tractor/The all-purpose

machine is not intended for use with a

trailer on public roads or as as a tractor

unit without implements.

Due use includes compliance with

manufacturer’s instructions on opera-

tion, maintenance and repair.

Any unauthorized changes to the two-

wheeltractor render manufacturerliabil-

ity null and void.

1. Safety Instructions

General Instructions on

Safety and Accident

Prevention

Basic Rule:

The standard accident prevention regu-

lations must be adhered to, as well as

all other generally accepted rules gov-

erning operational safety, occupational

health and road traffic regulations.

For drives on public roads, the current

traffic code applies.

Accordingly, check the two-wheel trac-

tor for road and operational safety each

time you take up operation.

Onlypersonsfamiliarwiththetractorand

instructed on the hazards of operation

are allowed to use, maintain and repair

the tractor.

Teenagers of 16 years or younger may

not operate the two-wheel tractor!

Only work in good light and visibility.

Operator’s clothes should fit tight.Avoid

wearing loose fitting clothes.Wear solid

shoes.

Note the warning and instruction signs

on the tractor for safe operation. Com-

pliance is for your own safety.

When transporting the tractor on vehi-

cles or trailers outside the area to be

cultivated, ensure that the engine is

turned off.

Careful with rotating tools – keep at a

safe distance!

10 agria Two-wheel tractor 3600

Beware of coasting tools.Before you

start anymaintenance orrepair onthem,

waituntiltoolshavecome to a complete

stop.

Foreignpoweredpartsshear andcrush!

Riding on the attachment during opera-

tion is not permitted.

Implements and their weight affect the

driving, steering, braking, and tip-over

characteristics of the tractor.Therefore,

ensure steering and braking functions

are sufficient.Match operating speed to

conditions.

Donotchangesettingsofgovernor.High

engine speed increases risk of acci-

dents.

Working Area and

Dangerous Area

The user is liable to third parties work-

ing within the tractor’s working range.

Staying in hazardous area is not per-

mitted.

Check the immediate surroundings of

the tractor before you start it.Watch out

for children and animals.

Before you start work, clear the area

from any foreign object. During opera-

tion,always watchout for further objects

and remove them in time.

Foroperationin enclosed areas,ensure

that a safety distance is kept to enclo-

sures to prevent damage to tools.

Operation and

Safety Devices

Before you start the engine

Become familiar with the devices and

operating elements and their functions.

Above all, learn how to turn the engine

off quickly and safely in an emergency.

Ensure that all protective devices are

mounted and positioned to provide pro-

tection.

Withno implement mounted, makesure

PTO-shaft is covered with the protec-

tive cap.

Starting the engine

Donot startenginein closed rooms.The

carbon monoxide contained in the ex-

haust fume is extremely toxic when in-

haled.

Before you start the engine set all oper-

ating elements to neutral or idling posi-

tion.

For starting the engine, do not step in

front of the two-wheel tractor and the

implement.

Do not use assist-starting liquids when

using electrical assist-starting devices

(jumper cable). Danger of explosion.

Operation

Neverleave theoperator’spositionatthe

steering handle while tractor is at work.

Never adjust the operating handles dur-

ing work – danger!

1. Safety Instructions

Otros manuales para 3600

Tabla de contenidos

Otros manuales de Cortacésped de Agria

Agria

Agria 5556 111 Manual de usuario

Agria

Agria 9200 371 Manual de usuario

Agria

Agria 5400 KL Manual de usuario

Agria

Agria 5000 Manual de usuario

Agria

Agria 3600 Manual de usuario

Agria

Agria 9500 Basic Manual de usuario

Agria

Agria 3400 Manual de usuario

Agria

Agria 4500 HYDRO Manual de usuario

Agria

Agria 5400 KL Manual de usuario

Agria

Agria 5300 Manual de usuario

Agria

Agria 8000 Guía rápida

Agria

Agria 5300 Manual de usuario

Agria

Agria 2200 HYDRO Manual de uso y cuidado

Agria

Agria 8200-V4 Manual de usuario

Agria

Agria taifun Manual de usuario

Agria

Agria 2500 Hydro Manual de usuario

Agria

Agria 3600 BM Unihamster compact Manual de usuario

Agria

Agria 5100 Rabbit Manual de usuario

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

Craftsman

Craftsman 917.378461 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Husqvarna

Husqvarna Poulan Pro PP185A42 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario
