AGFEO DECT-S0-Base plus Manual de usuario

Bedienung

DECT-S0-Base plus

Installation Manual

AGFEO DECT

AboutthisManual

The content of this manual is valid for the product shipped with default settings. Should new

software, made available from the manufacturer, being loaded then some parts of this manual

may no longer be appropriate.

UserInstructions

The AGFEO DECT-S0-Base plus is for use with the following AGFEO Telephone Systems from

Firmware 6.0:

AS 1x, AS 2x : One DECT-S0-Base can be connected to the system.

AS 3x, AS 35, AS 35 All-In-One : Two DECT-S0-Bases can be connected to the system.

AS 40P, AS 4000, AS 100 IT : Two DECT-S0-Bases can be connected to the system.

AS 43, AS 45, AS 200 IT : Two DECT-S0-Bases can be connected to the system.

DECT-S0-Base plus

TableofContents:

About this Manual ...................................................................................................................... 2

User Instructions ....................................................................................................................... 2

Table of Contents:....................................................................................................................... 3

The AGFEO DECT-S0-Base plus ................................................................................................. 3

Box Content: .............................................................................................................................. 4

230 V Mains Supply ..................................................................................................................... 4

Wall Mounting ............................................................................................................................ 4

DECT-S0-Base plus Connections............................................................................................... 5

LED’s of the DECT-S0-Base plus .............................................................................................. 5

Connecting the DECT-S0-Base plus to the Telephone System ................................................... 6

Commissioning .......................................................................................................................... 6

Delete Registration of DECT-S0-Base plus from Telephone System .......................................... 8

Deregister Handsets from the DECT-S0-Base plus .................................................................10

Firmware Update of the DECT-S0-Base plus ............................................................................10

Conformity Declaration .............................................................................................................11

TheAGFEODECT-S0-Baseplus

AGFEO’s DECT-S0-Base Stations are external DECT Transceivers. Up to two units can be

connected to the system from firmware 6.0 via a standard ISDN connection cable. (see also

user instructions)

Please note in order to obtain maximum performance from the DECT-S0-Base plus you

must ensure that no other ISDN device is connected to the same S0-Bus. Otherwise

handset availability and outgoing calls may be impaired.

Up to eight AGFEO DECT System Phones or other GAP compliant DECT Handsets may be

connected to the DECT-S0-Base plus. However, only four of these can be used at the same

time. The bases can be installed of up to 150 metres away from the telephone system. In

case of a point to point connection the base may be of up to 800 metres away from the

telephonesystem.

DECT-S0-Base plus

BoxContent:

This box should contain the following items:

1 DECT-S0-Baseplus

1 Fixing Material (2 Wall Plugs S6, 2 Wood Screws(Philips Screw 4x40))

1 1,5 m ISDN-Connection Cable (IAE-IAE)

1 Instruction Pack

1 Plug In Power Supply (Order No: 1541265)

1 CD containing software pack TK-Suite

User instruction in PDF-Format can be found at our Homepage www.agfeo.com

Please install the DECT-S0-Base plus in a dry room free of any explosive materials. Do not

install the unit near air conditioners, radiators, apparatus with high interference, in direct

sunlight, high dusty environments or where the unit could be subjected to water or chemical

spills.

Ambient Temperature: +10°C to +40°C

Humidity: max. 70 % (none condensing)

Please pay attention that the DECT-S0-Basis plus is not directly fitted to any metal object.

Also, the distance of water pipes and mains cable should be at least 20 cm. ( 8 inches)

230 V Mains Supply

Please use the plug-in power supply (Order No. 1541265) for installation with long cable runs

or high cable resistance.

Location

WallMounting

- Mark two horizontal drill holes with a distance of 130 mm.(5.2 inches)

- Before drilling make sure that the wall have no hidden pipes such as gas, water or any

mains cables.

- Drill two holes.

- Insert the wall plugs so that they will be flush to the wall.

- Fit the screws so that the distance between wall and screw head is approx. 4 mm.

- Hang the DECT-S0-Base onto the screws, then pull the unit downwards as far as it will go.

DECT-S0-Base plus

DECT-S0-Baseplus

Connections

LED’s of the DECT-S0-Base plus

The AGFEO DECT-S0-Base plus has 5 LED’s which will give information of the operational

status.

Other Information:

LED 1 LED 2 LED 3 LED 4 LED 5

Power

Supply S0-1 S0-2

LED 1:

LED 2:

LED 3:

LED 4:

LED 5:

on:

flashing slow:

flashing fast:

constantly lit:

on:

First B channel of the first S0 is busy.

Second B channel of the first S0 is busy.

Base unit is in registration mode.

Base unit is not operational.

Base unit is operational.

Second B channel of the second S0 is busy.

First B channel of the second S0 is busy.

DECT-S0-Base plus is being updated.

The telephone system denied registration of the DECT-S0-Base

plus.

The registration of the second S0 was denied by the telephone

system.

Running lights of all LED’s:

All LED’s are flashing:

LED 4 and 5 are flashing:

DECT-S0-Base plus

Using the enclosed S0-cable connect the DECT-S0-Base plus to an internal S0-Bus of the

telephone system. The first S0 of the DECT-S0-Base plus must always be connected to the

system, the second S0 is optional. Should the cable length exceed 150 metres, then the

enclosed power supply unit must be connected.

Please note in order to obtain maximum performance from the DECT-S0-Base plus you

must ensure that no other ISDN device is connected to the same S0-Bus. Otherwise

handset availability and outgoing calls may be impaired.

The telephone system will recognise a DECT-S0-Base plus automatically as soon as it is

connected to the system. Should a DECT-S0-Base plus had been previously connected to the

S0 Bus then this will be overwritten. The telephone numbers and names will not be deleted.

However, handset will have to be reregistered.

The telephone system will recognise the same DECT-S0-Base plus if this is connected to

another S0-Bus of the system and will reregister the previous settings automatically.

ConnectingtheDECT-S0-Baseplusto

theTelephoneSystem

After the connection of the DECT-S0-Base plus read the system programming record using

TK-Suite.

In „PBX/Hardware Configuration“ the item „DECT S0 Base Connected“ should now be seen

asticked.

In addition the DECT-S0-Base plus can be seen as activated in the section „PBX“ and

„DECT-S0-Base“. In here you may also enter a name for the DECT Base, view the allocated

RFPI number and to which S0-Bus the DECT-S0-Base plus has been connected.

Commissioning

1) The RFPI (Radio Fixed Part Identity) is a worldwide used standard and a uniqe recognisable

number which identifies the DECT-S0-Base plus. This number can also be found on the label of the

DECT-S0-Base plus.

DECT-S0-Base plus

Commissioning

Extension numbers, either for handsets which are already registered or will be registered to

the base can be allocated in the section: „Extensions / Devices: DECT“. The entry in the

column „Phone Type“ will be allocated automatically by the telephone system. (ie AGFEO

DECT 30 or DECT GAP Phone).

DECT-S0-Base plus

Delete Registration of DECT-S0-Base

plusfromTelephoneSystem

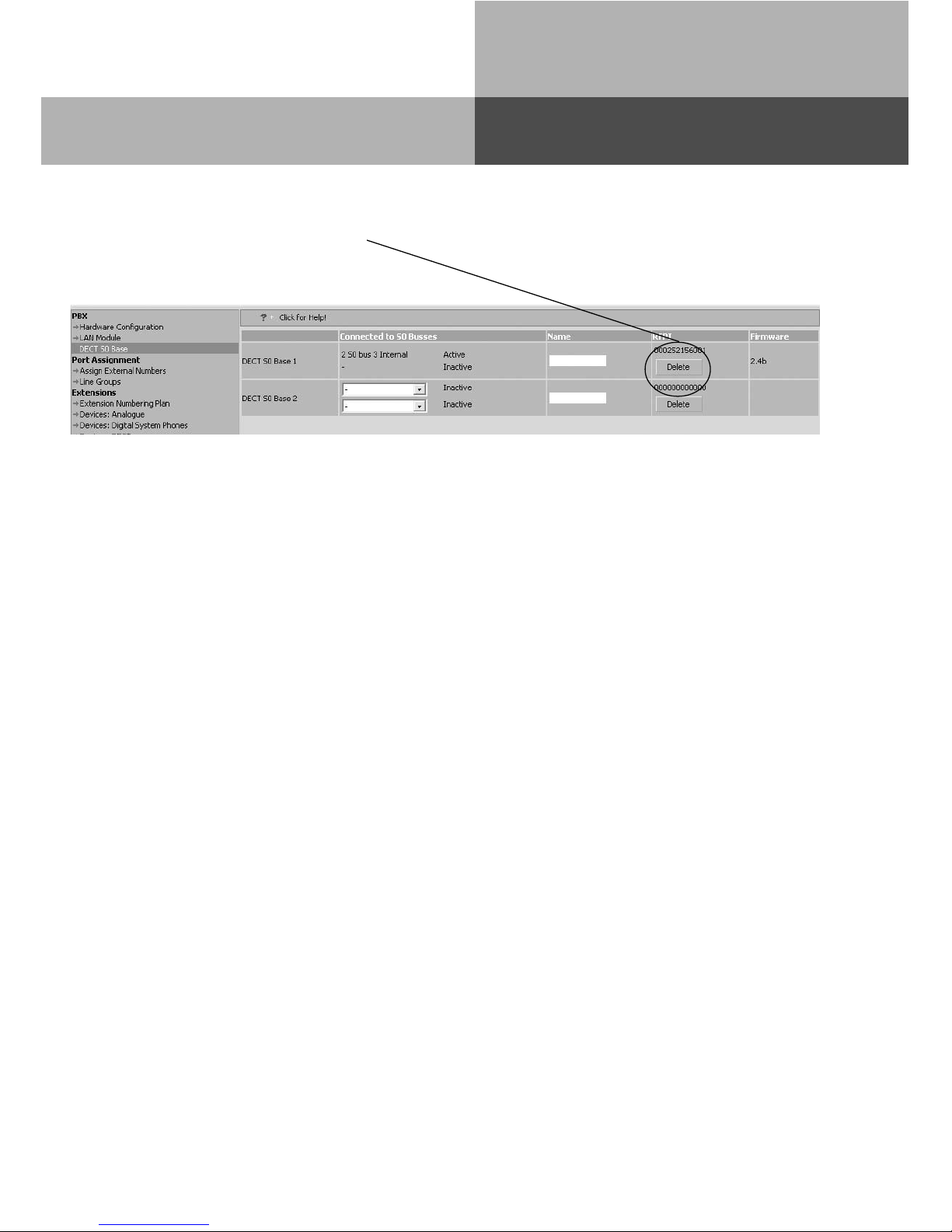

To delete a DECT-S0-Base plus from the telephone system go to the section „PBX / DECT S0

Base“and click the „Delete“ button. All associated entries such as extension number(s) and

name of base will also be deleted.

If the existing DECT-S0-Base is not deleted but only disconnected from the telephone

system and a different DECT-S0-Base will be connected in its place, then all settings such

as extension name and numbers will be transfered to the new DECT-S0-Base. However, all

handsets would have to be reregistered to the base.

DECT-S0-Base plus

Base plus

Your DECT Telephone may be registered to a pre-programmed location in the DECT-S0-Base

plus. It would make sense to assign names to the 8 locations within the DECT-S0-Base plus

via TK-Suite as this will ensure that this location will be definitely allocated to the registering

handset. The handset will then automatically receive the preprogrammed extension number

and name.

!9#

712

Initiate programming mode.

If more than one DECT Base is operated

on your telephone system then select the

base to which the handset should be

registered.

Confirm selection by pressing „enter“ or

„OK“.

Select the location within the DECT Base

to which you want to register your phone.

Confirm selection by pressing „enter“ or

„OK“.

The DECT base unit will now be switched

to registration mode. Continue with the

registration as it is described in the

manual of the telephone handset. Should a

PIN be requested then enter the

programming PIN of the telephone

system. (In default 2580)

!9#

712

$AQ9L712JHJHInitiate programming mode.

If more than one DECT Base is operated

on your telephone system then select the

base to which the handset should be

registered.

Confirm selection by pressing „enter“ or

„OK“.

The DECT base unit will now be switched

to registration mode. Continue with the

registration as it is described in the

manual of the telephone handset. Should

a PIN be requested then enter the

programming PIN of the telephone

system. (In default 2580)

!9#

711

!9#

711

$AQ9L711JH9

ST 25 DECT 30ST 30 / ST 40

DECT-S0-Base plus

Initiate programming mode.

Use „next“ or the arrow button to select

the phone which is going to be

deregistered.

Confirm selection by pressing „enter“ or

„OK“.

The handset is now being deregistered.

!9#

713

!9#

713

$AQ9L713JHNew firmware may be loaded into the DECT-S0-

Base plus as and when this becomes available.

The download will be requested from the

telephone number as entered in TK-Suite under

„Special Functions / Maintenance / Number of

UpdateServer“.

This function can be initiated from your System

Phone:

Initiate programming mode.

If more than one DECT Base is operated

on your telephone system then select the

base which should receive the firmware

update.

Confirm selection by pressing „enter“ or

„OK“.

The update server is being called and the

update will now be carried out. The

display of the system phone will show the

updateprogress.

!9#

732

!9#

732

$AQ9L732JHST 25 DECT 30ST 30 / ST 40

FirmwareUpdate ofthe

DECT-S0-Baseplus

ST 25 DECT 30ST 30 / ST 40

Deregister Handsets from the DECT-

S0-Base plus
