AG Neovo SX-Series Manual de usuario

Table of Contents

Precautions ................................................................................................... 2

Warning on installation ......................................................................... 2

Warning on power connection.............................................................. 2

Warning on tilt ...................................................................................... 3

Warning on Maintenance ..................................................................... 3

Warning on transportation....................................................................3

Getting Started .............................................................................................. 4

Package Contents................................................................................4

Identify the Parts and Controls............................................................. 5

How to Use the On-Screen Display Menu ........................................... 7

Setup .................................................................................................... 8

Software Configuration......................................................................... 9

Customizing Your Monitor........................................................................... 10

Adjusting Your LCD Panel.................................................................. 10

Selecting OSD Features .................................................................... 10

OSD Menus........................................................................................ 11

Warning Messages and Troubleshooting ................................................... 17

Warning Messages............................................................................. 17

Troubleshooting.................................................................................. 18

Technical Specifications .............................................................................. 19

Specifications ..................................................................................... 19

Regulation................................................................................................... 21

FCC compliance................................................................................. 21

WEEE................................................................................................. 22

Hg....................................................................................................... 22

Precautions

Warning on installation

 Do not cover or block the ventilation holes in the case.

 Do not install the monitor near heat sources such as radiators or air ducts, or in a place

subject to direct sunlight, excessive dust, mechanical vibration or shock.

 Optional Video adaptor installation

 Turn off the power switch and unplug the monitor before installation to avoid electric

shock or damage.

 Install the optional video adaptor on a stable surface. The monitor may cause injury

or damage if it falls or is dropped.

 Please use BNC output cable --- RG-59/U 75Ωcoaxial cable (just like the BNC input

cable provided in the accessory box).

Warning on power connection

 Use an appropriate power cord for your local power supply.

 The outlet should be installed near the monitor and be easily accessible.

 Do not allow anything to rest on the power cord.

 Disconnect the power plug from the power outlet under following conditions:

 If you will not use it for an indefinite period time.

 When the power cord or plug is damaged of frayed.

 If the product has been dropped or the cabinet has been damaged.

 If the product exhibits a distinct change in performance, indicate a need for service.

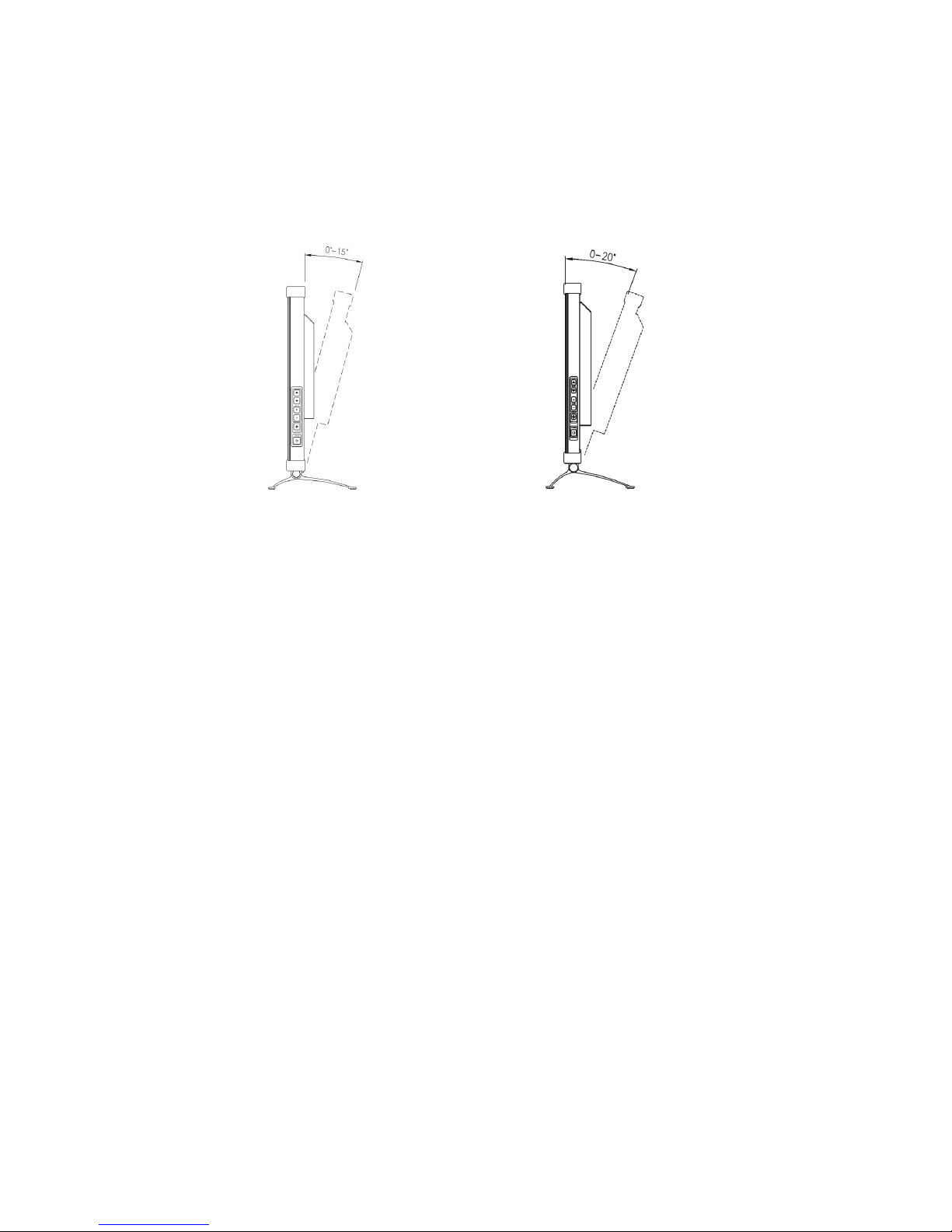

Warning on tilt

 Use the monitor’s tilt capability to adjust its vertical orientation to an appropriate

position. Grasp the top corners of the monitor with both hands and tilt to the desired

angle.

SX-19 / SX-17 SX-15

Warning on Maintenance

 Clean the cabinet, glass, and controls with a soft cloth lightly moistened with a mild

detergent solution. Do not use any type of abrasive pad, scouring powder or solvent,

such as alcohol or benzene.

 Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as

a pen or screwdriver. This type of contact may result in a scratched glass.

 Do not insert sharp objects or spill liquid into the monitor through ventilation holes. They

may cause accident fire, electric shock or failure.

 Do not attempt to service this product yourself, as opening or removing covers may

expose you to dangerous voltage potentials or other risks.

Warning on transportation

 When you transport this monitor for repair or shipment, use the original carton and

packing materials.

Getting Started

Package Contents

Before using this monitor, check the following items are included in your carton box:

 Monitor (*1)

 Power adapter (*1)

 Power cord (*1)

 D-sub 15-pin signal cable (*1)

 Digital DVI signal cable (*1)

 BNC cable (*1,)

 CD-ROM (containing Windows information file and user’s manual)

 Quick Guide

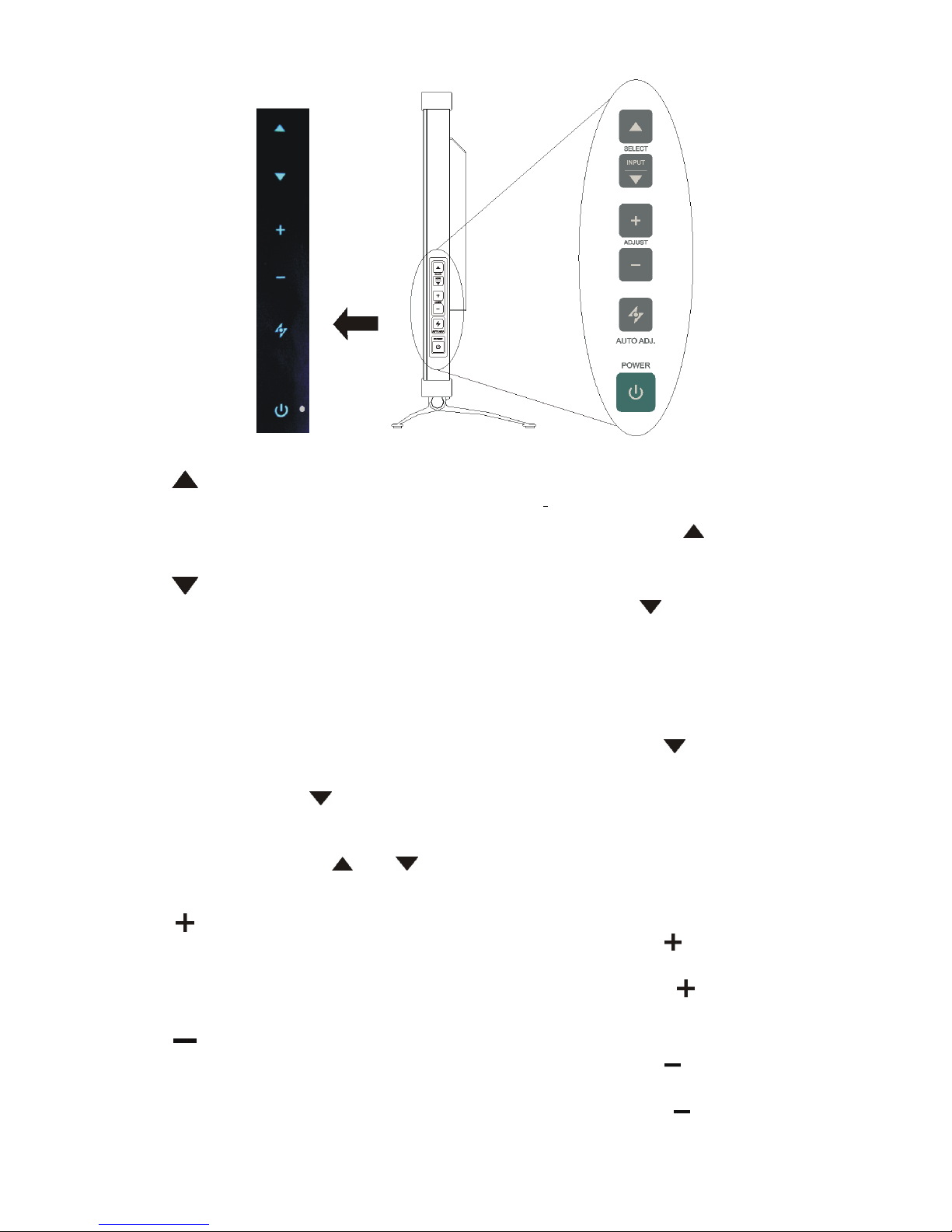

Identify the Parts and Controls

 DC +12V Power inlet

Provides +12V DC power to the monitor.

 Digital

DVI-D connector for digital signal input

 Video-In / Video-Out

BNC connector for Video signal.

 VGA-Input

D-sub 15-pin connector for VGA signal.

Up Button

1. Activates the On-Screen Display menu.

2. While the On-Screen Display menu appears, press to move the

selected item clockwise or onward

INPUT / Down Button

1. While the On-Screen Display menu appears, press to move the

selected item counterclockwise or backward

2. Use as the Input Select Hot Key* when the On-Screen Display menu is

inactivated

INPUT Input Select Hot Key*

1. When the On-Screen Display menu is inactivated, use as the Input

Select Hot Key

Press to choose the desired input signal: D-Sub, DVI and CVBS. The

option will toggle on the top right hand corner of the display

2. Pressing and buttons at the same time for 5 seconds can switch

between auto and manual input select

Increase Button

1. When the On-Screen Display menu is activated, press to confirm / enter

the selected item

2. When the On-Screen Display menu is activated, press to increase the

adjustable value of the selected item

Decrease Button

1. When the On-Screen Display menu is activated, press to confirm / enter

the selected item

2. When the On-Screen Display menu is activated, press to decrease the

adjustable value of the selected item

Auto Button

1. Optimal Settings (available only when D-Sub input is connected):

Press button to adjust the picture position and performance

automatically when D-Sub input is connected. You are recommended to

press the button the first time you use the monitor or every time you change

the resolution and/or refresh rate of the input signal.

2. When the On-Screen Display menu is activated, press button to exit the

menu at any time

Anti-Burn-in™

3. Image Sticking Prevention On / Off:

Press button for 5 seconds to turn on or off “Image Sticking

Prevention” function to prevent the panel from burn-in problem, which

reducing the panel's life.

Power Switch

Turns the monitor on or off.

LED Indicator

Indicates the monitor’s operational mode; green for regular mode

How to Use the On-Screen Display Menu

Step 1. Call Out the On-Screen Display Menu

Press to activate On-Screen Display menu

Step 2. Adjust the Settings

Press to move the selected item clockwise or onward

Press to move the selected item counterclockwise or backward

Press , to confirm / enter the selected items

Press to increase the adjustable value of the selected item

Press to decrease the adjustable value of the selected item

Step 3. Exit the On-Screen Display Menu

Press to exit the On-Screen Display menu at any time

Setup

Please follow the following instructions to setup monitor.

Step 1: Remove all packing materials and wrapping from the monitor and then tear down

the plastic dust cover from the screen surface.

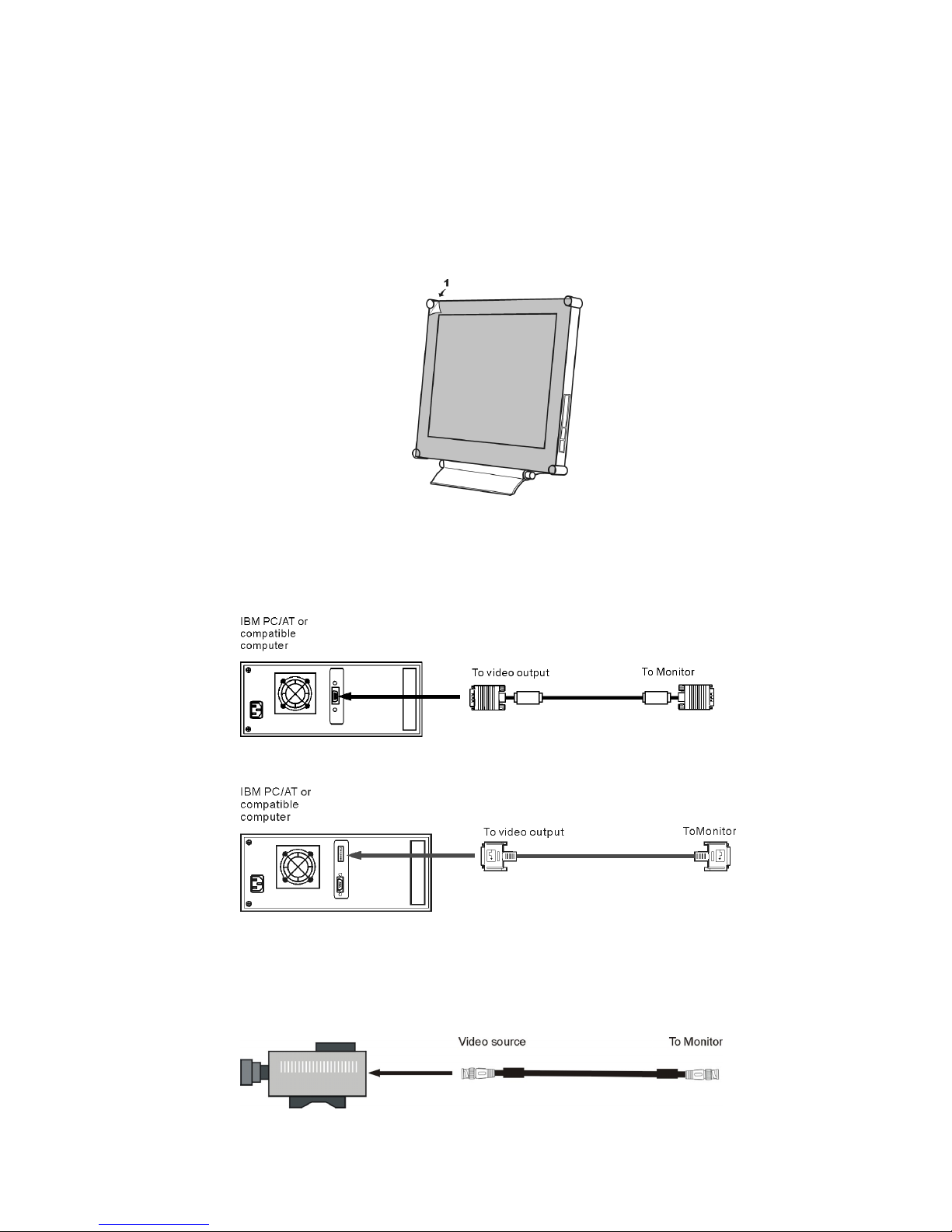

Step 2: With the computer or video equipment turned off, connect the enclosed VGA

signal cable.

 Connecting to an IBM or IBM compatible computer

 Connecting to a video equipment with digital source

 Connecting to a video source with the BNC cable

With the video source being switched off, connect the BNC cable to the “Input” port at

rear of the monitor and video source.

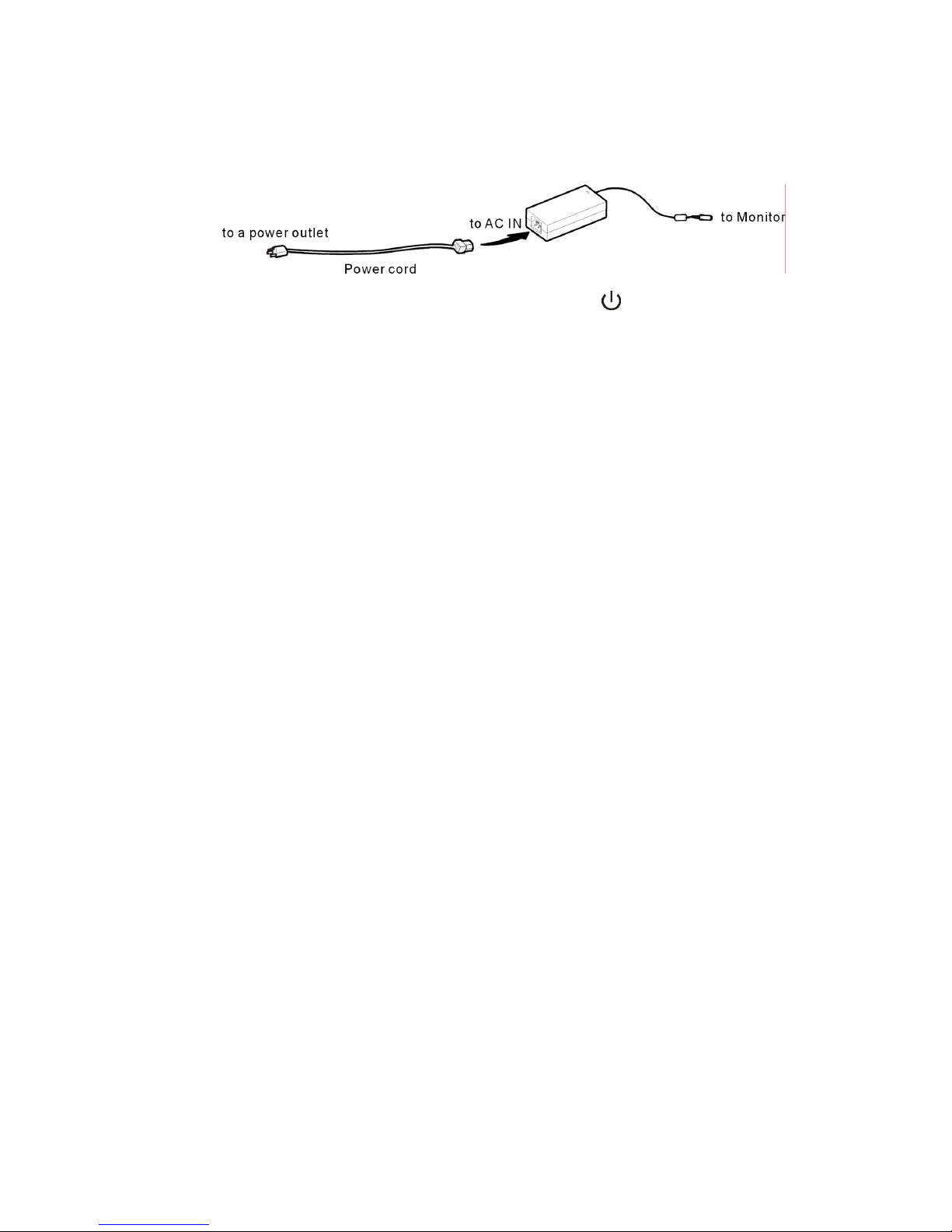

Step 3: With the monitor turned off, connect the monitor end power plug of adaptor to the

power jack of the monitor. Then connect the power cord to the adapter and the

power plug to the power source.

Step 4: Turn on your computer or video equipment. Press power switch to turn on

monitor.

Step 5: For best performance.(If the monitor is connected to a video equipment such as

DVD or VCR player, please skip this step.)

For SX-17 / SX-19 LCD monitor, it will have the best performance at resolution

1280 x 1024. Ensure that your computer display is set at 1280 x 1024 pixels and

60Hz. Press the AUTO button. The monitor will optimize the display

automatically.

For SX-15 LCD monitor, it will have the best performance at resolution 1024 x

768. Ensure that your computer display is set at 1024 x 768 pixels and 60Hz.

Press the AUTO button. The monitor will optimizes the display automatically

Software Configuration

Installing the Microsoft Windows data file

You can find the Microsoft Windows data file (also called the driver program) on the included

AG Neovo CD. To ensure smooth operation after initial installation, you can refer to the

installation guide, which can also be found on the CD.
