AEMC instruments AmpFlex 193-24-BK Manual de usuario
CURRENT PROBES & SENSORS
(For Power Quality Meters & Power Energy Loggers)
193-24-BK
193-36-BK
196A-24-BK
MA193-10-BK
MA193-14-BK
MA194-24-BK
MN93-BK
MN193-BK
MR193-BK
SL261
SR193-BK
User Manual
ENGLISH
WITH AEMC
®
INSTRUMENTS
2Current Probes & Sensors for Power Quality Meters and Power Energy Loggers
Copyright©Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments. All rights reserved.
No part of this documentation may be reproduced in any form or by any means (including electronic
storage and retrieval or translation into any other language) without prior agreement and written consent
from Chauvin Arnoux®, Inc., as governed by United States and International copyright laws.
Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments
15 Faraday Drive • Dover, NH 03820 USA
Tel: (800) 945-2362 or (603) 749-6434 • Fax: (603) 742-2346
This documentation is provided “as is,” without warranty of any kind, express, implied, or otherwise.
Chauvin Arnoux®, Inc. has made every reasonable eort to ensure that this documentation is accurate;
but does not warrant the accuracy or completeness of the text, graphics, or other information contained
in this documentation. Chauvin Arnoux®, Inc. shall not be liable for any damages, special, indirect,
incidental, or inconsequential; including (but not limited to) physical, emotional or monetary damages
due to lost revenues or lost prots that may result from the use of this documentation, whether or not the
user of the documentation has been advised of the possibility of such damages.
Current Probes & Sensors for Power Quality Meters and Power Energy Loggers
3
Thank you for purchasing an AEMC®Instruments current probe.
For the best results from your instrument and for your safety, you must read the
enclosed operating instructions carefully and comply with the precautions for use.
Only qualied and trained operators should use this product.
Symbols
CAUTION - Risk of Danger! Indicates a WARNING. Whenever this symbol
is present, the operator must refer to the user manual before operation
Indicates a risk of electric shock. The voltage at the parts marked with this
symbol may be dangerous
Application or withdrawal authorized on conductors carrying dangerous volt-
ages. Type A current sensor as per IEC 61010-2-032
Refers to a type B current sensor. Application or withdrawal not authorized
on conductors carrying dangerous voltages. Type B current sensor as per
IEC 61010-2-032
Signies that the instrument is protected by double or reinforced insulation
Battery
Indicates important information to acknowledge.
This product complies with the Low Voltage & Electromagnetic Compatibility
European directives (73/23/CEE & 89/336/CEE).
In the European Union, this product is subject to a separate collection
system for recycling electrical and electronic components in accordance
with directive WEEE 2002/96/EC.
Denition of Measurement Categories (CAT)
CAT IV corresponds to measurements performed at the primary electrical supply
(< 1000 V).
Example: primary overcurrent protection devices, ripple control units, and
meters.
CAT III corresponds to measurements performed in the building installation at the
distribution level.
Example: hardwired equipment in xed installation and circuit breakers.
CAT II corresponds to measurements performed on circuits directly connected to
the electrical distribution system.
Example: measurements on household appliances and portable tools.
4Current Probes & Sensors for Power Quality Meters and Power Energy Loggers
PRECAUTIONS BEFORE USE
The protection assured by the current probe can be compromised if it is used in a
way that is not recommended by the manufacturer.
■Comply with the rated maximum voltage and current, and the measurement
category. Do not use the current probe on networks where the voltage or
category exceeds those specied.
■Comply with the conditions of use (e.g. temperature, humidity, altitude, degree
of pollution, location).
■Do not use the current probe if its housing is open, deteriorated, or incorrectly
reassembled. Before each use, check the integrity of the insulation of the unit,
jaws, clamps, housing, and leads.
■Do not subject the current probe to water or other liquids.
■Keep the jaw contacts of the clamp absolutely clean.
■Use suitable personal protective equipment when hazardous voltages may be
accessible in the installation where the measurement is made.
■Any repairs must be carried out by accredited skilled personnel.
Current Probes & Sensors for Power Quality Meters and Power Energy Loggers
5
Table of Contents
1. INTRODUCTION.................................................................................4
1.1 Receiving Your Shipment......................................................................4
1.2 Ordering Information.............................................................................4
2. PRODUCT FEATURES.......................................................................5
2.1 Control Features...................................................................................5
2.1.1 MiniFlex®Model MA193-BK .....................................................6
2.1.2 MiniFlex®Model MA194-BK .....................................................7
2.1.3 AC/DC Current Probe Model J93-BK .......................................8
2.1.4 AC Current Probe Models MN93-BK & MN193-BK..................9
2.1.5 AC Current Probe Model MR193-BK......................................10
2.1.6 AC Current Probe Model SL261.............................................11
2.1.7 AC Current Probe Model SR193-BK ......................................12
3. OPERATION .....................................................................................13
4. SPECIFICATIONS.............................................................................15
4.1 Electrical .............................................................................................15
4.2 Environmental.....................................................................................16
4.3 Mechanical..........................................................................................16
4.4 Safety..................................................................................................17
4.5 Conformity To International Standards ...............................................17
4.6 Electromagnetic Compatibility ............................................................17
5. MAINTENANCE................................................................................18
5.1 Cleaning..............................................................................................18
5.2 Battery Replacement ..........................................................................18
5.2.1 Model MR193-BK ..................................................................18
5.2.2 Model SL261 ..........................................................................18
5.2.3 Model J93-BK.........................................................................19
5.3 Repair and Calibration........................................................................19
5.4 Technical Assistance...........................................................................20
5.5 Limited Warranty.................................................................................20
5.5.1 Warranty Repairs....................................................................20
6Current Probes & Sensors for Power Quality Meters and Power Energy Loggers
1. INTRODUCTION
1.1 Receiving Your Shipment
Upon receiving your shipment, make sure that the contents are consistent with the
packing list. Notify your distributor of any missing items. If the equipment appears
to be damaged, le a claim immediately with the carrier and notify your distributor
at once, giving a detailed description of any damage. Save the damaged packing
container to substantiate your claim.
1.2 Ordering Information
NOTE: The current probes in this manual are compatible only with
AEMC®Instruments Power Analyzers (see § 4 for meter compatibility).
AmpFlex®Sensor 24" Model 193-24-BK ..........................................Cat. #2140.34
AmpFlex®Sensor 36" Model 193-36-BK ..........................................Cat. #2140.35
AmpFlex®Sensor 24” Model 196A-24-BK........................................Cat. #2140.75
MiniFlex®Sensor 10" Model MA193-10-BK......................................Cat. #2140.48
MiniFlex®Sensor 14" Model MA193-14-BK......................................Cat. #2140.50
MiniFlex®Sensor 24” Model MA194-24-BK......................................Cat. #2140.80
AC/DC Current Probe Model J93-BK ....................... Discontinued October 2021
AC Current Probe Model MN93-BK..................................................Cat. #2140.32
AC Current Probe Model MN193-BK................................................Cat. #2140.36
AC Current Probe Model MR193-BK................................................Cat. #2140.28
AC Current Probe Model SR193-BK ................................................Cat. #2140.33
AC/DC Current Probe Model SL261* ...............................................Cat. #1201.51
* Adapter for SL261 - BNC Adapter ............................................ Cat. #2140.40
Current Probes & Sensors for Power Quality Meters and Power Energy Loggers
7
2. PRODUCT FEATURES
2.1 Control Features

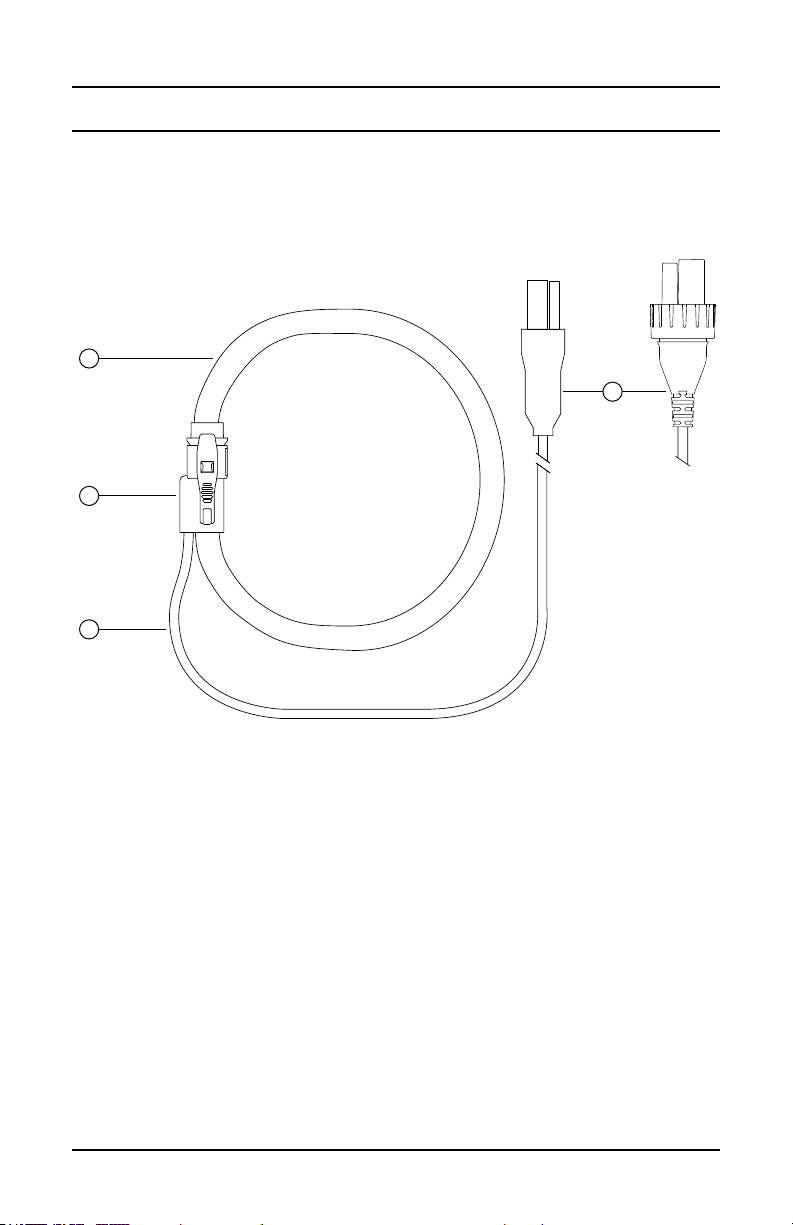

AmpFlex®Models 193-24-BK, 193-36-BK & 196A-24-BK
2
3
4
1
1. Flexible sensor
2. Sensor opening connector
3. Shielded lead
4. Custom 4-pin input connector (available standard or IP 67 compliant,
depending on instrument)
8Current Probes & Sensors for Power Quality Meters and Power Energy Loggers
2.1.1 MiniFlex®Model MA193-BK
2
3
4
1
1. Flexible sensor
2. Sensor opening device
3. Shielded lead
4. Custom 4-pin input connector
Current Probes & Sensors for Power Quality Meters and Power Energy Loggers
9
2.1.2 MiniFlex®Model MA194-BK
4
2
3
1
1. Flexible sensor
2. Sensor opening device
3. Shielded lead
4. Custom 4-pin input connector
10 Current Probes & Sensors for Power Quality Meters and Power Energy Loggers
2.1.3 AC/DC Current Probe Model J93-BK
1
2
4
5
6
3
5000A
500A
ZERO
Stop
Test
MARCHE
SORTIE
ZERO
ON
OFF
300 V CAT IV
600 V CAT III
1. Jaws
2. Custom 4-pin input connector
3. Safety guard
4. Zero adjustment knob
5. Power ON/Low battery indicator
6. Three-position switch: ON, OFF, battery test
