USER GUIDE
for
AEGEX TECHNOLOGIES LLC
Flatiron Building,
84 Peachtree St. NW,
Atlanta, GA 30303 USA
aegex10 Intrinsically Safe Tablet
TM
Aegex Technologies LLC
Hungarian Branch Oce
H-7632 Pécs, Tildy Zoltán u. 27/1.
Phone: +1 (470) 242-4000
Email: [email protected]
Intrinsically Safe Solutions by Design
REGULATORY STATEMENTS
FCC & IC STATEMENTS
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Any changes or modications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment. This
device complies with FCC and Industry Canada RF radiation exposure limits
set forth for general population (uncontrolled exposure). This device must not
be collocated or operating in conjunction with any other antenna or transmitter.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le present appareil est conforme aux CNR d’lndustrie Canada applicables
aux appareils radio exempts de licence. t:exploitation est autorisee aux deux
conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi,
meme si le brouillage est susceptible d’en compromettre le fonctionnement.
CE STATEMENT
Aegex Technologies LLC, Flatiron Building, 84 Peachtree Street NW
Atlanta, GA 30303 USA hereby declare, under its sole responsibility that the
product aegex10TM Intrinsically Safe Tablet is in conformity with the
relevant European Union harmonization legislation:
EMC Directive 2014/30/EU,
Low Voltage Directive 2014/35/EU,
Radio Equipment Directive (RED) 2014/53/EU
Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU.
COUNTRY SPECIFIC APPROVAL DATA:
South Africa – ICASA TA-2015/2247 approved
Oman – TRA R/2983/15; D090016
Qatar – ictQATAR Type Approval Reg. No. : CRA/SA/2015/R-5227
Importer No.: C.P/C.R. 41570
Australia - RCM logo can be found by pressing Windows button/ Settings/
System / About/ System info. That is part of the Aegex Image.
Singapore - IMDA standard info
IMDA Electronic compliance labelling can be found by pressing Windows
button/Setting/System/About/System info. Dealer’s Licence No. DA103861
That is part of the Aegex Image.
Country Specic labels are visible in the battery compartment, after the removal
of the battery.
2
1418
Intrinsically Safe Solutions by Design 3

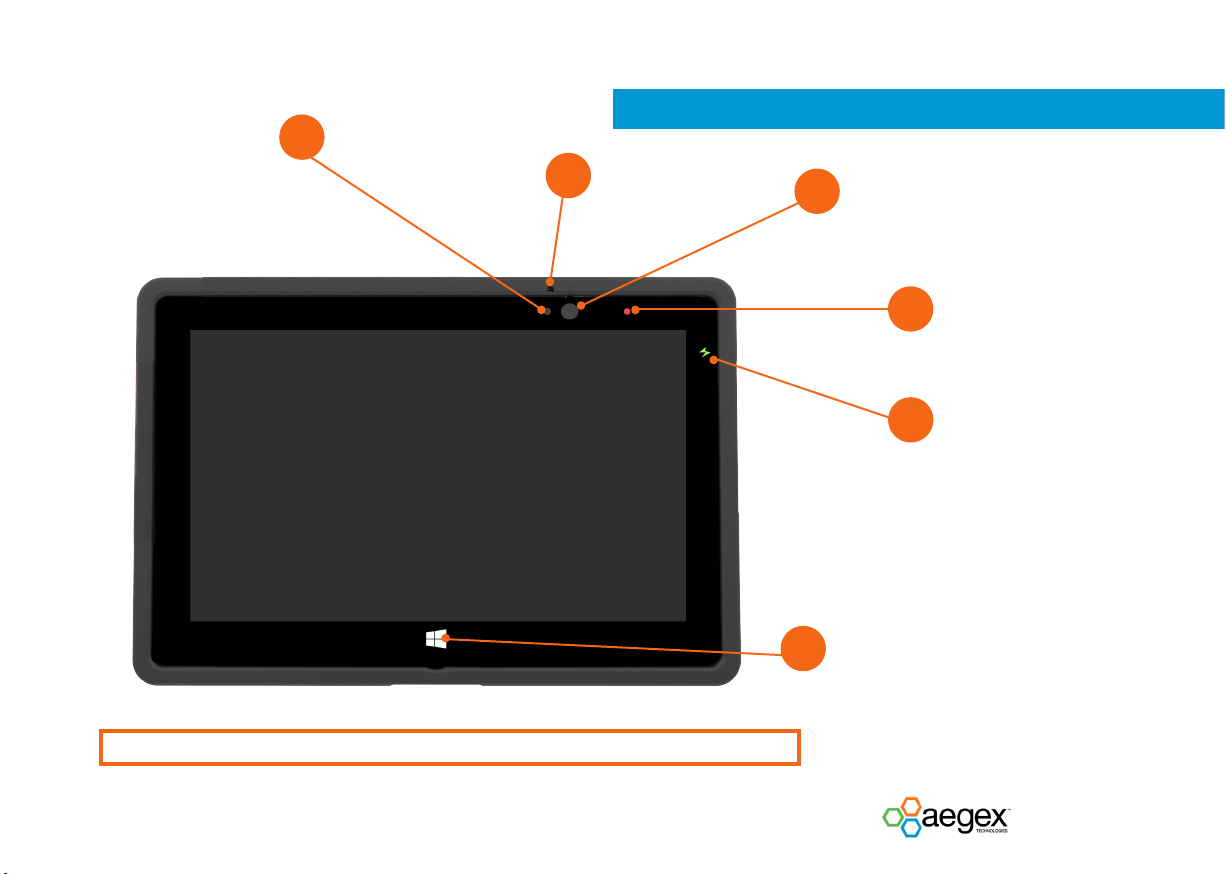

FRONT
1
23
4
Front Microphone Outlet
Front Camera
2 MP camera for video conferencing
5
6
Ambient Light Sensor
Recognizes the ambient
light and adjusts the display
brightness if enabled in the
operating system.
Windows Home Button (Windows Icon)
Home button needs to be tapped by a larger surface
than the other areas of the touch screen until you feel
the haptic feedback. It is recommended to press the
home button with your thumb, nger parallel to the
length of the tablet.
Camera Indicator LED
Lights up if camera is activated and
during device boot and shutdown
Charging Indicator LED
OFF not connected to charger
ORANGE charging
GREEN fully charged
RED charge error
Due to Li-ion battery technology, deep
discharge can happen. To return to
normal condition battery needs to
be charged longer. Use a charging/
docking station for battery recovery.
Screen protectors must meet the anti-static requirements for the hazardous locations where the tablets are used.
Intrinsically Safe Solutions by Design
4
TOP SIDE
7
8
On / O Button
Push it once to start the tablet; push it again to enable the sleep
mode. Push and hold it to shut down the device. You will be
instructed on screen to slide to shut down your device.
Keep pressed for more than 10 seconds for hard reset.
Volume Keys
Push the left button (-) to reduce the volume,
use the right button(+) to increase the volume.
Intrinsically Safe Solutions by Design 5
RIGHT AND BOTTOM SIDES
16
15
14
13
12
CTIA Audio Jack
Combined microphone and speaker
connector
USB 2.0 Port
MicroUSB Interface
For charging only. It is the secondary charging point.
Suggested primary charging point is:
9 (Docking Connector)
MicroSDXC Card Slot
Stereo Speakers (on the sides)
11
9
10
Securing Kensington Locks
Docking Connector
Charging Pads
Intrinsically Safe Solutions by Design
6
REAR VIEW
17
18 19
20
21
NFC Antenna Position
Can be used to read HF (13.56MHz)
NFC & RFID tags with appropriate software.
Rear Microphone Outlet
Camera Flash LED
Rear Camera
SMP camera for high resolution
images & video
Battery Cover
22 Data table and Warning info
(Marking information)
Intrinsically Safe Solutions by Design 7
TO REMOVE THE BATTERY COVER:
1. Remove the 4 screws using the provided screwdriver.
2. Use the provided pry tool to disengage the snaps. Insert the pry tool under the battery
door at the bottom left corner as presented in the picture above. Then with the pry
tool inserted under the door, carefully drag the pry tool around all edges and slowly
lift the cover.
Note: Any damage to the battery cover snaps due to improper handling is not covered by
warranty.
Intrinsically Safe Solutions by Design
8
REPLACING BATTERY / ADDING SIM CARD
3. Release locking by pulling on the battery holder hook (A) towards the
bottom of the device, then pull the battery up (B).
Repeat process for other battery holder hook.
4. Enter the Micro SIM card into the slot in the center of the right side.
Make ensure the Micro SIM card in the correct direction (chip facing
down). Attention! Only Micro SIM card to be used.
Do not use Nano-to Micro SIM card adapters!
Do not remove or replace the battery pack while in a known hazardous location!
Intrinsically Safe Solutions by Design 9
REPLACING BATTERY / ADDING SIM CARD
TO PUT THE BATTERY BACK IN PLACE:
3. Make sure the battery securely clicks in place
on both sides.
1. Replace the 4 corner screws of the battery cover
using the provided tool. The recommended torque
for the screw is 10-12 Ncm.
Do not remove or replace the battery pack while in a
known hazardous location!
2. To remove the battery door screws and the battery
door, please follow the instruction on page 7.
Intrinsically Safe Solutions by Design
10
2Open the cover on the right hand side of the tablet.
Connect the microUSB from the wall charger by pushing
the microUSB plug perpendicular to the port.
EU UK
US

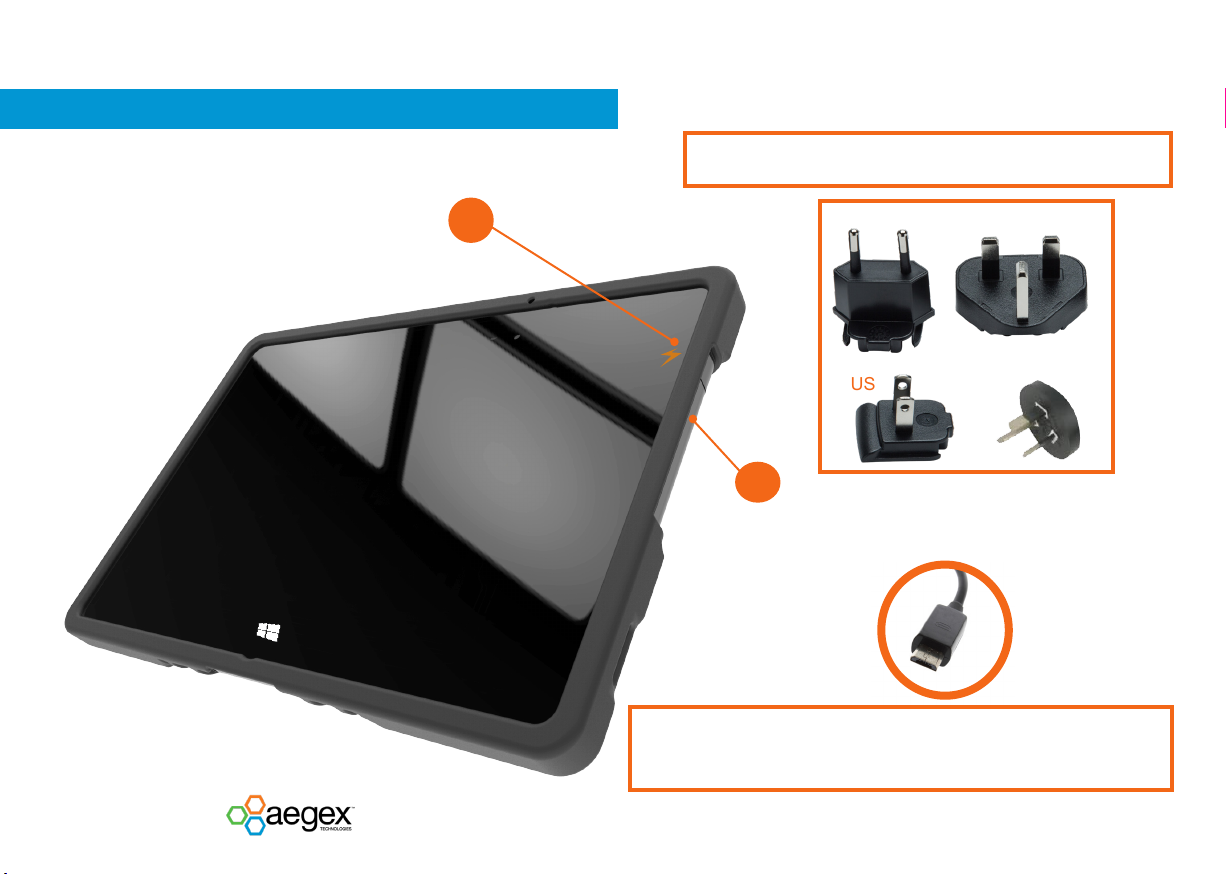

CHARGING THE TABLET WITH WALL CHARGER
AUS
1
The indicator on the tablet will illuminate orange while
the tablet is charging.
When the indicator illuminates green, you may remove
the tablet from its charging source - because the battery
is fully charged.
Select the appropriate plug and slide it on the tracks to connect to the wall charger.
Connect the USB end of the charging cord to the wall charger.
The tablet should be handled with care while the microUSB is plugged in.
Do not lift the tablet by the USB charging cord because it could cause irreparable
damage. Damage of the USB port is not covered by warranty. For frequent charging it
is recommended to use charging or docking station.
