AEG PERFEKT GLIDE 30 Manual de usuario

PERFEKT GLIDE 36

36” Built-in Telescopic Range Hood

Specifications are subject to change without notice

V1.2

PERFEKT GLIDE 30

30” Built-in Telescopic Range Hood

•D: 11” x W: 353/8”

•D: 279mm x W: 899mm

RANGE HOOD DIMENSIONS

•6” Duct Adapter Included

DUCT SIZE

RANGE HOOD FEATURES

•36” (90cm) stainless steel built-in glide-out range hood

•LED lighting

•2 speed adjustment

•2 x dishwasher safe honey comb filters

•Electronic push buttons

•Quiet (7 sones/56dB) 300 CFM motor

•115 Volt, 60Hz, 15AMP

•AEG Range Hoods are supplied with a Canadian

cord and plug

•Electrical cord located 65/16” (160mm) from the

top right corner of the unit at the rear

ELECTRICAL REQUIREMENTS

Specifications are subject to change without notice

V1.2

Specifications

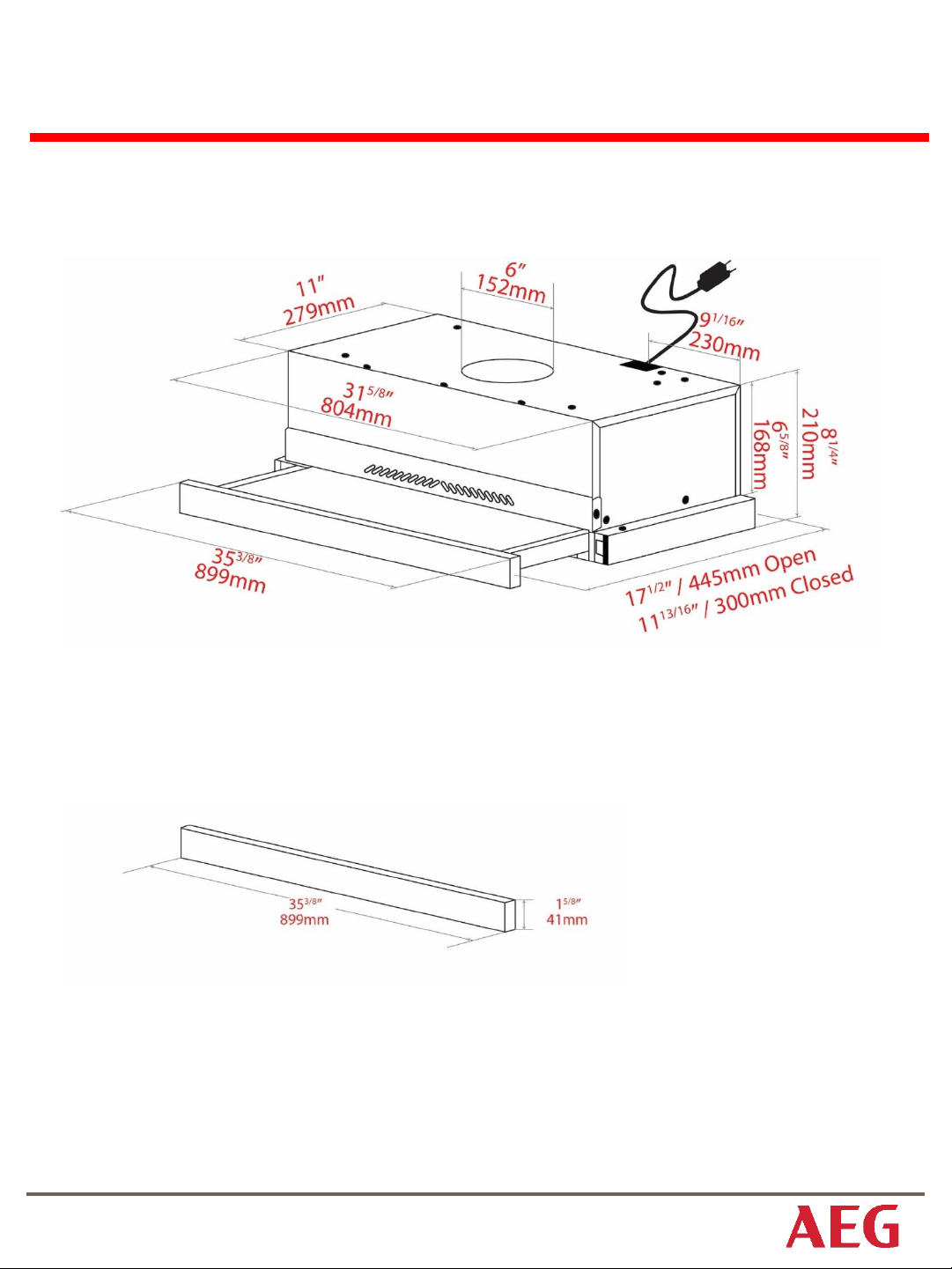

PERFEKT GLIDE 36

D: 11” x W: 353/8”

D: 279mm x W: 899mm

RANGE HOOD DIMENSIONS

FRONT PANEL - DUCTED

Specifications are subject to change without notice

V1.2

Specifications

PERFEKT GLIDE 36

CABINET BOX DESIGN

FRONT VIEW SIDE VIEW

357/16”

900mm

61/2”

165mm

Specifications are subject to change without notice

V1.2

Specifications

PERFEKT GLIDE 36

•1. Pull the visor forward

•2. Remove the 4 screws holding the visor to the panel

•3. Install the matching front panel using the 4 screws

*Custom panel provided by customer*

NOTE: Removing the front stainless steel trim

357/16”

900mm

*Outside Cabinet Measurements*

61/2”

165mm

Specifications are subject to change without notice

V1.2

Specifications

PERFEKT GLIDE 36

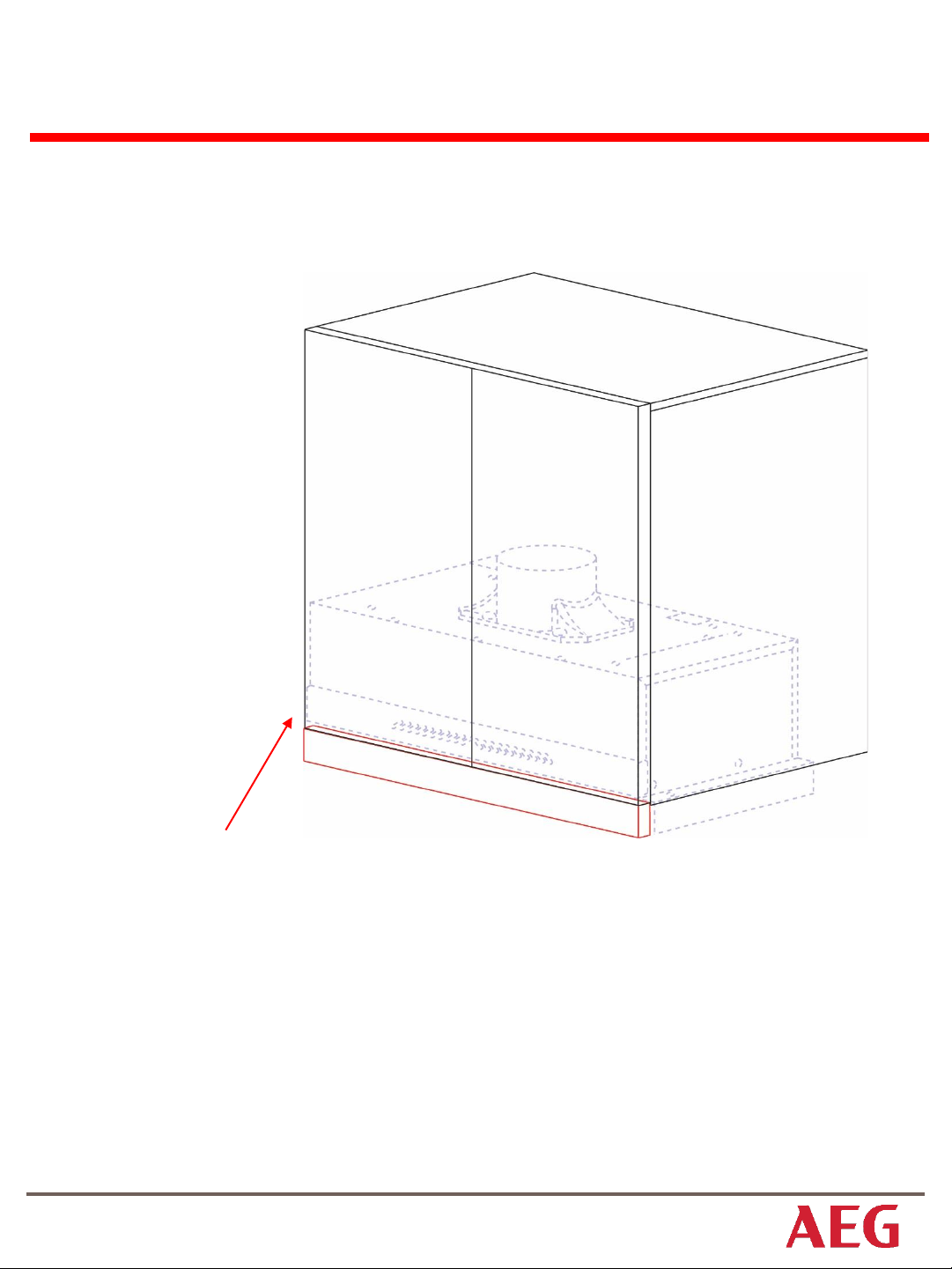

•Ensure that the cabinet door panel is

lengthened to accommodate the

smaller sized Range Hood Front

Panel

NOTE: Cabinet Door Panel Height

AEG Appliances are designed and manufactured to the highest standards.

Each appliance is covered by a comprehensive 2-year parts and labour warranty.

Refer to product warranty policy for complete terms and conditions.

AEG appliances are imported and distributed in North America by

Euro-Line Appliances Inc.Formore information, please visit one of our showroomsor

www.euro-line-appliances.com /www.elawest.com

871 Cranberry Court

Oakville, ON L6L 6J7 Canada

905 829 3980

1 800 421 6332

2912 West 4th Avenue

Vancouver, BC V6K 1R2 Canada

604 235 3980

1 855 ELA WEST (352 9378)

[email protected]

marketing@euro-line-appliances.com

B742

FOR PARTS ANDSERVICE

Euro-Parts & Service

39822 Belgrave Road, Belgrave, ON. N0G 1E0

18006788352 (Canada) •18005614614 (U.S.)

www.euro-parts.ca •parts@euro-parts.ca • service@euro-parts.ca
