PERFEKT GLIDE 30-1

30” Built-in Telescopic Range Hood

Specifications are subject to change without notice

V1.5

PERFEKT GLIDE 30-1

30” Built-in Telescopic Range Hood

•D: 11” x W: 2913/16”

•D: 280mm x W: 758mm

RANGE HOOD DIMENSIONS

•6” Duct Adapter Included

DUCT SIZE

RANGE HOOD FEATURES

•30” (76cm) stainless steel built-in glide-out range hood

•LED lighting (3,200 lumens)

•2 speed adjustment

•2 x dishwasher safe honey comb filters

•Electronic switch controls

•Quiet (7 sones/56dB) 300 CFM motor

•Top vent for exterior ventilation

•115 Volt, 60Hz, 15AMP

•AEG Range Hoods are supplied with a Canadian

cord and plug

•Electrical cord located 65/16” (160mm) from the

top right corner of the unit at the rear

ELECTRICAL REQUIREMENTS

Specifications are subject to change without notice

V1.5

Specifications

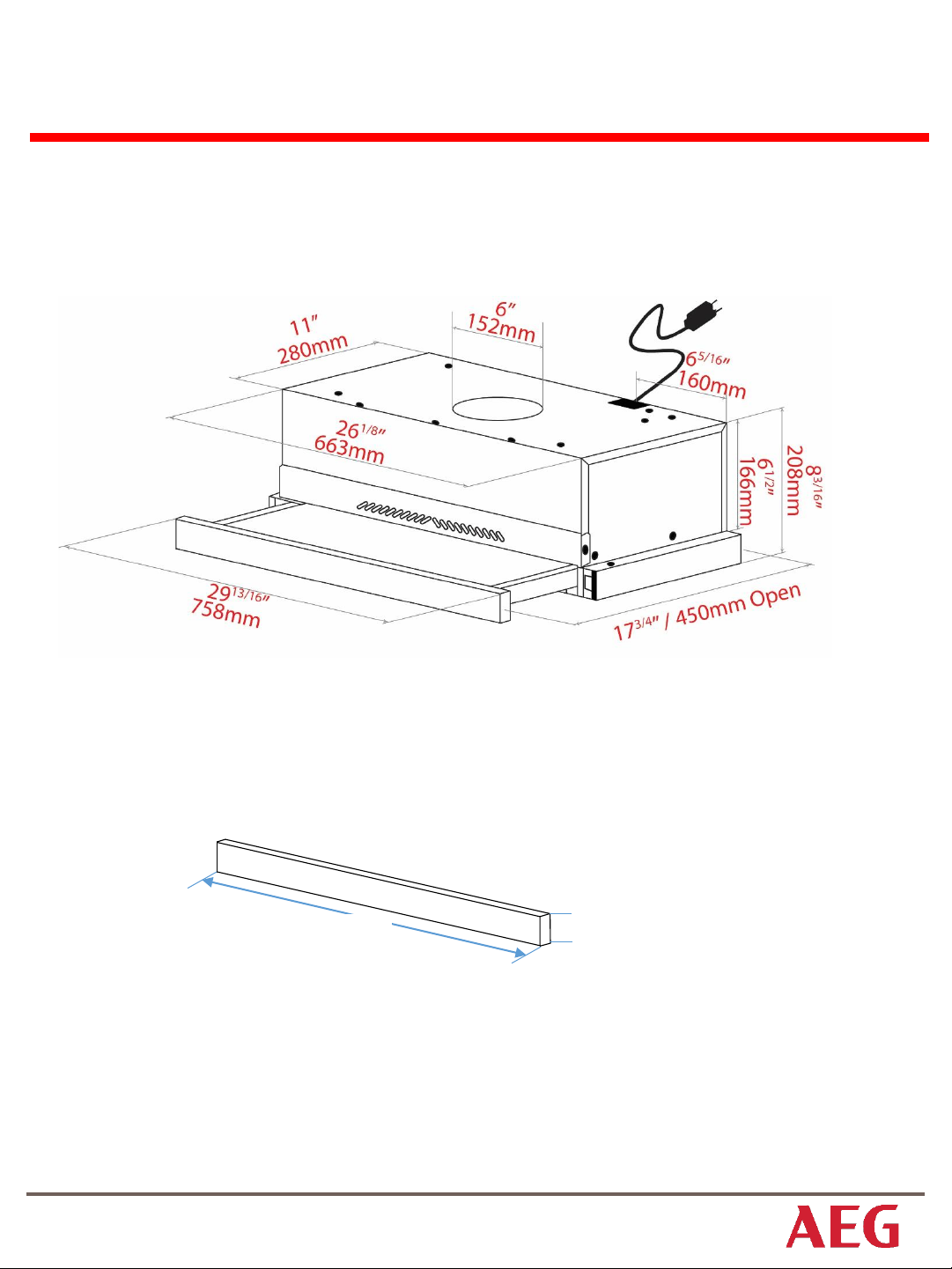

PERFEKT GLIDE 30-1

D: 11” x W: 2913/16”

D: 280mm x W: 758mm

RANGE HOOD DIMENSIONS

FRONT PANEL - DUCTED

2913/16”

758mm

15/8”

42mm

Specifications are subject to change without notice

V1.5

Specifications

PERFEKT GLIDE 30-1

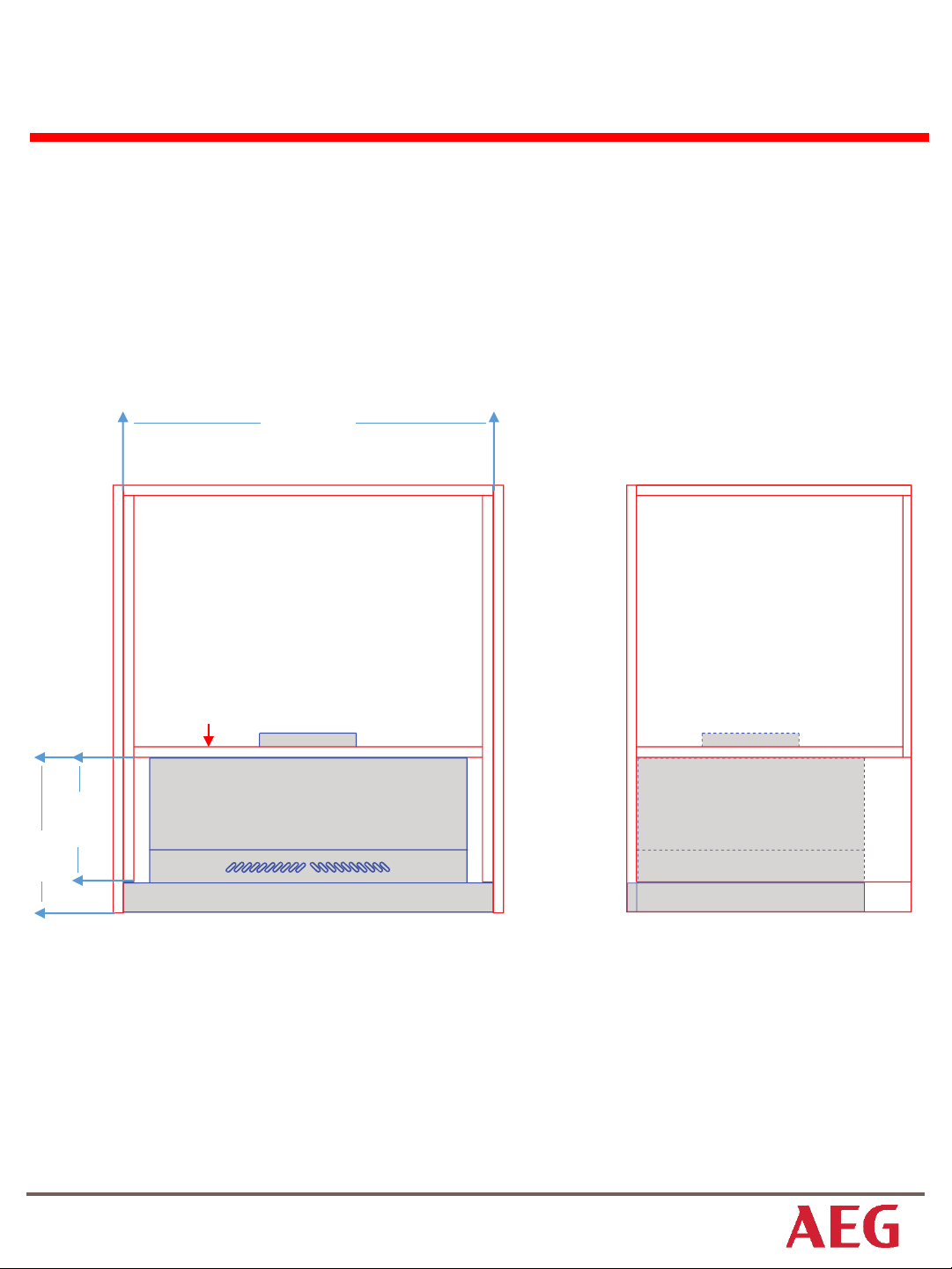

CABINET BOX DESIGN

FRONT VIEW SIDE VIEW

69/16”

166mm

30”

762mm

Shelf Supports

Range hood

81/4”

210mm

External Gable

Specifications are subject to change without notice

V1.5

Specifications

PERFEKT GLIDE 30-1

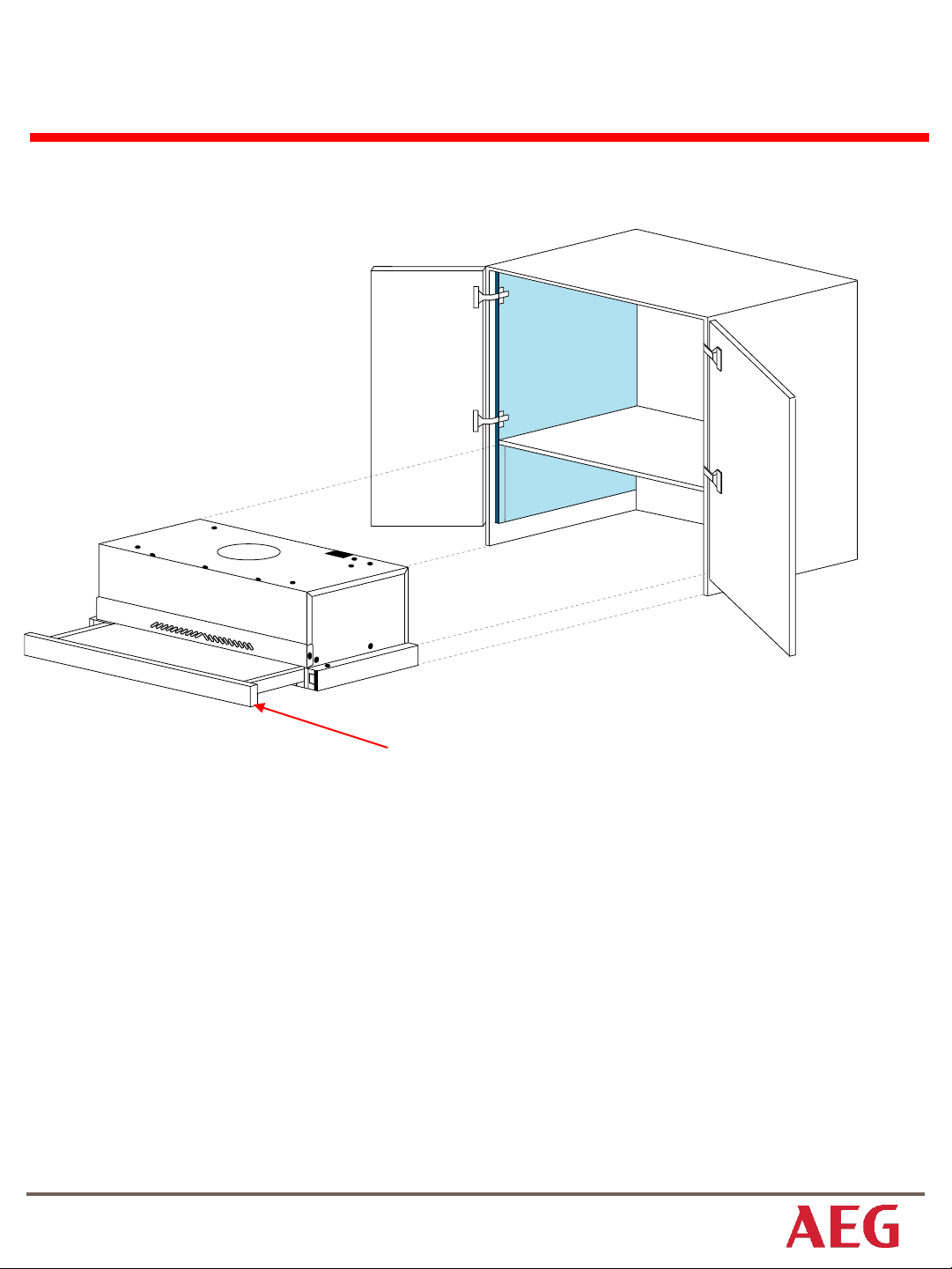

•1. Pull the glide forward

•2. Remove the 4 screws holding the glide to the panel

•3. Install the matching front panel using the 4 screws

*Custom panel provided by customer*

NOTE: Removing the front stainless steel trim

69/16”

166mm

FRONT PANEL INSTALLATION

Specifications are subject to change without notice

V1.5

Specifications

PERFEKT GLIDE 30-1

15/8”

42mm

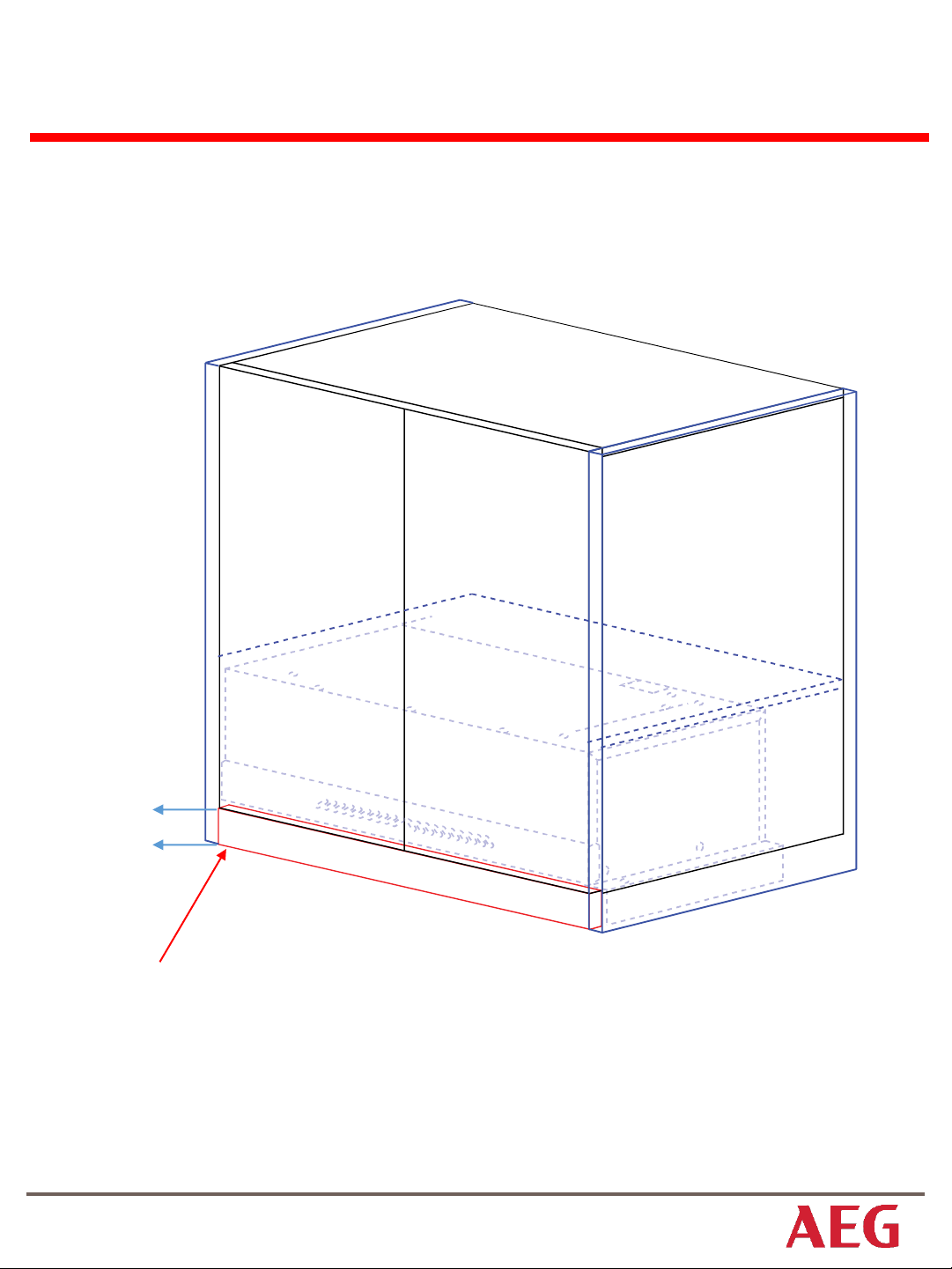

•Ensure that the cabinet door panel is

lengthened to accommodate the

smaller sized Range Hood Front

Panel

NOTE: Cabinet Door Panel Height

Specifications are subject to change without notice

V1.5

Specifications

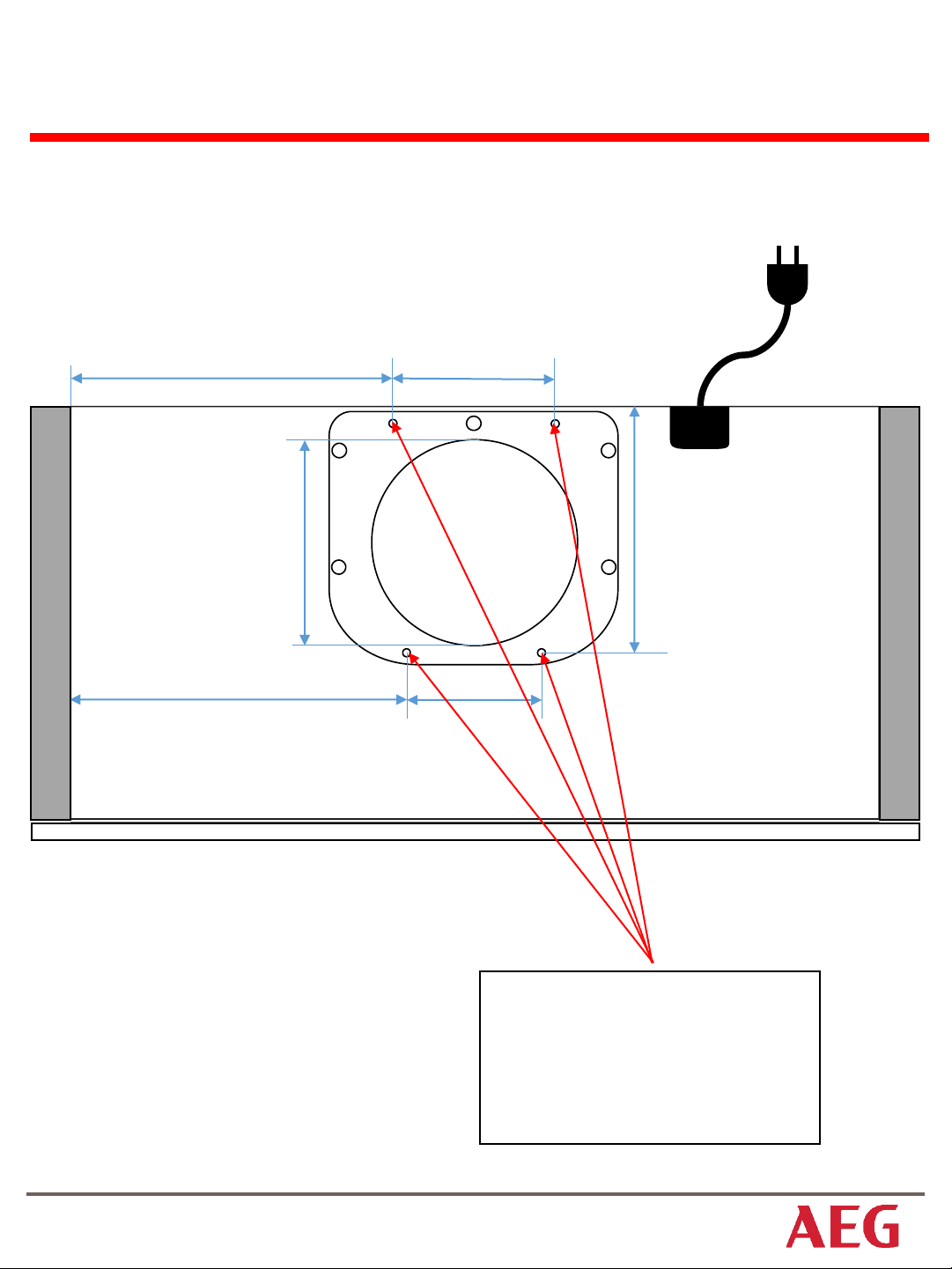

•Drill (1/8”) at the points located

•Secure the damper to the motor

housing using the screws supplied

with the range hood

SECURING THE DAMPER

281.5mm

111/16”

100mm

315/16”

120mm

43/4”

271.5mm

1011/16”

168.5mm

65/8”

DAMPER INSTALLATION

139.7mm

51/2”

PERFEKT GLIDE 30-1

Specifications are subject to change without notice

V1.5

Specifications

•W: 220mm x D:175mm

W: 811/16” x 67/8”

•Shelf depth MUST BE a minimum of 11” deep

DAMPER CUT-OUT

220mm

811/16”

175mm

67/8”

221.5mm

83/4”100mm

315/16”

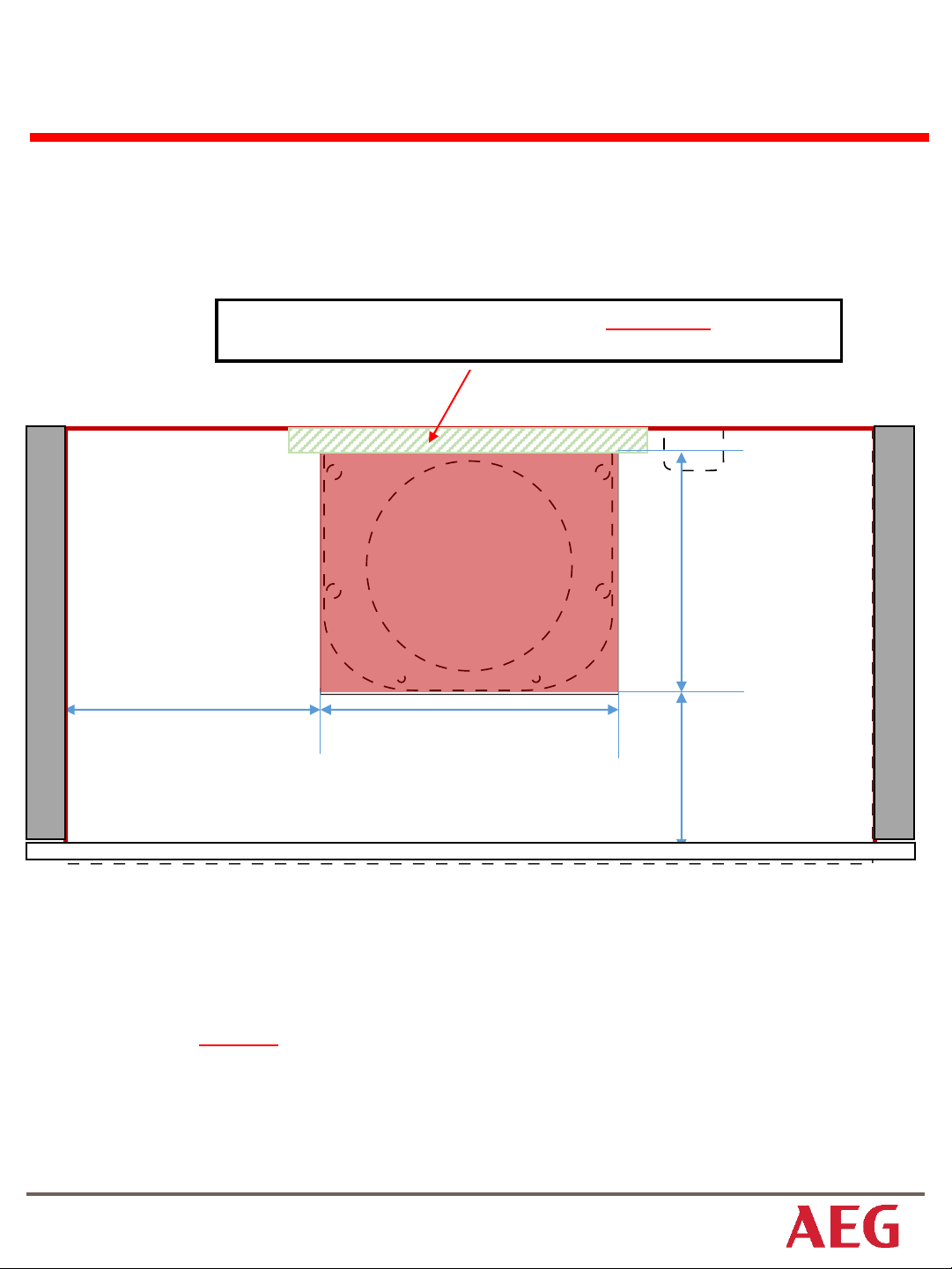

•Shelf with less than 1” of shelf extension MUST HAVE a support

brace in place

DAMPER INSTALLATION (SHELF CUT-OUT)

PERFEKT GLIDE 30-1

Specifications are subject to change without notice

V1.5

Specifications

•W: 220mm x D:175mm

W: 811/16” x 67/8”

•Shelf depth MUST BE a minimum of 11” deep

DAMPER CUT-OUT

220mm

811/16”

175mm

67/8”

100mm

315/16”

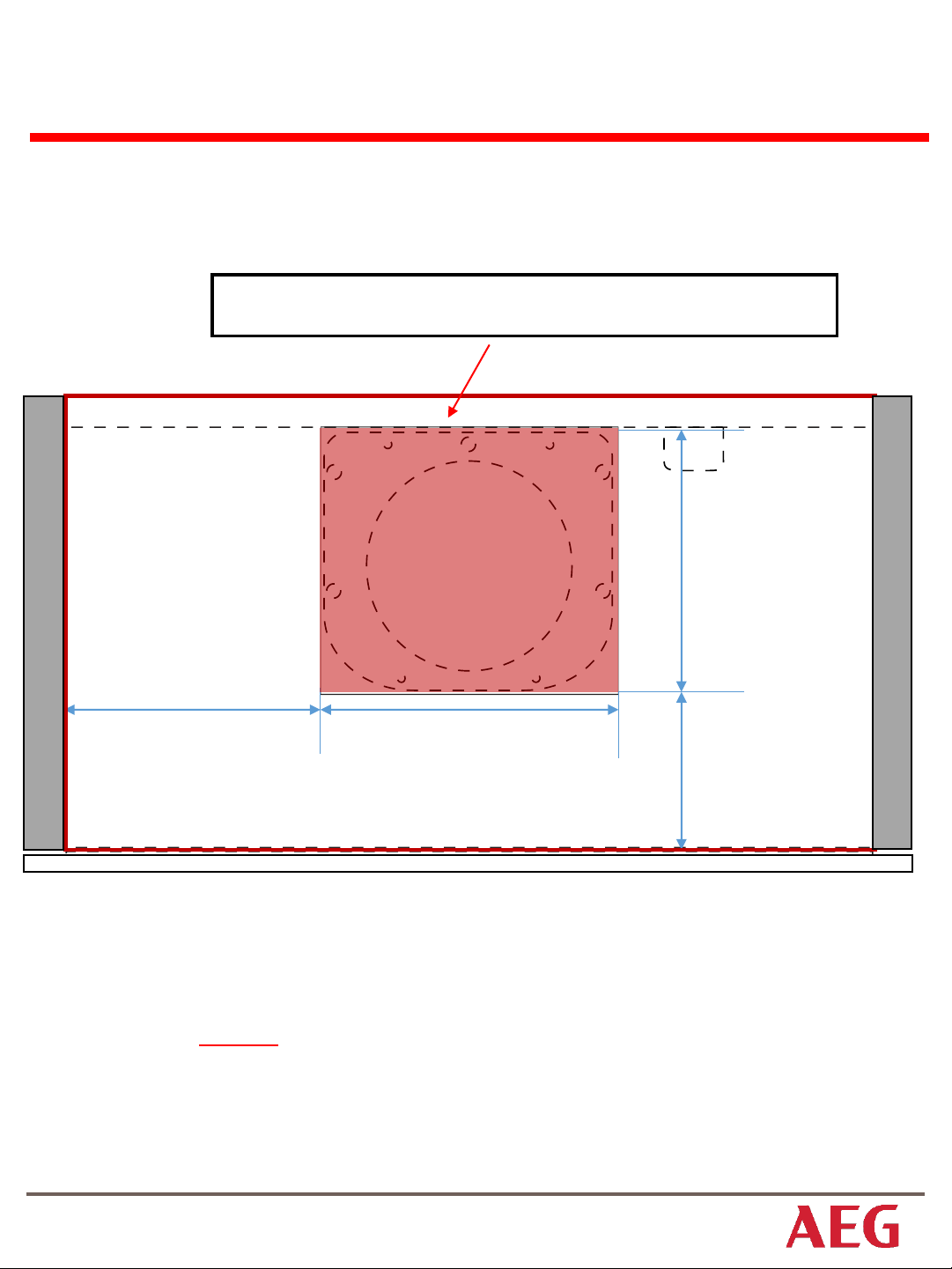

•Shelf with 1” or more extension does not require a support brace.

DAMPER INSTALLATION (SHELF CUT-OUT)

221.5mm

83/4”

PERFEKT GLIDE 30-1

Specifications are subject to change without notice

V1.5

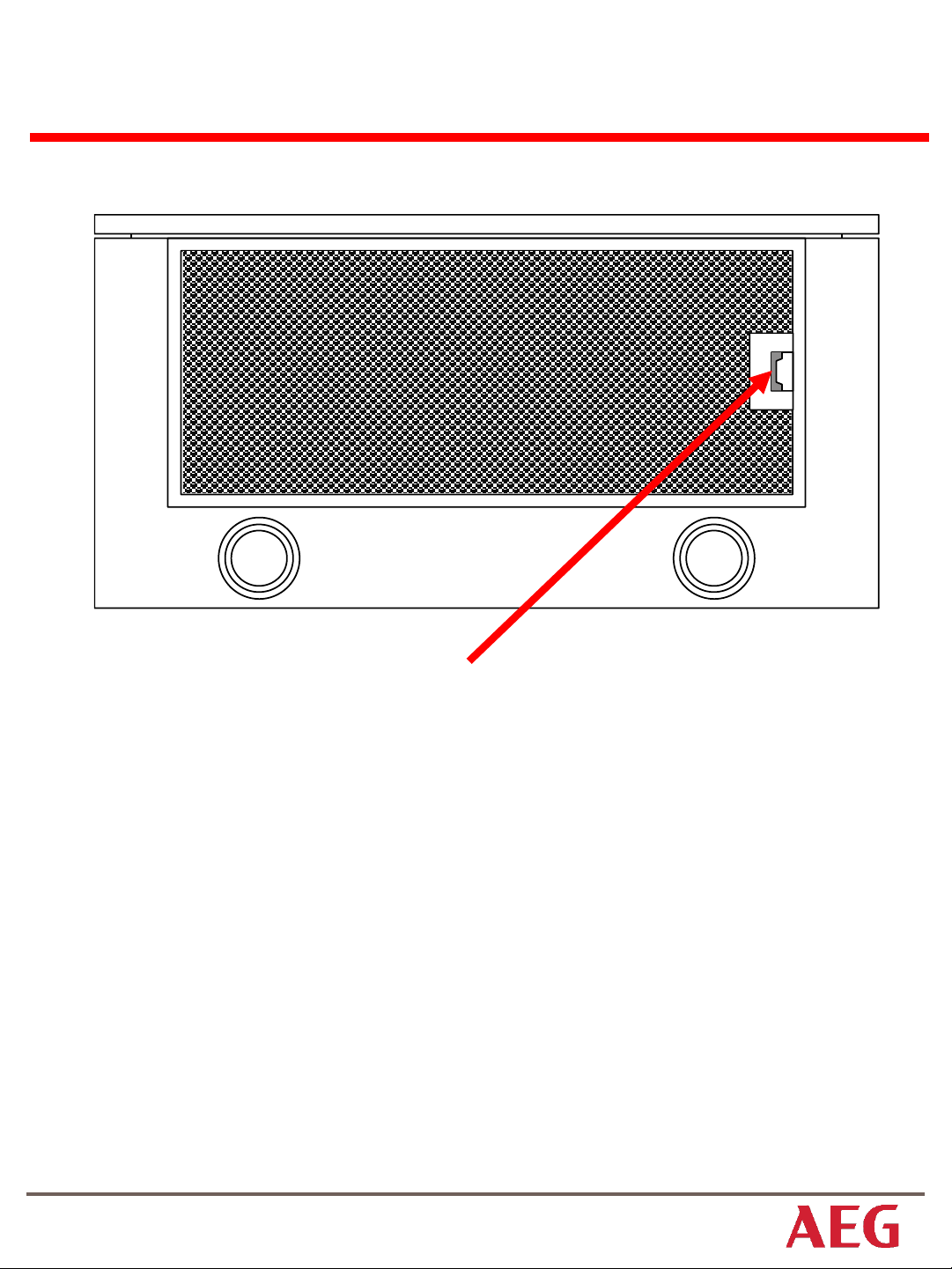

•To remove the filter press on the tab

to release the filter

•While depressed, pull the filter

towards you to remove it from the

filter housing.

REMOVE THE FILTER

ALTERNATE INSTALLATION

PERFEKT GLIDE 30-1 (REC)
