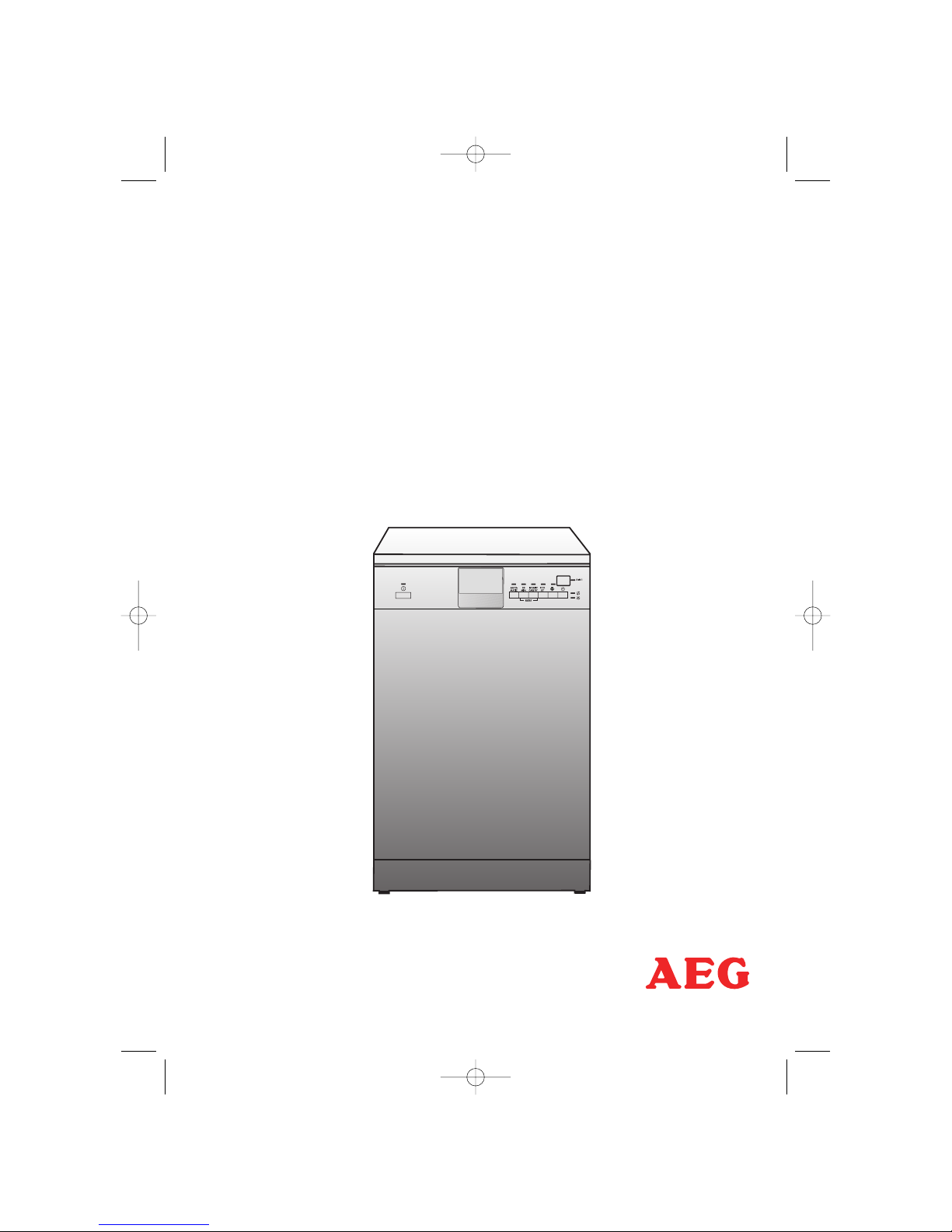

FAVORIT 54850 S

Dishwasher

Instruction book

PERFEKT IN FORM UND FUNKTION

152963020en per uk.qxp 25/03/2004 16.38 Pagina 1

Dear customer,

Please read this User Information carefully and keep it to refer to at a

later date.

Pass it on to any subsequent owner of the appliance.

The following symbols are used in the text:

Safety instructions

Warning! Notes that concern your personal safety.

Attention! Notes that show how to avoid damage to the appliance.

Useful tips and hints

Environmental information

Your dishwasher has the new washing system ”IMPULSE WASHING”.

With this dishwashing system the motor speed and spray pressure

are varied during the wash cycle to achieve better cleaning of the

dishes. It is for this reason that the noise level varies during the

dishwashing cycle.

Printed on paper manufactured with environmentally sound processes.

He who thinks ecologically acts accordingly...

152963020en per uk.qxp 25/03/2004 16.38 Pagina 2

CONTENTS

Operating instructions 4

Safety instructions 4

Disposal 6

Economical and ecological dishwashing 6

Description of the appliance 7

The control panel 8

Prior to using for the first time 11

Setting the water softener 11

Filling with salt 13

Rinse aid 14

In daily use 17

Loading cutlery and dishes 17

The lower basket 18

The cutlery basket 19

The upper basket 20

Adjusting the height of the upper basket 21

Use of detergent 22

Different kinds of detergent 23

Washing programmes 25

Starting a washing programme 26

Maintenance and cleaning 29

Cleaning the filters 29

What to do, when... 32

Service 35

Guarantee terms 36

Technical specifications 38

Installation instructions 39

Fitting under a counter 39

Levelling 39

Water supply connections 40

Water inlet hose with safety valve 41

Water outlet hose connection 42

Electrical connection 43

Hints for test centres 44

Contents

152963020en per uk.qxp 25/03/2004 16.38 Pagina 3

OPERATING INSTRUCTIONS

Safety instructions

The safety of AEG electrical appliances conforms to accepted rules of

technology and the Appliance Safety Act. We as manufacturers,

however, see ourselves as being obliged to familiarise you with the

following safety instructions.

It is most important that this instruction book should be retained

with the appliance for future reference. Should the appliance be

sold or transferred to another owner, or should you move house

and leave the appliance, always ensure that the book is left with

the appliance in order that the new owner can get to know the

functioning of the appliance and the relevant safety information.

This information has been provided in the interest of your safety.

You MUST read it carefully before installing or using the

appliance.

Installation

●Check your dishwasher for any transport damage. Never connect a

damaged machine. If your dishwasher is damaged, you should

contact your supplier.

●For safety reasons it is dangerous to alter the specifications or

attempt to modify this product in any way.

●Any electrical and plumbing work required to install this appliance

should be carried out by a qualified and competent person.

●Care must be taken to ensure that the appliance does not stand on

the electrical supply cable.

●The sides of the dishwasher must never be drilled to prevent

damage to hydraulic components.

Child safety

●This appliance is designed to be operated by adults.

●Children should not be allowed to tamper with the controls or play

with the product.

●Packaging parts may be dangerous for children, who could even be

suffocated! You should therefore keep all packaging well away

from children.

Operating instructions

152963020en per uk.qxp 25/03/2004 16.38 Pagina 4

●The water in your dishwasher is not for drinking. Detergent residues

may still be present in your machine. Keep children well away from

your dishwasher when the door is open.

●Keep all detergents in a safe place out of children’s reach.

Your dishwasher in day-to-day use

●Items that are contaminated by petrol, paint, steel or iron debris,

corrosive, acidic or alkaline chemicals must not be washed in this

dishwasher.

●Under no circumstances should you open the door whilst the

appliance is in operation, especially during the washing phase, hot

water may escape. However, if the door is opened, a safety device

ensures that the machine stops.

●Only use products (detergent, salt and rinse aid) specifically

designed for use in dishwashers.

●Long bladed knives stored in an upright position are a potential

hazard.

●Long and/or sharp items of cutlery such as carving knives must be

positioned horizontally in the upper basket.

●When finishing loading or unloading close the door, as an open

door can be a hazard.

●Do not sit or stand on the open door.

●Isolate the appliance from the power supply and turn off the water

supply after use.

●This product should be serviced by an authorised service engineer,

and only genuine spare parts should be used.

●Under no circumstances should you attempt to repair the machine

yourself. Repairs carried out by inexperienced persons may cause

injury or serious malfunctioning. Contact your local Service Force

Centre. Always insist on genuine spare parts.

Operating instructions

152963020en per uk.qxp 25/03/2004 16.38 Pagina 5

Disposal

Dispose of the dishwasher packaging material correctly.

All packaging materials can be recycled.

Plastic parts are marked with standard international abbreviations:

>PE< for polyethylene, e.g. sheet wrapping material.

>PS< for polystyrene, e.g. padding material (always CFC-free).

>POM< for polyoxymethylene, e.g. plastic clips.

Cardboard packaging is manufactured from recycled paper and should

be deposited in the waste paper collection for recycling.

As and when you cease to use your dishwasher and withdraw it from

service, your should render it unserviceable before having it disposed

of.

Warning! Children at play could lock themselves in your dishwasher or

otherwise endanger their lives. Therefore cut off the power supply

cable and make the door closing device unusable to prevent children

from being trapped inside.

To dispose of the appliance please take it to a recycling centre or to

your dealer who may, for a small contribution to the costs, dispose of

it for you.

Economical and ecological dishwashing

●Ensure that the water softener is correctly adjusted.

●Do not pre-wash under running water.

●Select the wash programme to suit the nature and degree of the

soiling on the dishes.

●Do not use more detergent, dishwasher salt and rinse aid than is

recommended in these operating instructions and by the

manufacturer of the respective product.

Operating instructions

152963020en per uk.qxp 25/03/2004 16.38 Pagina 6

Operating instructions

Description of the appliance

1. Upper basket stop

2. Water hardness dial

3. Salt container

4. Detergent dispenser

5. Control panel

6. Rating plate

7. Rinse aid dispenser

8. Filters

9. Lower spray arm

10. Upper spray arm

11. Upper basket

12. Worktop

IN154

152963020en per uk.qxp 25/03/2004 16.38 Pagina 7

Operating instructions

Function buttons: in addition to the dishwashing programme

selected, the following functions can also be set with the help of these

buttons:

- the setting of the water softener,

- deactivation/activation of the rinse aid dispenser,

- deactivation/activation of the “3 in 1” function

- the cancelling of a programme in progress.

Programme selection buttons: the selection of a washing

programme occurs by pressing one of these push buttons (see

"Washing programmes" chart).

"Delay start" option button: this option allows the start of the

programme to be delayed from 1 to 19 hours.

Indicator lights: have the following meanings:

The salt and rinse aid indicator lights are never illuminated while a

washing programme is running even if filling with salt and rinse aid is

necessary.

On/Off

button

Programme selection

buttons

Function

buttons

Indicator

lights

“Delay start”

option button

123

On/Off

indicator light

“3 in 1”

indicator light

Salt refilling indicator light: illuminates when the salt has

run out

Rinse aid refilling indicator light: illuminates when the rinse

aid has run out

The control panel

Digital

display

152963020en per uk.qxp 25/03/2004 16.38 Pagina 8

Operating instructions

The digital display indicates:

- the level of hardness to which the water softener is set,

- if the rinse aid dispenser is activated/deactivated

- the approximative remaining time of the running programme

- the countdown of the delay start

- fault codes concerning malfunction of the dishwasher

"3 in 1" function: this appliance is equipped with the option "3 in 1",

that allows the use of the "3 in 1" combi detergent tablets.

This function can be selected with all washing programmes.

With the selection of this function the dosage of rinse aid and salt

from each respective supply container is automatically deactivated and

also the indicator lights for salt and rinse aid are deactivated.

Once selected this option (button indicator light illuminated ) will

remain active for the following washing programmes, to deactivate

the function, press the button (button indicator light off).

Once the programme is running, the "3 in 1" function can no longer

be changed. If you want to exclude the "3 in 1" function you have to

cancel the programme setting (see chapter "Starting a washing

programme" - "To cancel a washing programme in progress") and then

deactivate the "3 in 1" function.

In this case you have to set a washing programme again.

With the use of "3 in 1" combi detergent tablets, the cycle durations

given in the "Washing programmes" chart may change.

152963020en per uk.qxp 25/03/2004 16.38 Pagina 9

Deactivation/activation of the 3 in 1 function

(The dishwasher must be switched off)

1.Press the On/Off button. The On/Off indicator light illuminates

(setting mode).

If other indicator lights are on, this means that a wash programme

has been selected. The programme must be cancelled: press

simultaneously the function buttons 2and 3for about 2 seconds.

All the indicator lights will turn off (except for the On/Off

indicator light and eventually salt and rinse aid indicator lights)

indicating that the set programme has been cancelled and the

machine is now in setting mode.

2.Press simultaneously function buttons 2and 3, until the indicator

lights of the function push buttons 1, 2, 3 and 4start flashing.

3.Press the function push button 4, the indicator lights of function

push buttons 1, 2and 3turn off while the indicator light of the

function push button 4goes on flashing.

4.Press the function button 4again, the "3 in 1" indicator light

illuminates, indicating that the 3 in 1 funcion is active.

To deactivate the function press the function button 4again,

the indicator light turns off.

5. To memorise the operation, switch off the dishwasher by pressing

the On/Off button or wait about 60 seconds after which the

dishwasher will automatically return to setting mode.

Operating instructions

3 in1 function active indicator light on

3 in 1 function not active indicator light off

152963020en per uk.qxp 25/03/2004 16.39 Pagina 10

Otros manuales para FAVORIT 54850 S

Tabla de contenidos

Otros manuales de Lavavajillas de AEG

AEG

AEG f65002im0p Manual de usuario

AEG

AEG FSK31600Z Manual de usuario

AEG

AEG OKO-Favorit 446 Manual de usuario

AEG

AEG FSK73700P Manual de usuario

AEG

AEG FAVORIT COMPACT 315 Manual de usuario

AEG

AEG Favorit 445 Manual de usuario

AEG

AEG FBB83706PW Manual de usuario

AEG

AEG FSE63307P Manual de usuario

AEG

AEG OKO FAVORIT 5270 VI Manual de usuario

AEG

AEG Favorit 55602 W0P Manual de usuario

AEG

AEG OKO Favorit 875 Electronic Manual de usuario

AEG

AEG FSK53627P Manual de usuario

AEG

AEG FSB42607Z Manual de usuario

AEG

AEG FAVORIT 56602 ID0P Manual de usuario

AEG

AEG Favorit 865 i ELECTRONIC Manual de usuario

AEG

AEG FAVORIT 88705 IM0P Manual de usuario

AEG

AEG FSK73727P Manual de usuario

AEG

AEG FAVORIT F65478 VI-S Manual de usuario

AEG

AEG FAVORIT F55311VI0 Manual de usuario

AEG

AEG FSS73718P Manual de usuario

AEG

AEG FFB64627ZM Manual de usuario

AEG

AEG FAVORIT 44740 Manual de usuario

AEG

AEG GS60BV222 Manual de usuario

AEG

AEG FAVORIT 665 i N Manual de usuario

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario

Siemens

Siemens SN 56N591 Manual de usuario
