Contents2

Contents

Operating Instructions 3

Safety instructions 3

Description of the Appliance 4

General Overview 4

Control Panel 5

Oven Features 5

Oven accessories 6

Before Using for the first time 7

Initial Cleaning 7

Using the Rings 7

Cooking with the Rings 8

Using the Oven 9

Switching the Oven On and Off 9

Oven Functions 9

Inserting the Oven Shelf, Baking Tray and

Roasting Pan 10

Inserting/Removing the Fat Filter 11

Uses, Tables and Tips 12

Cooking table 12

Baking 13

Roasting 19

Grill sizes 21

Defrosting 21

Drying 22

Making preserves 23

Cleaning and Care 24

Outside of the appliance 24

Oven interior 24

Accessories 24

Fat Filter 24

Shelf Support Rails 25

Oven lighting 26

Oven Ceiling 26

Oven door 27

Oven door glass 29

What to do if … 33

Disposal 34

Service 35

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this instruc-

tion manual carefully. It will enable you to navigate all processes perfectly and most ef-

ficiently.

To refer to this manual any time you need to, we recommend you to keep it in a safe

place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

The following symbols are used in this user manual:

Important information concerning your personal safety and information on how to

avoid damaging the appliance.

3General information and tips

2Environmental information

3Operating Instructions

Operating Instructions

1Safety instructions

Electrical safety

•This appliance must be only connected by a registered electrician.

•In the event of a fault or damage to the appliance: Take the fuses out or switch off.

•Repairs to the appliance must only be carried out by qualified service engineers.

Considerable danger may result from improper repairs. If repairs become necessary,

please contact our Customer Services or your dealer.

Child Safety

•Never leave children unsupervised when the appliance is in use.

Safety whilst using

•People (including children) who, because of their physical, sensory or mental capabili-

ties or their inexperience or ignorance are not able to use the device safely, should not

use this device without supervision or instruction by a responsible person.

•This appliance is intended to be used for cooking, roasting and baking food in the

home.

•Take care when connecting electric appliances to sockets nearby. Do not allow con-

necting leads to come into contact with or to catch beneath the hot oven door.

•Warning: Risk of burns! The interior of the oven becomes hot during use.

•Using ingredients containing alcohol in the oven may create an alcohol-air mixture

that is easily ignited. In this case, open the door carefully. Do not have embers, sparks

or naked flames in the vicinity when opening the door.

3Information on acrylamides

According to the latest scientific knowledge, intensive browning of food, especially in

products containing starch, can constitute a health risk due to acrylamides. Therefore we

recommend cooking at the lowest possible temperatures and not browning foods too

much.

How to avoid damage to the appliance

•Do not line the oven with aluminium foil and do not place baking trays, pots, etc. on

the oven floor, as the heat that builds up will damage the oven enamel.

•Fruit juices dripping from the baking tray will leave stains, which you will not be able

to remove. For very moist cakes, use a deep tray.

•Do not put any strain on the oven door when open.

•Never pour water directly into the oven when it is hot. This could cause damage to or

discolouration of the enamel.

•Rough handling, especially around the edges of the front panel, can cause the glass to

break.

•Do not store any flammable materials inside the oven. These could ignite when the

oven is switched on.

Description of the Appliance4

•Do not store any moist foods inside the oven. This could damage the oven enamel.

•After switching off the cooling fan, do not keep uncovered dishes in the oven. Mois-

ture may condense in the oven interior or on the glass doors and may get into the

units.

3Note on enamel coating

Changes in the colour of the oven’s enamel coating as a result of use do not affect the

appliance’s suitability for normal and correct use. They therefore do not constitute a de-

fect in the sense of the warranty law.

Description of the Appliance

General Overview

Full glass door

Control panel

Door

handle

5Description of the Appliance

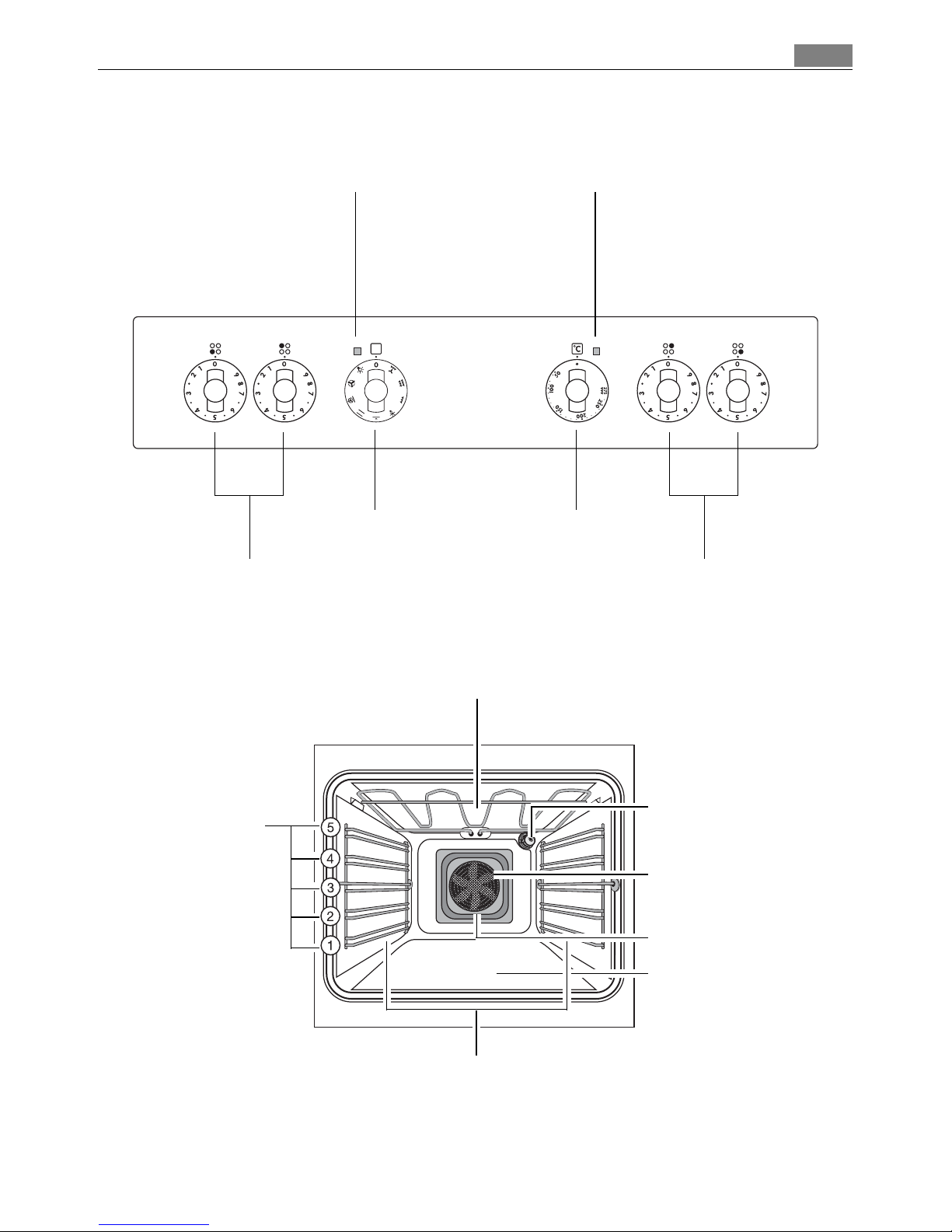

Control Panel

Oven Features

Oven Power Indicator Temperature Pilot Light

Oven Functions Temperature selector

Hob Cooking Zone Control

Top heat and heating elements

Oven lighting

Fat Filter

Fan heating element

Fan

Bottom Heat

Shelf positions

Oven shelf runners,

removable

Description of the Appliance6

Oven steam vent

The steam from the oven is fed directly upwards

via the duct in the rear of the cooking surface.

Inside of door

On the inside of the oven door you will find the

numbers of the different oven shelves.

You will also find some brief information about

the oven's functions, recommended shelves and

temperatures for cooking the most popular

dishes.

Oven accessories

Oven shelf

For cookware, cake tins, roasts and grilled foods.

Baking tray

For cakes and biscuits.

Roasting Pan

For baking and roasting or as a pan for collect-

ing fat.

7Before Using for the first time

Before Using for the first time

Initial Cleaning

Before using the oven for the first time you should clean it thoroughly.

1Caution: Do not use any caustic, abrasive cleaners! The surface could be damaged.

3To clean metal fronts use commercially available cleaning agents.

1. Turn the oven function switch to oven lighting .

2. Remove all accessories and the shelf support rails and wash them with warm water and

washing up liquid.

3. Then wash out the oven with warm water and washing-up liquid, and dry.

4. Wipe the front of the appliance with a damp cloth.

Using the Rings

3Also refer to the operating instructions for your built-in hob. It contains important in-

formation on ovenware, operation, cleaning and care.

Heat settings

•You may select the heat settings within the range of settings 1-9.

•Intermediate positions may be selected between settings 2 and 7.

1 = lowest heat setting

9 = highest heat setting

2Switch the cooking zone off approx. 5-10 minutes before cooking is finished to make

use of the residual heat. This saves electricity.

Hob Cooking Zone Control Knobs

front left rear left rear right front right

Using the Rings8

Cooking with the Rings

1. For heating up/browning, select a high heat

setting.

2. As soon as steam starts to form or the oil is hot,

turn back to the heat setting necessary for fur-

ther cooking.

3. To stop cooking, turn back to the zero position.

9Using the Oven

Using the Oven

Switching the Oven On and Off

1. Turn the oven functions dial to the desired function.

2. Turn the temperature selector to the desired temperature.

The power indicator is lit as long as the oven is in operation.

The temperature pilot light is lit as long as the oven is heating up.

3. To turn the oven off, turn the oven functions dial and the temperature selector to the

Off position.

3Cooling fan

The fan switches on automatically in order to keep the appliance’s surfaces cool. When

the oven is switched off, the fan continues to run to cool the appliance down, then

switches itself off automatically.

Oven Functions

The oven has the following functions:

Oven function Application

Light Using this function you can light up the oven interior, e.g. for

cleaning.

True fan For baking on up to three oven levels at the same time.

Set the oven temperatures 20-40 °C lower than when using

Conventional.

Temperature Pilot Light

Temperature selector

Oven Power Indicator

Oven Functions

Using the Oven10

Inserting the Oven Shelf, Baking Tray and Roasting Pan

3Shelf runner safety and anti-tip device

As a shelf runner safety device, all insertable components have a small curved indenta-

tion at the bottom on the right and left-hand edge.

Always insert insertable components so that this indentation is at the back of the oven

interior. This indentation is also important for preventing the insertable components

from tipping.

Inserting the baking tray or roasting pan

Push the baking tray or roasting pan between

the guide bars of the selected oven level.

Fan baking For baking on one oven level dishes that require more inten-

sive browning and a crispy base.

Set the oven temperatures 20-40 °C lower than when using

Conventional.

Conventional For baking and roasting on one oven level.

Base heat For baking cakes with crispy or crusty bases.

Defrost For defrosting e. g. flans and gateaux, butter, bread, fruit or

other frozen foods.

Single grill For grilling flat food items placed in the middle of the grill

and for toasting.

Dual grill For grilling flat food items in large quantities and for toast-

ing.

Rotitherm For roasting larger joints of meat or poultry on one level.

The function is also suitable for gratinating and browning.

Oven function Application
