Advent ADV8SR Guía de inicio rápido

ADV8SR

8" LCD MONITOR & DVD PLAYER

Owner/ Installation Manual

Get other manuals https://www.bkmanuals.com

Note:

This Product incorporates copyright protection technology that is pro-

tected by method claims of certain patents and other intellectual prop-

erty rights owned by Macrovision Corporation and other rights owners.

Use of this copyright protection technology must be authorized by

MacrovisionCorporation,andisintendedforhomeandotherlimitedview-

ing uses only unless authorized by Macrovision Corporation. Reverse

engineering or disassembly is prohibited.

Warnings

Do not use any solvents or cleaning materials when cleaning the video

monitor.

Do not use any abrasive cleaners, they may scratch the screen.

Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.

Lock the LCD screen in the fully closed position when not in use.

Before putting on headphones always adjust the volume setting to the

lowest position.

Remember to leave the dome light switch in the off or auto positions

when the vehicle is unattended, as the dome lights, if left on, can drain

the vehicle’s battery.

Do not put pressure on the screen.

Licensedunderoneormore of thefollowing patents,

PatentNOS. 5,775,762 and5,927,784

Get other manuals https://www.bkmanuals.com

An LCD panel and/or video monitor may be installed in a motor vehicle

and visible to the driver if the LCD panel or video monitor is used for

vehicle information, system control, rear or side observation or naviga-

tion. If the LCD panel or video monitor is used for television reception,

video or DVD play, the LCD panel or video monitor must be installed

so that these features will only function when the vehicle is in “park” or

when the vehicle’s parking brake is applied.

An LCD panel or video monitor used for television reception, video or

DVD play that operates when the vehicle is in gear or when the parking

brake is not applied must be installed to the rear of the driver’s seat

where it will not be visible, directly or indirectly, to the operator of the

motor vehicle.

ImportantNotice

Get other manuals https://www.bkmanuals.com

A. Introduction

Thank you for selecting the ADV8SR. The main features include a

8" Wide Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD)

monitor and a built-in DVD player. The unit applies the latest state of

the art electronics. The unit is constructed to provide years of reli-

able, trouble-free service. Please read the entire instruction manual

supplied with this product prior to operation. The documentation will

assist you in installing the system properly to obtain the best equip-

ment performance. Please store this manual for later use.

B. Cautions and Warnings

1. Installation

Ensure that the ADV8SR is installed in accordance with the in-

structions and illustrations provided in this manual.

2. Objects and Liquids

Do not push objects of any kind into the unit through openings; do

not spill or spray liquid of any kind on or in the system (this may

result in a fire or electric shock). To ensure proper ventilation and

proper operation, never cover or block the ventilation slots and open-

ings

3.Disassembly

Do not attempt to disassemble the cabinet. There is a risk of elec-

tric shock and/or exposure to Laser Radiation. Contact qualified

service personnel if your system is in need of repair.

4. Cleaning Unit

When cleaning, make sure the system is unplugged from the power

source. Do not use liquid cleaners or aerosol cleaners. Use a

cloth lightly dampened with water for cleaning the exterior of the

system only.

Get other manuals https://www.bkmanuals.com

5. Disc

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick pa-

per, tape or glue on the disc. Do not expose the disc to direct sun-

light or heat sources such as hot air ducts. Do not touch the sur-

face of disc. Handle the disc by its edge. Clean the disc by wiping

the disc from the center out with a cleaning cloth. Remove the disc

from the unit and store it in its case after playing. Some playback

operations of discs may be intentionally fixed by software produc-

ers. Since this unit plays discs according to the disc contents the

software producers designed, some playback features may not be

available. Also refer to the instructions supplied with the discs.

C. Contents

1. 8” LCD Monitor & DVD Player Combo

2. A/V Adapter Cable

3. 8 Pin Connect to RCA AV Cable

4. Power/Dome light Harness

5. Hardware Package

4 pcs M4 x 8mm Machine Screws

6. Remote Control

7. Mounting Bracket

8. Owner/Installation Manual

9. Game Controller

Get other manuals https://www.bkmanuals.com

TOOLS REQUIRED:

#2 Philips Screwdriver

#1 Philips Screwdriver

Utility or Razor Knife or Shears

Wire Strippers

Upholstery hook tool (for removal of panels as necessary)

Electrical Tape

MaskingTape

Multimeter(to verify12 voltDC andcontinuity: Donot usea testlight

or logic probe)

Marker pen – to mark headliner

Scribe (to mark trim ring if used)

Misc. electrical connectors (to connect to vehicle power source).

Requirements will vary from vehicle to vehicle.

D. Installation and Powering

Figure 1

Scr ew Rubber pl ug

123

456

789

Get other manuals https://www.bkmanuals.com

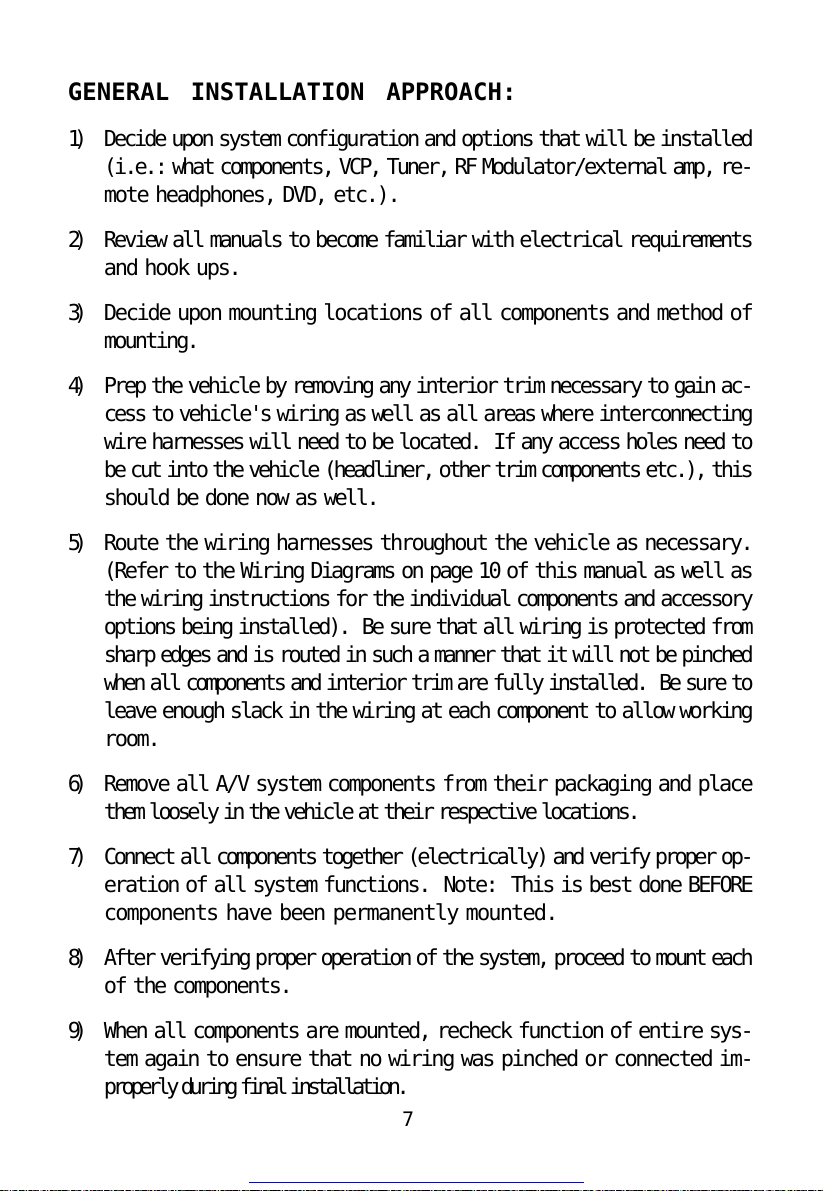

GENERAL INSTALLATION APPROACH:

1) Decide upon system configuration and options that will be installed

(i.e.: what components, VCP, Tuner, RF Modulator/external amp, re-

mote headphones, DVD, etc.).

2) Review all manuals to become familiar with electrical requirements

and hook ups.

3) Decide upon mounting locations of all components and method of

mounting.

4) Prep the vehicle by removing any interior trim necessary to gain ac-

cess to vehicle's wiring as well as all areas where interconnecting

wire harnesses will need to be located. If any access holes need to

be cut into the vehicle (headliner, other trim components etc.), this

should be done now as well.

5) Route the wiring harnesses throughout the vehicle as necessary.

(Refer to the Wiring Diagrams on page 10 of this manual as well as

the wiring instructions for the individual components and accessory

options being installed). Be sure that all wiring is protected from

sharp edges and is routed in such a manner that it will not be pinched

when all components and interior trim are fully installed. Be sure to

leave enough slack in the wiring at each component to allow working

room.

6) Remove all A/V system components from their packaging and place

them loosely in the vehicle at their respective locations.

7) Connect all components together (electrically) and verify proper op-

eration of all system functions. Note: This is best done BEFORE

components have been permanently mounted.

8) After verifying proper operation of the system, proceed to mount each

of the components.

9) When all components are mounted, recheck function of entire sys-

tem again to ensure that no wiring was pinched or connected im-

properly during final installation.

Get other manuals https://www.bkmanuals.com

Notes :The ADV8SR video system is only intended for an overhead,

drop down installation. It is not intended for seat back or any other

type of mounting. The hinging mechanism is designed for horizon-

tal, drop down use only.

VEHICLE PREPARATION:

1) Locate an accessory power source (+12v when key is in the ACC.

and run positions, and 0v when key is off). Generally, this wire can

be found at the ignition switch or fuse-box.

2) The mounting method and location will vary from vehicle to vehicle,

so this manual will only focus on the installation of the video monitor

and related console accessories.

3) Generally, the best location for the video monitor is where the vehicle's

factory dome light is installed. The monitor should be located in

such a manner that it can be comfortably viewed by rear seat pas-

sengers. NEVER INSTALL THE MONITOR IN A PLACE WITHIN THE

DRIVER'S VIEW. THIS IS NOT ONLY DANGEROUS, BUT IT IS

ALSO ILLEGAL.

4) Once the mounting location of the monitor has been determined,

there may be additional preparation work necessary, depending on

the vehicle structure and installation method. Some of the steps

that may be required are:

A) Removal of the vehicle's dome light.

B) The headliner may need to be trimmed.

Get other manuals https://www.bkmanuals.com

MOUNTING THE ADV8SR

Figure 2

NOTE: Two of the mounting holes are located under the domelight cov-

ers.

Get other manuals https://www.bkmanuals.com

1) Make the connections to the vehicle with the 5 pin wiring harness.

2) Connect the 5 pin harness to the mating connector on the Video

Monitor.

3) Connect power harness to vehicle's electrical system by tapping

into an accessory hot line.

4) Verify all functionsof the system before finalmounting of the finished

assembly.

NOTE: A VCP or other A/V Component can be connected to the

video monitor system using an RCA A/V cable. This second har-

ness would plug into the AV1inputs or AUX jack.

A/V Source Definitions :

1 =Built-in DVD

2 =AV1 input ( VCP, DVD, etc )

3 =AV2 Input ( VCP, Game, DVD, etc )

Figure 3

ADV8SR

Ant enna

Get other manuals https://www.bkmanuals.com
