Advantek Networks ALN-318C Manual de usuario

Gigabit PCI Adapter

User’s Manual

Model # ALN-318C

be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any

language or computer language, in any form or by any means, electronic, mechanical,

magnetic, optical, chemical, manual or otherwise, without the prior written permission of this

company.

Disclaimer

This company makes no representations or warranties, either expressed or implied, with

respect to the contents hereof and specifically disclaims any warranties, merchantability or

fitness for any particular purpose. Any software described in this manual is sold or licensed

"as is". Should the programs prove defective following their purchase, the buyer (and not this

company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair,

and any incidental or consequential damages resulting from any defect in the software.

Further, this company reserves the right to revise this publication and to make changes from

time to time in the contents hereof without obligation to notify any person of such revision or

changes.

All brand and product names mentioned in this manual are trademarks and/or registered

trademarks of their respective holders.

Contents

1 Introduction ........ 3

1.1 System Requirements ............3

1.2 Package Contents ...............3

2 Hardware Installation Instructions ........ 4

3 Software Driver Installation .............5

3.1 Gigabit PCI Adapter Software Driver Installation Procedures……… ……..5

3.1.1 For Windows ME, 2000 and XP............................................................................. 6

3.1.2 For Windows 98SE ......................................................................................... 9

3.1.3 For Windows 98 First Edition .................................................................................14

3.1.4 For Windows NT4.0 .............................................................................................14

3.1.5 For DOS ...............................................................................................................14

3.1.6 For Linux ................................................................................................................14

3.1.7 For Netware x .......................................................................................................15

3.2 Contact Information ..................................................................................... 15

1.Introduction

Gigabit PCI Adapter Installation CD is an All-In-One installation utility for Gigabit PCI

Adapter. It automatically detects and installs recently installed Gigabit PCI Adapter hardware

under Windows 98SE, ME, 2000, and XP. This utility includes Install Driver and User Manual

two sections. Click Install Driver to start Gigabit PCI Adapter driver installation process. User

Manual includes specification and hardware/software driver installation instructions for Gigabit

PCIadapter.

1.1 System Requirements

zPentium compatible processor 200 MHz and above

z32 MB system memory or more

z30 MB free space on your hard drive

zCD-ROM drive

zOne available PCI slot

zMicrosoft Windows NT4.0, Windows 98/98SE, Windows ME, Windows 2000,

Windows XP, DOS, Linux, and Netware x.

1.2 Package Contents

zOne Gigabit PCI Adapter

zGigabit PCI Adapter Installation CD disk

If any of above items is missing or damaged, please contact your local dealer immediately.

2. Hardware Installation Instructions

1) Turn off computer and remove its cover.

2) Insert the contact edge of the adapter card into the connector of any available PCI Bus

master expansion slot. Press the card firmly into the connector to PCI slot. Please make

sure the card’s contacts are fully seated in the PCI slot.

3) Install the bracket screw that secures the card to the Computer chassis.

4) Replace the computer’s cover.

5) Connect the Gigabit NIC card to the network with Ethernet Cable.

6) Turn on the computer.

3. Software Driver Installation

3.1 Gigabit PCI Adapter Software Driver Installation Procedures

Insert Gigabit PCI Adapter Installation CD into CD-ROM drive then window below will

appear.

Install Driver: Click Install Driver to start Gigabit PCI Adapter installation process.

User Manual: Click User Manual to open Gigabit PCI Adapter User Manual

Acrobat® Reader 6.0: Adobe Reader 6.0 software to support PDF format file.

3.1.1 For Windows ME, 2000 and XP

1) Once click Install Driver to start the Gigabit PCI Adapter installation, window below will

appear

2) After Gigabit PCI Adapter Installation Utility finishes installing corresponding Gigabit PCI

Adapter device driver, window below will appear. Click OK to complete the installation

process.

3) Click Exit to close Gigabit PCI Adapter Installation Utility.

4) To check if Gigabit PCI Adapter is properly installed:

For Windows XP

(a) Right-click “My Computer” on the Desktop

(b) Choose “Properties”

(d) Click “Device Manager…”

Figure 1 - Marvell Gigabit PCI Adapter

Figure 2 - Realtek Gigabit PCI Adapter

Figure 3 – IC Plus Gigabit PCI Adapter

3.1.2 For Windows 98SE

1) Once click Install Driver to start the Gigabit PCI Adapter installation, window below will

appear:

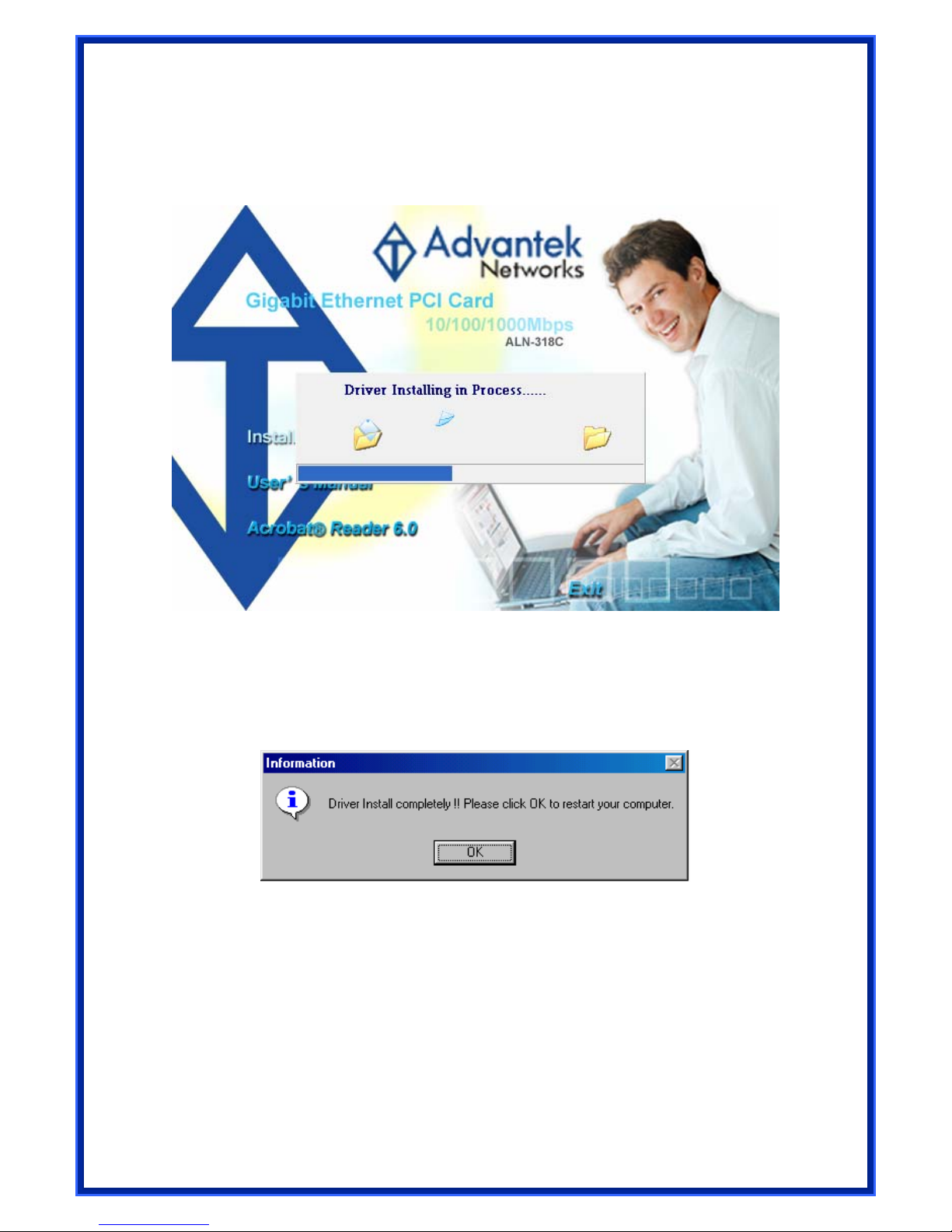

2) After Gigabit PCI Adapter Installation Utility finishes copying Gigabit PCI Adapter device

driver, window below will appear then click OK to reboot your system.
