Advantech PCIE-1182 Manual de instalación y operación

PCIE-1182/81 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. PCIE-1182/81, Dual/Single port 10 GigE Vision Frame

Grabber

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

General

• Chipset:

Intel X550-AT10GBASE-T MAC and PHY

Compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3ab,

IEEE802.3x, IEEE802.3af, IEEE802.3at

• Interface:PCIE 3.0 4x

• DataTransferRate:10,000/5,000(Linux only)/1,000

Mbps

• Protection:

ESD: 8KV(Air), 6KV(Contact)

EFT: 2KV

Surge protection: 1KV

Note: For better compatibility, please change the

PCIe settings to Gen 3.0 on device card slot.

MechanicalandEnvironmental

• Dimensions(LxW):167 x 68.9 mm PCIE low prole

• PowerRequirements:

12 VDC direct from PCIe slot, or with optional 12 VDC

AT/ATX power jack input

PoE+ output 60W (2 port) / 30Watt (1 port), protect by

recoverable eFuse

VDC output 12 VDC up to 48Watt (2 port) / 24Watt (1 port),

protect by recoverable eFuse

• NetWeight: 300 g

PCIE-1182/81 2/1 port PCI Express 10 GigE Vision

Frame Grabber

Startup Manual

MainBoardConnectors

Ports Function

RJ Port1 ~ Port 2 10 GigE ports 1~2

Connector1 12V DC output

LEDindicatorsofRJ45(Lan)connector

LEDs Description

Lan LED (In the left of

RJ45 connector) Green: Ethernet connected

Link LED (In the right

of RJ45 connector)

Yellow: 5G/2.5G/1G/100 Mbps

Green: 10G

BracketLEDindicators

LEDs Description

DC 1~2(PCIE-1182)

DC 1 (PCIE-1181) 12V DC output

POE 1~2 (PCIE-1182)

POE 1 (PCIE-1181) Power over Ethernet

Figure 1: Bracket LED Indicators

ConnectorsPackingList

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://support.advantech.com.tw/support/default.

aspx

This manual is for the PCIE-1182/81.

Part No. 20411182000

Printed in China

1st Edition

April 2020

Specications

2 PCIE-1182/81 Startup Manual

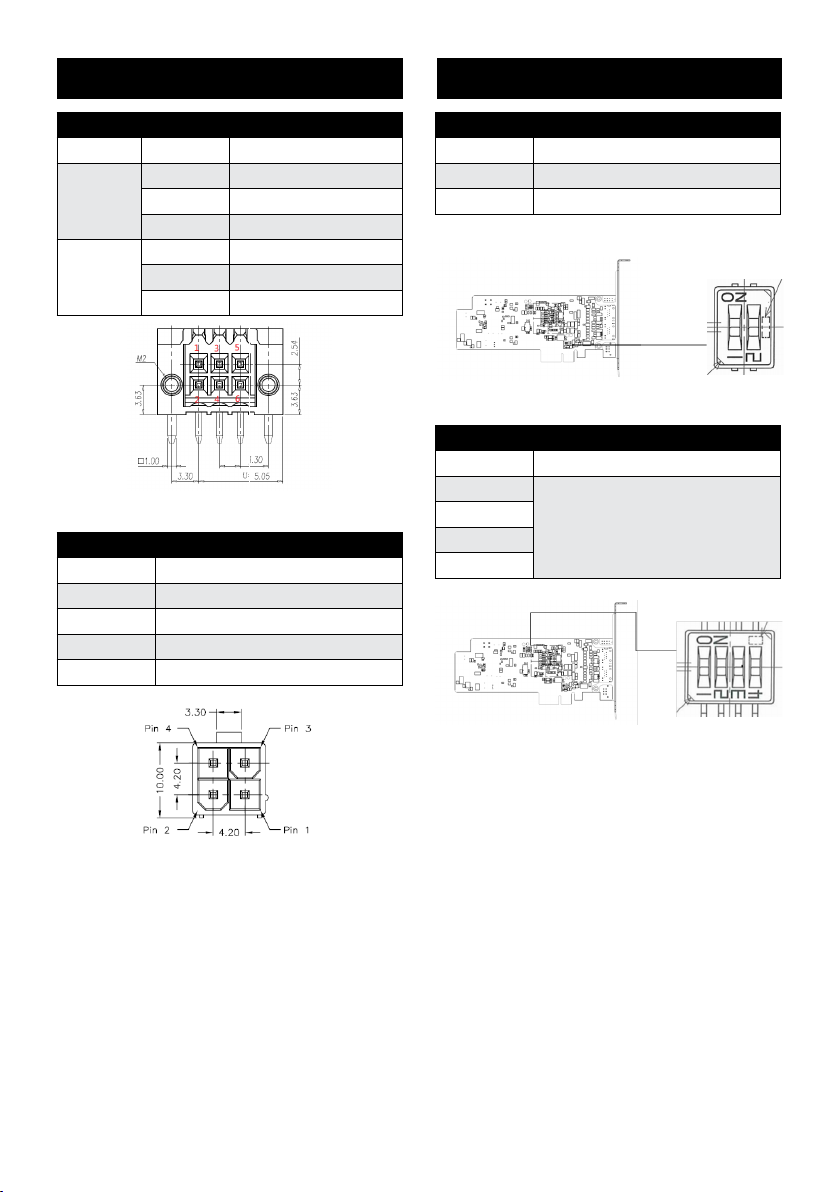

12VDCOutputConnectorPin-OutAssignment

Port Pin Function

DC1

Pin 1 +12 V

Pin 2 GND

Pin 3 N.C

DC2

Pin 4 N.C

Pin 5 +12V

Pin 6 GND

Figure 2: 12V DC output Connector

AT/ATX12VDCinput4-pinpowerconnector

Pin Function

Pin 1 GND

Pin 2 GND

Pin 3 +12V

Pin 4 +12V

Figure 3: AT/ATX 12V DC input 4-pin Power Connector

12VDCOutputSwitch

Pin Function

1DC power On/O󰀨

2DC power On/o󰀨

Default is power on and API can’t control after power o󰀨.

Figure 4 12V DC Output Switch

BoardIDSwitch

Pin Function

Congure di󰀨erent on/o󰀨 position to set-

up the board ID in multi-card scenario

Figure 5 Board ID Switch

Connector(Cont.) Connector(Cont.)

PCIE-1182/81 Startup Manual 3



DeclarationofConformity

FCCClassA

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause interference in which case the user is required to correct

interference at his own expense.

This product has passed the CE test for environmental specications when shielded cables are used for external wiring. We

recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for

ordering information.

Figure 6: Board Layout

BoardLayout
