WISE-2210 Startup Manual 1
Thank you for purchasing the WISE-2210 module. This
quick start guide is intended to help you deploy your new
module. The guide contains basic information on the power
and application wiring.
Should you require additional instructions, please refer to
the user manual.
WISE-2210 is self-powered sensor node, power source
comes from an analog input which is connected to a 0~100
mA current transformer. In other words, WISE-2210 mea-
sures data and gets power current from connected current
transformer.
• 1 x WISE-2210 module
• 1 x Mounting bracket
• 1 x Quick start manual
• 1x China RoHS declaration (UA series only)
*Antenna should be ordered respectively per required
frequency range.
WISE-2210
LPWAN Self-powered Sensor Node
Startup Manual
Analog Input current: Alternating Current
(0~100 mA)
1. Connect the module to your computer via the micro-
USB port.
2. Open WISE Studio and click Go To Conguration.
I/O Pinout & Application WiringOverview
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service:
https://www.advantech.com/support/
This startup manual is for WISE-2210.
Part No. 2043221000
Printed in Taiwan
1st Edition
May 2019
Input Power Requirements
Packaging List
Quick Start
2 WISE-2210 Startup Manual

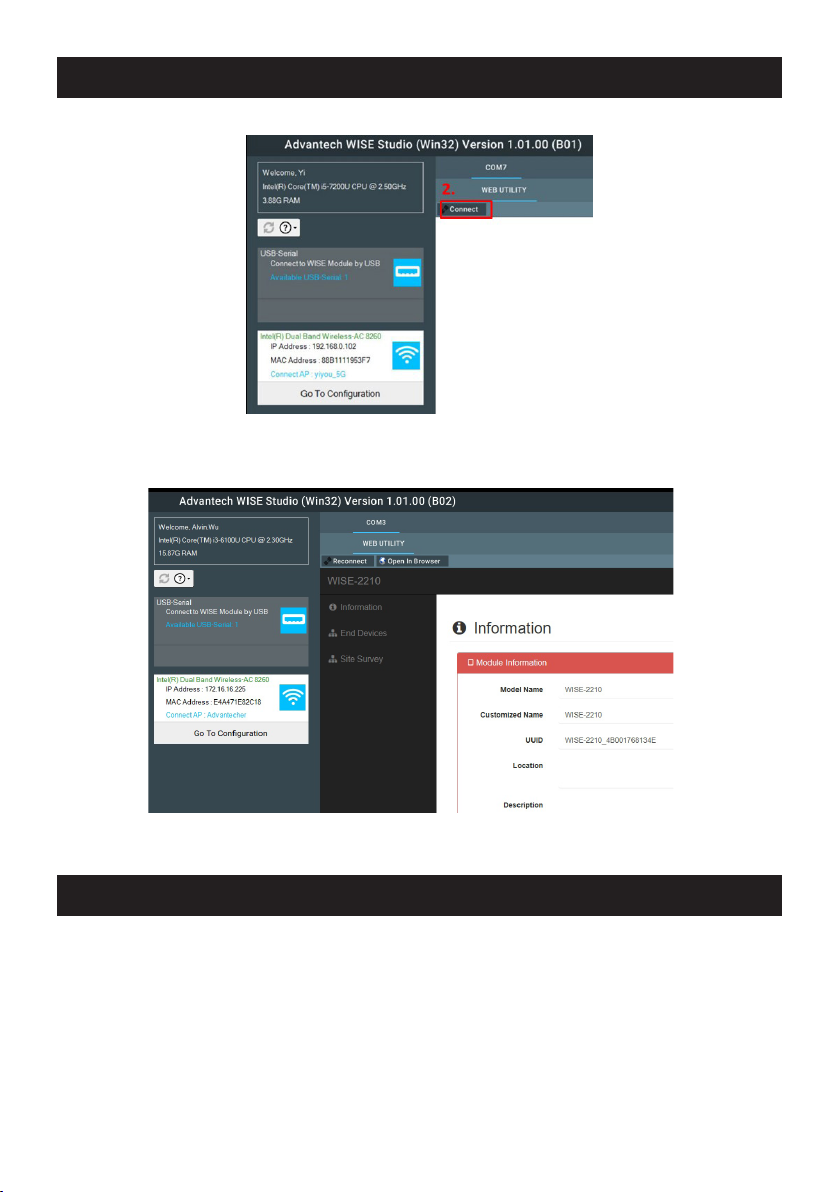

3. Click ConnecttolinktheWISE-2210andthewebcongurationpagewillappear.
4. UsethewebcongurationtoolinWISEUtilityorpressOpen In Browsertoopenthewebcongurationinanybrowser
(Google Chrome is recommended).
5. ClickInformationtocheckthestatusofthemoduleortocongurethemodule.
USBcableisonlyforconguration.
Quick Start
Note
