Product Features

■Up to 28 Octal ADSL with POTS

splitter modules per chassis

■Supports ADSL, ADSL2+, and

VDSL2

■Total Access 3000 DSLAM

integration

■ANSI T1.413 compliant

■Four-pole splitter design with

no active components on the

splitter modules

■

Make-before-break

connec-

tors to maintain always-on

POTS

■Rugged NEBS-compliant metal

design with latched, hinged,

metal front cover for easy

design

■Filtered airflow maintained

from the front of the chassis

■SHDSL, IMA, IDSL, DS1 FR,

CES, and DSX-1 service

accommodation

■Industry-leading, 10-year

warranty

Asymmetric Digital Subscriber Line (ADSL

and ADSL2+) is the prominent DSL service

offered by telecom carriers and continues to

be delivered in conjunction with Plain Old

Telephone Service (POTS). The extraordinary

demand for ADSL service has accelerated

the demand for higher-density equipment.

Furthermore, as the demand for VDSL2

grows, both splitter and non-splitter appli-

cations will be required.

The ADTRAN®Total Access®3050 is

designed to meet this demand by providing

the ADSL/VDSL and POTS signal splitting/

combining function. It is configured to inte-

grate with the Total Access 3000 DSLAM using

28 Octal splitters or cut-through modules per

chassis and is ANSI T1.413 compliant. The

shelf is a solid metal design with a latched,

hinged, metal front cover for easy access. A

filtered airflow is maintained from the front of

the chassis. The Total Access 3050 utilizes a

four-pole splitter design and no active

components are on the standard splitter

modules. No direct current (DC) blocking

capacitor is required.

ADTRAN designs products that maximize

functionality for its carrier customers. In that

regard, the Total Access 3050 accommodates

other service cards such as SHDSL, IMA,

IDSL, DS1 FR, CES, and DSX-1. These can be

utilized by installing a cut-through module

instead of a splitter module in the

corresponding shelf.

The unit uses make-before-break connec-

tors to maintain POTS connectivity and

operate normally without a splitter module

installed. Connection to the Total Access 3000

DSLAM is established using 64-pin connec-

tors.

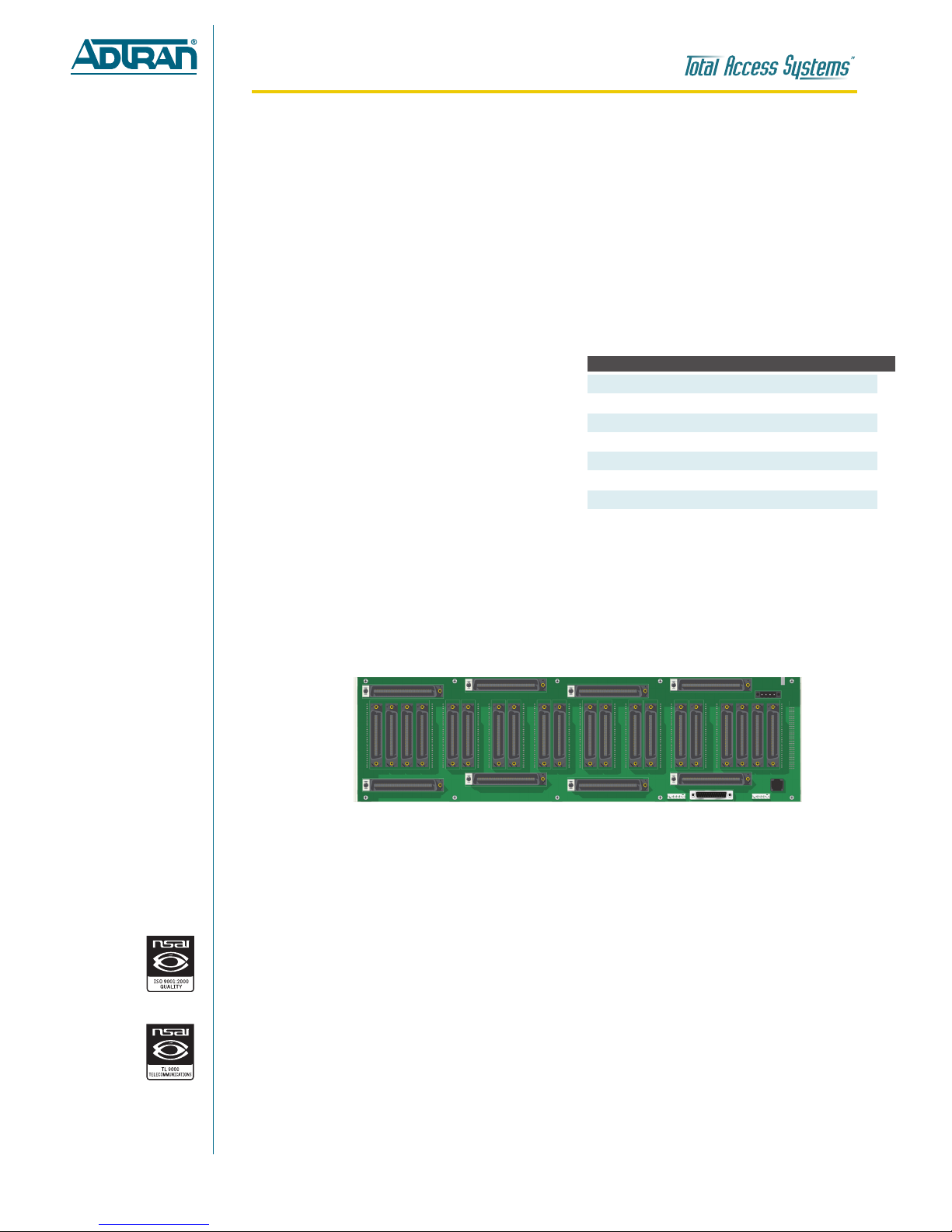

The rear of the shelf has twenty 50-pin and

eight 64-pin amp connectors, one DB-25

connector for Metallic Test Access (MTA), and

one RS-485 wire-wrap bus for daisy chaining

splitter shelves. There is a standard power

connector for –48 V, –48 V return, and chassis

ground.

The system will also support MTA. With

the addition of the metallic test control

module and modules with MTA, the shelf will

interface with metallic test heads and provide

access to the loops. There are MTA modules

for both ADSL and cut-through applications.

DSLAM Splitter Shelf

Total Access 3050 DSLAM Splitter Shelf

Specifications are subject to change without notice. ADTRAN and Total Access are regis-

tered trademarks of ADTRAN, Inc. All other registered trademarks and trademarks men-

tioned in this publication are the property of their respective owners.

Product Specifications

Front Panel Features

■Shelf has latched, hinged, metal front cover

■Filter for the Total Access 3000 in the front cover

Mechanical

■Dimensions: 6 in. H x 23/19 in. W x 12 in. D

(15.24 cm H x 58.42/48.26 cm W x 30.48 cm D)

■Weight: 2 lb (0.907 kg)

■Mounting: 4 RU

Interfaces

Management Interface

■RS-485

MTA Interfaces

■POTS: 50-pin amp

■ADSL+POTS: 50-pin amp

■ADSL Interface to Total Access 3000: 64-pin amp

Electrical

■Operates from A or B

■-42 to -56 VDC

Regulatory Standards

■NEBS Level 3

■GR-1089-CORE, Issue 3

■GR-63-CORE, Issue 2

■NRTL Safety Listed

Total Access 3050 DSLAM Splitter Shelf

Management

■Remote management: TL1 via Total Access 3000

Environmental

■Operating temperature: -40ºC to +70ºC

■Storage temperature: -40ºC to +85ºC

■Relative humidity: Up to 95 percent, noncondensing

Ordering Information

Equipment Part #

Total Access 3050 Splitter Shelf 1183001L1

ADSL2+ Splitter Module 1183102L1

ADSL2+ Splitter Module with Test Access 1183102L2

VDSL2 Splitter Module 1183202L1

Cut-through Module 1183003L1

Cut-through Module with Test Access 1183003L2

Metallic Test Controller 1183010L1

Total Access 3000 to

Total Access 3050 Cable 1181926L2

61183001L1-8B May 2007

DSLAM Splitter Shelf

ADTRAN, Inc.

901 Explorer Boulevard

Huntsville, AL 35806

P.O. Box 140000

Huntsville, AL 35814-4000

256 963 8000 voice

256 963 8030 fax

877 457 5007 fax back

General Information

800 9ADTRAN

[email protected]

www.adtran.com

Pre-Sales

Technical Support

888 5ADTRAN

[email protected]

www.adtran.com/support

Where to Buy

800 827 0807

www.adtran.com/where2buy

Post-Sales

Technical Support

800 726 8663

[email protected]

www.adtran.com/support

Regional Offices

Dallas, TX

972 830 9070

Denver, CO

303 471 9150

Irvine, CA

949 260 3500

Kansas City, KS

800 471 8649

Newark, NJ

800 471 8656

Ontario, Canada

416 290 0585

Quebec, Canada

877 923 8726

San Antonio, TX

888 223 7671

International Inquiries

+1 256 963 8716 voice

+1 256 963 6300 fax

[email protected]

www.adtran.com/international

ADTRAN is a

TL 9000 registered company.

ADTRAN is an

ISO 9001:2000 registered company.
