NetVanta Series

(with E1/FE1 or E1/FE1 with G.703 Drop Network Interface Module)

Quick Configuration Guide 64200868L1-42A February 2004

• Category 5 - UTP cable for connecting the system to the existing network.

• VT100 terminal or PC with VT100 emulation software.

• DB-9 (male) to DB-9 (female) straight-through cable for configuring the unit.

Equipment Required

This quick start guide provides step-by-step instructions for configuring your application. The

configuration scripts are available on the ADTRAN OS System Documentation CD.

The configuration parameters used in the example outlined in this document are for

instructional purposes only. Please replace all underlined entries (example) with your specific

parameters to configure your application

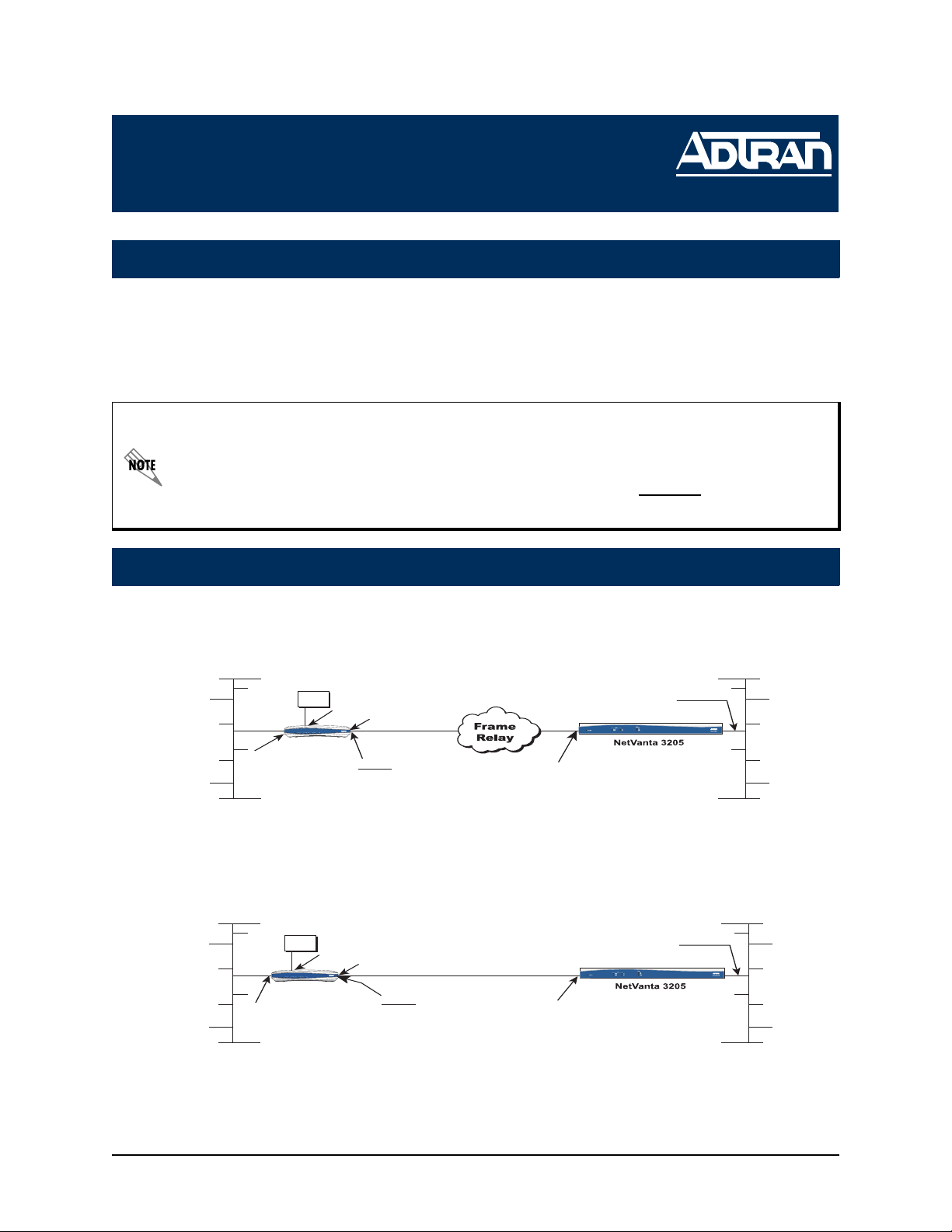

Network Diagrams

Frame-Relay Diagram

PPP over Fractional E1 Connection Diagram

Branch Office Corporate HQ

NetVanta

LAN IP: 10.10.10.1/24

WAN IP: 192.168.72.2/30

eth 0/1

LAN IP: 10.10.20.7/24

PWR STAT TD

VPN

RD TD RD TD RD

WAN LAN

PWR STAT TD

VPN

RD TD RD

NetVanta3200

WAN LAN

DLCI 16

Annex D Signaling

192.168.72.1/30

FR 1

e1 1/2

e1 1/1

PBX

Timeslots 1-15 Data,

Timeslots 17-31 Voice*

* Voice circuits require timeslot 16 for signaling. If

voice is required on the e1 1/2 G.703 port, the largest

data map which can be configured is timeslots 1-15

(leaving 17-31 for voice) or 17-31 (leaving 1-15 for

voice).

Branch Office Corporate HQ

NetVanta

LAN IP: 10.10.10.1/24

eth 0/1

LAN IP: 10.10.20.7/24

WAN IP: 192.168.72.2/30

PWR STAT TD

VPN

RD TD RD TD RD

WAN LAN

PWR STAT TD

VPN

RD TD RD

NetVanta3200

WAN LAN

Point-to-Point E1

Timeslots 1-15 Data,

Timeslots 17-31 Voice*

PPP Signaling

192.168.72.1/30

PPP 1

e1 1/2

e1 1/1

PBX

* Voice circuits require timeslot 16 for signaling. If

voice is required on the e1 1/2 G.703 port, the largest

data map which can be configured is timeslots 1-15

(leaving 17-31 for voice) or 17-31 (leaving 1-15 for

voice).

2 Technical Support +1-256-963-8716 64200868L1-42A

1Configuring the Unit

The NetVanta may be initially accessed and managed either via a console session or

through a Telnet session. See step 1a for console session instructions. Initiating a Tel-

net session requires using a hub and two Ethernet cables (one for the PC and one for

the unit). The default Ethernet IP address is 10.10.10.1. Refer to step 10 to change Tel-

net session settings.

1a Initiating a Console Session

1. Connect a VT100 terminal (or PC with VT100 emulation software) to the NetVanta

CONSOLE port using a DB-9 (male) to DB-9 (female) straight-through serial cable.

2. Configure the COM port with the following parameters:

Data Rate: 9600

Data Bits: 8

Parity Bits: None

Stop Bits: 1

Flow Control: None

3. Open a VT100 terminal session. (Please refer to the appropriate VT100 terminal

software documentation for detailed instructions.)

4. Press the <Enter> key.

5. Enter enable at the >prompt.

6. Enter the password when prompted. The default password is password.

7. You are now at the #prompt. At the #prompt, enter config terminal to enter the

global configuration mode.

64200868L1-42A Technical Support +1-256-963-8716 3

2Configuring the Ethernet Port Parameters

1. At the (config)# prompt, enter interface eth 0/1 to access the configuration

parameters for the Ethernet port located on the rear panel of the unit.

2. Enter ip address 10.10.20.7 255.255.255.0 to assign an IP address to the Ethernet

port using a 24-bit subnet mask.

If you are accessing the NetVanta via Telnet, once you change this IP address, you will

lose connection to the NetVanta. You must change the IP address of your PC before you

can proceed.

ADTRAN recommends that you set the Ethernet speed and duplex to match the switch or

hub it is plugged in to.

For example: (config-eth 0/1)#speed 10

(config-eth 0/1)#half-duplex

3. Enter no shutdown to activate the interface to pass data.

4. Enter exit to exit the Ethernet interface commands and return to the global

configuration mode.

The NetVanta Network Interface Modules (NIMs) use a slot/port notation for interface

identification. All non-modular interfaces built into the base unit (e.g., the Ethernet port) are

identified using 0 as the slot number.

3Beginning the E1 Network Interface Configuration

1. At the (config)# prompt, enter interface e1 1/1 to activate the interface

configuration mode for the E1 network interface.

2. If necessary (this is the default), enter clock source line to configure the unit to

recover clocking from the E1 network connection.

You should only need to change this setting for PPP, which will have one end set to line

(default) and the other end set to internal.

3. If two units are configured on a private E1 (PPP mode), set one unit to clock

source line and the other to clock source internal. For frame-relay, set both ends

to clock source line.

4 Technical Support +1-256-963-8716 64200868L1-42A

4Creating the E1 Interface TDM Group

The following steps demonstrate configuring an E1 network interface with timeslots 1-

15 for data.

1. At the (config-e1 1/1)# prompt, enter framing crc4 .

2. Enter sa4tx-bit 0 .

3. Enter tdm-group 1 timeslots 1-15 speed 64 to create a TDM group for timeslots 1-

15 (the data timeslots) on the E1 network connection (e1 1/1).

4. Enter no shutdown to activate the interface.

5. Enter interface e1 1/2 to activate the interface configuration mode for the G.703

network interface.

6. Enter no shutdown to activate the interface.

7. Enter exit to return to the global configuration mode.

The NetVanta automatically maps timeslots 1-31 from the network connection of the E1/FE1

+ G.703 NIM to the G.703 port. Creating a TDM group removes the specified timeslots from

the G.703 map. All remaining timeslots not included in the TDM group will be passed from

the network port (e1 1/1) to the G.703 port (e1 1/2).

Voice circuits require timeslot 16 for signaling. If voice is required on the e1 1/2 G.703 port,

the largest data map which can be configured is timeslots 1-15 (leaving 17-31 for voice) or

17-31 (leaving 1-15 for voice).

Timeslot 0 is for synchronization, alarm transport, and international carrier use. It is not

accessible for use for voice or data.

Skip to step 7 for PPP configuration.

64200868L1-42A Technical Support +1-256-963-8716 5

5Configuring the Frame-Relay Virtual Interface

The following steps outline configuring a frame-relay virtual interface (labeled 1) using

a single DLCI back to the corporate router (defined as DLCI 16).

1. At the (config)# prompt, enter interface fr 1 to create a frame-relay virtual interface

labeled 1.

2. If the default setting of ansi was changed, enter frame-relay lmi-type ansi to

configure frame-relay virtual interface 1 to use ANSI (Annex D) signaling.

3. Enter no shutdown to activate the virtual interface to pass data.

4. Enter exit to return to the global configuration mode.

5. The unit has a factory default PPP 1 interface. Enter the command no ppp 1 to

remove this interface.

6Creating the PVC and Assigning an IP Address

1. At the (config)# prompt, enter interface fr 1.16 to create a PVC assigned to frame-

relay virtual interface 1. This activates the configuration parameters for the PVC.

Your prompt should now display (config-fr 1.16)#.

2. Enter frame-relay interface-dlci 16 to assign DLCI 16 to this PVC.

3. Enter ip address 192.168.72.1 255.255.255.252 to assign an IP address of

192.168.72.1 for this PVC using a 30-bit subnet mask.

4. Enter exit to return to the global configuration mode.

5. If you are configuring the NetVanta for use in a frame-relay application and have

completed this step, skip to step 8.

The default encapsulation is RFC 1490 or IETF. Make certain the remote unit uses the same

encapsulation for frame-relay.

7Configuring the Virtual PPP Interface

The following steps show how to configure a PPP virtual interface (labeled 1) to the

corporate router. Skip to step 8 if you are using frame-relay.

1. At the (config)# prompt, enter interface ppp 1 to create a PPP virtual interface

labeled 1.

2. Enter ip address 192.168.72.1 255.255.255.252 to assign an IP address to the

PPP endpoint using a 30-bit mask.

3. Enter no shutdown to activate the virtual interface to pass data.

4. Enter exit to return to the global configuration mode.

8Creating the Cross-Connect

The following steps demonstrate configuring a E1 network interface with timeslots 1-15

for data.

6 Technical Support +1-256-963-8716 64200868L1-42A

1. For frame-relay applications, at the (config)# prompt, enter cross-connect 1 e1 1/1

1frame-relay 1 to connect the e1 network connection (e1 1/1) to the virtual frame-

relay interface (fr 1.16).

or,

2. For PPP applications, enter cross-connect 1 e1 1/1 1 ppp 1 to connect the e1

network connection (e1 1/1) to the virtual PPP interface (ppp 1).

9Configuring the Routes

Depending on your network setup, configure your unit in one of the following ways

beginning at the (config)# prompt:

Scenario 1: Static Route to the Far Side/Internet Access at Local Site

1. Set up the static route: ip route 10.10.10.0 255.255.255.0 ppp 1

(or frame-relay 1.16).

2. Set up the default route: ip route 0.0.0.0 0.0.0.0 10.10.20.x (i.e., address of

internet router).

Scenario 2: No Internet Access at Local Site

1. Set up the default route: ip route 0.0.0.0 0.0.0.0 ppp 1 (or frame-relay 1.16).

2. The internet router at the far side will need a route statement to send traffic back to

this network through the NetVanta 3205. The information (based on the diagram

shown at the beginning of this document) is as follows:

• Destination address: 10.10.20.0 (remote LAN)

• Subnet mask: 255.255.255.0

• Gateway: 10.10.10.1 (NetVanta 3205’s Ethernet)

8Creating the Cross-Connect

64200868L1-42A Technical Support +1-256-963-8716 7

10 Configuring Telnet

The following steps show how to access the Telnet configuration parameters and

change the password. The default password for initializing a Telnet session is

password (all lower-case). For security purposes, change the password to something

unique. For this example, replace the underlined word with a password of your

choosing. The NetVanta supports five Telnet sessions (0-4).

1. Verify that the prompt of your unit displays (config)#.

2. Enter line telnet 0 4 to change the configuration parameters for the Telnet session.

3. Enter password word to change the login password for the Telnet session.

4. Enter exit to return to the global configuration mode.

An enable security mode password must be defined before configured Telnet sessions are

activated. See the following step (Step 11) for information on password configuration.

11 Setting the Enable Security Mode Password

1. Verify that the prompt of your unit displays (config)#.

2. Enter enable password word to set the enable security mode password.

3. Enter enable password md5 word to encrypt the enable password using MD5

encryption.

The enable command security level passwords are case sensitive.

12 Saving the Configuration

1. Verify that the prompt of your unit displays (config)#.

2. Enter exit to leave configuration mode.

3. Enter copy running-config startup-config to save the current configuration to

memory. This command may be abbreviated as copy run start.

4. Enter exit to close the configuration session.

13 Completing the Installation

The NetVanta is now configured and operational. Complete the installation by connect-

ing the appropriate cables to the E1 and Ethernet networks. Please refer to the

NetVanta Hardware Installation Guide for more details on pinouts and cabling.

Otros manuales de Hardware de red de ADTRAN

ADTRAN

ADTRAN IQ 710 Guía del usuario

ADTRAN

ADTRAN 17004660F1/F3 Manual

ADTRAN

ADTRAN TA 900 Manual de usuario

ADTRAN

ADTRAN jobAid 1442351G1 Manual de usuario

ADTRAN

ADTRAN Dual T1/PRI Manual de usuario

ADTRAN

ADTRAN Total Access 900 Series Manual de usuario

ADTRAN

ADTRAN Dial Backup Interface Module 1204006L2 Manual de usuario

ADTRAN

ADTRAN 1200130L1 Manual de usuario

ADTRAN

ADTRAN NetVanta Series Manual de usuario

ADTRAN

ADTRAN Total Access 300 Series Manual del producto

ADTRAN

ADTRAN ISU 2X64 Manual de usuario

ADTRAN

ADTRAN T200 HTU-R Manual de usuario

ADTRAN

ADTRAN 3.125 Gigabit Ethernet Manual de usuario

ADTRAN

ADTRAN 411 Manual de usuario

ADTRAN

ADTRAN DSU/CSU Manual del producto

ADTRAN

ADTRAN DSU IV ESP Manual de usuario

ADTRAN

ADTRAN DSU III ARdc Manual de usuario

ADTRAN

ADTRAN NetVanta 834 Manual del propietario

ADTRAN

ADTRAN 1202295L1 Manual de usuario

ADTRAN

ADTRAN Total Access 324E Manual de usuario

ADTRAN

ADTRAN Total Access 832 Manual de usuario

ADTRAN

ADTRAN DDM+ H2TU-C Manual de instrucciones

ADTRAN

ADTRAN IQ Probe 1200214L1 Manual de usuario

ADTRAN

ADTRAN 24-Port DSLAM Access Module IADSL Module Manual de usuario

Manuales populares de Hardware de red de otras marcas

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manual de usuario

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manual de usuario

Yudor

Yudor YDS-16 Manual de usuario

D-Link

D-Link ShareCenter DNS-320L Manual de usuario

Samsung

Samsung ES1642dc Instrucciones de uso

Honeywell Home

Honeywell Home LTEM-PV Instrucciones de montaje

evertz

evertz 7700 Series Manual de usuario

D-Link

D-Link ShareCenter DNS-343 Manual de usuario

Asante

Asante AsanteBridge 1012 Manual de usuario

FireBrick

FireBrick FB2700 Manual de usuario

Audiovox Electronics

Audiovox Electronics ARWH2T Manual de usuario

ADC

ADC DSX-1 Manual

NetComm

NetComm NF2 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 5620 Manual de usuario

Dell EMC

Dell EMC XC6420 Series Manual de usuario

Lanner

Lanner NCA-1020A Manual de usuario

Allied Telesis

Allied Telesis AT-TN121-A Manual de usuario

Arista

Arista CCA-ETM-Q12 Manual de usuario
