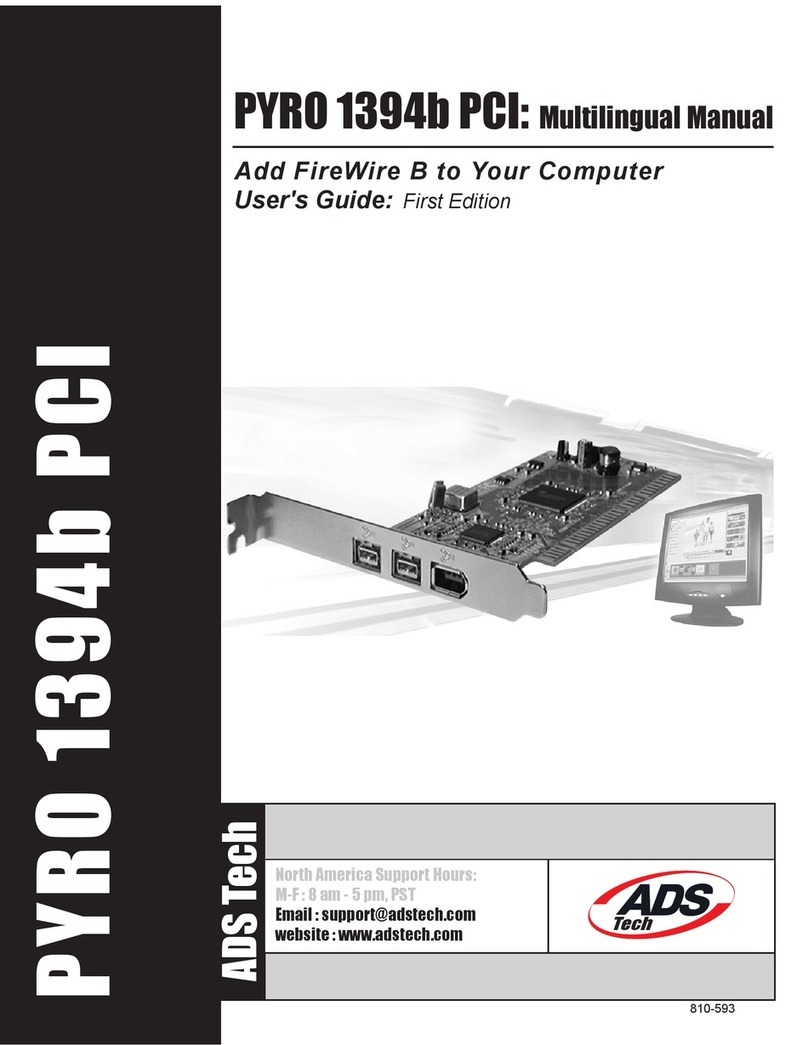

ADS Technologies API-310 Manual de usuario

PYRO 1394 PCI Card

Upgrade Your Computer to FireWire

http://www.adstech.com

ADS Technologies - 12627 Hidden Creek Way - Cerritos - CA - 90703

Phone: 562.926.1928 - Fax: 562.926.0518 - Support: 562.926.4338

PYRO 1394 PCI Card Hardware Installation

Step 1

Power down your computer and discon-

nect the power cord. Be sure to remove

the power cord completely from your

computer as shown in the picture to the

left.

Step 2

Remove each screw found on the back

of the computer. Be sure to put the

screws you removed in a safe place, as

you will need them again when replac-

ing the shell on your computer.

Step 3

Carefully remove the shell from your

computer.

Step 4

With the power cable disconnected from

your computer, touch the metal part of

the case to ground yourself. This will

discharge any static electricity from your

body which can damage your computer.

Step 5

Locate an available PCI expansion slot.

This will be in the area of your comput-

er where other cards that look similar to

the PYRO PCI card are installed.

Step 6

Visually confirm that the PYRO 1394

PCI Card will fit into the available slot

you have chosen.

Step 7

If necessary, remove the knockout on

the back of your computer which corre-

sponds to the PCI slot you have con-

firmed as your selection. If there is a

screw, place it in a safe place as you will

be using it to attach the PYRO 1394 PCI

Card.

Step 8

Push the PYRO 1394 PCI Card firmly

into the PCI slot. Apply pressure as

needed (but do not force the card) until

the edge connector is completely

sealed.

Step 9

Once the PYRO 1394 PCI Card is fully

seated, the gold edge connectors are

completely in the slot.

Step 10

Mount the PYRO 1394 PCI Card in

place with a screw. Make sure the

screw is firmly tightened so the PYRO

1394 PCI Card does not slide out of its

seated position.

Step 11

Replace the computer’s shell and screw

it back in place with the screws you

removed in step 2.

Step 12

Now that your PYRO 1394 PCI Card is

installed and the shell is in place, you

can safely connect the power cable.

Now restart your computer and install

the drivers from the CD.

Step 1

To the left is a picture of the dialog box

that will notify you that Windows has

detected your new hardware.

Step 2

Windows will now automatically run the

"Add New Hardware Wizard." Select

the first option "Search for the best driv-

er..." and click the "Next" button.

Step 3

You will now see a box that asks where

you would like to search for the drivers.

Select the "CD-ROM" option. Make sure

you have the Windows 98 SE, Windows

2000, or Windows ME CD inserted in

your CD-ROM drive. After you have

done this, click on the "Next" button.

Step 4

After Windows locates your new driver

on the Windows 98 SE, Windows 2000,

or Win ME CD, it will ask if you would

like to install the driver. Select the first

option that says "The Updated Driver"

then click the "Next" button.

Driver Installation for Windows

Step 5

Windows will now inform you it is ready

to install your new driver. Verify that the

path is the same as the picture to the

left. It should read

"C:\WINDOWS\INF\1394.INF"

Now click the "Next" button.

Step 6

Congratulations! You are now done with

the driver installation. All that is needed

from you now is to click the "Finish" but-

ton.
