ADDAC System ADDAC213A Manual de usuario
November.2017
ADDAC213A Assembly Guide
ADDAC SYSTEM page 2
Parts included in the kit:
2x Front Panel
2x Pcb
4x 10mm female/female spacer
8x M3 fiber washer
12x M3 screws
4x Nutted Jacks
12x No-nut Jacks
4x Jack nuts
4x 2x5 IDC Connector
2x 2x13 IDC Connector
1x 26 pin Ribbon cable
ADDAC213A Assembly Guide
ADDAC SYSTEM page 3
STEP 1:
Locate Pcb and panels.
The Kit contains the 213A modules pair: Left and Right module.
Here’s how you can identify which is which.
LEFT PAIR RIGHT PAIR
JACKS ORIENTATION
JACKS ORIENTATION
CHANNEL 1
ADDAC213A Assembly Guide
ADDAC SYSTEM page 4
We’ll now assemble the Right Module, you can follow the same principles to assemble the Left module.
STEP 1:
Locate pcb and place the 2x5 IDC boxed headers, notice the orientation of the headers below.
After placing proceed to solder it’s pins.
STEP 2:
Next place the spacers adding a washer between the pcb and the spacer.
ADDAC SYSTEM page 5

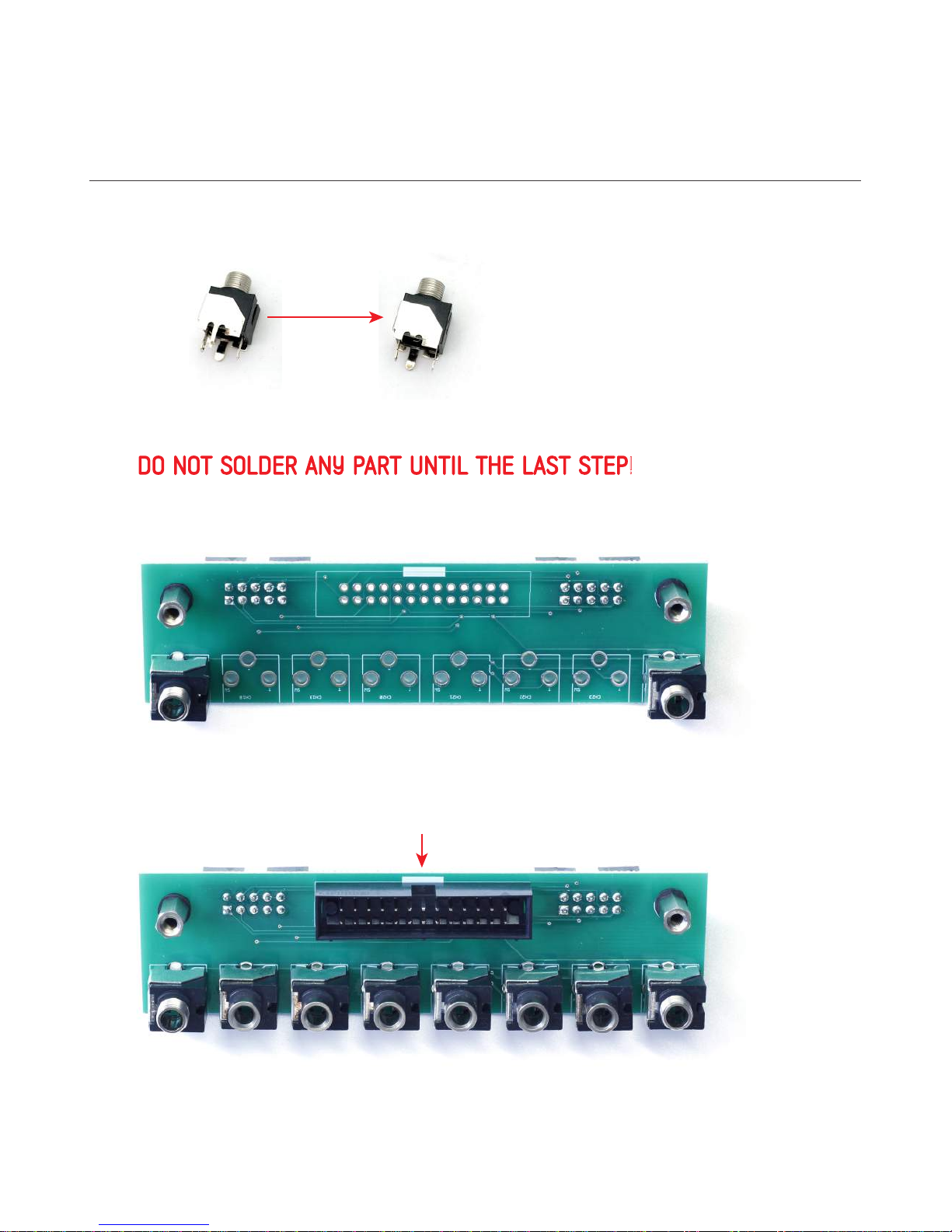

STEP 5:
Place the remaining non-threaded jacks and the 2x13 IDC boxed header, once again, notice the
orientation of the header below.
STEP 4:
Next we’ll place the threaded jacks on both ends.
We’ll now populate all front panel parts:
DO NOT SOLDER ANY PART UNTIL THE LAST STEP!
STEP 3:
Locate the jacks and cut the smallest legs like shown below.
ADDAC213A Assembly Guide
ADDAC SYSTEM page 6

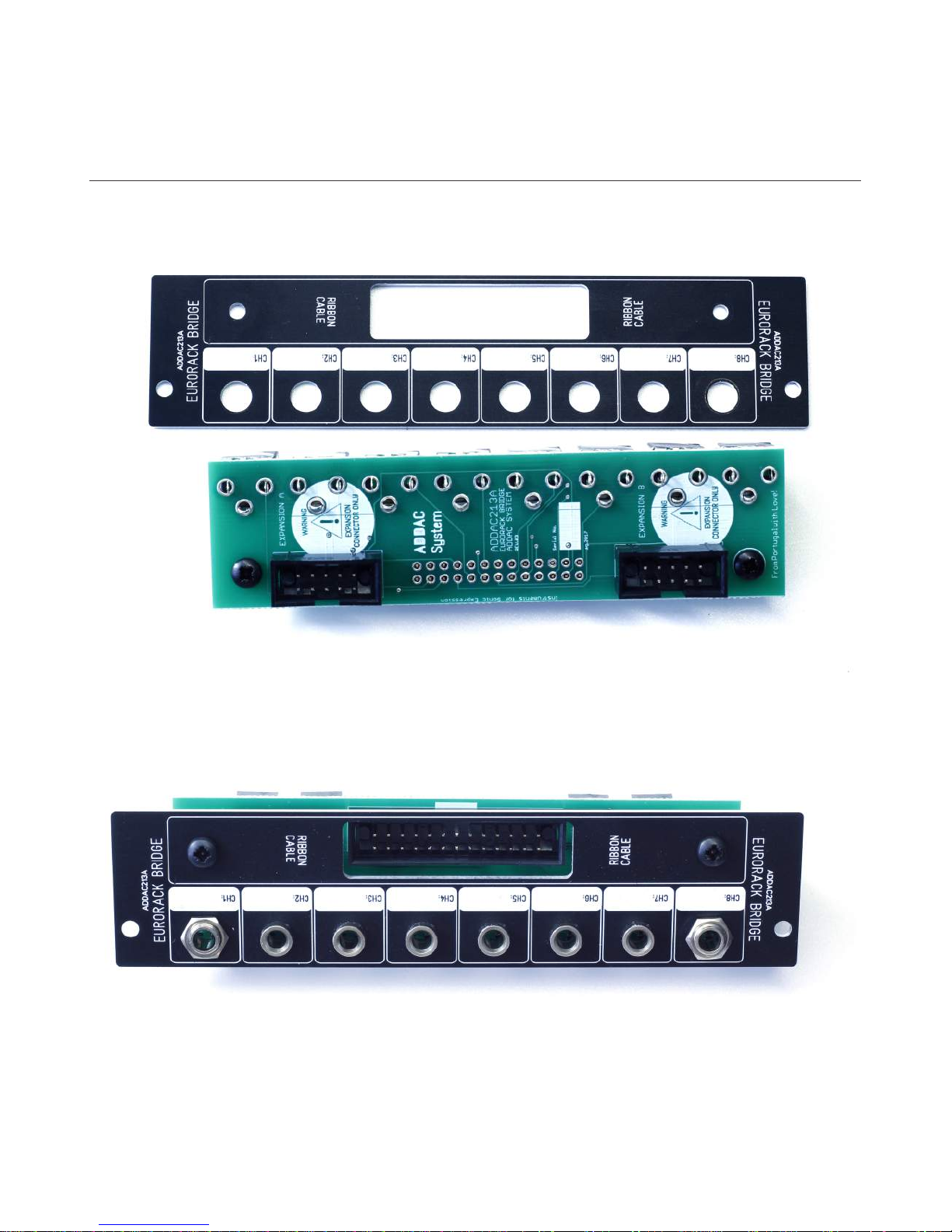

STEP 6:
Locate the right panel and proceed by placing it.
ADDAC213A Assembly Guide
STEP 7:
Tighten both top screws and jack nuts.
Congratulations, you’re all done!
ADDAC SYSTEM page 7
STEP 8:
We’ll now start soldering, first solder 1 pin of the 2x13 IDC, try soldering it as raised as possible, like
shown below.
STEP 8:
Finally solder all other pads.
ADDAC213A Assembly Guide
ADDAC213A ASSEMBLY GUIDE
For feedback, comments or problems please contact us at:
November.2017Revision.01
