Spec Sheet
CMTS Cable Assemblies
With over 70 years of proven performance, ADC, the leader in Broadband RF connectivity is
now able to offer high performance cable assemblies for CMTS applications in Headends that
utilize high capacity RF routers for transport of HSD, IPTV, IP Telephony. Utilizing precision 3 Ghz
connectors and high performance VDM230 cable, we are able to offer the highest performing
cabled assemblies available. Simply use the cable ordering guide below to configure the cable for
your specific application.
Features:
No strain on upper conductors – less chance for intermittents on upper circuits•
Perfect for Cisco UBR10000 CMTS•
Fast delivery times•
Suitable for Cisco, Cienna & Arris CMTS systems•
Precision dressed to prevent cable strain•
MCX, F or BNC connectors on blade end, stub cut or preconnectorized•
with F or BNC at terminal end
5 connector choices•
High-performance F or BNCs ship along connectors included w/stub end version•
Lengths from 3 to 60 feet•
Precision HD-rated (3GHz) cable in 5/10 packs•
6/08•106461AE CMTS Cable Assemblies
2
www.adc.com • +1-952-938-8080 • 1-800-366-3891
Miniature 23 Gage Cable
Multi-channel coaxial video snake for CMTS applications. The VS5230 and VS10230 features 3GHz,
High Definition coaxial elements that have the lowest attenuation of the miniature types and meet or
exceedSMPTE292MstandardsforuncompressedHDvideo.
MECHANICAL
Part #: VS5230/VS10230
# of Coaxials: 5/10
Nominal OD: .570"/.785"
Conductor: 23 AWG Solid TC
Insulation (Type, OD): Gas-injectedFoamPE,.100"
Shield: 95%TCBraid100%Foil
Coax Jacket (Type, OC): PVC,.164"
Coax Color Code: Red, Green, Blue, Yellow, White/Black,Violet, Brown, Gray, Orange
Master Jacket: TPE,Black
ELECTRICAL
Inpedance: 75 Ω(+/-2)
Return Loss (100kHz-1GHz),
(1GHz-3GHz): >23dB, >21dB
Capacitance: 16.5 pF/ft
Cond. DCR per Mft/
Shield DCR per Mft: 20.3 Ω/2.7 Ω
Vel. of Prop.: 82%
1 MHz: 0.38
3.6 MHz: 0.78
10 MHz: 1.19
71.5 MHz: 3.01
135 MHz: 3.80
270 MHz: 5.40
360 MHz: 6.18
720 MHz: 9.30
1 GHz: 10.47
1.5 GHz: 12.97
CMTS Cable Assemblies
Precision Multi-Conductor Coax
6/08•106461AE CMTS Cable Assemblies
CMTS Cable Assemblies
3
www.adc.com • +1-952-938-8080 • 1-800-366-3891
0.331"(8.4mm)
0.413"(10.5mm)
0.134"(3.4mm)
0.026" (0.66 mm)
0.216"
(5.5 mm)
0.079"(2mm)
0.034"(0.86mm)
0.657" (16.7 mm)
0.461"(11.7mm)
0.171"
(4.35 mm)
0.248"
(6.3 mm)
0.142"
(3.6 mm)
0.101"
(2.7 mm)
0.175"
(4.45mm)
0.215"
(5.46mm)
0.325"
(8.26 mm)
Recommended
Cable Stripping Dimensions
Remark: RoHS Compliant
MCX Crimp Connector
Catalog Number
CBL10K -__ __ __ __ __
Length
33 ft.
XX XX ft.
60 60 ft.
Ship Along Connector
F F Connector
B BNC
S None
L LCC
M MCX
Number of Conductors
5 5 Conductor Cable
10 10 Conductor Cable
Terminal Connector
F F Connector
B BNC
S None
L LCC
M MCX
Blade Connector
M MCX
F F Connector
B BNC
L LCC
S None
.594"
.344"
.094"
.156"
.666"
±.020"
Center Conductor
To Body
.254"
±.015"
Recommended Strip Length
.594"
.344"
.094"
.156"
.666"
±.020"
Center Conductor
To Body
.254"
±.015"
Recommended Strip Length
Website: www.adc.com
FromNorthAmerica,CallTollFree:1-800-366-3891•OutsideofNorthAmerica:+1-952-938-8080
Fax:+1-952-917-3237•ForalistingofADC’sglobalsalesofficelocations,pleaserefertoourwebsite.
ADCTelecommunications,Inc.,P.O.Box1101,Minneapolis,MinnesotaUSA55440-1101
Specifications published here are current as of the date of publication of this document. Because we are continuously
improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may
verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.
views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features
containedhereinmaybecoveredbyoneormoreU.S.orforeignpatents.AnEqualOpportunityEmployer
106461AE 6/08 Original © 2008 ADC Telecommunications, Inc. All Rights Reserved
Spec Sheet
Este manual sirve para los siguientes modelos
1
Otros manuales de Cables y conectores de ADC
ADC
ADC DSX-1 Manual de usuario
ADC
ADC Standard FTP Switchboard Cable Manual de usuario
ADC
ADC Category 5e Manual de usuario
ADC
ADC OmniReach Manual
ADC
ADC TrueNet CopperTen Manual de usuario
ADC
ADC 24 AWG STC Manual de usuario
ADC
ADC TrueNet CopperTen Augmented Category 6... Manual de usuario
ADC
ADC TrueNet 1U Manual de usuario
ADC
ADC TrueNet 25-Pair Category 5e Riser Cable Manual de usuario
ADC
ADC Straight Connector BNC-26N Manual de usuario
ADC

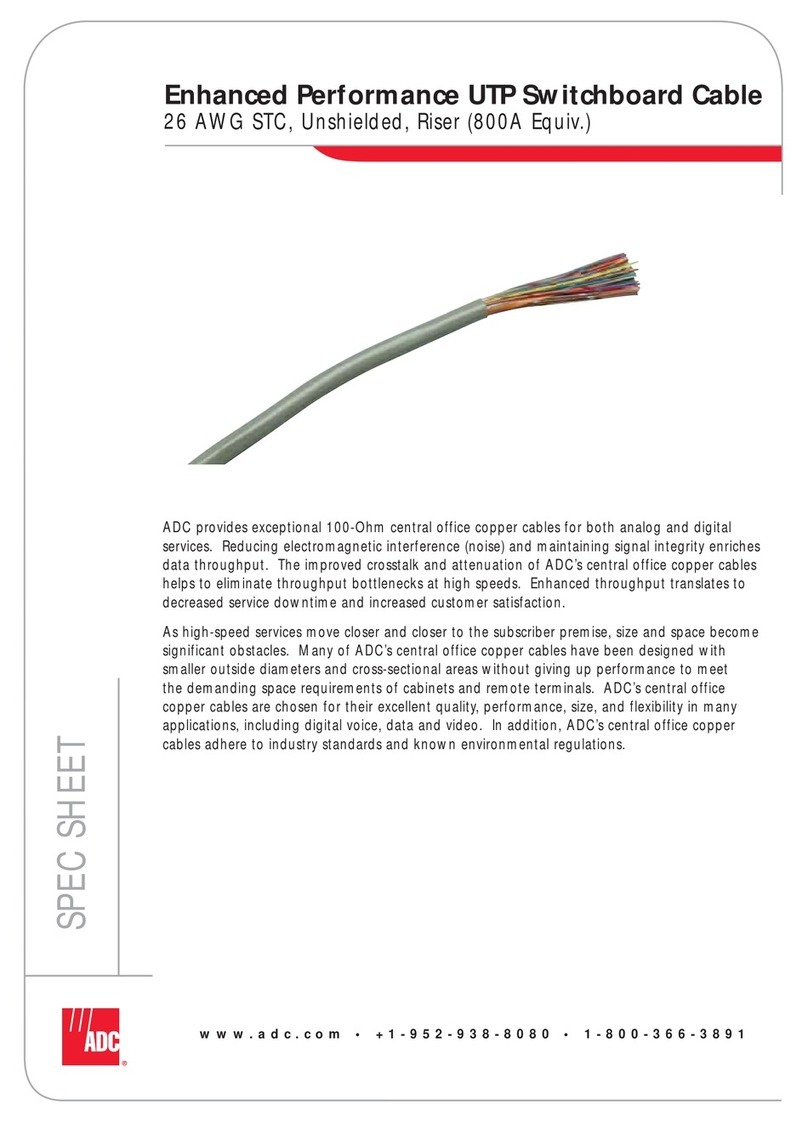

ADC UTP Switchboard Cable Manual de usuario
