6. PROGRAMMING STANDARD FUNCTIONS
Now that your trailer is in position, the “SPEED LIMIT” sign is raised, and your leveling

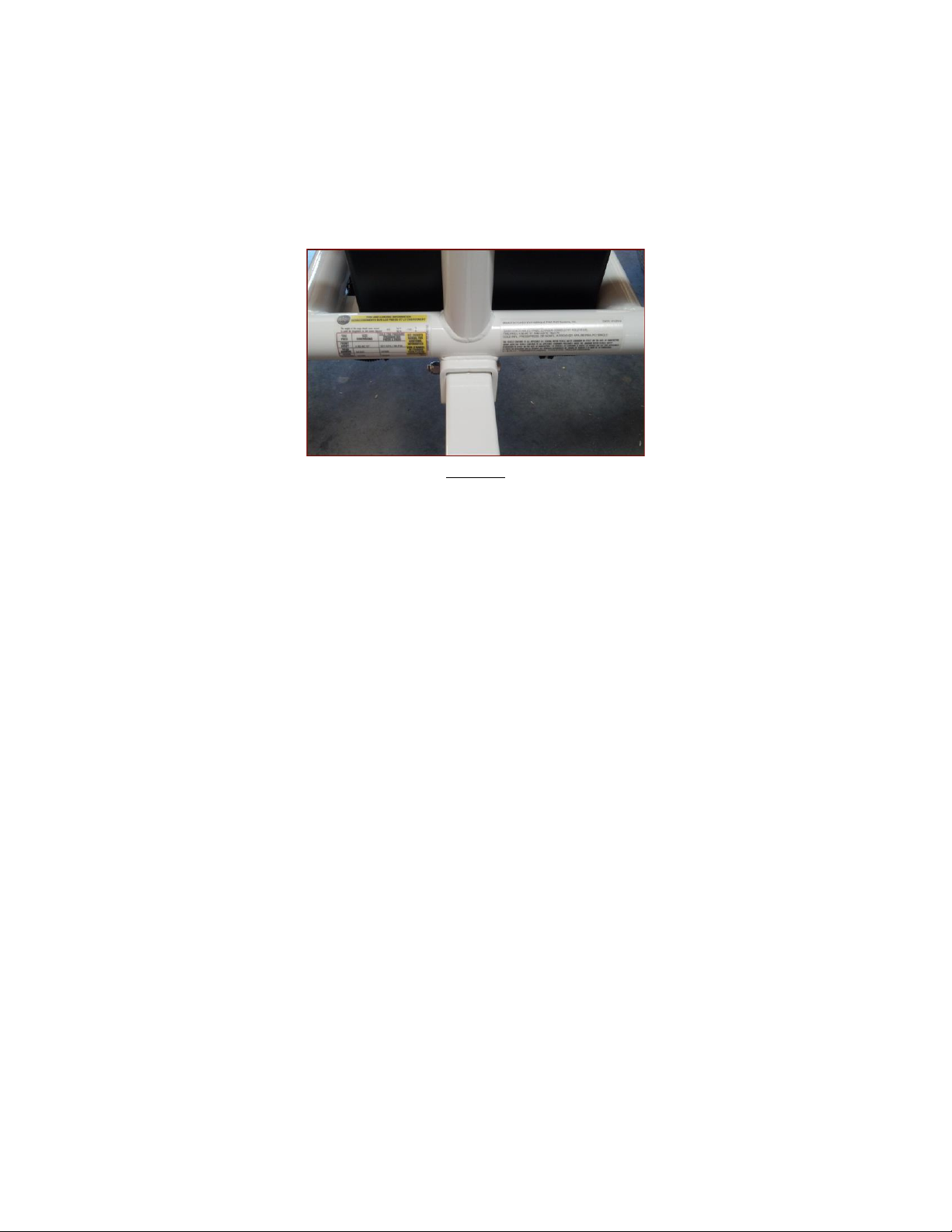

jacks are set; You are ready to power up. Find the included key, insert into the switch at
the underside of the display enclosure as in Figure 7 below. Turn clockwise ¼ turn to the
“ON” position. Your display should light up and flash a number between 0 and 8. This is
the ambient light indicating level that adjusts the LED’s brightness to meet the existing
conditions automatically. Note: The brightness control is always on automatic but it can
be checked for proper operation by the user, if needed. To check this, refer to the
paragraph
“Auto Intensity Diagnostic Mode, code 9981” in the Advanced Features Section.
Next locate a small push button next to the “On/Off” key switch on the bottom of the
enclosure. This is the programming button you’ll use to set up everything on the FAST
650. It will display “NM” for Normal Mode and then begin to cycle through the set up.
Figure 7
Key Chain Remote Control
•The left button directs the numbers up with the other directing down. When
the sign is in run mode, holding both buttons in for 1 second resets the sign
without having to cycle the power key.
•To replace its battery, remove the small Phillips head screw located on the
lower back and replace with a type 27A, 12volt alkaline cell.
Below is a list of the standard programming “menu codes” in the order they appear on
your display.
The speed codes and their meanings
Read over the following programming codes listed in the Speed Code Table
below to become familiar with the two-letter groups (modes) you want to set in
the sign using the push button. Concentrate on the “Normal Mode” (NM) and
“Violator Alerts”
(VA) modes only, for now. Notice that they are grouped so that for example, when
“VA” is selected, you can set the “Minimum Speed”, Flash (speed), Blank (speed),
etc. As the last numbers are entered, the display is ready and goes blank.
