Adaptec ASH-1205SA Manual de usuario
R
Adaptec SATAConnectTM
ASH-1205SA
Installation Guide
1
In this Booklet
This Installation Guide describes how to install the Adaptec SATAConnect
ASH-1205SA card and its device drivers in Windows®desktop
computers. It also describes how to connect internal Serial ATA devices
to your ASH-1205SA card.
Kit Contents 2
System Requirements 2
This Is Your ASH-1205SA 3
Installation Overview 3
Installing the ASH-1205SA Card 4
Installing and Connecting Devices 6
Installing the ASH-1205SA Driver 7
Getting Help 12
2
Kit Contents
Your SATAConnect ASH-1205SA kit includes:
■Adaptec ASH-1205SA Serial ATA (SATA) card
■Internal SATA cable
■SATAConnect CD, including drivers, software, and documentation
■SATAConnect floppy disk, including drivers for use during
Windows XP or Windows 2000 installation
■Adaptec SATAConnect ASH-1205SA Installation Guide
System Requirements
To use your ASH-1205SA card, you need a PC-compatible desktop
computer with:
■A Pentium processor, or higher
■Windows®98SE, Microsoft Windows 2000®, Windows Me®, or
Windows XP®
■An available PCI 2.2-compliant slot
■An available SATA drive
■CD-ROM or DVD-ROM drive
■Floppy disk drive
3
This Is Your ASH-1205SA
Installation Overview
To successfully complete the installation of your ASH-1205SA, complete
the following tasks:
■Install the ASH-1205SA card. See page 4.
■Install and connect your internal SATA devices. See page 6.
■Install the ASH-1205SA driver. See page 7.
SATA Connector 1
SATA Connector 2
PCI Connector
4
Installing the ASH-1205SA Card
To install your ASH-1205SA:
1Turn off your computer, disconnect the power cord, and ground
yourself by touching the metal chassis.
2Remove the computer cabinet, following the manufacturer’s
instructions.
3Find an unused, unobstructed PCI expansion slot. Unscrew the
expansion slot cover screw and remove the slot cover to provide an
opening. Save the slot screw for use in Step 6.
5
4Remove the ASH-1205SA card from its antistatic packaging. Always
handle the card by its edges.
5Place the card in the PCI expansion slot and press down firmly until
the card is fully seated.

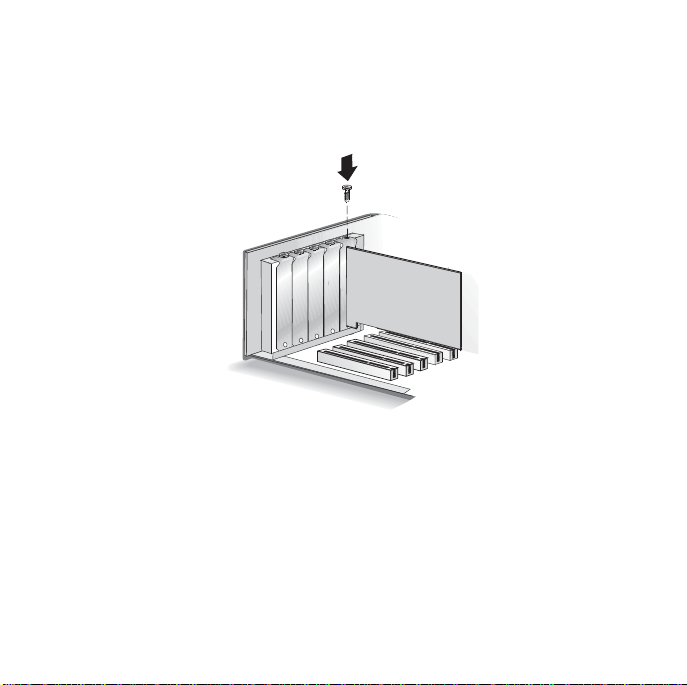

6Secure the card bracket with the screw you removed in Step 3.
7Do not close the computer cabinet or reattach the power cord yet.
Continue with Installing and Connecting Devices on page 6.
6
Installing and Connecting Devices
You will need one SATA cable and one standard or SATA power cord for
each SATA device you plan to connect to your ASH-1205SA. (Refer to
your device’s documentation to determine which type of power cord to
use.)
One SATA cable is included in your SATAConnect kit.
You can connect a maximum of two SATA devices to your ASH-1205SA,
one to each connector on the card.
To complete the installation:
1If your computer is not already open, follow the instructions
provided in Step 1 and Step 2 on page 4.
2Mount the first device in an available bay inside your computer.
Refer to the computer’s documentation for instructions.
3
Plug one end of the SATA cable into Connector 1 on the ASH-1205SA
.
4Plug the other end of the SATA cable into the SATA port on your
device.
5Repeat Step 2 to Step 4 to install a second device, using
Connector 2
.
6Connect a power cord to each device. (Refer to your device’s
documentation to determine which type of power cord to use.)
7Close the computer cabinet, reattach the power cord, then power on
your computer.
Continue with Installing the ASH-1205SA Driver on page 7.
7
Installing the
ASH-1205SA Driver
When Windows is Already Installed
To complete the driver installation when Windows is already installed
on your computer, follow the instructions provided for your operating
system:
■For Windows XP see page 8.
■For Windows 2000, see page 9.
■For Windows Me, see page 10.
■For Windows 98SE, see page 10.
For instructions on verifying driver installation, refer to the User’s Guide
on the CD.
When Installing Windows XP or 2000
To complete the driver installation when you are installing Windows XP
or 2000, follow the instructions provided on page 11.
For instructions on verifying driver installation, refer to the User’s Guide
on the CD.
8
Windows XP
Note: If you are installing your ASH-1205SA at the same time you
are installing Windows XP, see page 11 for instructions.
After you install the ASH-1205SA and your devices, and power on your
computer, the Found New Hardware Wizard opens.
To complete the driver installation:
1Insert the SATAConnect CD.
2Select Install the software automatically..., then click Next.
3Click Continue Anyway.
Note: Adaptec drivers have been fully tested and certified to
work with the ASH-1205SA card.
4When the installation is complete, click Finish.
9
Windows 2000
Note: If you are installing your ASH-1205SA at the same time you
are installing Windows 2000, see page 12 for instructions.
After you install the ASH-1205SA and your devices, and power on your
computer, the Found New Hardware Wizard opens.
To complete the driver installation:
1Insert the SATAConnect CD, then click Next.
2Select Search for a suitable driver..., then click Next.
3Select only CD-ROM drives, then click Next.
4Click Next again.
5Click Yes.
Note: Adaptec drivers have been fully tested and certified to
work with the ASH-1205SA card.
6When the installation is complete, click Finish.
