Adaptec 9210LP Manual de usuario

INSTALLATION

GUIDE

ADAPTEC FIBRE CARD 9210LP

2 GIGABIT FIBRE CHANNEL HOST BUS ADAPTER

9210IG.book Page 1 Monday, April 2, 2001 11:13 AM

The Adaptec Fibre Card 9210LP provides a 2 gigabit interface

between a server and a Fibre Channel storage system and installs

into a standard PCI slot. The Adaptec Fibre Card 9210LP optical

and Adaptec Fibre Card 9210LPC copper adapters supports a

high-performance 64-bit and 66 MHz PCI bus (backward

compatible to 32-bit and 33 MHz). The PCI bus provides a high-

speed (up to 528 MBps) path between the system board and the

Fibre Channel adapter. The Adaptec Fibre Card 9210LP is a PCI

Bus Master device and requires a PCI BusMastering slot that

conforms to the PCI Local Bus Specifications, version 2.2 or

previous versions.

INTRODUCTION

SFP

Receptacle

TachyonXL2

ASIC

Adaptec Fibre Card 9210LP With Optical SFP Connector

Adaptec Fibre Card 9210LPC With Copper HSSDC Connector

HSSDC

Connector

Tachyon

XL2 ASIC

9210IG.book Page 1 Monday, April 2, 2001 11:13 AM

Installation Guide

This installation guide explains how to:

•Install the Adaptec Fibre Card 9210LP/9210LPC

•Change bracketson the Adaptec Fibre Card 9210LP/9210LPC

•Install the Small Form Factor Pluggable (SFP) (on the

Adaptec Fibre Card 9210LP only)

•Connect Fibre Channel cables

•Verify the adapter and cable installation

•Install Adaptec Fibre Card 9210LP/9210LPC device drivers

Discharge any static electricity build-up before handling the

Adaptec Fibre Card 9210LP bytouching a grounded metal object

(such as the exposed metal parts on the back of your computer).

After you turn OFF your computer and unplug the power cord,

remove the cover from the computer.

INSTALLING THE ADAPTEC FIBRE CARD 9210LP

STEP 1

Turn OFF power to the computer and disconnect

the power cord.

WARNING

STEP 2

9210IG.book Page 2 Monday, April 2, 2001 11:13 AM

Adaptec Fibre Card 9210LP

Locate an unused 64-bit PCI expansion slot and remove the

expansion slot cover. If the computerdoes not have a 64-bit slot,

you can install the card in a 32-bit PCI slot.

Select a PCI expansionslot. Savethe slotcover screw for use in

Step 4.

Computers may have vertical or horizontal expansion slots.

Refer to your computer manual to locate the PCI slots. If your

computer is a tower model, place it on its side to make it easier to

install the Adaptec Fibre Card 9210LP.

STEP 3

Be careful when inserting the Adaptec Fibre Card

9210LP into a PCI slot. Some older 32-bit slots do not

accommodate 64-bit cards, and the card or slot may break if

you use force.

64-bit PCI Slot

32-bit PCI Slot

Slot Cover

Expansion

Slot Cover

Screw

WARNING

9210IG.book Page 3 Monday, April 2, 2001 11:13 AM

Installation Guide

Insert the Adaptec Fibre Card 9210LP into the PCI expansion

slot. Press down firmly until the card clicks into place; then

replace the slot cover screw. When installed properly, the card

should appear level with the expansion slot, as shown below.

Vertical Installation Horizontal Installation

STEP 4

9210IG.book Page 4 Monday, April 2, 2001 11:13 AM

Adaptec Fibre Card 9210LP

Your Adaptec Fibre Card 9210LP comes with a low profile

bracket. If you need to attach a standard height bracket, follow

these steps:

Unscrew the two screws located on the face of your Fibre

Channel adapter near your bracket. Set the screws aside.

Remove the bracket.

Attachthe new bracket by lining up the bracket mounting tabs

with the matching holes in your Fibre Channel adapter. Fasten

thetwoscrewsyousetasideinStep1bytwistingsecurelyintothe

holes.

CHANGING THE BRACKET ON YOUR ADAPTER

STEP 1

STEP 2

STEP 3

9210IG.book Page 5 Monday, April 2, 2001 11:13 AM

Installation Guide

The Adaptec Fibre Card 9210LP optical interface requires the

installation of a Small Form Factor Pluggable (SFP) module for

the external connector interface before connecting the external

Fibre Channel cables. For more information about the SFP, see

the Adaptec Fibre Card 9210LP User’s Reference.

Install the SFP into the receptacle on the adapter.

Make sure the SFP fits securely into the receptacle.

INSTALLING THE SFP

STEP 1

STEP 2

You can only install the SFP one way, as the SFP and

guide rails inside the adapter receptacle are keyed.

NOTE

9210IG.book Page 6 Monday, April 2, 2001 11:13 AM

Adaptec Fibre Card 9210LP

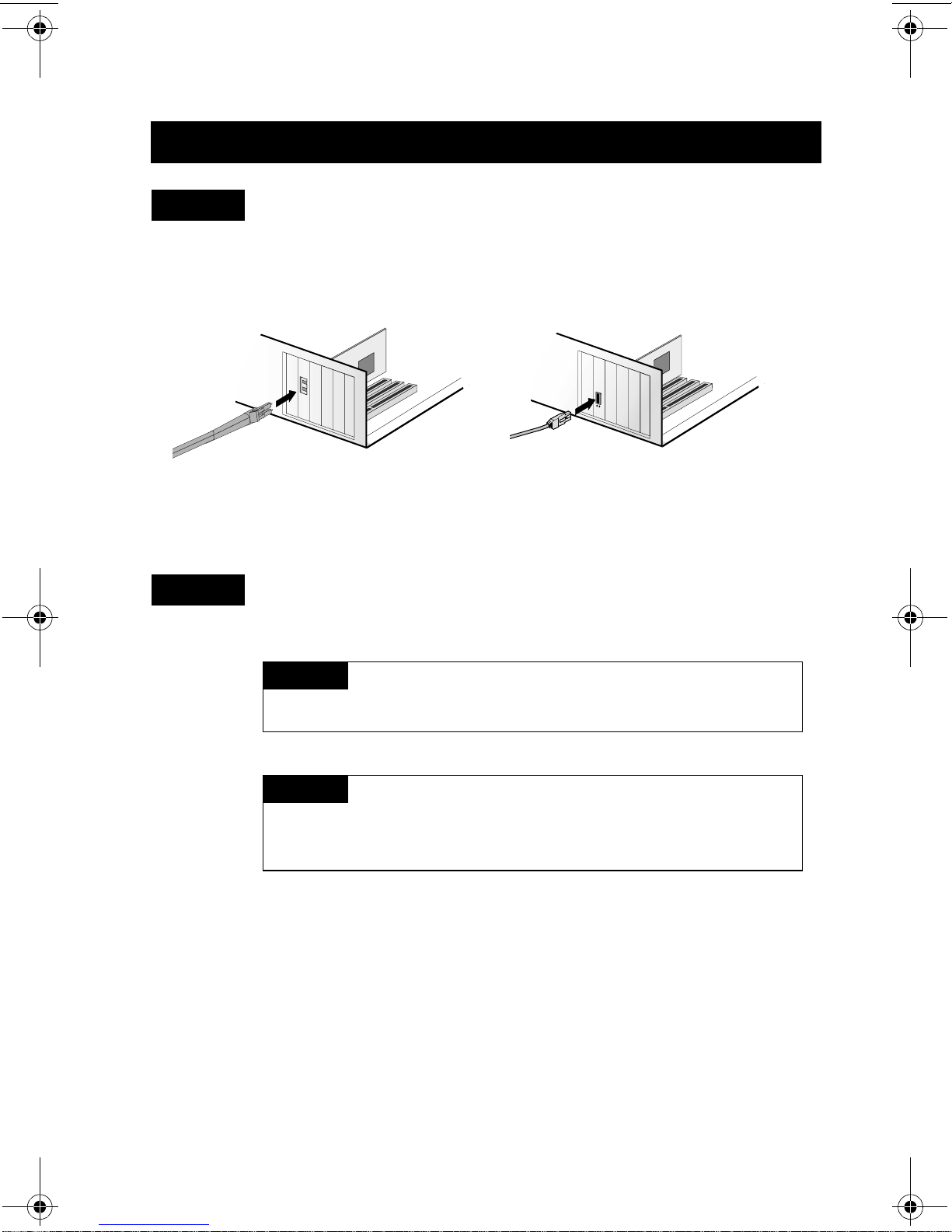

Select the correct cable that matches the Adaptec Fibre Card

9210LP you have installed.

Install the endconnectors of your cable into your computer. The

SFP and Fibre Channel cable are keyed, so they can only fit one

way.

CONNECTING CABLES

STEP 1

Adaptec Fibre Card 9210LP

Optical (LC) Adaptec Fibre Card 9210LPC

Copper (HSSDC)

STEP 2

For optical Fibre Channel cables, support the cable

so that you do not have a bend radius of less than 3 inches.

For optical and copper Fibre Channel cables,

support and route the cable to prevent damage from sharp

edges or from being crushed by nearby equipment.

CAUTION

9210IG.book Page 7 Monday, April 2, 2001 11:13 AM

Installation Guide

You can verify the adapter and cable installation by powering up

the system and looking at the two LEDs on the bulkhead of the

adapter. Under normal operation, the LEDs operate as follows:

Upon Power-Up

•PWR/ACT LED is on

•LNK LED is off

During Card Initialization by the Host OS

•PWR/ACT LED will flash as Fibre Channel devices are

identified

•LNK LED is off

Once the Card has been Initialized by the Host OS

•PWR/ACT LED will flash at one second intervals

•LNK LED is on if the link is up

VERIFYING THE ADAPTER

PWR/ACT

LNK

Adaptec Fibre Card 9210LP and Adaptec Fibre Card

9210LPC With Low Profile and Standard Height

Brackets

9210IG.book Page 8 Monday, April 2, 2001 11:13 AM

Adaptec Fibre Card 9210LP

Installing the Driver When Installing Windows NT 4.0

The Adaptec Fibre Card 9210LP driver is not embedded on the

Windows NT 4.0 installation disks (or CD-ROM) and must be

added during Windows NTinstallation. See your operating

system documentation for instructions.

Completing a Fresh Windows NT 4.0 Installation

From Floppy Disk

Start your system with the Windows NT 4.0 Boot Disk in the

floppy disk drive.

When prompted, insert disk #2 into your floppy disk drive. After

a few moments you will see a blue screen.To set up WindowsNT

now, press Enter.

Press Sto skip auto-detection of devices in your system.

Press Sagain to specify an additional device.

Press Enter to select Others; insert the Adaptec Fibre Channel

Drivers disk in your floppy disk drive.

Using the arrow keys, select the following driver and press Enter:

Adaptec 1Gb/2Gb Family PCI Fibre Channel Controller

(NT 4.0)

INSTALLING THE ADAPTEC FIBRE CARD 9210LP

DEVICE DRIVER FOR WINDOWS NT 4.0

In order to boot the operating system from a drive

attachedtotheAdaptecFibreCard 9210LP,theAdaptecFibre

Card 9210LP must be connected to a drive without a Fibre

Channel switch attached.

NOTE

STEP 1

STEP 2

STEP 3

STEP 4

STEP 5

STEP 6

9210IG.book Page 9 Monday, April 2, 2001 11:13 AM
