IS-Series Line Array Rigging Manual

Version 1.1

Loudspeakers

971-0003 IS7

971-0004 IS7b

973-0006 IS10

973-0007 IS10b

973-0008 IS10n

973-0009 IS10nb

994-0005 IS119

994-0006 IS119b

992-0010 IS118

992-0011 IS118b

EU Declaration of Conformity

ADAMSON SYSTEMS ENGINEERING, Inc.

1401 Scugog Line 6, Port Perry (ON), L9L 1B2, Ontario,

Canada

T: +1 905 982 0520, F: +1 905 982 0609

Email: [email protected]

Website: www.adamsonsystems.com

Adamson Systems Engineering declares that the prod-

ucts stated below are in conformance with the relevant

fundamental health and safety criteria of the applicable

EC Directive(s), in particular:

Directive 2014/35/EU: Low Voltage Directive

Directive 2006/42/EC: Machinery Directive

Established at Port Perry, ON. CA - June 1st, 2017

------------------------------------------------

Brock Adamson (President & CEO)

Accessories

930-0026 IS7/IS118 Support Frame

930-0028 IS10/IS119 Support Frame

930-0029 IS7 Micro Frame

930-0030 IS10 Micro Frame

930-0021 Extended Beam

930-0033 Moving Point Extended Beam

Declarations

Page 3

Adamson Systems Engineering | IS-Series Rigging Manual

Table of Contents

1.0 Safety & Warnings

• Read these instructions, keep them available for reference. They can be downloaded from https://www.

adamsonsystems.com/en/support/downloads-directory/is-series/ Heed all warnings and follow all instructions.

• Qualied personnel must carry out the installation of this product, observing local rules and regulations regarding

suspension and working aloft.

• Servicing is required when the loudspeaker has been damaged in any way, such as when the loudspeaker has been

dropped; or when for undetermined reasons the loudspeaker does not operate normally.

• Visual inspection and approval of the point of suspension is the responsibility of the installation personnel

• Rigging instructions such as Load and Centre of Gravity can be found by using Adamson’s Blueprint AV software.

• Use only with the rigging frames/accessories specied by Adamson, or sold with the loudspeaker system.

• This speaker enclosure is capable of creating a strong magnetic eld. Please use caution around the enclosure

with data storage devices such as hard drives.

1.1 Safety & Warnings

1. Safety & Warnings

2. Rigging Applications

3. Rigging Components

4. Rigging Procedures

4.1 Suspending IS7

4.2 Suspending IS7 Micro Frame

4.3 Ground Stacking IS7

4.4 Suspending IS10

4.5 Suspending IS10 Micro Frame

4.6 Ground Stacking IS10

4.7 Suspending IS118

4.8 Suspending IS7 Below IS118

4.9 Suspending IS119

4.10 Suspending IS10 Below IS119

______________________________________________________________________________________

__________________________________________________________________________________

____________________________________________________________________

_____________________________________________________________________________

________________________________________________________________________________

___________________________________________________________________

___________________________________________________________________________

_______________________________________________________________________________

____________________________________________________________________

_______________________________________________________________________________

____________________________________________________________________

Page 4

Adamson Systems Engineering | IS-Series Rigging Manual

• Blueprint AV must be used for determining rigging angles and potential load restrictions before suspending any

Adamson line array product.

• Pay attention to all load warnings displayed in Blueprint AV. Systems with a load warning must not be suspended

until all warnings have been cleared.

• All suspended systems must have a secondary suspension system installed that is capable of carrying the total

load of the installed system.

• When setting up systems outdoors, take wind conditions into account in terms of total load.

• Installation of these systems should be performed by at least two qualied technicians.

• When suspending any Adamson product, the proper PPE (personal protective equipment) should be worn.

• All local laws and by-laws must be adhered to when suspending these products.

• When lifting apparatus is in operation, nobody shall walk directly underneath.

• Never climb the own array.

Adamson’s predictive software suite, Blueprint AV, must be

used when designing Adamson Line Arrays. It can also be

used as a resource when suspending Adamson Point Source

products.

Blueprint AV is available for both Windows and Mac OSX and

can be downloaded from www.adamsonsystems.com.

There is a tutorial for the software located in the Help section

of the software, as well as a series of tutorial videos located

at www.adamsonsystems.com/en/education/media-gallery/

blueprint-av-tutorial

Adamson recommends that users attend an Applied or

Advanced Certication education session to improve their

working knowledge of Adamson products. Upcoming

sessions can be found at www.adamsonsystems.com/en/

education/events

Blueprint AV contains all the relevant mechanical data

needed when suspending Adamson loudspeakers and

accessories. It will notify the user when a design exceeds

mechanical safety limits. All safety warnings from Blueprint

AV must be strictly adhered to.

1.0 Safety & Warnings

1.1 Safety Precautions

1.2 Software

Page 5

Adamson Systems Engineering | IS-Series Rigging Manual

2.0 Rigging Applications

2.1 Accessories Overview

930-0026

IS7/IS118 Rigging Frame

930-0030

IS10 Micro Frame

930-0021

Extended Beam

930-0033

Moving Point Extended Beam

930-0029

IS7 Micro Frame

930-0028

IS10/IS119 Rigging Frame

Suspension, stacking and

transition frame for IS7 &

IS118 enclosures

Suspension frame to hang up

to 4x IS10 enclosures

Extension beam for larger

angles

Moving point beam to achieve

exact angles with a single pick

point

Suspension frame to hang

up to 8x IS7 enclosures

Suspension, stacking and

transition frame for IS10 &

IS119 enclosures

Page 6

Adamson Systems Engineering | IS-Series Rigging Manual

2.0 Rigging Applications

2.2 Suspension

IS-Series Line Array cabinets can be suspended using either a Riggin Frame or a Micro Frame. IS-Series Subwoofers

can be suspended using a Rigging Frame.

Below are some examples of congurations using these products:

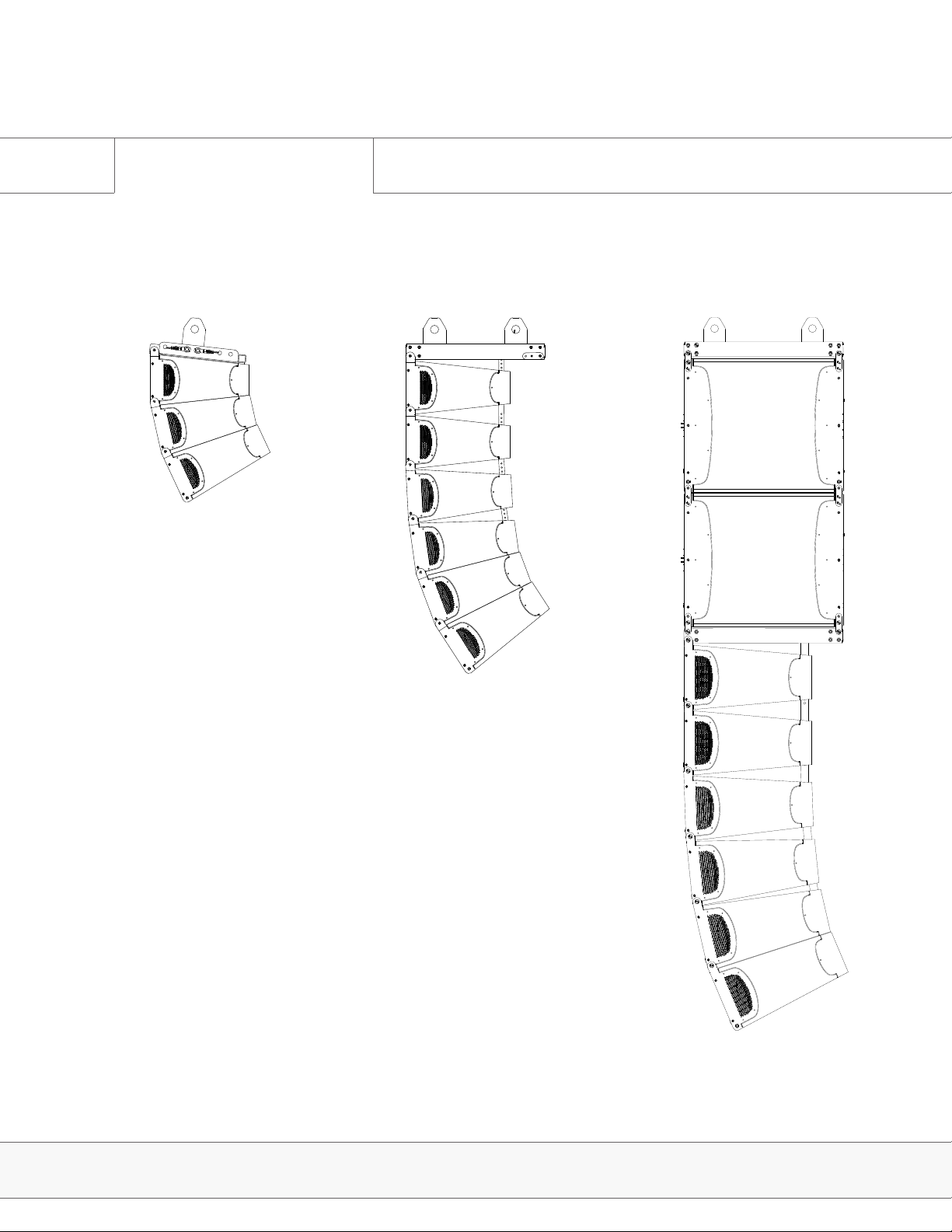

3x IS7 suspended

under 1x IS7

Micro Frame

6x IS7 suspended

under 1x IS7 & IS118

Rigging Frame

2x IS119 and 6x IS10

suspended using 2x IS10

& IS119 Rigging Frames

Page 7

Adamson Systems Engineering | IS-Series Rigging Manual

3.1 Accessories

Upon receipt of the product, verify that all components listed below are present.

The IS7 & IS118 Rigging Frame can be used to suspend either the IS7 or IS118 cabinets. It can also be used as an

additional transition frame between the IS7 and the IS118, either while suspended or while stacking IS7 cabinets on

IS118.

The IS7 & IS118 Rigging Frame’s maximum load capacity (765kg / 1686.5 lbs) far exceeds the realistic maximum

amount of IS7 or IS118.

In instances where the tilt and curvature of the array causes the centre of gravity to be outside of the depth of the frame,

use of the Extended Beam (930-0021) or Moving Point Extended Beam (930-0033) is necessary.

(930-0026) IS7 & IS118 Rigging Frame

3.0 Rigging Components

No. Component Quantity

1Rigging Link 4

2Stacking Link 2

3Quick-Release Pin 6

4Lifting Plate 2

5M6 Screw 16

546 mm / 21.49 in

528 mm / 20.8 in

305 mm / 12 in

114 mm / 4.5 in

60 mm / 2.375 in

Ø12 mm / 0.63 in

Page 8

Adamson Systems Engineering | IS-Series Rigging Manual

Upon receipt of the product, verify that all components listed below are present.

The IS7 Micro Frame can only be used to suspend IS7 cabinets.

The IS7 Micro Frame can be used to suspend a maximum of 8 IS7, provided that the array curvature and overall tilt does

not move the centre of gravity outside of the depth of the IS7 Micro Frame. Refer to Blueprint AV for safety limits.

(930-0029) IS7 Micro Frame

No. Component Quantity

1Quick-Release Pin 2

2Lifting Plate 1

3M6 Screw 2

388 mm / 15.3 in

527 mm / 20.75 in

114 mm / 4.5 in

50.8 mm / 2 in

3.1 Accessories

3.0 Rigging Components

Ø12 mm / 0.63 in

Page 9

Adamson Systems Engineering | IS-Series Rigging Manual

Upon receipt of the product, verify that all components listed below are present.

The IS10 & IS119 Rigging Frame can be used to suspend IS10 or IS119 cabinets. It can also be used as an additional

transition frame between IS10 cabinets and IS119 cabinets, either while suspended or while stacking IS10 cabinets on

IS119 cabinets.

The IS10 & IS119 Rigging Frame has a maximum load capacity of 622 kg / 1371 lbs. The IS10 & IS119 Rigging Frame

can be used to suspend a maximum of 23x IS10s, or 12x IS119.

Instances wherein the tilt and curvature of the array causes the centre of gravity to be outside of the depth of the frame,

use of the Extended Beam (930-0021) or Moving Point Extended Beam (930-0033) is necessary.

(930-0028) IS10 & IS119 Rigging Frame

No. Component Quantity

1Rigging Link 4

2Stacking Link 2

3Quick-Release Pin 6

4Lifting Plate 2

5M6 Screw 16

6Rear Link 2

645 mm / 25.4 in

737 mm / 29 in

396 mm / 15.6 in

114 mm / 4.5 in

60 mm / 2.375 in

3.1 Accessories

3.0 Rigging Components

Ø12 mm / 0.63 in

Page 10

Adamson Systems Engineering | IS-Series Rigging Manual

Upon receipt of the product, verify that all components listed below are present.

The IS10 Micro Frame can only be used to suspend IS10 cabinets.

The IS10 Micro Frame can be used to suspend a maximum of 4 IS10, provided that the array curvature and overall tilt

does not move the centre of gravity outside of the depth of the IS10 Micro Frame. Refer to Blueprint AV for safety limits.

(930-0030) IS10 Micro Frame

No. Component Quantity

1Quick-Release Pin 2

2Lifting Plate 1

3M6 Screw 2

508 mm / 20 in

737 mm / 29 in

114 mm / 4.5 in

50.8 mm / 2 in

3.1 Accessories

3.0 Rigging Components

Ø12 mm / 0.63 in
