Adalit L-3000 Manual de usuario
II 1G Ex ia IIC T4 Ga IP67
II 1D Ex ia IIIC T85 oC Da
User Instructions
Bedienungsanleitung
Manual de Usuario
Instructions d’utilisation
Manual do Utilizador
Technology
Components List
1 Main Features
2 First Steps
3 On | Off Button
4 Menu Button
5 Charging System
6 Maintenance
7 Warranty
Technical Features (at the end of User Instructions)
Index
Bestandteile-Liste
1 Wichtigste Eigenschaften
2 Erste Schritte
3 AN / AUS Knopf
4 MENÜ Knopf
5 Ladevorgang
6 Wartung
7 Gewährleistung
Technische Merkmale
(am Ende der Bedienungsanleitung)
Index
Listado de componentes
1 Características principales
2 Primeros pasos
3 Pulsador On | Off
4 Pulsador Menu | Mapa de consumo
5 Sistema de Carga
6 Mantenimiento
7 Garantía
Especicaciones Técnicas (nal del manual)
Índice
Liste des pièces de rechange
1 Caractéristiques principales
2 Les premiers pas
3 Bouton On | Off
4 Bouton Menu
5 Système de charge
6 Entretien
7 Garantie
Spécications techniques
(à la n des instructions d’utilisation)
Index
Lista de componentes
1 Principais características
2 Primeiros passos
3 Botão On | Off
4 Botão Menu
5 Sistema de carregamento
6 Manutenção
7 Garantia
Especicações técnicas (nal do manual)
Índice

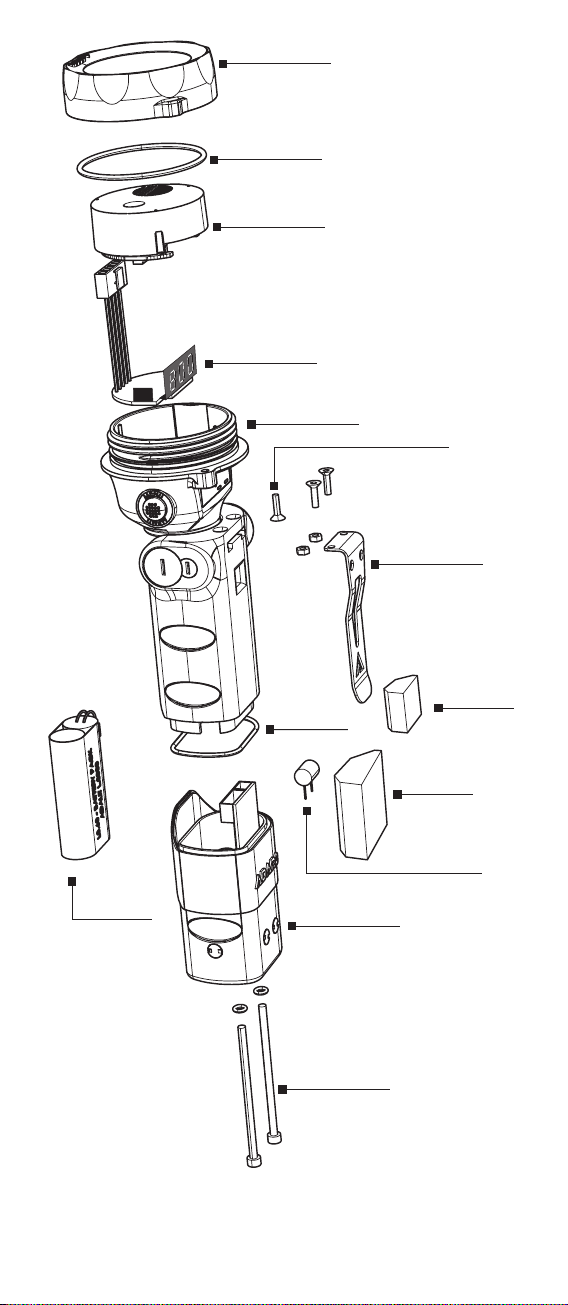

Components List
Bestandteile-Liste
Listado de componentes
Liste des pièces de rechange
Lista de componentes
L3000 Power
Complete torch | Komplette Leuchte | Linterna completa
Lampe complète | Lanterna completa
L3P.10
Closing ring and protection glass | Verschlussring und Schutzglas
Aro y lente de protección | Anneau et lentille de protection
Aro e lente de protecção
L3.11
“O Ring” for closing ring
O-Ring für Verschlussring
Junta tórica para aro
Joint torique pour anneau
O-ring para aro
L50.20
LedEngine | LedEngine | Óptica LedEngine
Óptica LedEngine | LedEngine
L3P.30
PCB with display | Elektronik-Platine mit display
Placa control display | Carte électronique | Placa controlo visor
L3.P40
Complete head with turning axle
Leuchtenkopf mit Schwenkachse
Pieza de cabeza montada con eje de giro
Pièce de tête montée avec axe de tour
Peça da cabeça aplicada com eixo
L3.49
Screw | Schraube | Tornillo | Vis | Parafuso
L3.480
Clip | Halte-Clip | Gancho completo
Crochet de xation | Clip completo
L3.54
Rubber battery protection | Gummischutz für Akku
Protector de goma batería | Protection caoutchouc de la batterie
Protetor de borracha da bateria
L3.55
Torch body “O ring” | Dichtung für Leuchtenkörper
Junta tórica para cuerpo | Joint torique | O-ring para o corpo
L3.56
Rubber battery protection | Gummischutz für Akku
Protector de goma batería | Protection caoutchouc de la batterie
Protetor de borracha da bateria
L3P.50
Torch body including charging PCB
Leuchtenkörper mit Ladekontakten
Cuerpo de la linterna con placa de carga
Corps de la lampe avec contrôle de charge
Corpo lanterna com placa de carregamento
L3.530
Torch body screw with ring
Gehäuseschrauben mit O-Ring für Leuchtenkörper
Tornillo de cierre cuerpo con junta
Vis de fermeture corps avec joint
Parafuso de fecho do corpo com junta
L3.60
Battery pack | Akku-Pack | Pack de baterías
Pack de la batterie | Conjunto de baterias
WL.117
Fuse 1A | Sicherung 1 A | Fusible 1A | Fusible 1A | Fusivel 1A
L3P.10
L50.20
L3P.30
L3P.40
L3.49
L3.480
L3.55
WL.117
L3P.50
L3.60
L3.56
L3.54
L3.530
L3.11
English
Congratulations, you have chosen a product that has
been developed with state-of-the-art technology.
Adalit L3000 Power torch is a high performance
professional safety torch that combines high intensity
LEDS, a revolutionary optic, a large digital display
and an elegant design.
1 Main Features
• LedEngine technology with a step light system.
• Only focused light on, “Booster” function to illumi-
nate long distances with greater penetrating light
beam.
• Two button switches of soft touch material, ergo-
nomic and oversized in order to guarantee easy
pushing.
• 3 different burning intensities in order to select in
every moment the remaining burning time.
• Battery level indication in hours and minutes by
means of a digital display.
• Swivelling head with 3 positions: 0o| 45o| 90o
• Torch body made of high resistance thermoplas-
tic resin to the impacts, extreme temperatures
and corrosion.
• ATEX certicate Zone 0.
2 First Steps
Before using the torch for the rst time, it is highly re-
commended to charge the battery completely.
In order to get the maximum perfomance and life
span of the battery, a complete discharge/charge
cycle should be done at least once per month.
The user can activate:
• The main LED - all the power is gathered in this
LED, “Booster Function” to illuminate long dis-
tances with a greater penetrating light beam.
• The main LED and simultaneously the two auxi-
liary LEDS located on the sides of the optic.
• The main LED in strobe function. Five different
strobe modes can be activated.
• The user can modify the burning time using the
MENU button.
3 On | Off Button
First pulsation
The main LED - all the
power is gathered in this
LED, “Booster Function”
to illuminate long
distances with a greater
penetrating light beam.
Second pulsation
The main LED and the
two auxiliary LEDS on
the side of the optic get
on. The beam light is
more gentle and uni-
form. Due to the special
design of the LedEngine
Power optic the light
gets a greater opening
angle that works as a
step lighting system.
Third pulsation
The torch and the dis-
play switch off.
English
4”
4”
Longer pulsation
STROBE function
Five different strobe
modes. Keeping pushed
for four seconds On | Off
button, the LED situated
on the focused optic gets
on in strobe mode. Pres-
sing Menu button up to
ve times you can select
the desired frequency.
The selected strobe
frequency will be stored.
To return to the previous
position, push again
On | Off button.
4 Menu Button
Burning Time System
Longer pulsation
Pressing the button
“MENU” for 4 seconds
with the torch on, the
“Burning Time System”
gets activated which
allows the user to choose
the desired burning time
and the light intensity.
Meanwhile the display
ashes the user by pres-
sing the “menu” button
can choose between the
three different burning
times, 4, 6 and 8 at full
charge, adjusting the light
intensity level automa-
tically. Once the user
has chosen the desired
burning time, the display
will be ashing after 5
seconds.
5 Charging System
When the torch is placed on the charger, the light
turns off automatically (if the light is on). Charging of
the torch starts when the green LED on the charger
changes to red. An automatic reset takes care of
loading the batteries for max. 4h with highest light
intensity. The maximum charging time is 9 hours.
The time that appears after the letter
indicates the available burning time at
high intensity in the moment the torch is
taken from the charger and put into use.
At the end of charge, the display swit-
ches off and a letter “F” (full) followed by
the avalaible burning time will appear
on the display every 15 seconds.
If the charger is damaged, the display
shows the following error ‘E0:00’. But
thanks to the intelligent circuit board the
torch keeps protected from the possible
damages due to a faulty charger.
6 Maintenance
Cleaning
• Clean exclusively with a soft cloth using a neutral
PH detergent diluted in warm water. Do not use
alcohol or other chemical solvents. Do not sub-
merge the torch into water.
• Do not open the torch in hazardous areas.
• IN ORDER TO GET THE MAXIMUM PER-
FORMANCE AND LIFE SPAN OF THE
BATTERY , A COMPLETE DISCHARGE/
CHARGE CYCLE SHOULD BE DONE AT
LEAST ONCE PER MONTH.
