ACV Prestige 24 Solo Manual de usuario

Prestige 24-32

The prestige can accommodate within its control

centre, temperature regulation/full burner modulation

via room thermostat, climate control with an outside

sensor (optional), and with a combination of outside

sensor and room thermostat.

Prestige Excellence - Combination boiler

Incorporated within the jacket, is a 62 litre (total

capacity) stainless steel Tank-in-Tank. The Prestige 32

Excellence delivers 224 litres of hot water at 40°C in ten

minutes. The Prestige range offers the same anti-

scaling, legionella and bacteria risk reduction as all our

ACV Domestic Hot Water products.

High efficiency domestic wall

mounted gas condensing boiler.

Stainless steel construction with

self-cleaning flue ways.

High efficiency condensing boilers

Prestige Solo

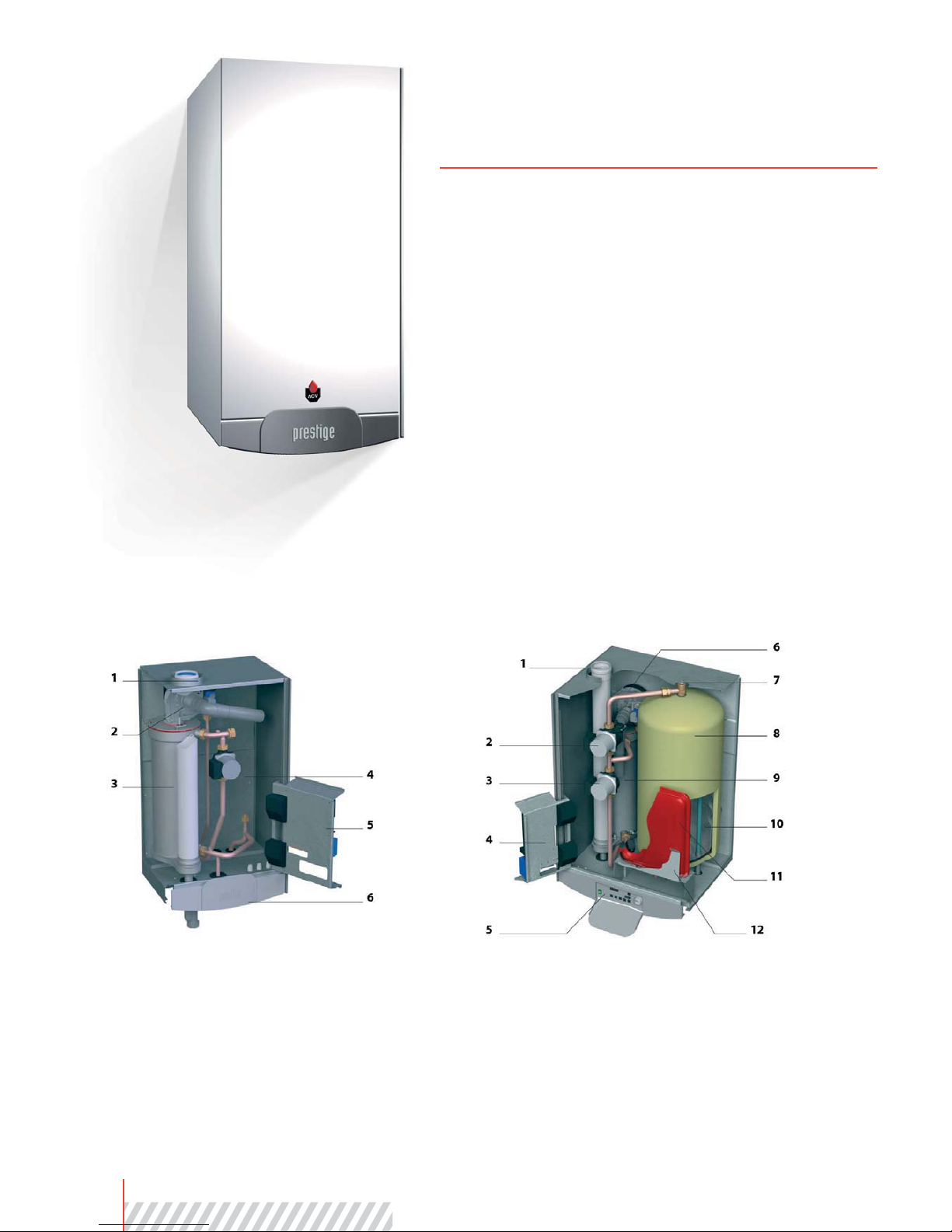

1. Chimney connection (concentric tubes ø 80/125mm)

2. Burner, premix and modulating

3. Heat exchanger, stainless steel

4. Pump, central heating

5. Electrical panel (the control boxes on the rear are optional)

6. Control panel

Prestige Excellence

1. Chimney connection (concentric tubes ø 80/125mm)

2. DHW pump with integrated air vent

3. Pump, central heating

4. Electrical panel (the control boxes on the rear are optional)

5. Control panel

6. Burner, premix and modulating

7. Manual air vent

8. Water heater 62 litres

9. Heat exchanger, stainless steel

10. Hot water storage tank, stainless steel

11. Expansion vessel

12. Bracket for expansion vessel

Prestige Solo - System boiler

The Prestige Solo is designed to operate as either a

heating only unit, or, for optimum heating and hot

water performance, can be linked to one of the

SmartLine range.

High efficiency condensing boilers 31

Technical Data

Solo Solo Excellence Excellence

24 32 24 32

Input kW 5.9 - 24 7 - 32 5.9 - 24 7 - 32

Max output 60/80°C kW 23.3 30.8 23.3 30.8

Min output 60/80°C kW 5.8 5.8 5.8 5.8

Efficiency max output 30/45°C % 105 104 104.5 104.5

Efficiency min output 30/45°C % 107 107 109 109

SEDBUK rating AAAA

CO emissions max/min mg/kWh 45/20 52/20 45/20 52/20

NOx emissions (EN483) mg/kWh 66 66 66 66

NOx classification 5555

Flue gas temperature - 30/45°C °C 65 77 65 77

Flue gas temperature - 60/80°C °C 92 108 92 108

Primary capacity L 8 8 16 16

Total capacity L 8 8 70 70

DHW connection (female BSP) Ø n/a n/a

1/2"1/2"

Primary connection (female BSP) Ø 1

Gas connection (male BSP Ø

3/4"3/4"3/4"3/4"

Minimum gas pressure mbar 20 20 20 20

Flue connection Ø mm 80/125 80/125 80/125 80/125

Max flue length m 20 20 20 20

Weight empty kg 50 50 86 86

Weight full kg 58 58 156 156

Natural gas flow rate - 20mb m3/h 2.5 3.4 2.5 3.4

Pressure drop mbar 131 210 131 210

Maximum operating temperature °C 90 90 90 90

Maximum operating pressure Primary: 3 bar Secondary: 10 bar (Excellence)

Solo Solo Excellence Excellence

24 32 24 32

Litres in first 10 minutes 40°C n/a n/a 175 224

Litres in first 10 minutes 60°C n/a n/a 102 103

Litres in first hour 40°C n/a n/a 733 835

Litres in first hour 60°C n/a n/a 352 353

Continuous flow 40°C Ltrs/hr n/a n/a 653 745

Continuous flow 60°C Ltrs/hr n/a n/a 316 320

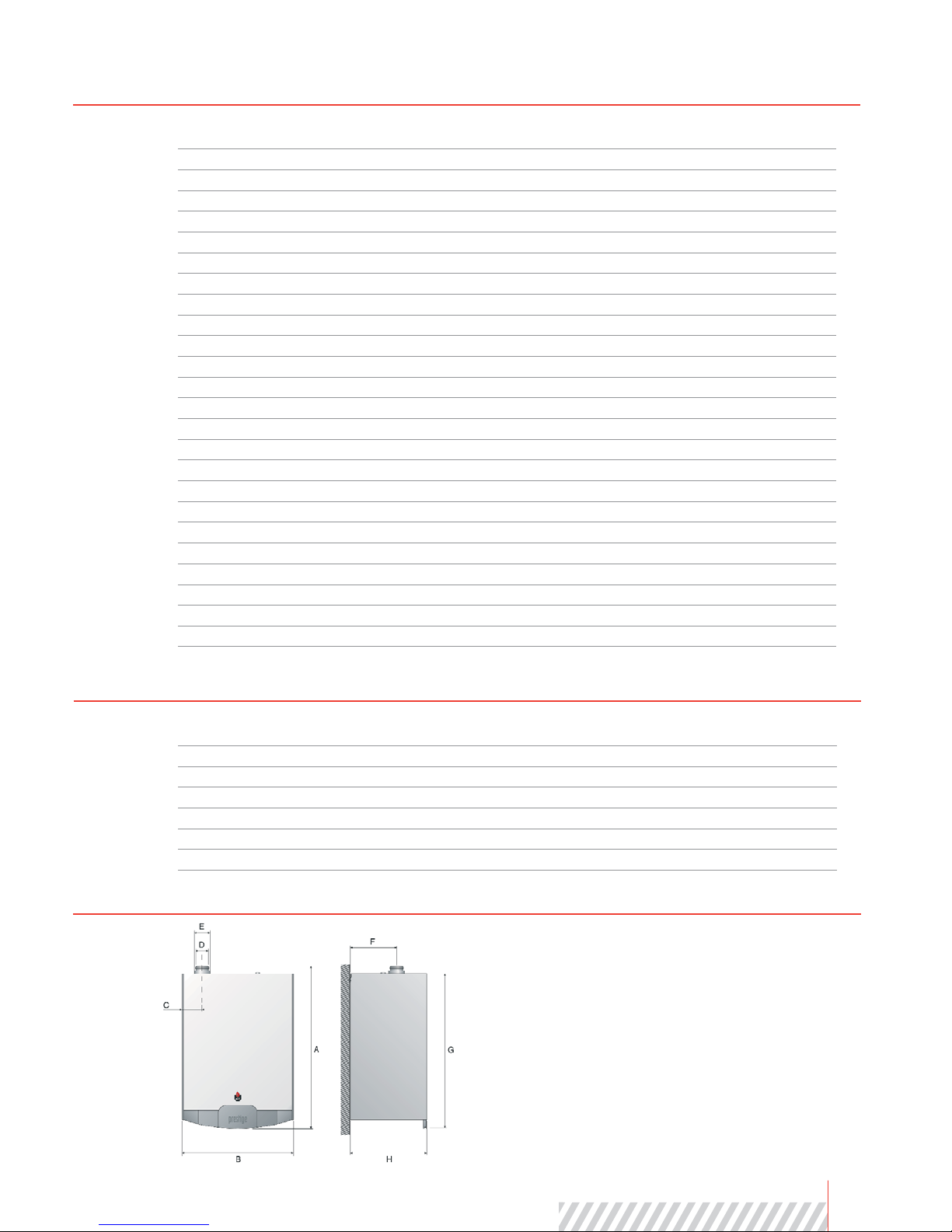

Dimensions

Performance Data

24 Solo 24 Excellence 32 Solo 32 Excellence

A970mm 1030mm 970mm 1030mm

B502mm 632mm 502mm 632mm

C107mm 110mm 107mm 110mm

D80mm 80mm 80mm 80mm

E125mm 125mm 125mm 125mm

F300mm 300mm 300mm 300mm

G930mm 1000mm 930mm 1000mm

H400mm 535mm 400mm 535mm
