Acute DG3000 Series Manual de usuario

Acute Technology Inc.

DG3000 / TD3000 series

Data Generator user manual

Publish: 2021/12

Acute Technology Inc.

Contents

Chapter 1 Installation.............................................................................................................3

Hardware Setup..............................................................................................................3

Equipment................................................................................................................3

DG Probe.................................................................................................................4

Event Probe..............................................................................................................5

OE Probe..................................................................................................................6

18.5cm lead cable.....................................................................................................7

DG3000 series................................................................................................................9

TD3000 series...............................................................................................................11

Chapter 2 Operation..............................................................................................13

Utility...............................................................................................................19

Protocol.......................................................................................................20

General…………………………………………………………………21

Chapter 3 Technical support ...........................................................................34

Appendix 1 Probe pin defined & Dimension ........................................................36

DG Probe......................................................................................................................36

Event Probe ..................................................................................................................37

OE Probe.......................................................................................................................38

Tip Dimension..............................................................................................................39

Appendix 2 Use text editor tool to edit vector file ................................................40

Acute Technology Inc.

Chapter 1 Installation

Hardware Setup

Equipment

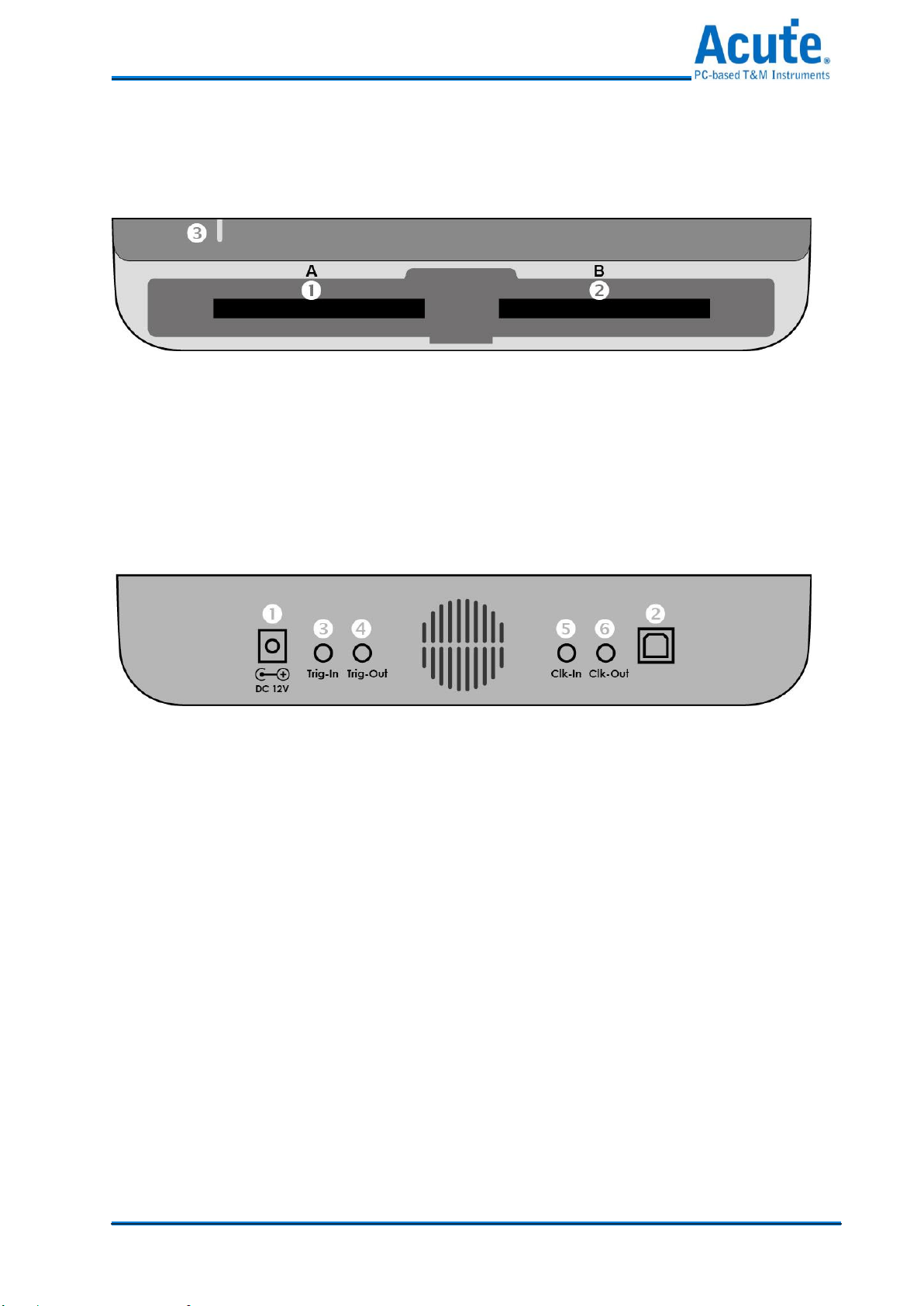

Socket A

Socket B

Indicator LED

a. Green light：Show green light when powered and USB connected.

b. Red light：Show red light when the equipment is busy at transmission.

DC 12V

USB 3.0 Type B for computer

Trigger In

Trigger Out

Reference Clock In

Reference Clock Out

Probe Installations

Push in: Hold the pod to face the slot of the master unit. Push the pod evenly into the slot

until you hear the sound of click. Then, installation is completed.

Pull out: Use two fingers to simultaneously press the two connecting rods inside the slot,

respectively, and the pod will pop out.

Acute Technology Inc.

DG Probe

※Only provide by DG3000 series

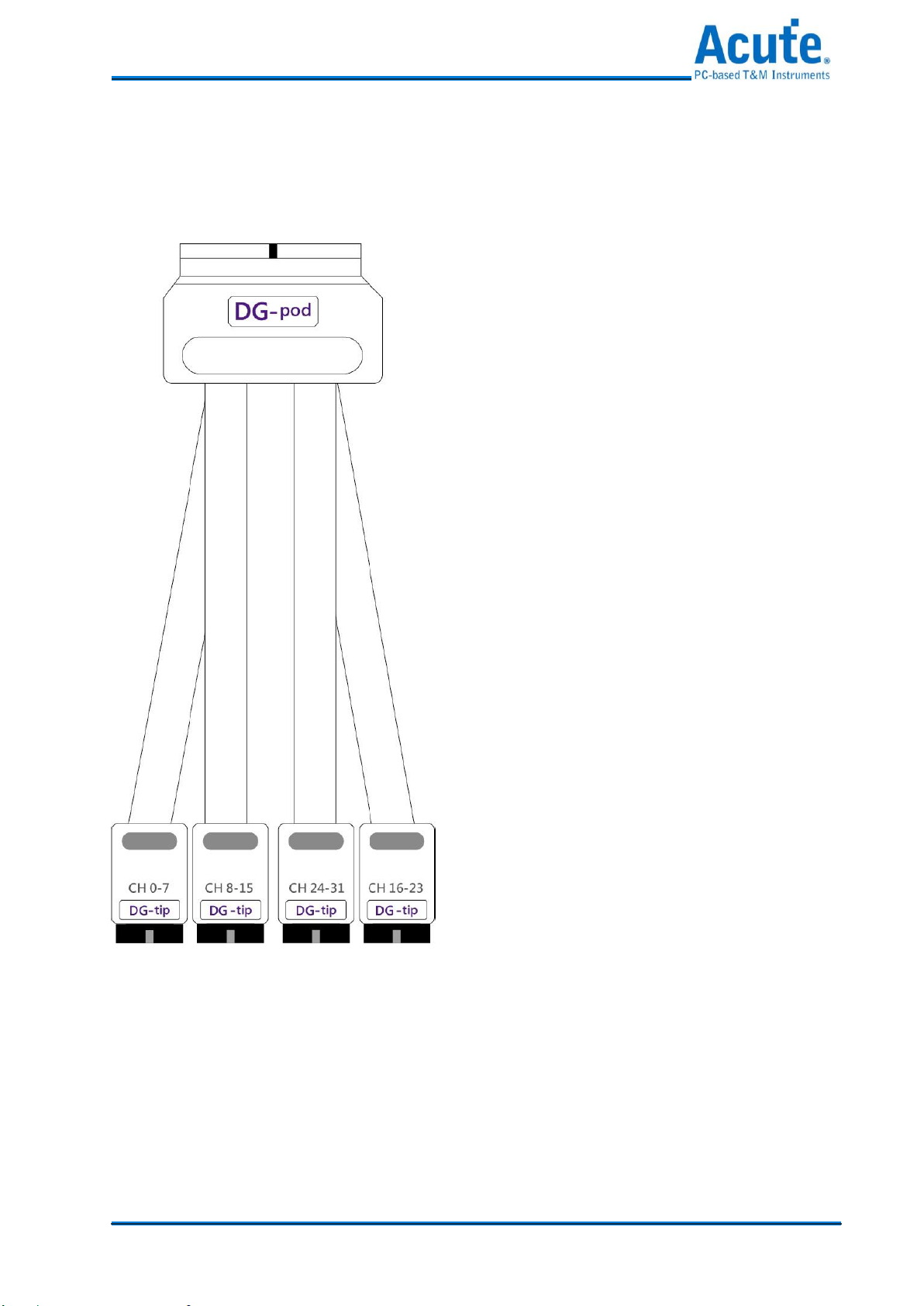

The DG-pod can be used in any slot. It has 4 DG tips, each of which has 8 signal output

channels.

Acute Technology Inc.

Event Probe

※Only provide by DG3000 series

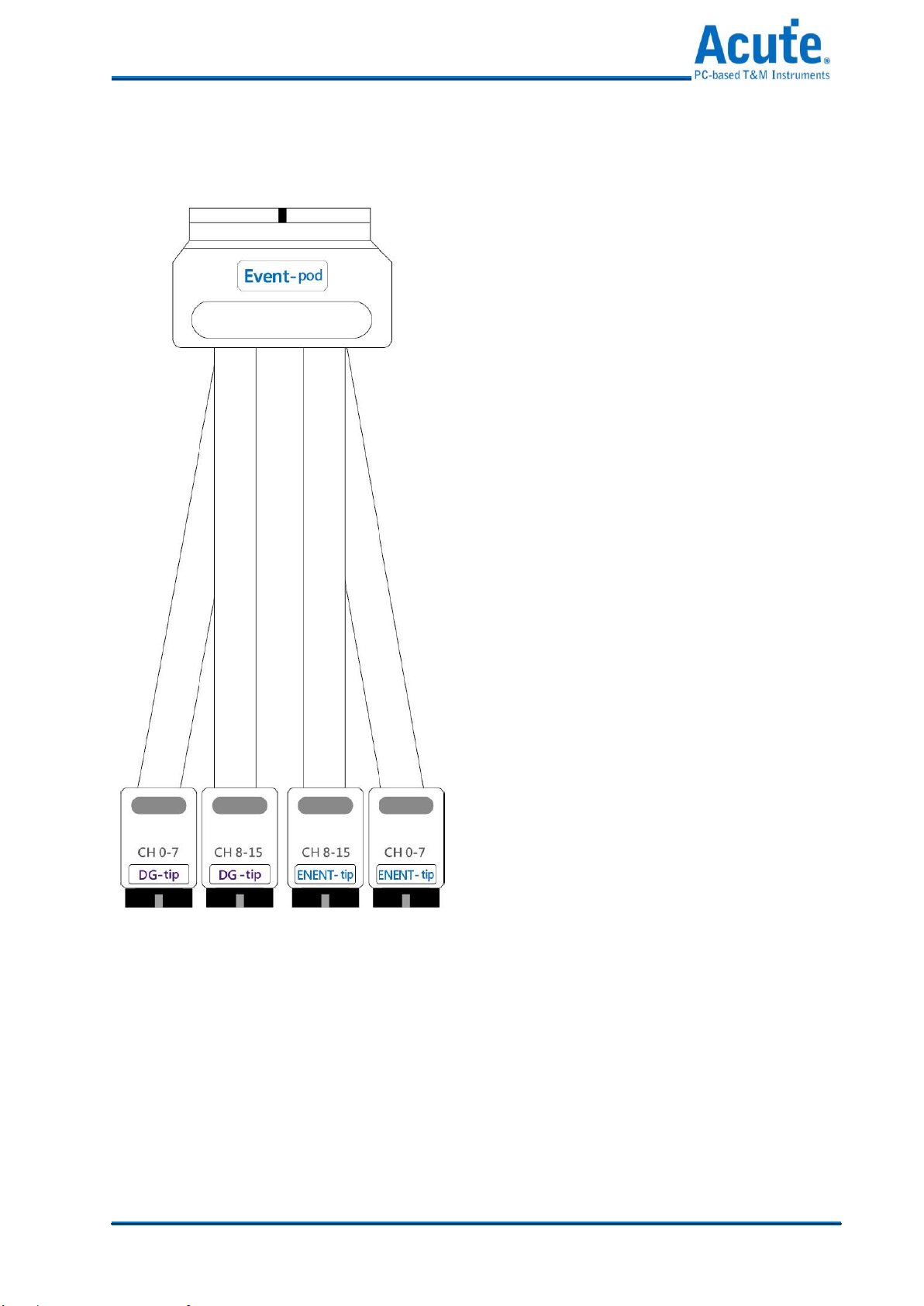

The Event-pod can be used in B/D slot. It has 4 tips, 2 tips are DG-tip; 2 tips are Event-tip.

Acute Technology Inc.

OE Probe

※Only provide by DG3000 series

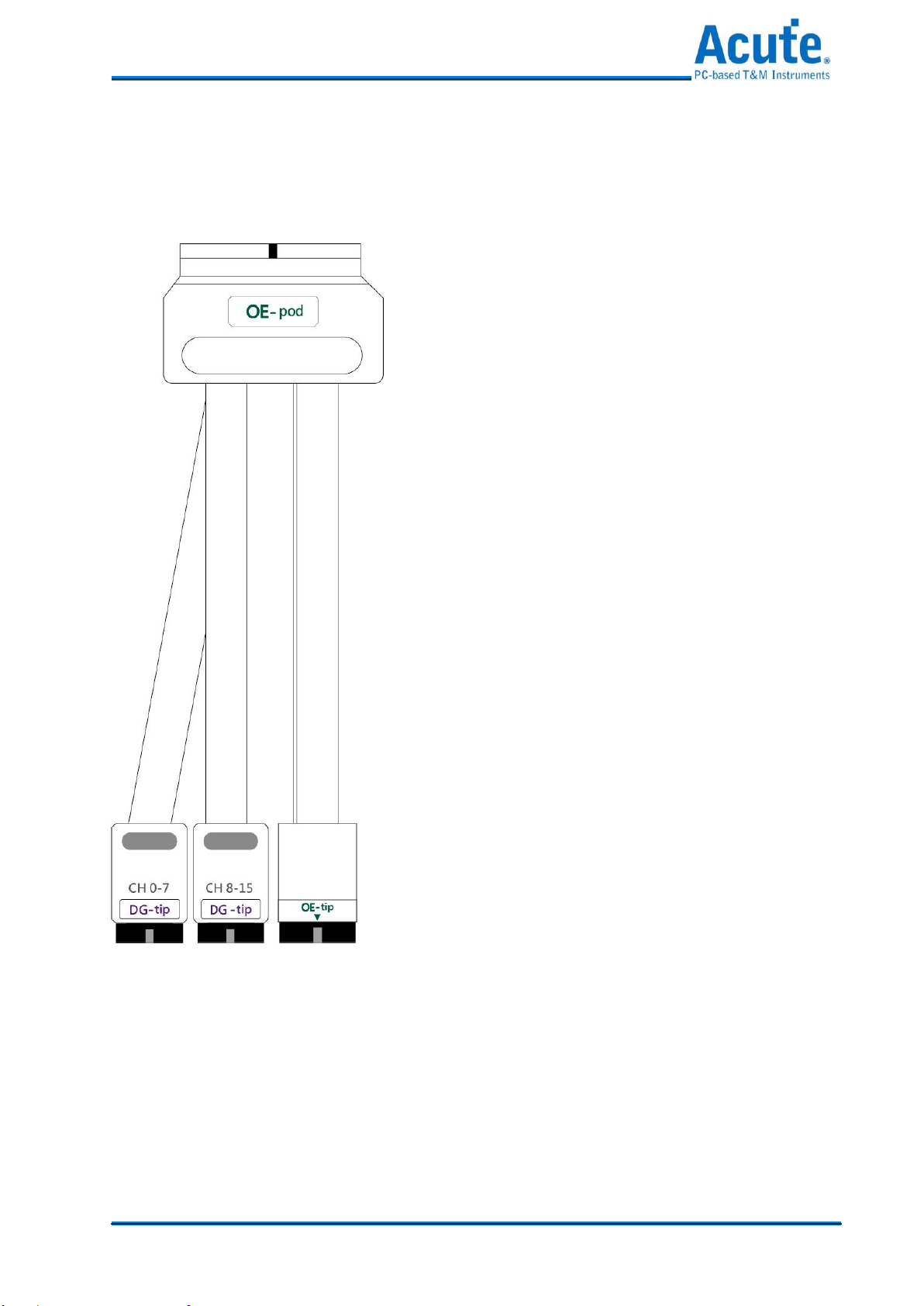

The OE-pod can be used in any slot. It has 3 DG tips, 2 tips are DG-tip;1 tip is OE-tip that

has 8 channels for Hi-Z output.

Acute Technology Inc.

18.5cm lead cable

※Only provide by TD3000 series

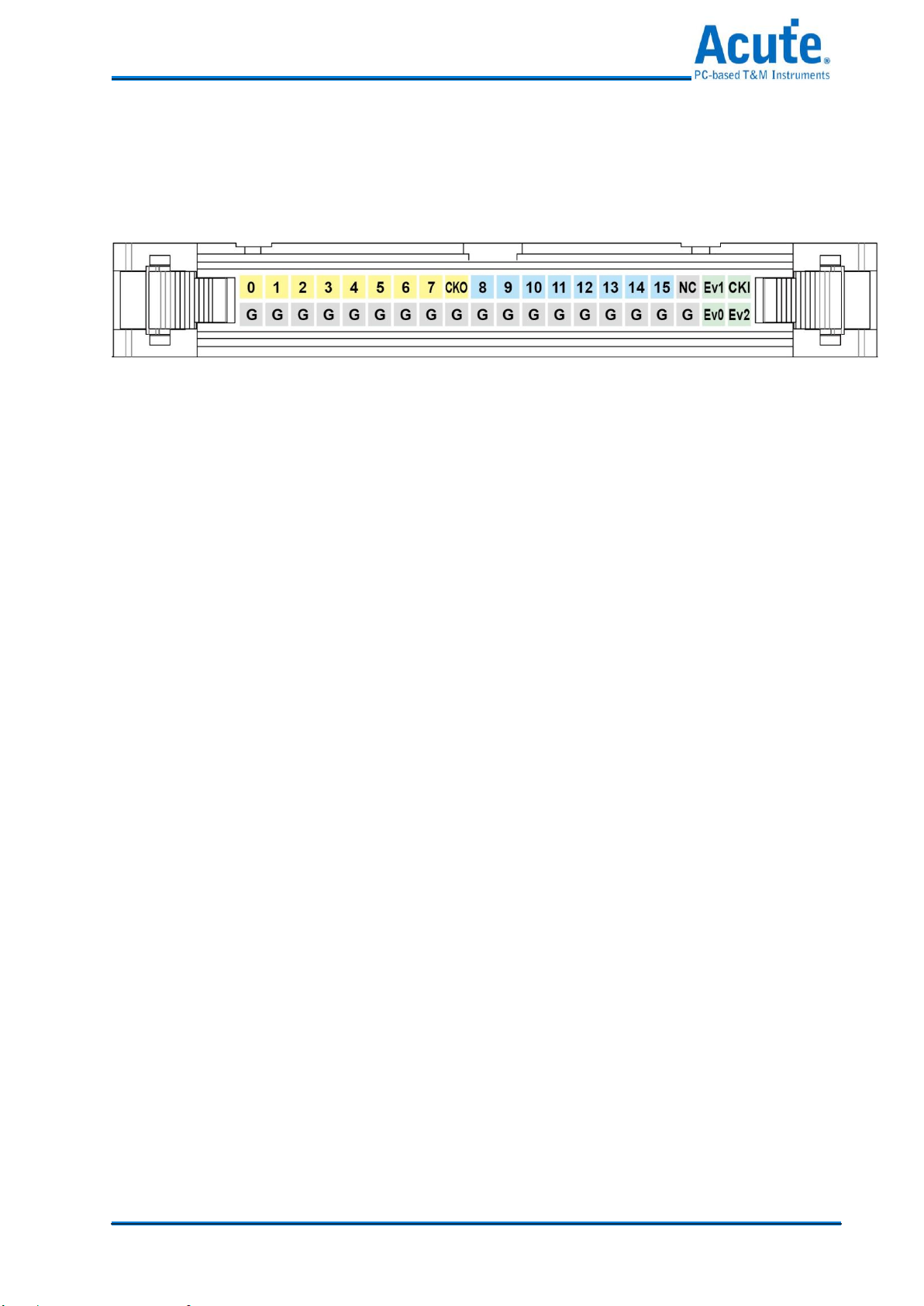

TD3000 has 16 channels for data output; 1 channel for clock out (CKO); 1 channel for clock

in (CKI) and 3 channels for event input (Ev0~2).

Acute Technology Inc.

Software installation

Please visit the official website of Acute Technology Inc., go to the Download page, and then

select and download the Data Generator. After completion of installation, the “start icon”

of Data Generator will appear on the desktop and the program set. You can select either

one to start TD3000/DG3000 ( ).

Acute Technology Inc.

DG3000 series

Model

DG3064B

DG3096B

DG3128B

Power

Power Source

12V Power adapter

Static Power

Dissipation

12W

18W

Max. Power

Dissipation

24W

30W

36W

Hardware Interface

USB 3.0

Number of Output Channels

112

Memory

Total Memory Size

32Gb

Pattern Depth

256Mb/ch

Data Rate

400Mbps (Max.)

Operation

Clock System

Internal

Range

1Hz ~ 400MHz

Resolution

6 digits

External

Clock

Range

<200MHz

Input

Channels

1 Channel (TTL3.3V)

Data Flow Control

Loop, Jump, Hold, Wait for Event

Period Jitter

Clock Channel

< 200ps

Data Channel

< 200ps

Event

Internal

Hot Key

External

Channels

Mode

Logic AND / Logic OR

Threshold

-0.5V ~ 4.5V

Phase Tuning

Delayed

Channels

All

Time

> 300Mbps : No, < 300Mbps : 8 Phases from 0 to 1UI

Temperature

Operating/Storage

5℃~45℃(41℉~113℉) / -10℃~65℃(14℉~149℉)

Software

Features

Languages

English / Traditional Chinese / Simplified Chinese

Save & Load Waveform

Yes

Regular Waveform

Generator

Synchronous / Asynchronous Counter, CAN, I²C, I²S,

LIN, SPI, UART, …

Waveform Editing

Interface

Waveform Drawing/Script File

Device

Dimension

L x W x H (mm³)

270 x 175 x 55

Weight

Device / Accessories

800g / 1850g

Probe

DG-pod / Event-pod /

OE-pod

1 / 1 / 1

2 / 1 / 1

3 / 1 / 1

Flying lead cable:

DG (DG) /Event (DG,

Event) /OE (DG, OE)

4 / 2, 2 / 2, 1

8 / 2, 2 / 2, 1

12 / 2, 2 / 2, 1

Acute Technology Inc.

Grippers

120

160

DG-Probe/

OE-Probe

Channels

32 for DG / 24 for OE

Data Rate

400Mbps (Max.)

VoL

VoH min. for DG-Probe

0.8Vpp @ <= 50Mbps, 1.2Vpp @ <= 300Mbps,

1.5Vpp @ <= 400Mbps

VoH min. for OE-Probe

1.1Vpp @ <= 50Mbps, 1.3Vpp @ <= 300Mbps,

1.5Vpp @ <= 400Mbps

VoH max.

5.0V

Min. Pulse Width

2.5 ns

Impedance

CMOS with 20 Ohms

Fan Out

20mA/ch

Output

Enable

DG-Probe

2 Group O.E. (16ch/O.E. * 2 = 32ch)

OE-Probe

1 Group O.E. + 8ch Independent O.E. (16ch+8ch=24ch)

Event-Probe

Channels

16 (DG) + 16 (Event)

Frequency

200MHz (Max.)

Operation

-1V~8V @ 0.1V Resolution

Input Voltage

(Non-destructive)

±15V DC+AC peak (Max.)

Minimum Pulse Width

2.5 ns

Sensitivity

~300mV

Impedance

1M || 5p
