Weather Center

model 00589

Congratulations on your new AcuRite product. To ensure the best

possible product performance, please read this manual in its entirety

and retain it for future reference.

Unpacking Instructions

Remove the protective ﬁlm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Display unit with tabletop stand

2. 3-in-1 sensor

3. Sensor mounting bracket

4. Mounting hardware

5. Power adapter

6. Instruction Manual

PRODUCT REGISTRATION

to receive 1 year

warranty protection

www.AcuRite.com

IMPORTANT PRODUCT MUST BE REGISTERED

TO RECEIVE WARRANTY SERVICE

►

Features & Benets

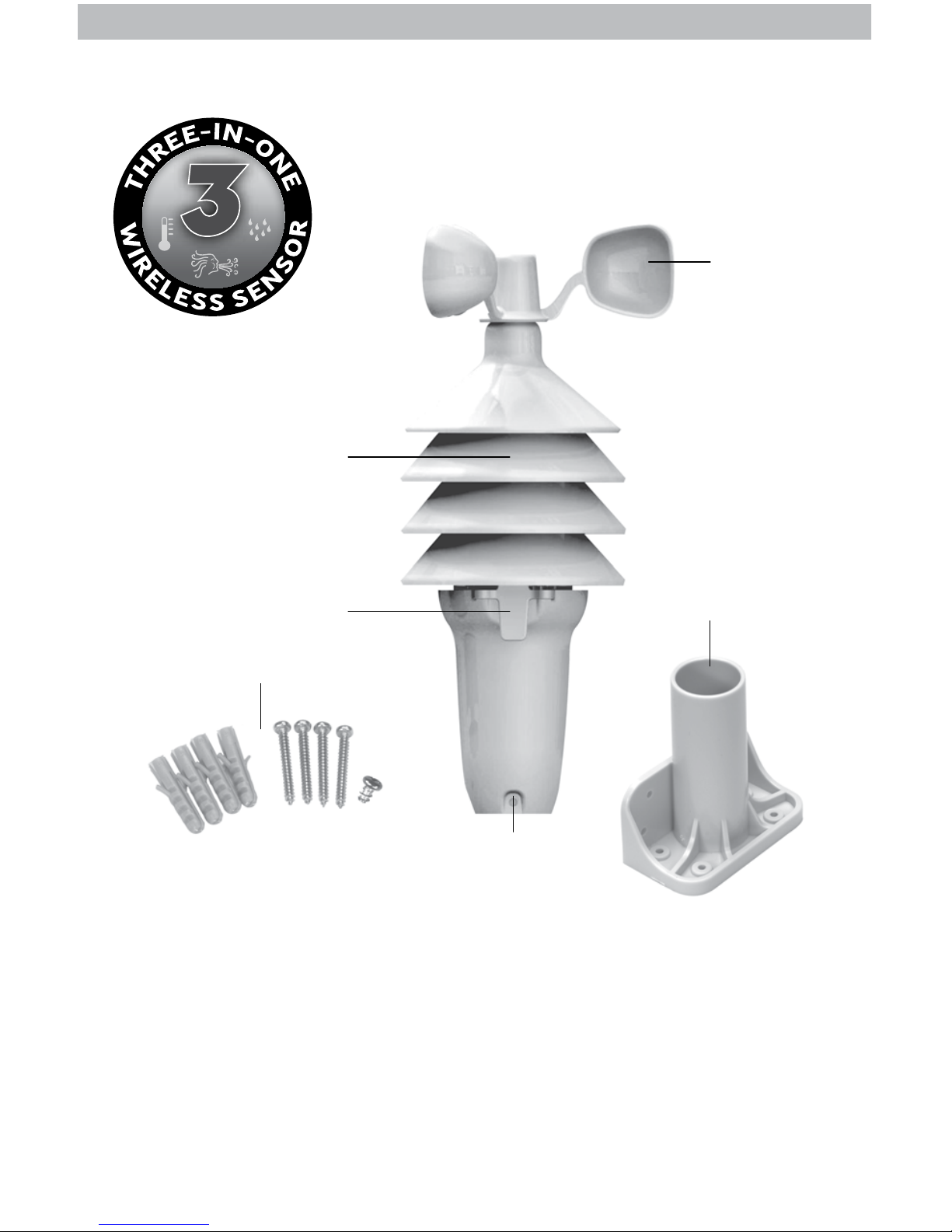

3-in-1 SENSOR

1. Temperature & Humidity Sensors

(internal)

2. Release Lever for Battery Access

3. Mounting Point

4. Wind Speed Anemometer

5. Mounting Hardware

Includes anchors and screws.

Qty Diameter Length

4 #4 1”

1 #6 or #8 1/4” or 3/8”

6. Mounting Bracket

7. A-B-C Switch (not shown)

ID code that must match display’s

A-B-C switch to ensure units

synchronize.

Features & Benets

Display Unit

1 2 3 4 5 6 7

17 16181920

DISPLAY UNIT

1. Current Outdoor Temperature

Arrow icon indicates direction

temperature is trending.

2. Sensor Low Battery Indicator

3. Average Wind Speed

Average of all speeds over last

30 minutes or calibrated 30 minute

interval.

4. Backlight Button

5. Current Wind Speed

6. Wind Gust Icon

7. Peak Wind Speed

Highest speed from last 30 minutes or

calibrated 30 minute interval.

8. Current Indoor Temperature

Arrow icon indicates direction

temperature is trending.

9. Display Low Battery Indicator

10. Current Indoor Humidity

Arrow icon indicates direction

humidity is trending.

11. Clock

12. Date

13. REPLAY and LIVE Icons

REPLAY indicates historical data is

being displayed. LIVE icon is shown

while exiting REPLAY function.

14. 12 to 24 Hour Weather Forecast

Self-Calibrating Forecasting pulls data

from the outdoor sensor to generate

your personal forecast.

15. Multi-Variable History Chart

Displays the past 12 hours of data for

pressure, temperature and humidity.

16. REPLAY Button

For displaying historical data.

17. + Button

For setup preferences.

18. SET Button

For setup preferences.

19. – Button

For setup preferences.

20. SELECT Button

Press to change the Weather Select

(#23) category being displayed.

21. Barometric Pressure

Arrow icon indicates direction

pressure is trending.

22. Learning Mode Icon

Disappears after weather forecast

self-calibration is complete.

23. Weather Select

Displays heat index, dew point or wind

chill, daily, monthly, all time high & low

records indoor/outdoor temperatures

and humidity and high for wind speed.

24. AUTO DIM Indicator

25. Current Outdoor Humidity

Arrow icon indicates direction

temperature is trending.

26. Low Wind Speed

Lowest speed from past 30 minutes or

calibrated 30 minute interval.

27. Outdoor Sensor Signal Strength

BACK OF DISPLAY UNIT

28. Integrated Hang Hole

For easy wall mounting

29. Plug-in for Power Adapter

30. Battery Compartment

31. A-B-C Switch

ID code that must match sensor’s A-B-C

switch to ensure units synchronize.

32. CLEAR RECORD/RESET Button

Press to clear record currently being

viewed. Press and HOLD for full reset

to factory defaults.

33. Battery Compartment Cover

34. Power adapter

SETUP

Set the A-B-C Switch

The A-B-C switch is located inside

the battery compartment. It can be

set to A, B or C. However, you must

select the same letter choices for

both the sensor and the display unit

in order for the units to synchronize.

Install or Replace Batteries

AcuRite recommends high quality

alkaline or lithium batteries for the

best product performance. Heavy

duty or rechargeable batteries are

not recommended.

The 3-in-1 sensor requires lithium

batteries in low temperature

conditions. Cold temperatures can

cause alkaline batteries to function

improperly. Use lithium batteries in

the 3-in-1 sensor for temperatures

below -4ºF / -20ºC.

1. Press the release lever and pull

off the lower housing of the

sensor.

2. Remove the battery compartment

cover. Take note of the A-B-C

switch setting inside the battery

compartment.

3. Insert 4 x AA batteries into the

battery compartment, as shown.

Follow the polarity (+/-) diagram

in the battery compartment.

4. Replace the battery cover and

lower housing of the sensor.

3-IN-1 Sensor Setup

A-B-C Switch

set to match

display unit

A B C

Display Unit Setup

Set the A-B-C Switch

Locate the A-B-C switch inside the

battery compartment. Set the A-B-C

switch to A, B or C. You must select

the same letter choices for both the

display unit and the sensor in order

for the units to synchronize.

Install or Replace Batteries

1. Remove the battery

compartment cover.

2. Insert 6 x AA alkaline batteries

into the battery compartment,

as shown. Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

Plug Power Adapter into

Electric Outlet

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used

batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in ﬁre,

as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge

non-rechargeable batteries. DO NOT short-circuit the supply terminals.

A-B-C Switch

set to match sensor

A B C

2Install Batteries

6 AA Batteries

3Plug in

Power

Adapter

IMPORTANT: Batteries are a backup power source

to preserve records in the event of a power outage.

Power adapter is recommended as the primary power

source to enjoy the full functionality of this product.

Set the Time, Date & Units

Press the “SET” button, located on the front of the display unit, to enter SET

MODE. Once in set mode, the preference you are currently setting will blink on

the display.

To adjust the currently selected (ashing) item, press and release the “+“ or

“

“ buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the “SET” button again to adjust

the next preference. The preference set order is as follows:

CLOCK HOUR

CLOCK MINUTE

CALENDAR MONTH

CALENDAR DATE

CALENDAR YEAR

TEMPERATURE UNITS (ºF or ºC)

WIND UNITS (MPH or KM/H)

PRESSURE UNITS (inHg or hPa)

You will automatically exit SET MODE if no buttons are pressed for 10 seconds.

Enter setup mode at any time by pressing the “SET” button.

Display Backlight Settings

This weather station’s color display features three different lighting settings:

High (100%) brightness, Medium (60%) brightness and Low (30%) brightness

Using battery power alone, the backlight is available momentarily for 10

seconds by pressing the “ ” button.

When display is powered with the power adapter, backlight remains on

at 100% brightness. Press “ ” button once to dim to 60% brightness;

press again to dim to 30%, press a 3rd time to enter “AUTO DIM” mode.

AUTO DIM appears above time and date.

AUTO DIM MODE: Automatically adjusts display brightness based on time of day & year.

MARCH 11- NOVEMBER 4 6:00 a.m. - 9:00 p.m. = 100% brightness

9:01 p.m. - 5:59 a.m.= 30% brightness

NOVEMBER 5 - MARCH 10 7:30 a.m. - 7:00 p.m.= 100% brightness

7:01 p.m. - 7:29 a.m. = 30% brightness

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper

placement of both the display unit and the sensor are critical to the accuracy and

performance of this product.

Display Unit Placement

Place the display unit in a dry area free of dirt and dust. To ensure

accurate temperature measurement, place out of direct sunlight and

away from heat sources or vents. Display unit stands upright for

tabletop use or is wall-mountable.

3-in-1 Sensor Placement

The 3-in-1 sensor is designed to remain outdoors all year long.

Choose an open location with no obstructions above or around the

sensor for the most accurate measurements.

Important Placement Guidelines

Display unit and sensor must be within 330 feet (100 m) of each other.

MAXIMIZE WIRELESS RANGE

Place units away from large metallic items, thick walls, metal surfaces, or other

objects that may limit wireless communication.

PREVENT WIRELESS INTERFERENCE

Place both units at least 3 feet (.9 m) away from electronic devices (TV, computer,

microwave, radio, etc.).

LOCATE AWAY FROM HEAT SOURCES

Position sensor away from heaters, air conditioners, chimneys, exhaust vents, asphalt

and concrete (surfaces that radiate heat).

LOCATE AWAY FROM HUMIDITY SOURCES

Avoid installing the sensor near pools, spas, or other bodies of water. Water sources

may impact humidity accuracy.

LOCATE AWAY FROM SPRINKLER HEADS

DO NOT install the sensor where it will be sprayed by a sprinkler system. This may

force water inside the sensor.

LOCATE AWAY FROM WIND OBSTRUCTIONS

DO NOT mount the sensor with obstructions around it.

Consider a location that is a wide open area, with few

structures around to ensure accurate wind speed measurement.

Visit us online to view installation photos and

video, or learn more about AcuRite technology:

www.AcuRite.com/3in1 View Video

3-in-1 Sensor Installation Guidelines

INSTALLATION HEIGHT Mount the sensor at least 5 feet (1.5 meters) off the ground

(higher is better for wind measurement) in an open area. Secure to fence post, 2”x4”

wood, 3/4” pole, etc. (not included)

LEVEL INSTALLATION Use a bubble level (not included) to ensure level installation for

accurate wind measurement.

Top or Side Mount

1. Insert the mounting base into the

hole on the bottom of the sensor.

2. Use one of the screws included

in the hardware bag to fasten

the lower sensor housing to the

mounting base.

3. Fasten mounting base to a post or

railing using 2 screws.

Pole Mount

1. Insert pole (we recommend 3/4” schedule

40 PVC / 25.8 mm O.D., not included)

or similar item all the way into the hole on

the bottom of the sensor. Note: Mounting

base is not used.

2. Use one of the screws included in the

hardware bag to fasten the lower sensor

housing securely to the pole.

The 3-in-1 sensor is now ready to use.

Clear Data Collected During Installation

When installation is complete, clear erroneous data from the display unit by pressing

the “CLEAR RECORD/RESET” button for each category, on the back of the display

inside the battery compartment.

Basic Setup is Complete

The 3-in-1 sensor will now synchronize with the display unit. It may take a few

minutes for synchronization to complete. If both or one of the units appear to be

functioning improperly, please refer to the troubleshooting section.

Top Mount Side Mount

Pole Mount

Do not install during

electrical storms.

Do not place pole

or sensor near

electrical lines or

electrical equipment.

Tabla de contenidos

Otros manuales de Estación meteorológica de ACU-RITE

ACU-RITE

ACU-RITE 1055 Manual de usuario

ACU-RITE

ACU-RITE 01097 Manual de usuario

ACU-RITE

ACU-RITE 00837W Manual de usuario

ACU-RITE

ACU-RITE 13230 Manual de usuario

ACU-RITE

ACU-RITE 02016 Manual de usuario

ACU-RITE

ACU-RITE Iris Manual de usuario

ACU-RITE

ACU-RITE 00593W Manual de usuario

ACU-RITE

ACU-RITE 06086 Manual de usuario

ACU-RITE

ACU-RITE 75321A1 Manual de usuario

ACU-RITE

ACU-RITE 607 Manual de usuario

ACU-RITE

ACU-RITE 13044 Manual de usuario

ACU-RITE

ACU-RITE 1604 Manual de usuario

ACU-RITE

ACU-RITE 75077 Manual de usuario

ACU-RITE

ACU-RITE 06088 Manual de usuario

ACU-RITE

ACU-RITE Weather Forecaster 00821 Manual de usuario

ACU-RITE

ACU-RITE 309 Manual de usuario

ACU-RITE

ACU-RITE 01500 Manual de usuario

ACU-RITE

ACU-RITE 1088 Manual de usuario

ACU-RITE

ACU-RITE 06044 Manual de usuario

ACU-RITE

ACU-RITE 02035 Manual de usuario

ACU-RITE

ACU-RITE 737 Manual de usuario

ACU-RITE

ACU-RITE 02027 Manual de usuario

ACU-RITE

ACU-RITE 4409999 Manual de usuario

ACU-RITE

ACU-RITE 01010 Manual de usuario

Manuales populares de Estación meteorológica de otras marcas

Auriol

Auriol AHFL 433 A1 Manual de usuario

NexSens

NexSens G2-HYDROMET Manual de usuario

Hyundai

Hyundai WS 2202 Manual de usuario

IROX

IROX HBVR761 UV-X Manual de usuario

La Crosse Technology

La Crosse Technology C86371 Manual de usuario

ADE

ADE WS 1711 Manual de usuario

Auriol

Auriol z29592 Manual de usuario

Auriol

Auriol 296289 Manual de usuario

Hyundai

Hyundai WS 2266 Manual de usuario

La Crosse Technology

La Crosse Technology WS-2210 Manual de usuario

La Crosse Technology

La Crosse Technology WS-811561 Manual de usuario

Ventus

Ventus W177 Manual de usuario

National Geographic

National Geographic VA Colour RC Manual de usuario

Renkforce

Renkforce 1208067 Manual de usuario

Levenhuk

Levenhuk Discovery Report WA40 Manual de usuario

Instant Transmission

Instant Transmission MA 10410 Manual de usuario

Lutron Electronics

Lutron Electronics PHB-318 Manual de usuario

WAREMA

WAREMA EWFS Weather station eco Manual de usuario
