IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future
reference.
The specification of this product may vary from this photo, subject to change without notice.
MOTOR TREADMILL
OWNER’S MANUAL
Model:GB-K6480
- 1 -
Table of Contents
WARRANTY ------------------------------------------------------------------------------- 1
SAFETY INSTRUCTIONS ------------------------------------------------------------- 2
EXPLODED DIAGRAM ----------------------------------------------------------------- 3
PARTS LIST ------------------------------------------------------------------------------- 4
ASSEMBLY INSTRUCTIONS ----------------------------------------------------------5
FOLDING INSTRUCTIONS
TECHNICAL PARAMETER
WARM UP EXERCISES
OPERATION GUIDE
------------------------- --------------- ---------------------10
------------------------- --------------- ---------------------11
------------------------- -------- ------ --------- ---------------------12
EXERCISE INSTRUCTIONS -------------------------------------- ---------------------16
------------------------- ---------- --------- ---------------------18
RUNNING BELT ADJUSTMENT --------------------------------- ---------------------20
CENTER THE RUNNING BELT --------------------------------- ---------------------21
TROUBLE SHOOTING GUIDE -------------------------- --------- ---------------------22
When ordering replacement parts please have the following information ready:
1. Owner's Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase
Customer service number: 0800 422 274
MON – FRI: 8AM – 5PM
SAT – SUN: 9AM – 4PM
Marketed By: The Warehouse LTD
26 The Warehouse Way, Northcote, Auckland
- 2 -
Safety Instructions
Read all instructions carefully before operating this product.
Basic precautions should always be followed, including the following safety
instructions when using this equipment:
1. Read all the instructions in this manual and do warm up exercises before using this
equipment.
2. Before exercise, in order to avoid injuring the muscle, warm-up exercise of every
position of the body is necessary. Refer to Warm Up and Cool Down Routine page.
After exercise, relaxation of the body is suggested for cool-down.
3. Please make sure all parts are not damaged and fixed well before use. This equipment
should be placed on a flat surface when using. Using a mat or other covering material
on the ground is recommended.
4. Please wear proper clothes and shoes when using this equipment; do not wear clothes
that might catch any part of the equipment; remember to tighten the pedalling straps.
5. Do not attempt any maintenance or adjustments other than those described in this
manual. Should any problems arise, discontinue use and consult an Authorized Service
Representative.
6. Do not use the equipment outdoors.
7. This equipment is for household use only.
8. Only one person should be on the equipment while in use.
9. Keep children and pets away from the equipment while in use. This machine is
designed for adults only. The minimum free space required for safe operation is not
less than two meters.
10. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop
exercising immediately and consult your physician before continuing.
11. Max user's weight limit:120kg(person).
WARNING: Before beginning any exercise program consult your physician.
This is especially important for the persons who are over 35 years old or who have
pre-existing health problems.
CAUTION:
Retain this Owner’s Manual for future reference.
Exploded Parts Diagram
NO. DESCRIPTION SPECS. QTY NO
...
DESCRIPTION SPECS. QTY
1 Main frame 148 Power wire socket 1
2 Base frame 149 Power wire 1
3 Upright bracket 250 Overload protector 1
4 Incline bracket 151 Single wire 1 1
5 Computer bracket 152 AC single wire 1
6Running board strengthen
tube 253 Single wire 1
7 Tubing assembly 154 Grounding wire 1
8Front roller 155 Silicone oil 1
9 Rear roller 156 Lock nut M6 6
10 5# Allen wrench 157 Lock nut M8 8
11 6# Allen wrench 158 Lock nut M10 12
12 Wrench with screw driver 159 Bolt M8*25 4
13 cylinder 160 Bolt M6*40 4
14 Motor top cover 161 Bolt M8*65 3
15 Motor bottom cover 162 Bolt M8*16 6
16 Side rail 263 Bolt M10*42 1
17 Left back end cap 164 Bolt M10*55 1
18 Right back end cap 165 Bolt M8*40 4
19 Running belt 166 Bolt M10*45 4
20 Computer top cover 167 Bolt M10*45 2
21 Computer bottom cover 168 Bolt M8*45 2
22 Panel 169 Bolt M8*25 1
23 Left hand bar 170 Bolt M8*42 3
24 Right hand bar 171 Bolt M5*8 1
25 Running belt 272 Screw 4.2*20 2
26 wheel 273 Screw 4.2*25 4
27 Left base cover 174 Screw 4.2*19 18
28 Right base cover 175 Screw4.2*25 4
29 Distance sleeve 876 Screw 4.2*19 3
30 Moving wheel 277 Screw 4.2*9.5 2
31 Foot pad478 Screw 4.2*30 4
32 Safety key 179 Screw 4.2*25 4
33 Isolation nylon pad 480 Screw 4.2*40 2
34 cushion 481 Screw 4.2*12 5
35 Strengthen tube cushion 482 Screw 4.2*13 13
36 Ring wire protector A 183 Lock washer 10 8
37 Ring wire protector B 184 Flat washer 8 2
38 Oil plug 185 Spring washer 8 2
39 Motor belt 186 Lock washer 5 2
40 Running board 187
41 DC motor 188 Lock washer 8 13
42 Incline motor 189 Spring washer 5 2
43 Control board 190
44 Computer top wire 191
45 Computer bottom wire 192
46 Magnetic ring 193
47 Switch 194
Part list
When you open the carton, and you will find the below parts in the carton
PART LIST：
NO DES. Specification Nos. NO DES. Specification Nos.
1 Main frame 1 32 Safety key 1
11 6#Allen wrench 6mm 1 27 Left base cover 1
70 Bolt M8*42 2 28 Right base cover 1
62 Bolt M8*16 4 12 Wrench with screw
driver S=13、14、15 1
10 5#Allen wrench 5mm 1 49 Power wire 1
88 Lock washer 8 6 74 Screw ST4.2*19 4
55 Silicone oil 1
FIXING TOOLS:
5# Allen Wrench 5mm 1pc
6# Allen Wrench 6mm 1pc
Wrench with screw driver S=13、14、15 1pcs
Notice: Do not get throughpower before complete assembly
Assembly Instructions
STEP 1：
STEP 2：
1. Open the carton, take out
the above spare parts, put the
Main Frame on the level
ground.
1. Support the computer bracket,
and lock the computer on the upright
tube with 5# Allen wrench(10),
Bolt(62) and lock washer(88). refer
to the picture left.
Left side the same as the right side.
Notice: Please hold the uprights
with one hand, avoid to hurt
anyone.
STEP 3：
STEP 4：
1. Fold up the computer as the
direction of arrow in left picture.
1. Use 5#Allen wrench (10),
Bolt(70) and lock washer(88) to lock
the right upright tube onto the base
frame.
2. Use 5#Allen wrench (10),
Bolt(62) and lock washer(88) to lock
the right upright tube onto the base
frame.
3. Left side is same as the right
side.
Notice: Please hold the uprights
with one hand, avoid to hurt
anyone.

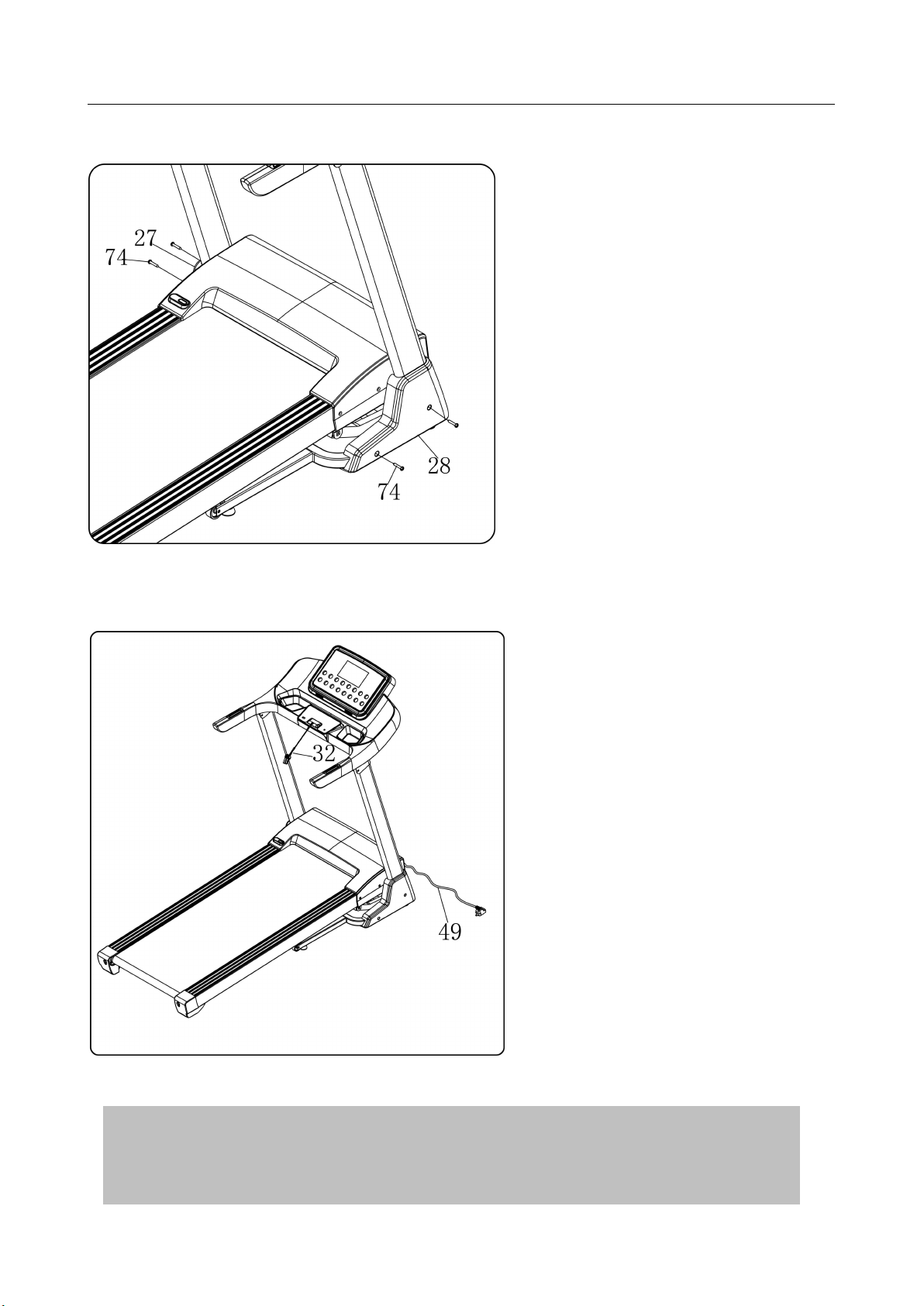

STEP 5:
STEP 6:
1. Put the safety key (32) on the
computer.
2. Plug the power wire(49) on
the socket on mainframe(when
you don’t use treadmill, you can
unplug the power wire.)
1. Use wrench with screw driver(12),
bolt(74) to lock the right base cover
（28）into the base frame.
2. Right side is same as the left side.
Note: The base cover needs to be
fastened to the upright.
ATTENTION：Please confirm complete assembly as the require above and
lock all the bolt. Do the following operation after checking everything is OK.
Before you use the treadmill, please read the instruction carefully.
Pulling up:
Pulling down:
Folding Instruction
Support place A with hand , kick
the place of air pressure bar, then
the base frame will fall down
automatically ( Please keep
anybody and any pet away the
machine when falling down).
Pull up the base frame at
position( A) till hearing the sound
that the air pressure bar (B) is
locked into the round tube.
