ActionTec SBWD100KIT Manual de usuario

Universal Wireless

Display Adapter Kit

Model # SBWD100KIT

Installation Guide

This Installation Guide will walk you through the easy

steps to set up your ScreenBeam Receiver and Transmitter.

During this process, we’ll show you how to :

AInstall the Receiver

BInstall Software and

Transmitter

CPair the Receiver and

Transmitter

CPair the Receiver and Transmitter

Solutions for the Digital Life, and the Actiontec logo are registered trademarks

or trademarks of Actiontec Electronics, Inc. Incorportated in the U.S. or other

countries. All other names are properties of their respective owners. Product photo

may dier from actual product. However, functionality remains as stated above.

Specications are subject to change without notice.

ScreenBeam

Step1After your computer

nishes rebooting, click the

ScreenBeam icon on your

computer’s desktop (circled in red).

Step2The main ScreenBeam

screen appears.Click Add a

Receiver.

Step3A new screen appears.

Select your Receiver, then

click Connect.

Step4A PIN appears on your

HDTV screen.

Step5Enter the PIN in the

ScreenBeam screen on your

computer within 60 seconds, then

click Next.

Your ScreenBeam Transmitter and

Receiver are now paired.

You should see your computer’s

screen on your HDTV.

Please visit www.actiontec.com/screenbeam to register your

product and for more information, including:

• Videos • Diagrams • FAQs • Details • User Manual

For Miracast or Intel WiDi Devices

• For Miracast devices: Consult with the user guide from your

device manufacturer.

• For WiDi devices: Make sure your WiDi software version is 3.5

or higher. To obtain the latest software, go to

http://downloadcenter.intel.com and search for “WiDi 3.5

software.”

Note: Actiontec recommends plugging in your laptop when

using ScreenBeam. If running your laptop on battery, make sure

its power settings are congured for “Maximum Performance.”

IMPORTANT NOTE: Federal Communication Commission (FCC) Radiation

Exposure Statement

This EUT is compliance with SAR for general population/uncontrolled exposure

limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the

measurement methods and procedures specied in OET Bulletin 65 Supplement

C. This equipment should be installed and operated with minimum distance

1.5 cm between the radiator and your body.

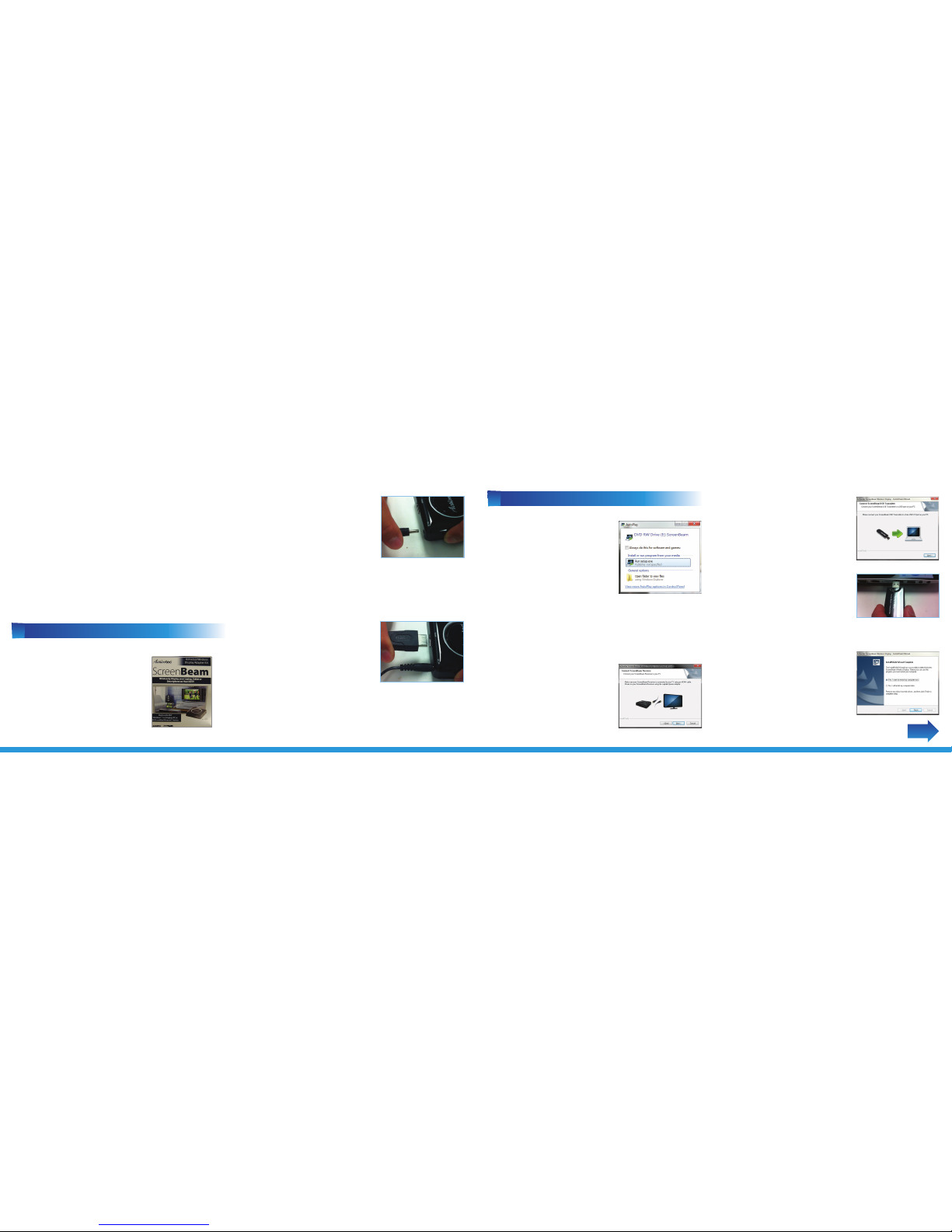

Welcome! Step2Plug one end of the power

cord into the power port on the

back of the Receiver.

Plug the other end into a nearby

electrical outlet.

Step3Plug one end of the HDMI

cable into the HDMI port on the

back of the Receiver.

Plug the other end into an HDMI

port on your HDTV.

Make sure your HDTV is set to the

same HDMI port to which you

connected the Receiver.

Flip this Guide over to continue

AInstall the Receiver

Congratulations on your purchase of a ScreenBeam Wireless

Display adapter kit. The ScreenBeam kit lets you wirelessly

display your Windows 7 or 8 laptop or WiDi/Miracast device

on your HDTV.

BInstall the Software and Transmitter

Step2When you see the screen

shown on the right, make sure

you’ve completed the steps in

section A of this Guide.

Then, continue to follow the

onscreen instructions.

Step4Insert the ScreenBeam

Transmitter into a USB port on

your computer, then click Next.

Step1Get the ScreenBeam

Receiver, power cord, and HDMI

cable from the ScreenBeam box.

Step1Insert the ScreenBeam CD

into the CD drive of a computer.

An AutoPlay window appears on

the computer’s screen.

Click Run setup.exe, then follow

the onscreen instructions.

Note: If you don’t see the AutoPlay

screen, locate your CD-ROM folder

from Windows Explorer and then double-click on setup.exe.

If your computer does not have a CD/DVD drive, go to

www.actiontec.com/screenbeam to download the

ScreenBeam software.

Important Note: If you’re connecting to a device that has

built-in Miracast™ or Intel’s WiDi™ (3.5 or higher), you’ll only need

to complete section A of this Quick Start Guide. After

completing the steps in section A, go to the end of this Guide for

additional information about Miracast and Intel WiDi devices.

Step3When you see the screen

shown on the right, get the

ScreenBeam Transmitter from the

ScreenBeam box.

Note: If the Transmitter was already

connected to the computer prior to

step 4, unplug it, then plug it back in.

Step5Click on the button next to

“Yes, I want to restart my computer

now,” then click Finish.

Your computer reboots.
