INVICTUS

Dear Acoustic-Signature customer, thank you for purcha-

sing your INVICTUS record player.

With the purchase of your new record player you have

acquired a precision instrument for the playing of records.

To make the replay sound perfect, some attention is ne-

cessary in the setup and handling of your new machine.

The manufacturing and assembly of this turntable takes

place completely in Germany, using the highest enginee-

ring standards - this guarantees you a trouble free high

quality musical experience for years to come. Understan-

dably, you want to start listening to music immediately, we

ask you however to read this short Operation Manual, so

that you can get the best out of your INVICTUS.

We have tried to put all the necessary information you

require in this manual. If you should have any further

questions, then you may contact us directly at

www.acoustic-signature.com or e-mail: info@as-distribu-

tion.de

Conformity Decl r tion

We acknowledge that the device described in this instruc-

tion manual corresponds to all valid EEC guidelines at

the time of printing, and is CE marked.

W rr nty

Acoustic-Signature manufacturer warranty: We commit

ourselves to replace any faulty components in this device

Setup

Parts

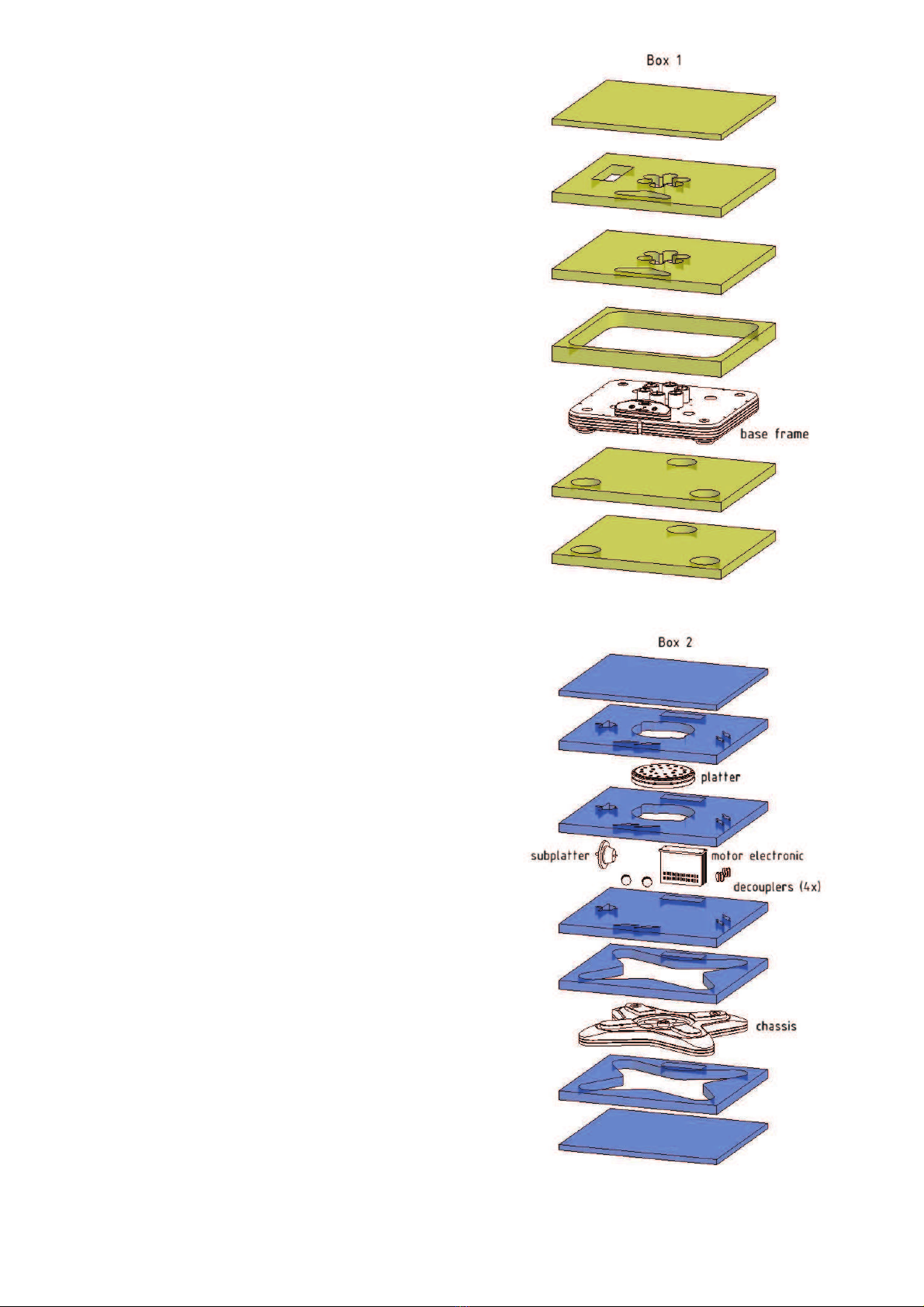

Setup of the turntable / explosion drawing of

packing

1. Placing the base frame

2. eveling the base frame

3. Mounting the decouplers

4. Placing the chassis on top

5. Subplatter

free of charge if it should fail within the guarantee period.

The warranty amounts to 10 years for the bearing and 2

year for the rest of the turntable, from the date of pur-

chase from new and through an authorised Acoustic-Sig-

nature Dealer. The manufacturer’s warranty going beyond

the legal 12 month period.

In the unlikely event of a defect occurring in your device

within the guarantee period, you should inform Acoustic-

Signature or your dealer, explaining the problem. Acous-

tic-Signature will decide whether to exchange or repair

the defective component. Damage from new due to trans-

port damages will not affect the warranty period. The war-

ranty extends only to the turntable and the motor inclusive

power pack. If a tone arm and cartridge has been sup-

plied factory fitted, the warranty for those parts is granted

by the respective manufacturer. Warranty is valid only for

the first owner of the turntable.

Use of the turnt ble

Your turntable has been built to be used indoors. Make

sure that there is no water or high humidity close to the

turntable or the Motor electronic.

In any case of damage or if you have a question please

contact your local Dealer, your Distributor, or Acoustic-

Signature directly.

6. Mounting the belts

7. Mounting the platter

8. Connecting the electronic

9. Operating the turntable

10. Changing armboards

Setup of the turnt ble / explosion dr wing of

p cking

To avoid damage during transport your turntable comes

carefully packed. Unpack all the parts in the 2 boxes.

Please be aware that the parts of the INVCITUS are

very heavy.

Ensure that a second person is available to assist you.

1. Pl cing the b se fr me

Place the base frame on top of your desired stand or

rack.

Please ensure that the rack is able to handle the total

weight of the INVICTUS which is arround 142 kg or

313 lb!

2. Leveling the b se fr me

To level the base frame place a bubble level on top of

the plate and turn the two front feets and the feet in the

middle of the backside clockwise or counter clockwise

to level the turntable.

clockwise = player moves upward

counter clockwise = player moves downward

3. Mounting the decouplers

Please mount now the decouplers into the four

designated circular pockets.

4. Pl cing the ch ssis on top

Please carefully take out the chassis (ask a second

person for help) and put it on the top of the base

frame. Ensure that the four circular pockets in the

bottom of the chassis fit onto the decouplers.

5. Subpl tter

Take the subplatter and insert it into the bearing like

shown on the picture on the right side.

Do not let it drop into the bearing hole. This may

damage the bearing.

6. Mounting the belts

Place the four provided belts around the pulleys and the

subplatter like shown in the pictures. Each belt must be

placed around three. Start mounting the belts at the

lowest groove (groove 4) of the pulley.

Do not use sharp tools or pointet tweezers.This may

damage the belts.

7. Mounting the pl tter

Place the platter carefully on top of the subplatter as

shown in the picture. Make sure that both cones are

free of any dirt. This may affect the precise run

of your turntable.

Please keep in mind that the platter weighs approx.

19 kg or 42 lb. Perhaps ask someone to assist.

Do not let the platter drop on the subplatter

as this may damage the bearing.

6.1 Mounting the belts

Belt no. 4 (red), mounted in groove 4, and belt no. 2

(green), mounted in groove 2, run around motors 1, 3, 5.

Belt no. 3 (ebony), mounted in groove 3, and belt no. 1

(blue), mounted in groove 1, run around motors 2, 4, 6.

Note: the mentioned colours are only for explanation

in this document. Real belts are black!

ooking on top of your INVICTUS after mounting the

belts it will look like this.

10. Ch nging rmbo rds

Your INVICTUS is able to handle up to four tonarms at

the same time. To change the armboards simply open

and remove the 2 screws in the middle of the armboard.

9. Oper ting the turnt ble

Operating you new INVICTUS is easy. To turn it on

simply press the left button on the operating panel.

The turntable will start with the last used speed. To

change speed press the right button and the speed will

change automatically.

During the speed up of the platter you will hear some

noise which will disappear after some seconds. This is

normal and caused by giving the motors more power

during speed up to decrease the time the platter needs

to reach its final speed.

8. Connecting the motor electronic

Use the provided blue and red cables to connect the

motor electronic and the turntable. Both units have

clearly marked blue and red sockets on their backside.

You can place the motor electronic at any place you

want. Please take care to avoid signal cables to cross

the red or blue cables if possible.

Acoustic-Sign ture

Made by AS-Distribution GmbH

Hillenbrand Straße 10

D-73079 Süssen

Tel: +49 7162 9474450

F x: +49 7162 9474459

www.acoustic-signature.com

E-M il: [email protected]

Dimensions

H 34,0 cm W 80,0 cm D 70,0 cm

Weigth: turntable approx. 142 kg / 313 lb

rack approx. 175 kg / 386 lb
