Acnodes M3716 Manual de usuario

661 Brea Canyon Rd., Suite 3

Walnut, CA 91789

tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com

are subject to change without notice. For latest product information,

please visit Acnodes’ web site at www.acnodes.com.

M3716

17” 1U rack mount LCD keyboard drawer

with 16 port Cat6 KVM Switch

User Manual

M37161U17"rackmount monitorkeyboarddrawer

withincluded16portCat6KVMswitch

are subject to change without notice. For latest product information,

please visit Acnodes’ web site at www.acnodes.com.

M3716

17” 1U rack mount LCD keyboard drawer

with 16 port Cat6 KVM Switch

661 Brea Canyon Rd., Suite 3

Walnut, CA 91789

tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com

Chapter 1 Getting Started

1.1 Important safeguards......................................................................1

1.2 Regulatory notice............................................................................2

1.3 Specifications..................................................................................3

1.4 Diagram..........................................................................................4

1.5 How to install “One-Man” installation slides into rack....................5

1.6 How to install “One Man” installation slides...................................6

1.7 How to use rails...............................................................................7

1.8 Keyboard and Mouse........................................................................8

1.9 Optional accessories..........................................................................9

Chapter 2 Operation

2.1 On-screen display operation.........................................................10

2.2 On-screen menu...........................................................................11

Chapter 3 Optional Specification

3.1 DC power options.........................................................................12

Chapter 4 KVM

4.1 KVM Specifications.....................................................................13

4.2 Connections................................................................................14

4.3 Connections KVM Module..........................................................15

4.4 Cascade KVM Modules................................................................16

4.5 Receiver Box..............................................................................17

4.6 Receiver Connection...................................................................18

4.7 Front Panel Port LED Indicators................................................19

4.8 Password.....................................................................................20

4.9 OSD Menu..................................................................................21

4.10 Main Menu.................................................................................22

4.11 Local Console Key......................................................................23

4.12 Remote Console Key...................................................................23

4.13 KVM Cables................................................................................24

4.14 Optional Items............................................................................25

Index

661 Brea Canyon Rd., Suite 3

Walnut, CA 91789

tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com

are subject to change without notice. For latest product information,

please visit Acnodes’ web site at www.acnodes.com.

M3716

17” 1U rack mount LCD keyboard drawer

with 16 port Cat6 KVM Switch

1.1 ImportantSafeguards

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

What the warranty does not cover

- Any product, on which the serial number has been defaced, modified or removed.

- Damage, deterioration or malfunction resulting from:

-Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modifi- cation, or failure to follow instruc-

tions supplied with the product.

- Repair or attempted repair by anyone not authorized by us.

- Any damage of the product due to shipment.

- Removal or installation of the product.

- Causes external to the product, such as electric power fluctuation or failure.

- Use of supplies or parts not meeting our specifications.

- Normal wear and tear.

- Any other causes which does not relate to a product defect.

- Removal, installation, and set-up service charges.

CHAPTER 1

are subject to change without notice. For latest product information,

please visit Acnodes’ web site at www.acnodes.com.

M3716

17” 1U rack mount LCD keyboard drawer

with 16 port Cat6 KVM Switch

661 Brea Canyon Rd., Suite 3

Walnut, CA 91789

tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com

1.2 Regulatory Notice

LegalInformation

First English printing, October 2010

Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents.

The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

Safety Instructions

1 Unplug equipment before cleaning. Don't use liquid or spray detergent; use a moist cloth.

2 Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned

environment with temperatures not exceeding 40º Celsius (104º Fahrenheit).

3 When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing damage to other equipment or injury

to persons nearby.

4 When the drawer is in an open position, do not cover, block or in any way obstruct the gap between it and the power supply. Proper air convection

is necessary to keep it from overheating.

5 Arrange the equipment's power cord in such a way that others won't trip or fall over it.

6 If you are using a power cord that didn't ship with the equipment, ensure that it is rated for the voltage and current labeled on the equipment's

electrical ratings label. The voltage rating on the cord should be higher than the one listed on the equipment's ratings label.

7 Observe all precautions and warnings attached to the equipment.

8 If you don't intend on using the equipment for a long time, disconnect it from the power outlet to prevent being damaged by transient over-voltage.

9 Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power supply or on other hardware

may cause damage, fire or electrical shock.

10 Only qualified service personnel should open the chassis. Opening it yourself could damage the equip- ment and invalidate its warranty.

11 If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.

RegulatoryNotices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful

interference in a residential installation.

Any changes or modifications made to this equipment may void the user's authority to operate this

equipment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

661 Brea Canyon Rd., Suite 3

Walnut, CA 91789

tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com

are subject to change without notice. For latest product information,

please visit Acnodes’ web site at www.acnodes.com.

M3716

17” 1U rack mount LCD keyboard drawer

with 16 port Cat6 KVM Switch

1.3 Specifications

Display size:

17 inches

Panel type:

ActiveMatrixTFT LCD

Resolution capabilities:

Maximum Resolution up to 1280 x 1024 (SXGA)

Brightness:

White 300 cd/m2

Contrast ratio:

1000:1

Supported colors:

16.2M Colors (6-bit withFRC)

Viewing angle:

Right-Left view60° ~70°(Typ)

Up-DownView 45° ~60°(Typ)

Display Area:

338 mm x 270 mm

Response Time: Response time:

RisingTime 1.3ms

LCDMTBF:

50,000hours

VGA Signal Input:

AnalogH/V, Co1.3Diagrammposite, SOG

Resolution:

64x400 / 720x400: 70Hz

640x480 / 800x600 / 1280x1024:60/70/72/75Hz

1024x768/ 1152x864 /1280x720: 60/70/75Hz

Video Input:

15-pinD-subVGAinput

Horizontal synchronization: 64 - 80 KHz(Typ.)

Vertcal Synchroniation:60-75 Hz(Typ.)

Plus & Play DCC:

EDID1.3

Power Input:

Auto-sensing 100 to 240VAC, 50/60Hzpower

LCD power consumption:

Max. 48Watts, standby 5 Watts

Drawer Design:

1Ulowprofileclamp-typemoduledesign

Self-lock fixed-position slide rail

Adjustablerear mounting rails up to 34-inches deep

Security Handle Lock:

Hard-plastic molded handle with 2 x positions lock

Keyboard & Mouse:

104-keys keyboard with touch pad / track-ball (optional) PS/2

or USB

Package Dimension:

442 x 650 x 44 mm / 17.4 x 25.6 x 1.73 inches

GrossWeight:

35lbs

Certification:

CE / FCC

Operation temperature:

0 ~ 50°C / 32 ~ 122°F

Storage temperature:

-5 ~ 60°C / -4 ~ 140°F

Humidity:

5~90%,non-condensing

Shock:

10Gacceleration(11msduration)

Vibration:

5~500Hz1GRMSrandom vibration

Touchscreen:

Resistive /Capacitive touch screen, USB or RS-232

DC power input:

12 / 24 / 48VDC power input

are subject to change without notice. For latest product information,

please visit Acnodes’ web site at www.acnodes.com.

M3716

17” 1U rack mount LCD keyboard drawer

with 16 port Cat6 KVM Switch

661 Brea Canyon Rd., Suite 3

Walnut, CA 91789

tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com

1.3 Diagram

1. Carry handle to release the 2-pt lock

2. LCD interchangeable module kit

3. “One Man” Installation Slides

4. LCD membrane

5. Membrane switch (KVM option)

6. Micro switch for screen auto power off

7. Keyboard interchangeable module kit

8. Mouse interchangeable module kit

1.4 Diagram

661 Brea Canyon Rd., Suite 3

Walnut, CA 91789

tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com

are subject to change without notice. For latest product information,

please visit Acnodes’ web site at www.acnodes.com.

M3716

17” 1U rack mount LCD keyboard drawer

with 16 port Cat6 KVM Switch

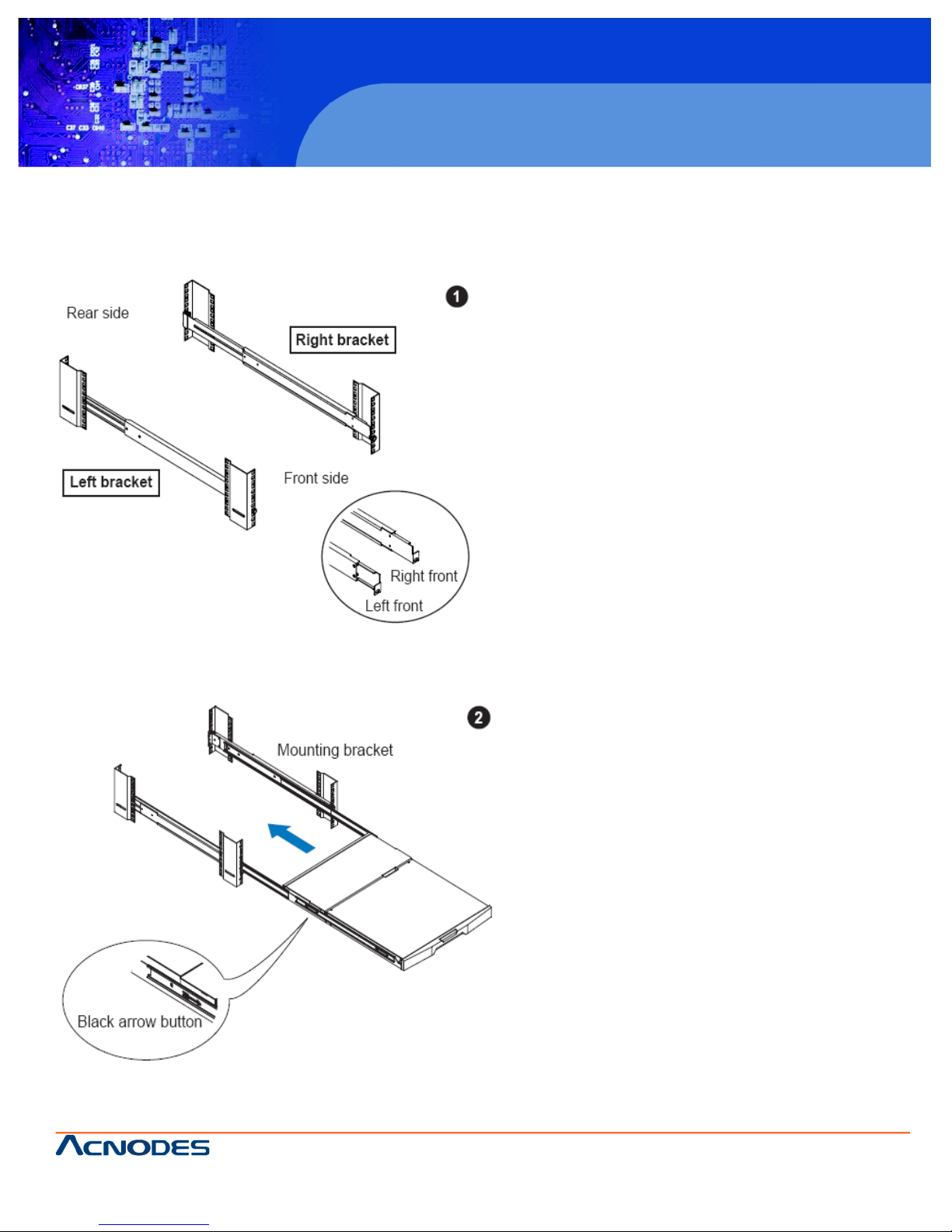

Attach the left and right mounting bracket to rack 19"

mounting rails.

Adjust the rear mounting bracket to fit your rack.

M6 screw and cup washer x 6 piece included.

Caution : Leaving the screws slightly loose, until

you complete the installation in step 4

Pick up the LCDkeyboard drawer.

Insert the LCD keyboard drawer into the mounting bracket.

Pull and hold the left & right black arrow buttons on the rails.

Return the LCD keyboard drawer to park position

1.5 How toInstall “OneMan” Installation Slides into rack

are subject to change without notice. For latest product information,

please visit Acnodes’ web site at www.acnodes.com.

M3716

17” 1U rack mount LCD keyboard drawer

with 16 port Cat6 KVM Switch

661 Brea Canyon Rd., Suite 3

Walnut, CA 91789

tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com

Attach front left and right mounting ears of the LCD

keyboard drawer to vertical mounting rails.

? M6 screw and cup washer x 2 pcs included.

Complete the installation

? Tighten all 8 piece of M6 screwto complete the installation

1.6 How to Install “One Man” Installation Slides

661 Brea Canyon Rd., Suite 3

Walnut, CA 91789

tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com

are subject to change without notice. For latest product information,

please visit Acnodes’ web site at www.acnodes.com.

M3716

17” 1U rack mount LCD keyboard drawer

with 16 port Cat6 KVM Switch

?Ablack arrow release button is

located on the outside of each

slide. (shown in Figure 1).

Pull and hold the black arrow button on

either side of the LCD keyboard drawer to

unlock. (shown in Figure 2).

? Push the LCD keyboard drawer into

the rack. (shown in Figure 3).

Caution : Keep your fingers away from

the slide stop

1.7 How to Use the Slides

are subject to change without notice. For latest product information,

please visit Acnodes’ web site at www.acnodes.com.

M3716

17” 1U rack mount LCD keyboard drawer

with 16 port Cat6 KVM Switch

661 Brea Canyon Rd., Suite 3

Walnut, CA 91789

tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com

1.8 Keyboard and Mouse

STANDARD:

OPTIONAL:

Tabla de contenidos

Otros manuales de Cajón de LCD de Acnodes

Acnodes

Acnodes MKD9172M Manual de usuario

Acnodes

Acnodes MKD9172D Manual de usuario

Acnodes

Acnodes KDH81712 Manual de usuario

Acnodes

Acnodes RP 1205 Manual de usuario

Acnodes

Acnodes KDI 8198 Manual de usuario

Acnodes

Acnodes KD 8191 Manual de usuario

Acnodes

Acnodes KD 5190 Manual de usuario

Acnodes

Acnodes RPH1170 Manual de usuario

Acnodes

Acnodes KDS 6178 Manual de usuario

Acnodes

Acnodes RP30173 Manual de usuario

Acnodes

Acnodes KD84174 Manual de usuario

Acnodes

Acnodes KD 51916 Manual de usuario

Acnodes

Acnodes KD82234 Manual de usuario

Acnodes

Acnodes MKD9172 Manual de usuario

Acnodes

Acnodes KDM 7190 Manual de usuario

Acnodes

Acnodes RP 1175 Manual de usuario

Acnodes

Acnodes KDN9172 Manual de usuario

Acnodes

Acnodes MKD6017U Manual de usuario

Acnodes

Acnodes RP1150 Series Manual de usuario

Acnodes

Acnodes MKD6019D Manual de usuario

Acnodes

Acnodes KD 8191 Manual de usuario

Acnodes

Acnodes RP 1200 Manual de usuario

Acnodes

Acnodes KD 8150 Manual de usuario

Acnodes

Acnodes RPH1193 Manual de usuario

Manuales populares de Cajón de LCD de otras marcas

Ameriwood

Ameriwood 9524328PCOM Manual de usuario

Kesseböhmer

Kesseböhmer TANDEM solo Manual de usuario

Crystal Image Technologies

Crystal Image Technologies RMD-151-A Series Manual de usuario

APW Wyott

APW Wyott Ease Extreme HDX-1-120 Manual de usuario

NTI

NTI RACKMUX-V17-N Manual de usuario

Austin Hughes

Austin Hughes CyberView L120 Manual de usuario

Uplift Desk

Uplift Desk STR018 Manual de usuario

StarTech.com

StarTech.com DuraView RACKCONS1501 Manual de usuario

Mocka

Mocka Mischa Manual de usuario

GRASS

GRASS DWD XP Manual de usuario

StarTech.com

StarTech.com DuraView RACKCONS1701 Manual de usuario

Fisher & Paykel

Fisher & Paykel IZONA CoolDrawer RB36S Manual de usuario

Synergy Global Technology

Synergy Global Technology LCD1U17-44 Manual de usuario

Fujitsu

Fujitsu RC25 Manual de usuario

I-Tech

I-Tech RKP115 Manual de usuario

iTech Company

iTech Company AMil-1900-D12e-AC Manual de usuario

Raloy

Raloy Slim 1U Rackmount Manual de usuario

MAVIS

MAVIS Falsterbo Chest Of Drawers Manual de usuario
